Cisco Catalyst C2960X-24PDL, Refurbished Managed L2 Gigabit Ethernet (10/100/1000) Power over Ethernet (PoE) 1U Black

Cisco Catalyst C2960X-24PDL, Refurbished Managed L2 Gigabit Ethernet (10/100/1000) Power over Ethernet (PoE) 1U Black

Cisco
£2,813.99
Stock Available: 0
  • Managed L2 Web-based management SNMP v1/v2c/v3, RMON I/II
  • Quality of Service (QoS) support
  • Basic switching RJ-45 Ethernet ports quantity: 24 Console port: RJ-45
  • 10G support
  • MAC address table: 16000 entries Switching capacity: 216 Gbit/s
  • Access Control List (ACL)
  • 1U Rack mounting Stackable
  • Power supply included Power over Ethernet (PoE)

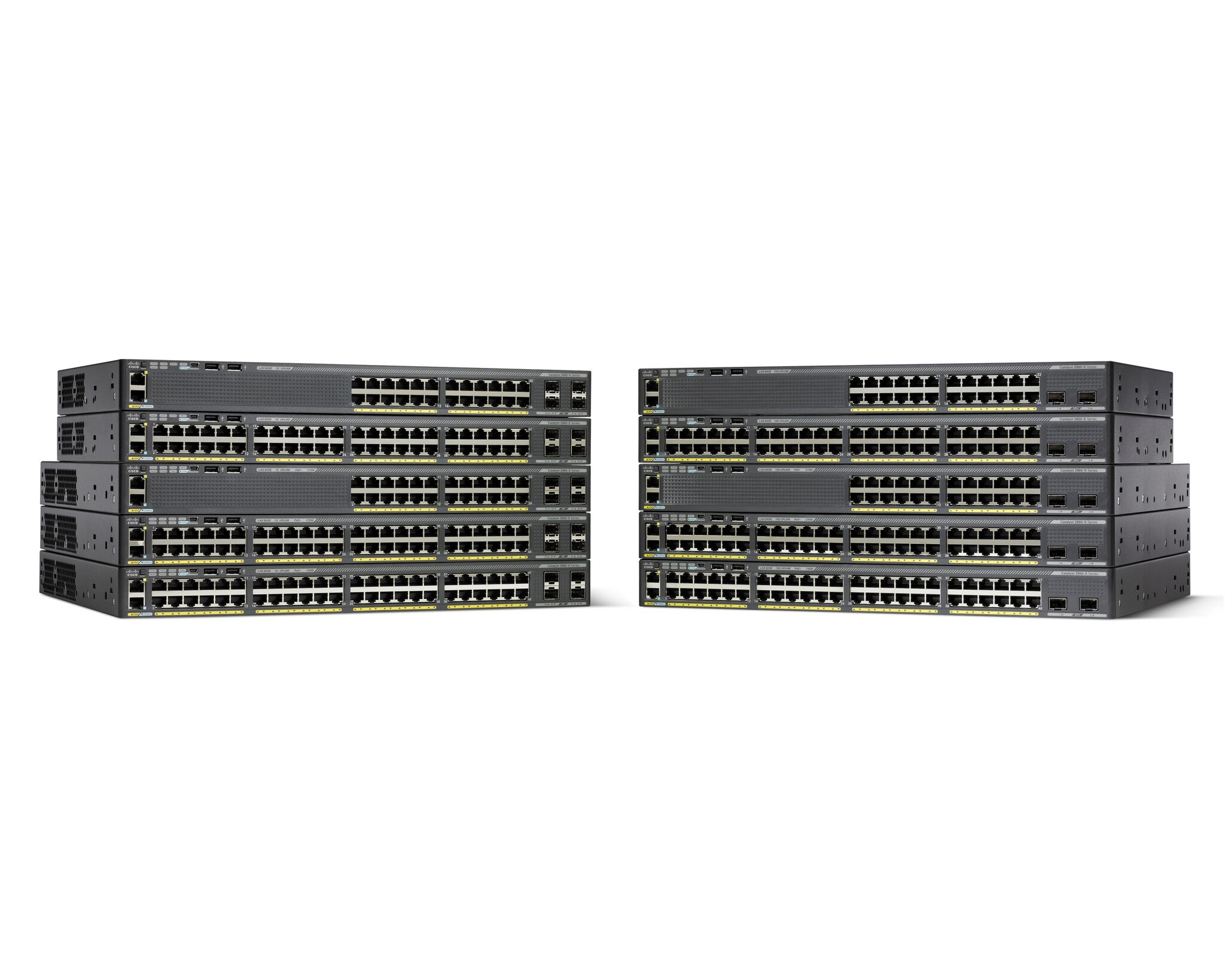

Cisco® Catalyst® 2960-X Series Switches are fixed-configuration, stackable Gigabit Ethernet switches that provide enterprise-class access for campus and branch applications (Figure 1). Designed for operational simplicity to lower total cost of ownership, they enable scalable, secure and energy-efficient business operations with intelligent services and a range of advanced Cisco IOS® Software features.

- 24 or 48 Gigabit Ethernet ports with line-rate forwarding performance.
- Gigabit Small Form-Factor Pluggable (SFP) or 10G SFP+ uplinks.
- FlexStack Plus for stacking of up to 8 switches with 80 Gbps of stack throughput (optional).
- Power over Ethernet Plus (PoE+) support with up to 740W of PoE budget.
- Reduced power consumption and advanced energy management features.
- USB and Ethernet management interfaces for simplified operations.
- Application visibility and capacity planning with integrated NetFlow-Lite.
- LAN Base or LAN Lite Cisco IOS® software features.
- Enhanced limited lifetime warranty (E-LLW) offering next-business-day hardware replacement.

Management features
MIB support Y
Web-based management Yes
Quality of Service (QoS) support Yes
Switch layer L2
Switch type Managed
Ports & interfaces
USB 2.0 ports quantity 2
Console port RJ-45
Fiber optic connector SFP+
SFP+ module slots quantity 2
Basic switching RJ-45 Ethernet ports type Gigabit Ethernet (10/100/1000)
Basic switching RJ-45 Ethernet ports quantity 24
Network
Number of VLANs 1023
VLAN support Yes
Link aggregation Yes
Auto MDI/MDI-X Yes
Rate limiting Yes
Broadcast storm control Yes
Spanning tree protocol Yes
Full duplex Yes
10G support Yes
Networking standards IEEE 802.1D, IEEE 802.1Q, IEEE 802.1ab, IEEE 802.1p, IEEE 802.1s, IEEE 802.1w, IEEE 802.1x, IEEE 802.3, IEEE 802.3ab, IEEE 802.3ad, IEEE 802.3ae, IEEE 802.3af, IEEE 802.3ah, IEEE 802.3at, IEEE 802.3u, IEEE 802.3x, IEEE 802.3z
Data transmission
Jumbo frames support Yes
Throughput 95.2 Mpps
Switching capacity 216 Gbit/s
MAC address table 16000 entries
Security
Security algorithms 802.1x RADIUS, SSH
SSH/SSL support Yes
IGMP snooping Yes
Access Control List (ACL) Yes
DHCP features DHCP server
Multicast features
Multicast support Yes
Protocols
Management protocols SNMP v1/v2c/v3, RMON I/II
Design
Safety UL 60950-1, CAN/CSA-C22.2 No. 60950-1, EN 60950-1, IEC 60950-1, AS/NZS 60950-1
On/off switch Yes
LED indicators Yes
Product colour Black
Form factor 1U
Stackable Yes
Rack mounting Yes
Performance
Mean time between failures (MTBF) 325780 h
Noise level 57 dB
Flash memory 128 MB
Internal memory 512 MB
Memory type DRAM
Processor frequency 600 MHz
Built-in processor Yes
Power
Power consumption (typical) 52.3 W
AC input frequency 50 - 60 Hz
AC input voltage 100 - 240 V
Number of power supply units 1
Redundant power supply (RPS) support Yes
Power supply included Yes
Power over Ethernet (PoE)
Total Power over Ethernet (PoE) budget 370 W
Power over Ethernet (PoE) ports quantity 24
Power over Ethernet (PoE) Yes
Operational conditions
Non-operating altitude 0 - 4000 m
Operating altitude 0 - 3000 m
Storage relative humidity (H-H) 10 - 95%
Operating relative humidity (H-H) 10 - 95%
Storage temperature (T-T) -25 - 70 °C
Operating temperature (T-T) -5 - 40 °C
Weight & dimensions
Weight 5.7 kg
Height 45 mm
Depth 368 mm
Width 445 mm
General
Product family Catalyst
Logistics data
Harmonized System (HS) code 85176990
