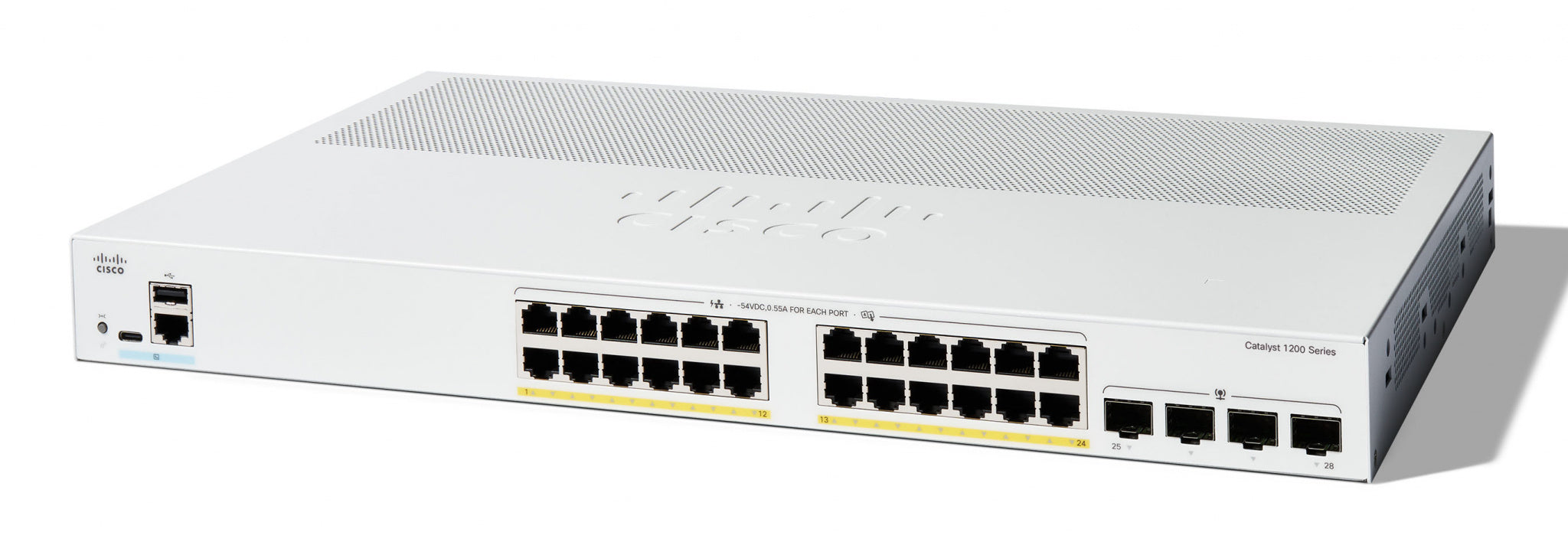

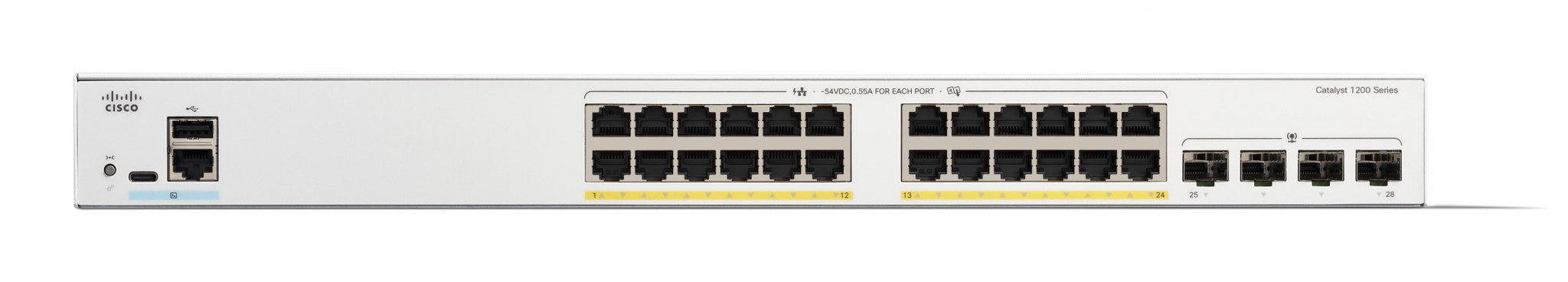

Cisco Catalyst C1200-24P-4G-RF network switch Managed L2 Gigabit Ethernet (10/100/1000) Power over Ethernet (PoE) 1U White
Cisco Catalyst C1200-24P-4G-RF network switch Managed L2 Gigabit Ethernet (10/100/1000) Power over Ethernet (PoE) 1U White
Cisco Catalyst C1200-24P-4G-RF network switch Managed L2 Gigabit Ethernet (10/100/1000) Power over Ethernet (PoE) 1U White
Cisco Catalyst C1200-24P-4G-RF network switch Managed L2 Gigabit Ethernet (10/100/1000) Power over Ethernet (PoE) 1U White

Cisco Catalyst C1200-24P-4G-RF network switch Managed L2 Gigabit Ethernet (10/100/1000) Power over Ethernet (PoE) 1U White

Cisco
£141.99
Stock Available: 0
  • Managed L2 Web-based management
  • Quality of Service (QoS) support Configuring Location Settings (CLI)
  • Basic switching RJ-45 Ethernet ports quantity: 28 Console port: RJ-45/USB Type-C
  • MAC address table: 8000 entries Switching capacity: 56 Gbit/s
  • 512 Access Control List (ACL)
  • 1U Rack mounting
  • AC Power supply included Power over Ethernet (PoE)

The Cisco Catalyst 1200-24P-4G switch is the next generation of affordable, smart switches that combine powerful network performance, security and reliability with a comprehensive suite of network features you need for a solid small business network.

Management features
MIB support Y
ARP inspection Yes
Configuring Location Settings (CLI) Yes
Web-based management Yes
Quality of Service (QoS) support Yes
Switch layer L2
Switch type Managed
Ports & interfaces
Console port RJ-45/USB Type-C
SFP module slots quantity 4
Basic switching RJ-45 Ethernet ports type Gigabit Ethernet (10/100/1000)
Basic switching RJ-45 Ethernet ports quantity 28
Network
Number of VLANs 255
VLAN support Yes
Link aggregation Yes
Flow control support Yes
Broadcast storm control Yes
Ethernet LAN data rates 1000 Mbit/s
Spanning tree protocol Yes
Head-of-line (HOL) blocking Yes
Port mirroring Yes
10G support No
Networking standards IEEE 802.1D, IEEE 802.1Q, IEEE 802.1p, IEEE 802.1s, IEEE 802.1w, IEEE 802.1x, IEEE 802.3ad, IEEE 802.3az
Data transmission
Packet buffer memory 1.5 MB
Jumbo frames 9000
Jumbo frames support Yes
Number of static routes 32
Static route Yes
Number of queues 8
Forwarding rate 41.66 Mpps
Switching capacity 56 Gbit/s
MAC address table 8000 entries
Security
Loop protection Yes
Security algorithms 802.1x RADIUS
Authentication Guest VLAN
Authentication type RADIUS
Queue scheduling algorithms Weighted Round Robin (WRR)
MAC address filtering Yes
SSH/SSL support Yes
DoS attack prevention Yes
IGMP snooping Yes
IGMP entries 255
Access Control List (ACL) rules 512
Access Control List (ACL) Yes
DHCP features DHCP client
Multicast features
Multicast support Yes
Protocols
GARP VLAN Registration Protocol (GVRP) Yes
Design
LED indicators Yes
Reset button Yes
Housing material Metal
Product colour White
Form factor 1U
Rack mounting Yes
Performance
Mean time between failures (MTBF) 698220 h
Firmware upgradeable Yes
Flash memory 512 MB
Internal memory 1000 MB
Memory type DDR4-SDRAM
Processor frequency 1.4 MHz
Built-in processor Yes
Power
Power plug type Type C
Power consumption (typical) 10.65 W
AC input frequency 50/60 Hz
AC input voltage 100 - 240 V
Power supply included Yes
Power source AC
Power over Ethernet (PoE)
Total Power over Ethernet (PoE) budget 195 W
Power over Ethernet (PoE) Yes
Operational conditions
Storage relative humidity (H-H) 10 - 90%
Operating relative humidity (H-H) 10 - 90%
Storage temperature (T-T) -25 - 70 °C
Operating temperature (T-T) -5 - 50 °C
Weight & dimensions
Weight 3.53 kg
Height 43.9 mm
Depth 444.5 mm
Width 298.7 mm
Packaging data
Package weight 5.82 kg
Package height 105.9 mm
Package depth 575.1 mm
Package width 430 mm
General
Product family Catalyst
Certificates
Certification UL (UL 62368), CSA (CSA 22.2), CE mark, FCC Part 15 (CFR 47) Class A
Logistics data
Country of origin China
