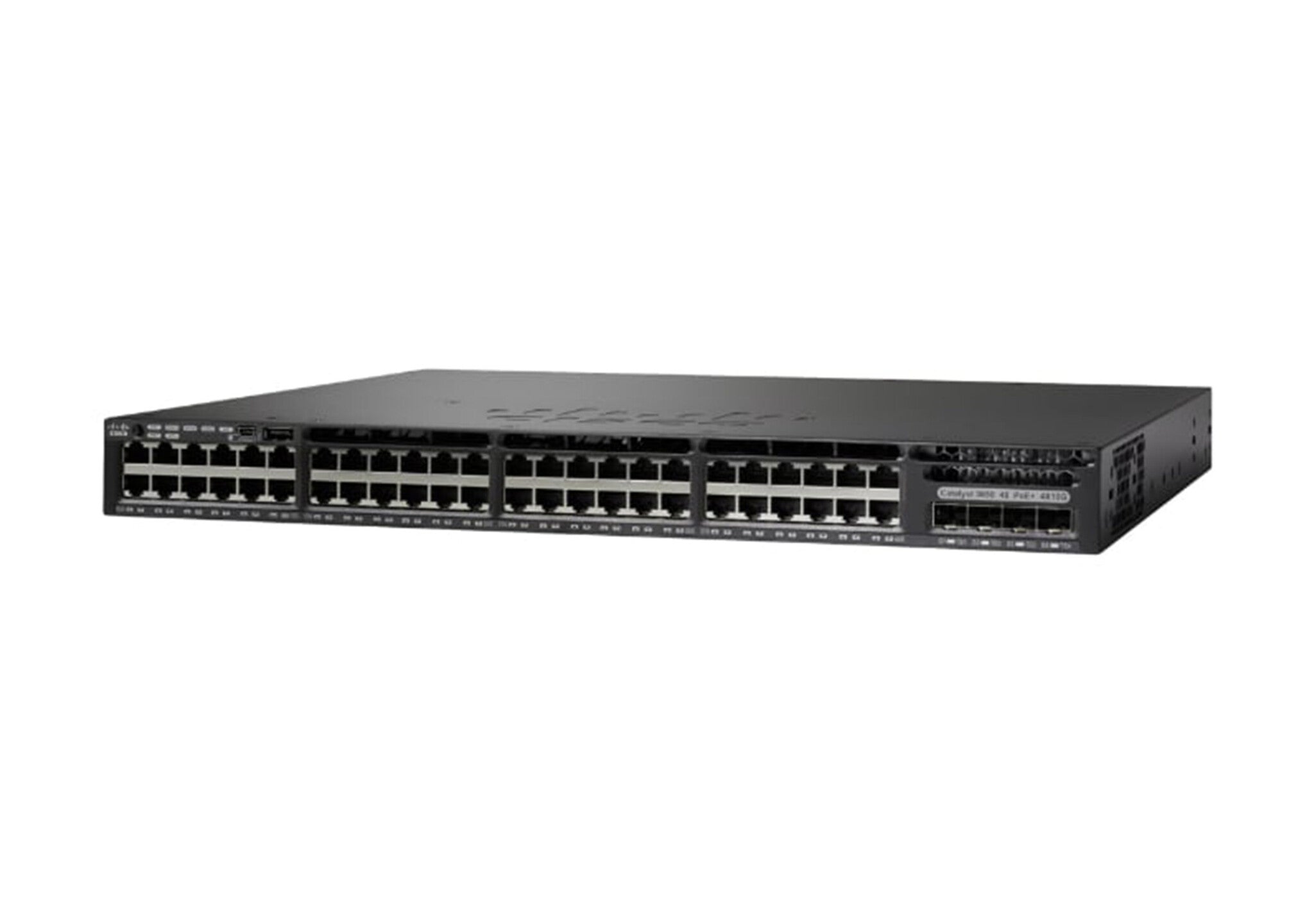

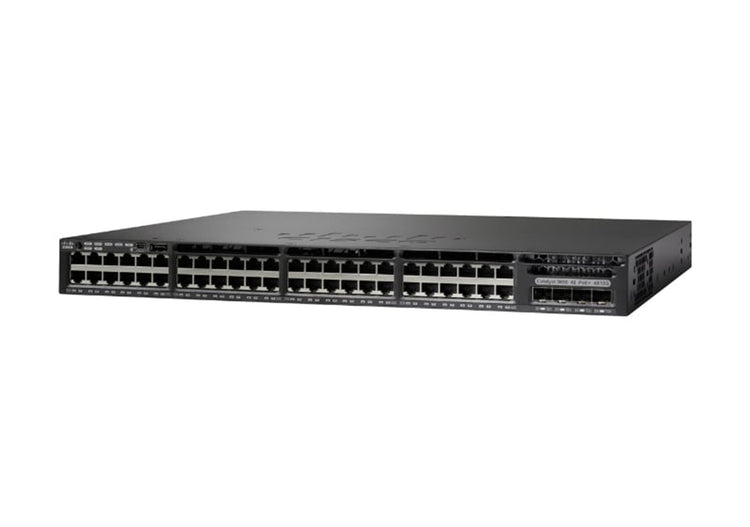

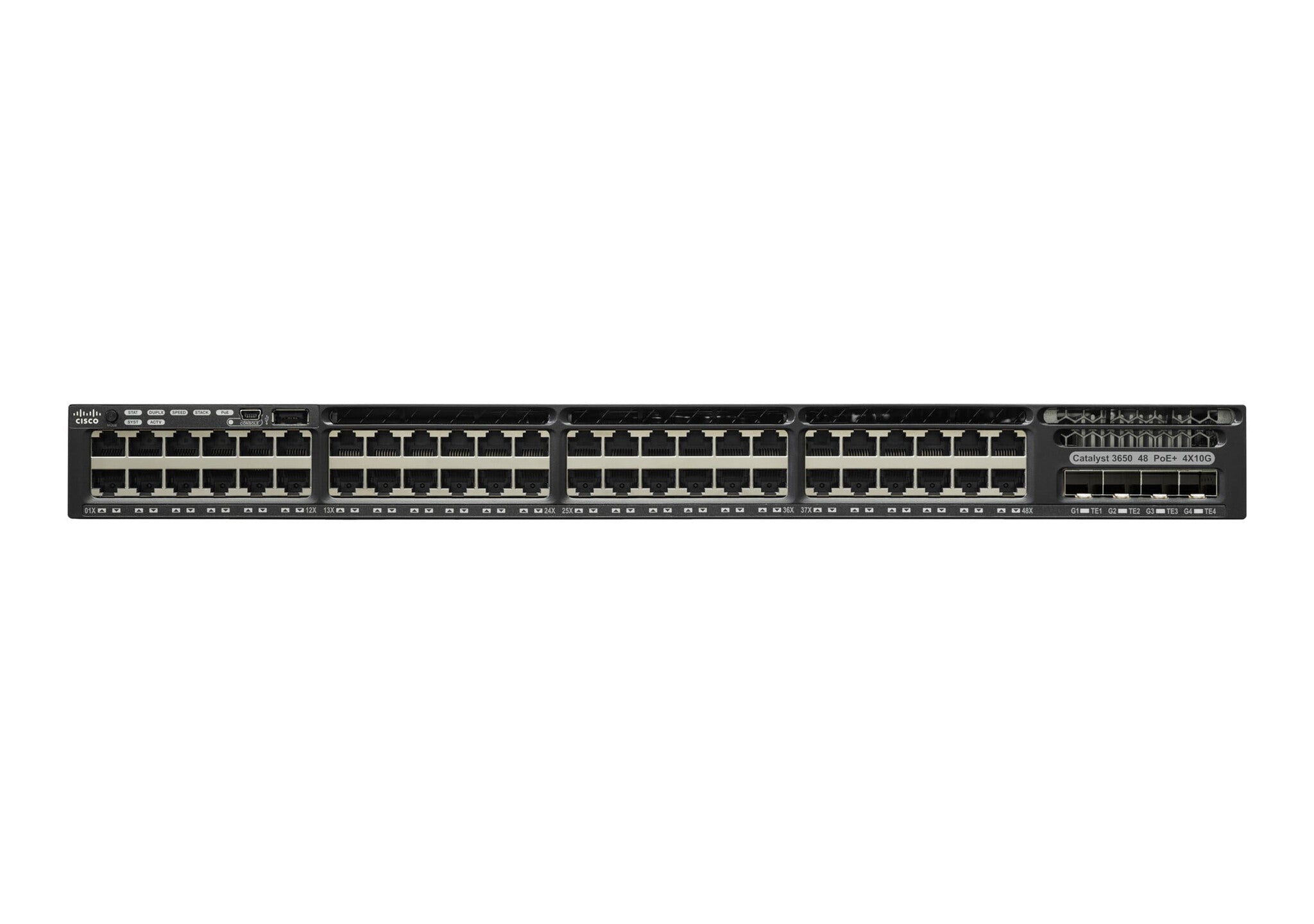

Cisco Catalyst 3650-48PS-L Network Switch, 48 Gigabit Ethernet (GbE) PoE+ Ports, four 1 G Uplinks, 640WAC Power Supply, 1 RU, LAN Base Feature Set, Enhanced Limited Lifetime Warranty (WS-C3650-48PS-L)
£8,072.99
Couldn't load pickup availability
- ETHERNET PORT CONFIGURATION: 48 10/100/1000 Gigabit Ethernet (GbE) PoE+ ports; four 1 G uplinks
- SOFTWARE: LAN base feature set
- ADVANCED SECURITY: IEEE 802.1x, DHCP (Dynamic Host Configuration Protocol) snooping, IP Source Guard and control plane protection and WIPSs (wireless intrusion prevention systems)
- COMPACT: Reduced depth of 11.62 inches (29.5 cm) for shallow-depth cabinets
- PEACE OF MIND: Enhanced limited lifetime warranty
The Cisco Catalyst 3650-48PS-L Network Switch is a next-generation, enterprise-class access-layer switch that provides the foundation for full convergence between wired and wireless on a single platform. Standalone or stackable, this switch is built on the advanced Cisco StackWise-160 and takes advantage of the new Cisco Unified Access Data Plane (UADP) application-specific integrated circuit (ASIC).
| Management features | |
|---|---|
| Web-based management | Yes |
| Quality of Service (QoS) support | Yes |
| Switch layer | L3 |
| Switch type | Managed |
| Ports & interfaces | |
|---|---|
| SFP module slots quantity | 4 |
| Basic switching RJ-45 Ethernet ports type | Gigabit Ethernet (10/100/1000) |
| Basic switching RJ-45 Ethernet ports quantity | 48 |
| Network | |
|---|---|
| Number of VLANs | 4094 |
| VLAN support | Yes |
| Link aggregation | Yes |
| Auto MDI/MDI-X | Yes |
| Rate limiting | Yes |
| Spanning tree protocol | Yes |
| IP routing | Yes |
| Full duplex | Yes |
| 10G support | No |
| Networking standards | IEEE 802.1D, IEEE 802.1p, IEEE 802.1Q, IEEE 802.1s, IEEE 802.1w, IEEE 802.1x, IEEE 802.3, IEEE 802.3ab, IEEE 802.3ad, IEEE 802.3af, IEEE 802.3at, IEEE 802.3u, IEEE 802.3x, IEEE 802.3z |
| Data transmission | |
|---|---|
| Jumbo frames support | Yes |
| Switching capacity | 176 Gbit/s |
| MAC address table | 32000 entries |
| Security | |
|---|---|
| SSH/SSL support | Yes |
| IGMP snooping | Yes |
| Access Control List (ACL) | Yes |
| DHCP features | DHCP server |
| Multicast features | |
|---|---|
| Multicast support | Yes |
| Design | |
|---|---|
| Safety | UL 60950-1, CAN/CSA-C22.2 No. 60950-1, EN 60950-1, IEC 60950-1, GOST, NOM |
| Market segment | Business |
| LED indicators | Yes |
| Product colour | Black |
| Form factor | 1U |
| Stackable | Yes |
| Rack mounting | Yes |
| Performance | |
|---|---|
| Mean time between failures (MTBF) | 383760 h |
| Noise level | 48 dB |
| Flash memory | 2000 MB |
| Internal memory | 4096 MB |
| Memory type | DRAM |
| Power | |
|---|---|
| Power plug type | Type C |
| Power consumption (typical) | 64.18 W |
| AC input frequency | 50 - 60 Hz |
| AC input voltage | 100 - 240 V |
| Number of power supply units | 1 |
| Redundant power supply (RPS) support | Yes |
| Power over Ethernet (PoE) | |
|---|---|
| Total Power over Ethernet (PoE) budget | 390 W |
| Power over Ethernet plus (PoE+) ports quantity | 48 |
| Power over Ethernet (PoE) | Yes |
| Other features | |
|---|---|
| Packaging content | WS-C3650-48PS-L Accessory Kit, 1 printed document |
| Bandwidth | 160 Gbit/s |
| Operational conditions | |
|---|---|
| Non-operating altitude | 0 - 5000 m |
| Operating altitude | 0 - 1500 m |
| Operating relative humidity (H-H) | 5 - 96% |
| Storage temperature (T-T) | -40 - 70 °C |
| Operating temperature (T-T) | -5 - 50 °C |
| Weight & dimensions | |
|---|---|
| Weight | 7.6 kg |
| Height | 44 mm |
| Depth | 448 mm |
| Width | 445 mm |
| Packaging data | |
|---|---|
| Package weight | 2.2 kg |
| Package height | 203.2 mm |
| Package depth | 546.1 mm |
| Package width | 520.7 mm |
| General | |
|---|---|
| Product family | Catalyst |
| Technical details | |
|---|---|
| Products per shipping (inner) case | 1 pc(s) |
| Logistics data | |
|---|---|
| Products per master (outer) case | 1 pc(s) |
| Harmonized System (HS) code | 85176990 |
| Country of origin | China |
| Quantity per pack | 1 pc(s) |
