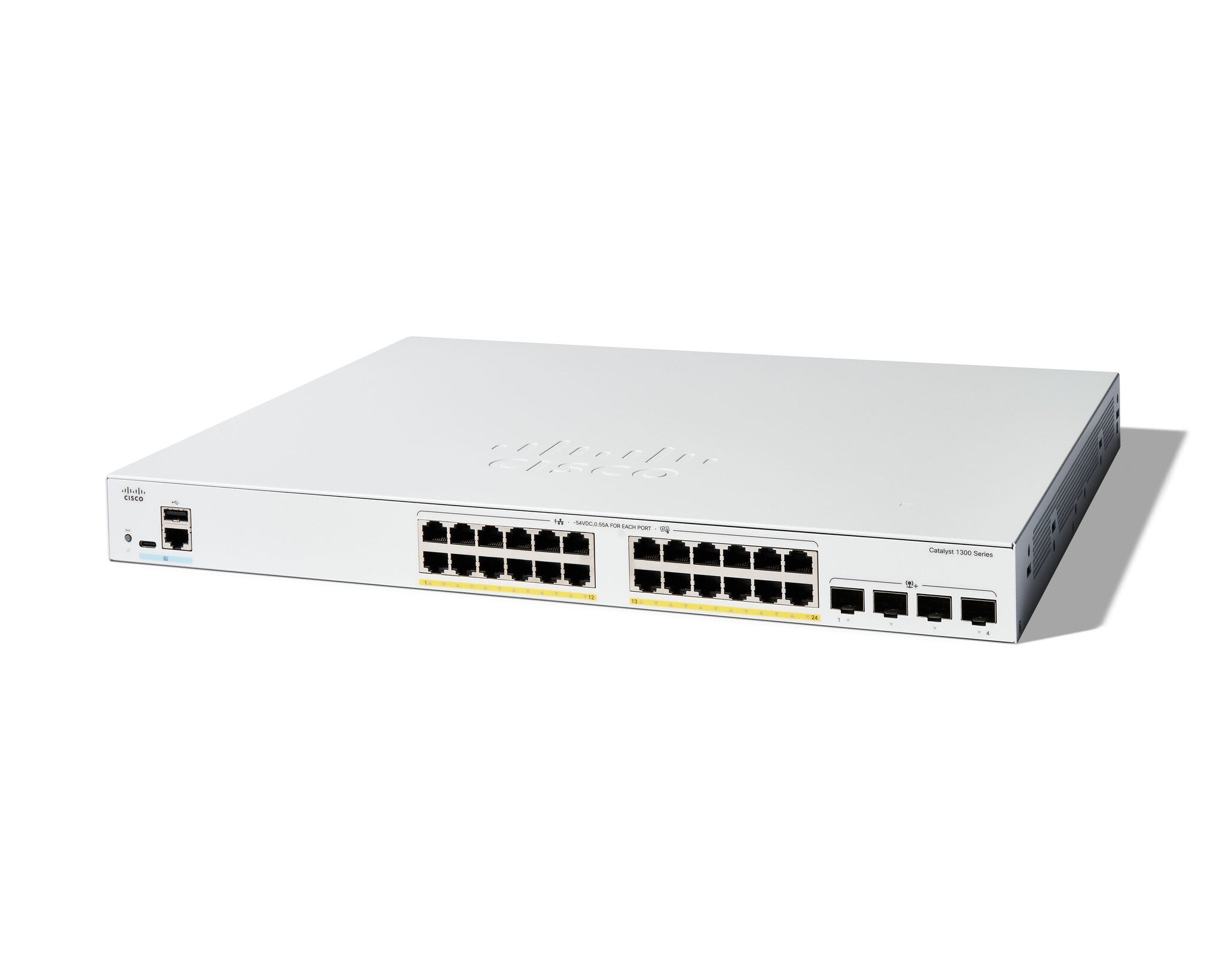

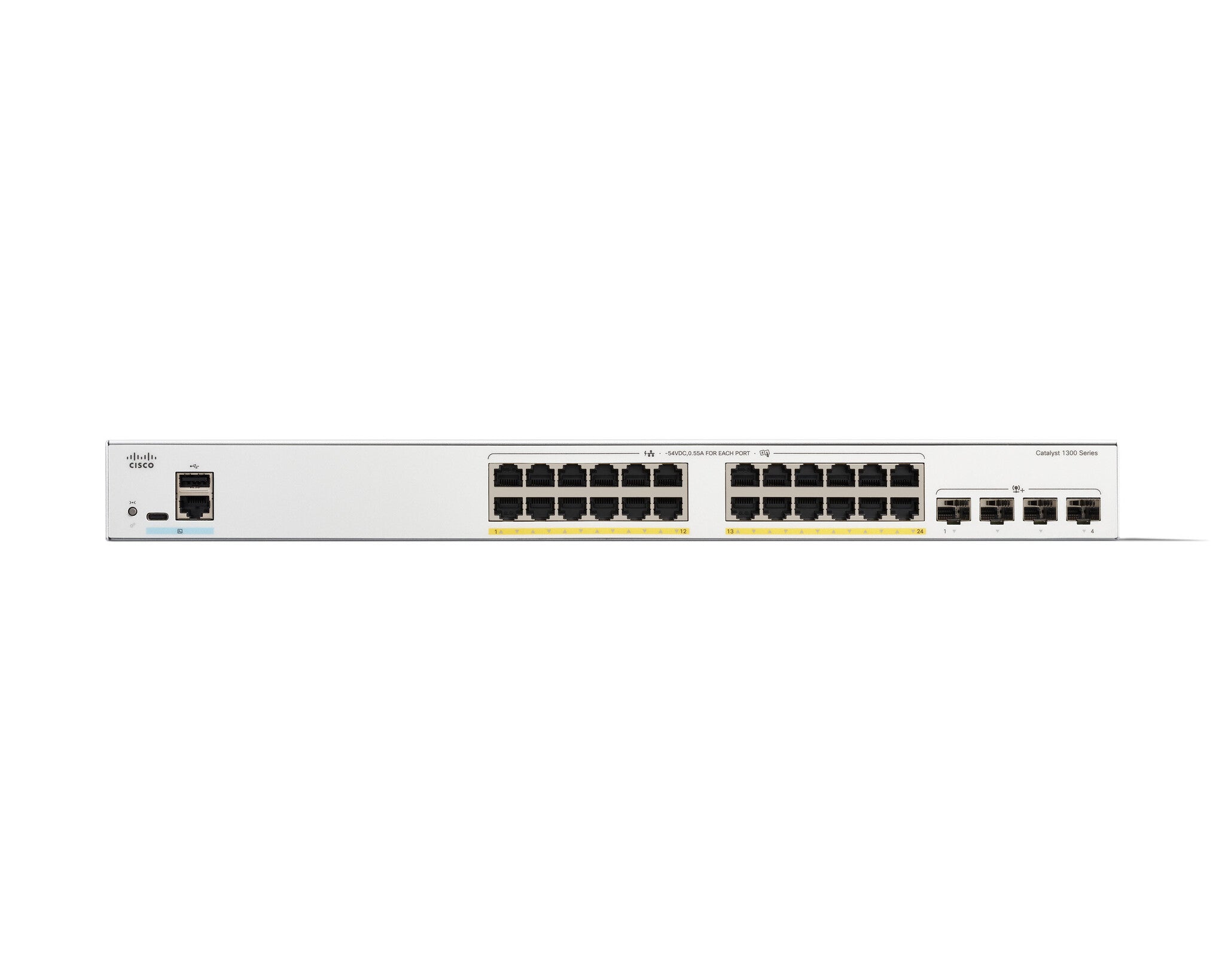

Cisco Catalyst 1300-24FP-4X Managed Switch, 24 Port GE, Full PoE, 4x10GE SFP+, Limited Lifetime Protection (C1300-24FP-4X)
Cisco Catalyst 1300-24FP-4X Managed Switch, 24 Port GE, Full PoE, 4x10GE SFP+, Limited Lifetime Protection (C1300-24FP-4X)
Cisco Catalyst 1300-24FP-4X Managed Switch, 24 Port GE, Full PoE, 4x10GE SFP+, Limited Lifetime Protection (C1300-24FP-4X)
Cisco Catalyst 1300-24FP-4X Managed Switch, 24 Port GE, Full PoE, 4x10GE SFP+, Limited Lifetime Protection (C1300-24FP-4X)

Cisco Catalyst 1300-24FP-4X Managed Switch, 24 Port GE, Full PoE, 4x10GE SFP+, Limited Lifetime Protection (C1300-24FP-4X)

Cisco

iFrame
×
£854.99
Stock Available: 25
  • SWITCH PORTS: 24 ports 10/100/1000 + 4x 10GE SFP+ (total PoE power budget: 375W, PoE, PoE+)
  • SIMPLE: Intuitive Cisco Business mobile app, local web interface and Cisco Business Dashboard allows you to set up, manage and monitor the switch, with step-by-step instructions to install and configure your network in minutes – no IT expertise required
  • ENHANCED SECURITY: IP-MAC port binding detects and blocks deliberate network attacks. IPv6 First Hop Security provides unparalleled protection against a vast range of address spoofing and man-in-the-middle attacks on IPv6 networks
  • ENERGY EFFICIENT: Optimises power usage to lower operational cost. Compliant with IEEE 802.3az Energy Efficient Ethernet. Fanless in select models
  • PERFECT FOR SMALL BUSINESS: Requires no subscription or licences to use, and offers limited lifetime hardware warranty with complimentary 1-year technical support

The Cisco Catalyst 1300-24FP-4X switch is part of the fully managed switch line that delivers reliable and secure connectivity for small business networks. These switches accelerate your digital transformation by delivering full Layer 2/3 capabilities, an intuitive web dashboard, advanced networking features and PoE+ support.

Management features
MIB support Y
Configuring Location Settings (CLI) Yes
Web-based management Yes
Quality of Service (QoS) support Yes
Switch layer L2/L3
Switch type Managed
Ports & interfaces
Console port RJ-45/USB Type-C
SFP module slots quantity 4
Basic switching RJ-45 Ethernet ports type Gigabit Ethernet (10/100/1000)
Basic switching RJ-45 Ethernet ports quantity 24
Network
Virtual LAN features Private VLAN, Voice VLAN
VLAN support Yes
Link aggregation Yes
QinQ implementation Selective QinQ
Rate limiting Yes
Broadcast storm control Yes
Spanning tree protocol Yes
Head-of-line (HOL) blocking Yes
Policy-based routing Yes
Port mirroring Yes
Cable types supported Cat5e
Networking standards IEEE 802.1D, IEEE 802.1Q, IEEE 802.1ab, IEEE 802.1s, IEEE 802.1w, IEEE 802.1x, IEEE 802.3, IEEE 802.3ab, IEEE 802.3ad, IEEE 802.3ae, IEEE 802.3af, IEEE 802.3an, IEEE 802.3at, IEEE 802.3az, IEEE 802.3u, IEEE 802.3x, IEEE 802.3z
Data transmission
Packet buffer memory 1.5 MB
Jumbo frames 9000
Jumbo frames support Yes
Number of static routes 990
Static route Yes
Number of queues 8
Switching capacity 128 Gbit/s
MAC address table 16000 entries
Security
Security algorithms HTTPS, SNMP, SNMPv2, SNMPv3, SSH, SSH-2
Authentication MAC-based authentication, Web-based authentication
Authentication type RADIUS, TACACS+
Queue scheduling algorithms Weighted Round Robin (WRR)
SSH/SSL support Yes
DoS attack prevention Yes
IGMP snooping Yes
IGMP proxy Yes
Access Control List (ACL) rules 1024
Access Control List (ACL) Yes
DHCP features DHCP auto-config, DHCP client, DHCP relay, DHCP server, DHCP snooping
Multicast features
Multicast support Yes
Protocols
IPv4 & IPv6 features ICMPv6, IPv6 SNMP, IPv6 SSH, IPv6 TFTP, IPv6 Telnet
GARP VLAN Registration Protocol (GVRP) Yes
Design
Reset button Yes
Product colour Grey
Rack mounting Yes
Performance
Mean time between failures (MTBF) 698220 h
Plug and Play Yes
Noise level 34.8 dB
Flash memory 512 MB
Internal memory 1000 MB
Memory type DDR4-SDRAM
Processor frequency 1.4 MHz
Built-in processor Yes
Power
Power plug type Type C
Power consumption (typical) 40.9 W
AC input frequency 50/60 Hz
AC input voltage 100 - 220 V
Power source AC
Power over Ethernet (PoE)
Total Power over Ethernet (PoE) budget 375 W
Power over Ethernet (PoE) ports quantity 24
Power over Ethernet (PoE) Yes
Other features
Packaging content Switch, power cable, USB Type C cable and mounting hardware
Operational conditions
Heat dissipation 1548.8 BTU/h
Storage relative humidity (H-H) 10 - 90%
Operating relative humidity (H-H) 10 - 90%
Storage temperature (T-T) -25 - 70 °C
Operating temperature (T-T) -5 - 50 °C
Weight & dimensions
Weight 4.6 kg
Height 43.9 mm
Depth 444.5 mm
Width 350 mm
Packaging data
Package weight 7.18 kg
Package height 108 mm
Package depth 575.1 mm
Package width 512.1 mm
General
Product family Catalyst
Certificates
Certification UL (UL 62368), CSA (CSA 22.2), CE mark, FCC Part 15 (CFR 47) Class A
Logistics data
Country of origin China
