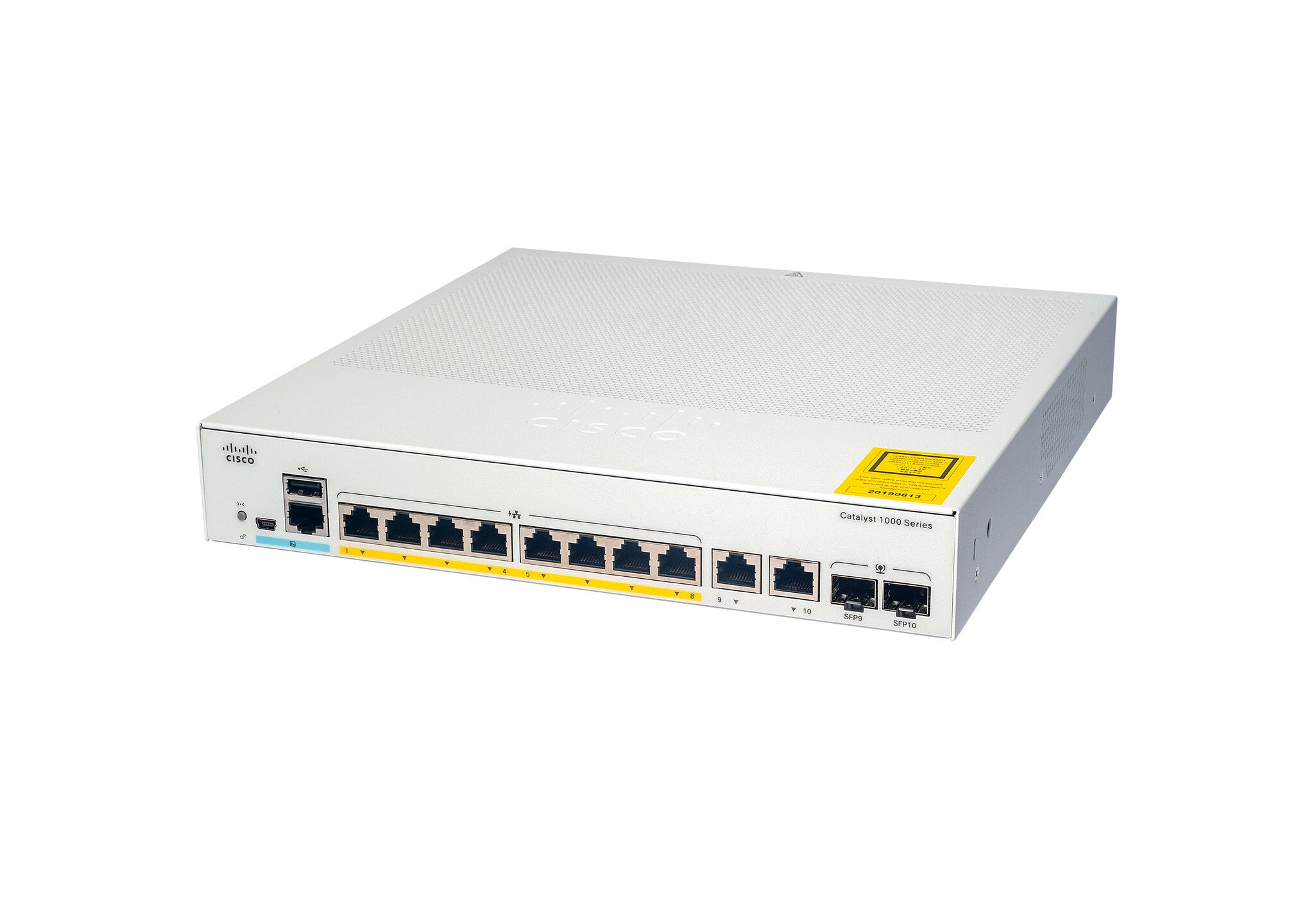

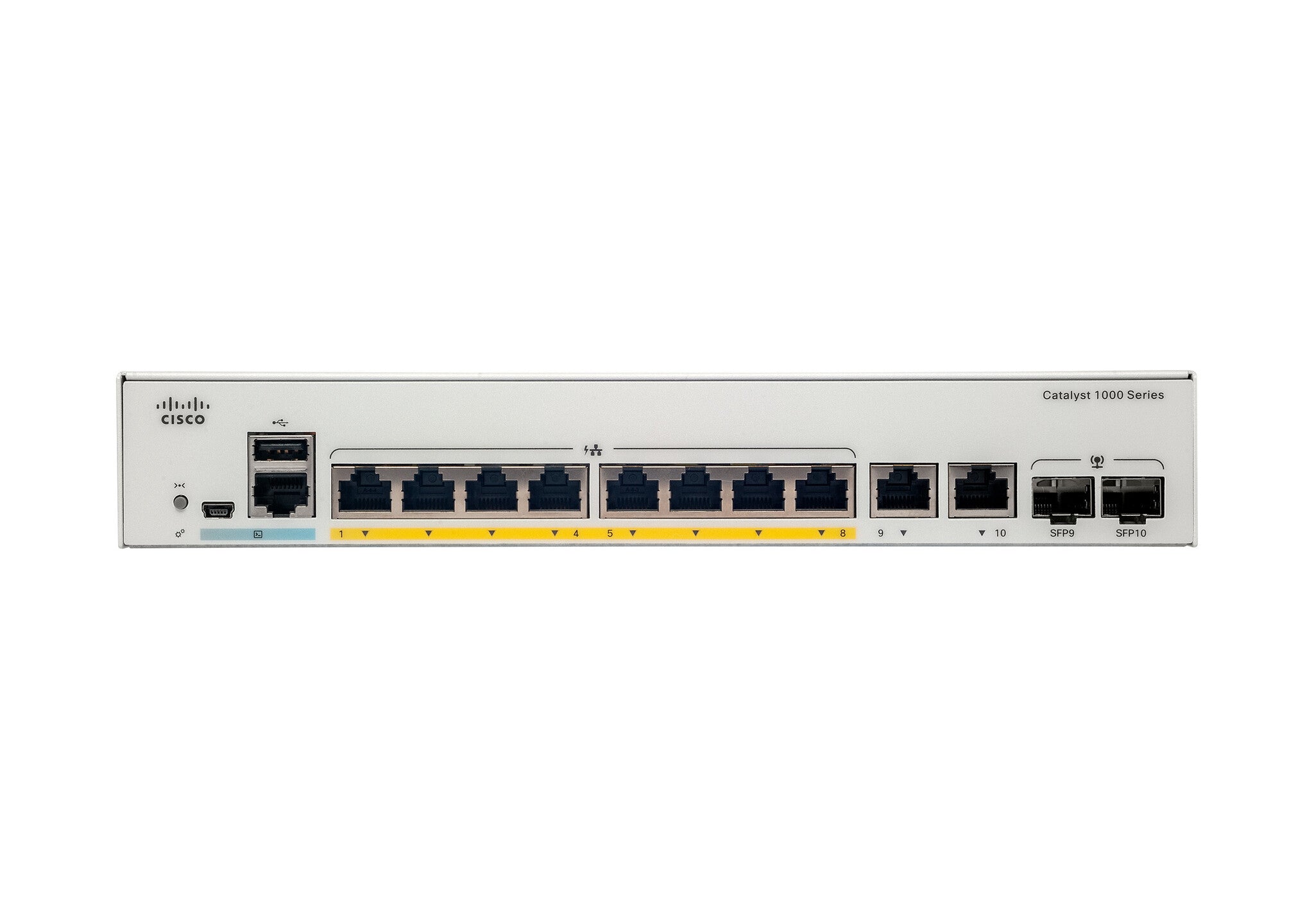

Cisco Catalyst 1000-8T-E-2G-L Network Switch, 8 Gigabit Ethernet (GbE) Ports, 2x 1G SFP/RJ-45 Combo Ports, Fanless Operation, External PS, Enhanced Limited Lifetime Warranty (C1000-8T-E-2G-L)
£470.99
Couldn't load pickup availability
- HARDWARE CONFIGURATION: 8 10/100/1000 Gigabit Ethernet (GbE) Data ports, 2 SFP/RJ-45 combo ports; Compact form factor switch
- MANAGEMENT: Manage the switch via the Cisco IOS CLI (command-line interface) and/or intuitive web UI. Centrally monitor and configure up to 8 switches via a Single IP or with any third party network management tool
- SECURITY: Enterprise Class Security which natively supports IPv4/IPv6 FHS Security features such as port security, DHCP snooping, dynamic ARP inspection which can easily be configured using a Single 'Auto-Secure' command along with 802.1x support for all connected devices
- Enterprise Class Hardware: Tamper-proof switch designed with the best of Cisco's trustworthy solutions technologies like HW anchored secure boot and Trust anchor Module to ensure you get an authentic and secure product
- PEACE OF MIND: Enhanced limited lifetime warranty
The Cisco Catalyst 1000-8T-E-2G-L Network Switch is an enterprise-class fixed managed Gigabit Ethernet Layer 2 switch designed for small businesses and branch offices. This simple, flexible and secure network switch is ideal for critical IoT (Internet of Things) deployments. It operates on Cisco IOS Software and features a CLI (command-line interface) as well as an intuitive web user interface.
| Management features | |
|---|---|
| MIB support | Y |
| Traffic classification | Yes |
| ARP inspection | Yes |
| Configuring Location Settings (CLI) | Yes |
| Web-based management | Yes |
| Quality of Service (QoS) support | Yes |
| Switch layer | L2 |
| Switch type | Managed |
| Ports & interfaces | |
|---|---|
| USB 2.0 ports quantity | 1 |
| Combo SFP ports quantity | 2 |
| Basic switching RJ-45 Ethernet ports type | Gigabit Ethernet (10/100/1000) |
| Basic switching RJ-45 Ethernet ports quantity | 8 |
| Network | |
|---|---|
| VLAN support | Yes |
| Link aggregation | Yes |
| Auto MDI/MDI-X | Yes |
| Auto-negotiation | Yes |
| Broadcast storm control | Yes |
| Ethernet LAN data rates | 10,100,1000 Mbit/s |
| Spanning tree protocol | Yes |
| Full duplex | Yes |
| Networking standards | IEEE 802.1p, IEEE 802.1s, IEEE 802.1w, IEEE 802.3, IEEE 802.3ad, IEEE 802.3az, IEEE 802.3u, IEEE 802.3z |
| Data transmission | |
|---|---|
| Jumbo frames | 10240 |
| Jumbo frames support | Yes |
| Static route | Yes |
| Forwarding rate | 10000 Mpps |
| Switching capacity | 20 Gbit/s |
| MAC address table | 15360 entries |
| Security | |
|---|---|
| Loop protection | Yes |
| Authentication | Web-based authentication |
| Authentication type | RADIUS |
| SSH/SSL support | Yes |
| BPDU filtering/protection | Yes |
| IGMP snooping | Yes |
| IGMP entries | 1024 |
| Access Control List (ACL) | Yes |
| DHCP features | DHCP snooping |
| Multicast features | |
|---|---|
| IPv4 multicast entries | 1024 |
| Multicast support | Yes |
| Protocols | |
|---|---|
| Management protocols | SNMP |
| Design | |
|---|---|
| Market segment | Business |
| Product colour | Grey |
| Performance | |
|---|---|
| Mean time between failures (MTBF) | 2171669 h |
| Flash memory | 256 MB |
| Internal memory | 512 MB |
| Memory type | DRAM |
| Processor frequency | 800 MHz |
| Processor model | ARM7 |
| Built-in processor | Yes |
| Power | |
|---|---|
| Power plug type | Type C |
| Power consumption (max) | 14.9 W |
| Power consumption (typical) | 14.2 W |
| Input current | 0.22 A |
| AC input frequency | 50 - 60 Hz |
| AC input voltage | 110 - 240 V |
| Power supply included | Yes |
| Other features | |
|---|---|
| Dimensions (W x D x H) (imperial) | 268.2 x 184.9 x 43.9 mm (10.6 x 7.28 x 1.73") |
| Packaging content | C1000-8T-E-2G-L Switch, External power adapter, Accessory Kit, 1 printed document |
| Operational conditions | |
|---|---|
| Non-operating altitude | 0 - 4500 m |
| Operating altitude | 0 - 3000 m |
| Storage relative humidity (H-H) | 5 - 95% |
| Operating relative humidity (H-H) | 5 - 90% |
| Storage temperature (T-T) | -25 - 70 °C |
| Operating temperature (T-T) | -5 - 50 °C |
| Packaging data | |
|---|---|
| Package weight | 2.59 kg |
| Package height | 160.3 mm |
| Package depth | 349.2 mm |
| Package width | 309.6 mm |
| General | |
|---|---|
| Product family | Catalyst |
| Technical details | |
|---|---|
| Products per shipping (inner) case | 1 pc(s) |
| Logistics data | |
|---|---|
| Products per master (outer) case | 1 pc(s) |
| Harmonized System (HS) code | 85176990 |
| Country of origin | China |
| Quantity per pack | 1 pc(s) |
