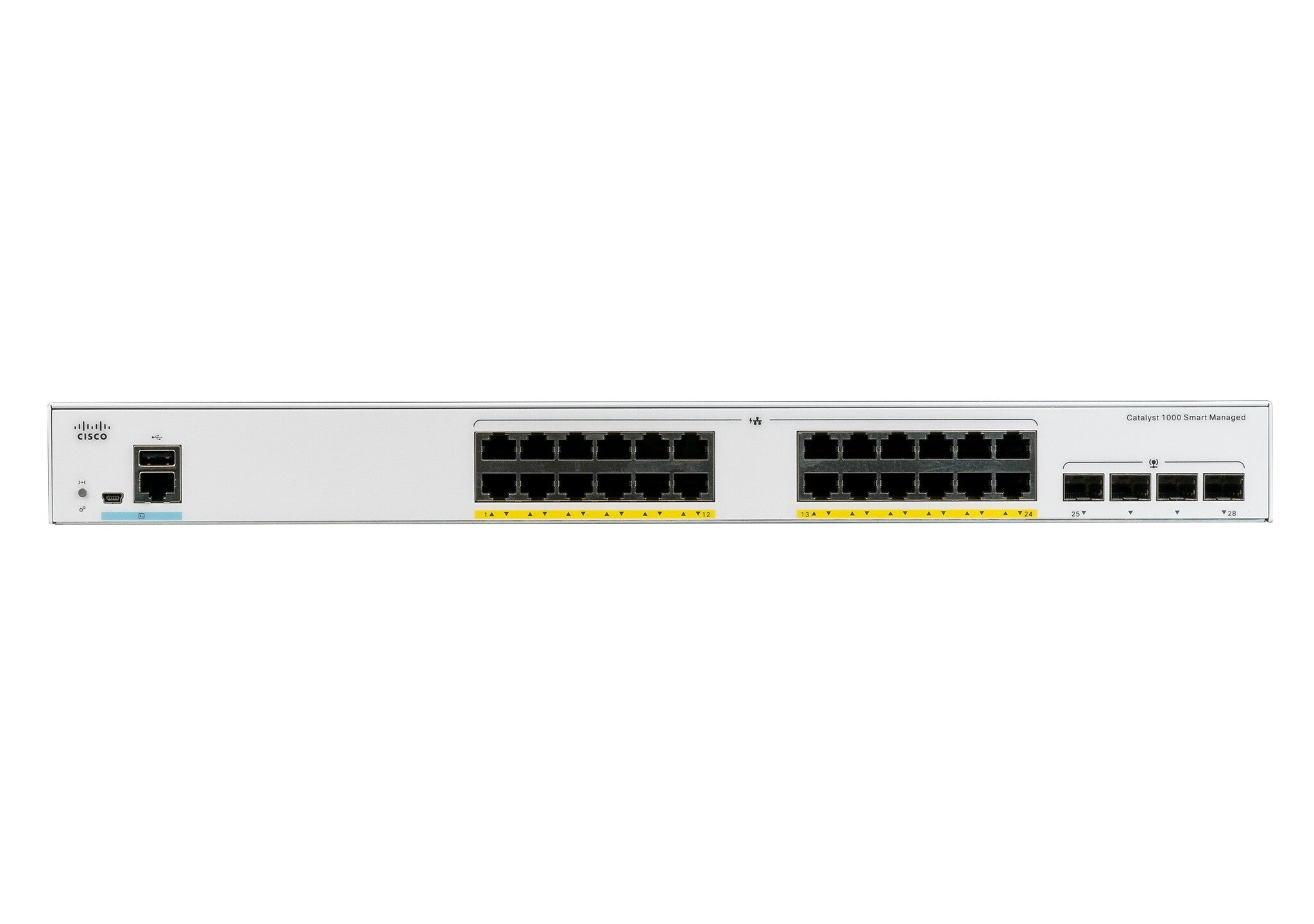

Cisco Catalyst 1000-24P-4X-L Network Switch, 24 Gigabit Ethernet (GbE) PoE+ Ports, 195W PoE Budget, four 10 G SFP+ Uplink Ports, Fanless Operation, Enhanced Limited Lifetime Warranty (C1000-24P-4X-L)
£2,157.99
Couldn't load pickup availability

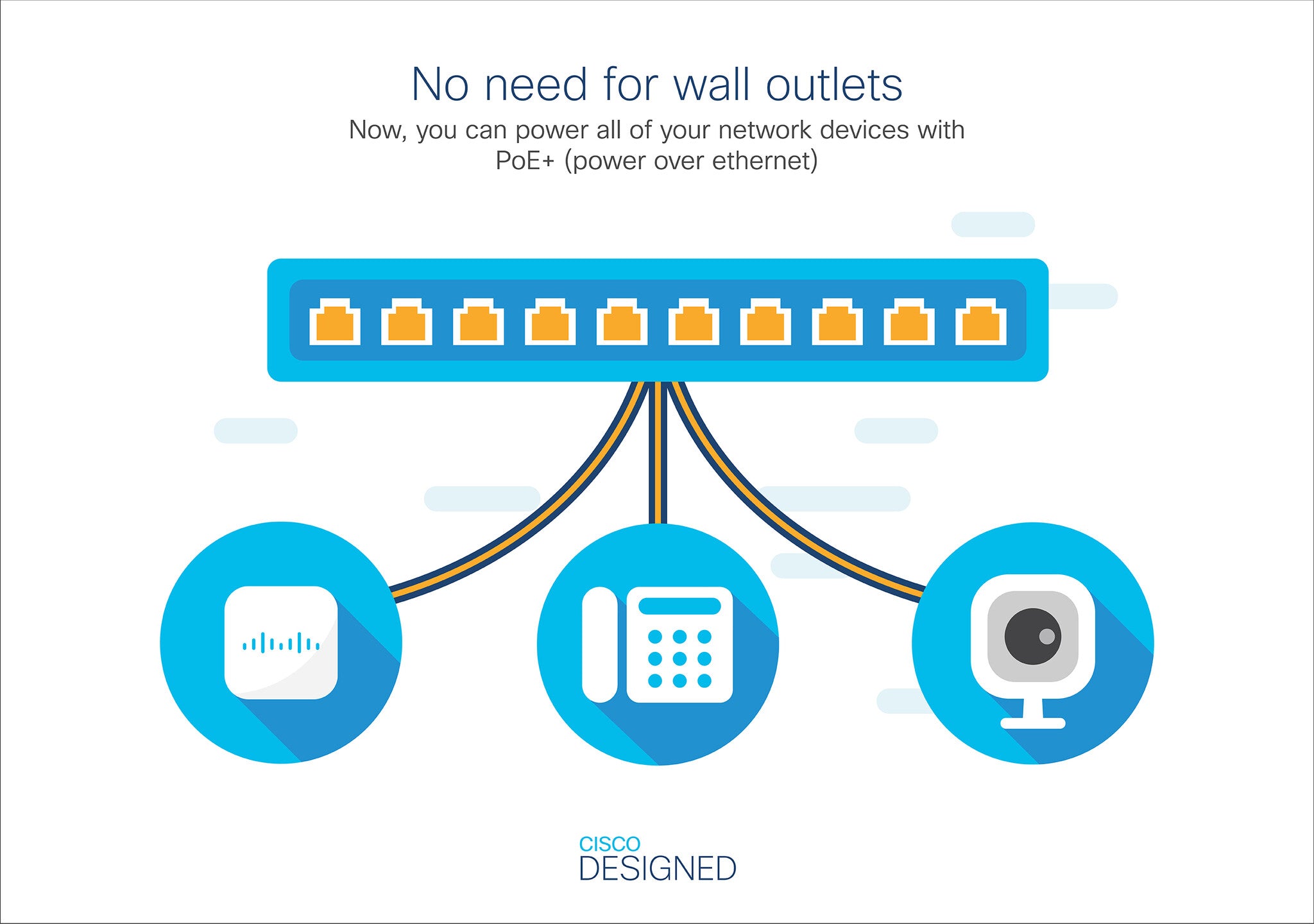

- HARDWARE CONFIGURATION: 24 10/100/1000 Gigabit Ethernet (GbE) PoE+ ports, 4 SFP+ uplink ports with Power budget of 195W and Perpetual PoE+ support for uninterrupted power to PoE devices even in case of switch reboot
- MANAGEMENT: Manage the switch via the Cisco IOS CLI (command-line interface) and/or intuitive web UI. Centrally monitor and configure up to 8 switches via a Single IP or with any third party network management tool
- SECURITY: Enterprise Class Security which natively supports IPv4/IPv6 FHS Security features such as port security, DHCP snooping, dynamic ARP inspection which can easily be configured using a Single 'Auto-Secure' command along with 802.1x support for all connected devices
- Enterprise Class Hardware: Tamper-proof switch designed with the best of Cisco's trustworthy solutions technologies like HW anchored secure boot and Trust anchor Module to ensure you get an authentic and secure product
- PEACE OF MIND: Enhanced limited lifetime warranty
The Cisco Catalyst 1000-24P-4X-L Network Switch is an enterprise-class fixed managed Gigabit Ethernet Layer 2 switch designed for small businesses and branch offices. This simple, flexible and secure network switch is ideal for critical IoT (Internet of Things) deployments. It operates on Cisco IOS Software and features a CLI (command-line interface) as well as an intuitive web user interface.
| Management features | |
|---|---|
| MIB support | Y |
| Traffic classification | Yes |
| ARP inspection | Yes |
| Configuring Location Settings (CLI) | Yes |
| Web-based management | Yes |
| Quality of Service (QoS) support | Yes |
| Switch layer | L2 |
| Switch type | Managed |
| Ports & interfaces | |
|---|---|
| USB 2.0 ports quantity | 1 |
| Console port | RJ-45/Mini-USB |
| SFP+ module slots quantity | 4 |
| Basic switching RJ-45 Ethernet ports type | Gigabit Ethernet (10/100/1000) |
| Basic switching RJ-45 Ethernet ports quantity | 24 |
| Network | |
|---|---|
| Number of VLANs | 4094 |
| VLAN support | Yes |
| Link aggregation | Yes |
| Auto MDI/MDI-X | Yes |
| Broadcast storm control | Yes |
| Ethernet LAN data rates | 100,1000,10000 Mbit/s |
| Full duplex | Yes |
| 10G support | Yes |
| Networking standards | IEEE 802.1AX, IEEE 802.1D, IEEE 802.1Q, IEEE 802.1ab, IEEE 802.1p, IEEE 802.1s, IEEE 802.1w, IEEE 802.1x, IEEE 802.3ad, IEEE 802.3ae, IEEE 802.3af, IEEE 802.3ah, IEEE 802.3at, IEEE 802.3az, IEEE 802.3u |
| Data transmission | |
|---|---|
| Jumbo frames | 10240 |
| Jumbo frames support | Yes |
| Number of static routes | 16 |
| Static route | Yes |
| Forwarding rate | 41.67 Mpps |
| Switching capacity | 128 Gbit/s |
| MAC address table | 16000 entries |
| Security | |
|---|---|
| Loop protection | Yes |
| Authentication | Web-based authentication |
| Authentication type | RADIUS |
| SSH/SSL support | Yes |
| BPDU filtering/protection | Yes |
| IGMP snooping | Yes |
| IGMP entries | 1024 |
| Access Control List (ACL) | Yes |
| DHCP features | DHCP snooping |
| Multicast features | |
|---|---|
| IPv6 multicast entries | 1024 |
| IPv4 multicast entries | 1024 |
| Multicast support | Yes |
| Design | |
|---|---|
| Market segment | Business |
| Product colour | Grey |
| Performance | |
|---|---|
| Mean time between failures (MTBF) | 698220 h |
| Flash memory | 256 MB |
| Internal memory | 512 MB |
| Memory type | DRAM |
| Processor frequency | 800 MHz |
| Processor model | ARM7 |
| Built-in processor | Yes |
| Power | |
|---|---|
| Power plug type | Type C |
| AC input frequency | 50 - 60 Hz |
| AC input voltage | 110 - 220 V |
| Power over Ethernet (PoE) | |
|---|---|
| Total Power over Ethernet (PoE) budget | 195 W |
| Power over Ethernet plus (PoE+) ports quantity | 24 |
| Power over Ethernet (PoE) type supported | PoE+ |
| Power over Ethernet (PoE) | Yes |
| Other features | |
|---|---|
| Packaging content | C1000-24P-4X-L Switch, Accessory Kit, 1 printed document |
| Operational conditions | |
|---|---|
| Non-operating altitude | 0 - 4500 m |
| Operating altitude | 0 - 3000 m |
| Storage relative humidity (H-H) | 5 - 95% |
| Operating relative humidity (H-H) | 5 - 90% |
| Storage temperature (T-T) | -25 - 70 °C |
| Operating temperature (T-T) | -5 - 50 °C |
| Weight & dimensions | |
|---|---|
| Weight | 3.68 kg |
| Height | 44 mm |
| Depth | 299 mm |
| Width | 444.5 mm |
| Packaging data | |
|---|---|
| Package weight | 5.7 kg |
| Package height | 147.6 mm |
| Package depth | 549.4 mm |
| Package width | 390.7 mm |
| General | |
|---|---|
| Product family | Catalyst |
| Technical details | |
|---|---|
| Products per shipping (inner) case | 1 pc(s) |
| Certificates | |
|---|---|
| Certification | UL 60950-1 Second Edition, CAN/CSA-C22.2 No. 60950-1 Second Edition, EN 60950-1 Second Edition, IEC 60950-1 Second Edition, AS/NZS 60950-147CFR Part 15 (CFR 47) Class A, AS/NZS CISPR22 Class A, CISPR22 Class A, EN55022 Class A, ICES003 Class A, VCCI Class A, EN61000-3-2, EN61000-3-3, KN22 Class A, CNS13438 Class AEN55024 (including EN 61000-4-5), CISPR24, EN300386, KN24Reduction of Hazardous Substances (RoHS) including Directive 2011/65/EUCommon Language Equipment Identifier (CLEI) code |
| Logistics data | |
|---|---|
| Products per master (outer) case | 1 pc(s) |
| Harmonized System (HS) code | 85176990 |
| Country of origin | China |
| Quantity per pack | 1 pc(s) |
