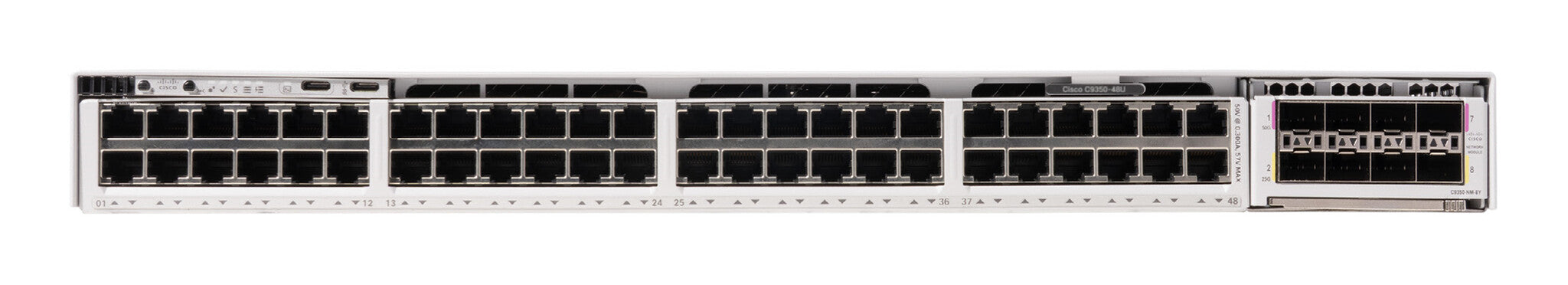

Cisco C9350-48U network switch Managed L3 Power over Ethernet (PoE) 1U Grey
iFrame
£7,462.99
Couldn't load pickup availability
- Cisco C9350-48U integrates a single Silicon One A100/L ASIC to deliver consistent 1G switching with intelligent traffic management and hardware-based forwarding.
- Cisco C9350-48U features 48 downlink ports with 10M/100M/1G speeds, each delivering 60W of UPOE, for a total PoE budget of 2880W. This enables flexible connectivity and powers a range of access layer endpoints.
- Cisco C9350-48U supports up to 200G bandwidth for modular uplinks (C9350-NM-2C, C9350-NM-8Y) to accommodate high-throughput aggregation and core connections.
Cisco C9350-48U provides 48 ports of 1 Gigabit Ethernet with 60W UPOE (IEEE 802.3bt Type 3) per port, delivering reliable power for HD IP cameras, PoE sensors, access control systems, and intelligent lighting.
Cisco C9350-48U is ideal for enterprise access layer deployments in office campuses, education facilities, healthcare environments, and retail branches requiring high-density 1G connectivity and moderate-power PoE support.
| Management features | |
|---|---|
| Switch type | Managed |
| Switch layer | L3 |
| Quality of Service (QoS) support | Yes |
| Configuring Location Settings (CLI) | Yes |
| ARP inspection | Yes |
| MIB support | Y |
| Ports & interfaces | |
|---|---|
| Basic switching RJ-45 Ethernet ports quantity | 48 |
| Network | |
|---|---|
| Networking standards | IEEE 802.3bt |
| 10G support | Yes |
| Full duplex | Yes |
| VLAN support | Yes |
| Data transmission | |
|---|---|
| MAC address table | 64000 entries |
| Switching capacity | 2096 Gbit/s |
| Static route | Yes |
| Jumbo frames support | Yes |
| Jumbo frames | 9216 |
| Security | |
|---|---|
| Access Control List (ACL) | Yes |
| IGMP snooping | Yes |
| Multicast features | |
|---|---|
| Multicast support | Yes |
| Design | |
|---|---|
| Rack mounting | Yes |
| Stackable | Yes |
| Form factor | 1U |
| Product colour | Grey |
| LED indicators | Yes |
| Performance | |
|---|---|
| Internal memory | 16000 MB |
| Flash memory | 18000 MB |
| Mean time between failures (MTBF) | 271720 h |
| Power | |
|---|---|
| Power source | AC |
| AC input voltage | 100 - 230 V |
| AC input frequency | 50/60 Hz |
| Power consumption (typical) | 60 W |
| Power over Ethernet (PoE) | |
|---|---|
| Power over Ethernet (PoE) | Yes |
| Total Power over Ethernet (PoE) budget | 2880 W |
| Operational conditions | |
|---|---|
| Operating temperature (T-T) | -5 - 45 °C |
| Storage temperature (T-T) | -40 - 75 °C |
| Operating relative humidity (H-H) | 10 - 90% |
| Weight & dimensions | |
|---|---|
| Width | 445 mm |
| Depth | 472 mm |
| Height | 44 mm |
| Weight | 6.42 kg |
| Packaging content | |
|---|---|
| Manual | Yes |
