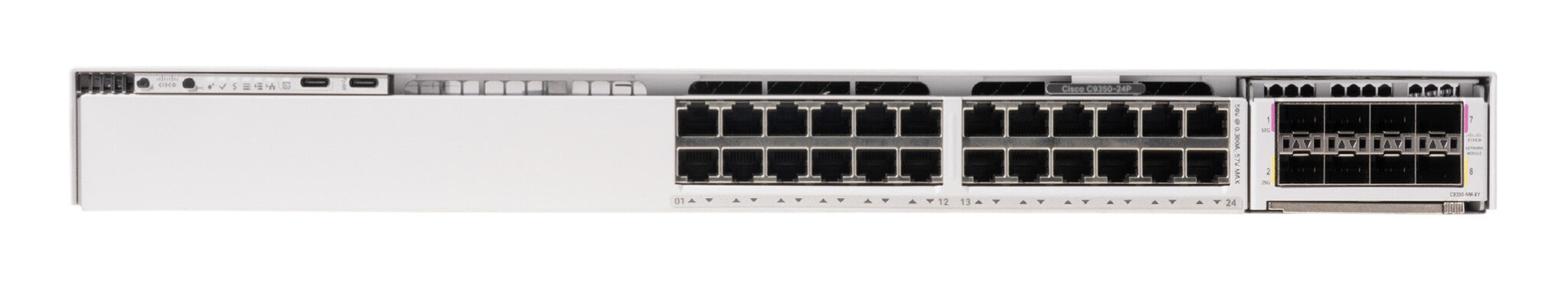

Cisco C9350-24P network switch Managed L3 Power over Ethernet (PoE) 1U Grey
iFrame
£3,915.99
Couldn't load pickup availability
- Cisco C9350-24P integrates a single Silicon One A100/L ASIC, enabling efficient 1G hardware-based packet forwarding
- Cisco C9350 offers 24 downlink ports supporting 10M/100M/1G speeds, each delivering up to 30W of PoE, with a total PoE budget of 720W to power PoE devices
- Cisco C9350-24P supports up to 200G bandwidth for modular uplinks (C9350-NM-2C, C9350-NM-8Y)
Cisco C9350-24P provides 24 ports of 1 Gigabit Ethernet, each delivering 30W of PoE, efficiently powering devices like IP cameras, sensors, and other PoE-enabled equipment.
| Management features | |
|---|---|
| Switch type | Managed |
| Switch layer | L3 |
| Quality of Service (QoS) support | Yes |
| Configuring Location Settings (CLI) | Yes |
| ARP inspection | Yes |
| MIB support | Y |
| Ports & interfaces | |
|---|---|
| Basic switching RJ-45 Ethernet ports quantity | 24 |
| Network | |
|---|---|
| Networking standards | IEEE 802.3bt |
| 10G support | Yes |
| Full duplex | Yes |
| VLAN support | Yes |
| Data transmission | |
|---|---|
| MAC address table | 64000 entries |
| Switching capacity | 2048 Gbit/s |
| Static route | Yes |
| Jumbo frames support | Yes |
| Jumbo frames | 9216 |
| Security | |
|---|---|
| Access Control List (ACL) | Yes |
| IGMP snooping | Yes |
| Multicast features | |
|---|---|
| Multicast support | Yes |
| Design | |
|---|---|
| Rack mounting | Yes |
| Stackable | Yes |
| Form factor | 1U |
| Product colour | Grey |
| LED indicators | Yes |
| Performance | |
|---|---|
| Internal memory | 16000 MB |
| Flash memory | 18000 MB |
| Mean time between failures (MTBF) | 342720 h |
| Power | |
|---|---|
| Power source | AC |
| AC input voltage | 100 - 230 V |
| AC input frequency | 50/60 Hz |
| Power consumption (typical) | 30 W |
| Power over Ethernet (PoE) | |
|---|---|
| Power over Ethernet (PoE) | Yes |
| Total Power over Ethernet (PoE) budget | 720 W |
| Operational conditions | |
|---|---|
| Operating temperature (T-T) | -5 - 45 °C |
| Storage temperature (T-T) | -40 - 75 °C |
| Operating relative humidity (H-H) | 10 - 90% |
| Weight & dimensions | |
|---|---|
| Width | 445 mm |
| Depth | 383 mm |
| Height | 44 mm |
| Weight | 6.14 kg |
| Packaging content | |
|---|---|
| Manual | Yes |
