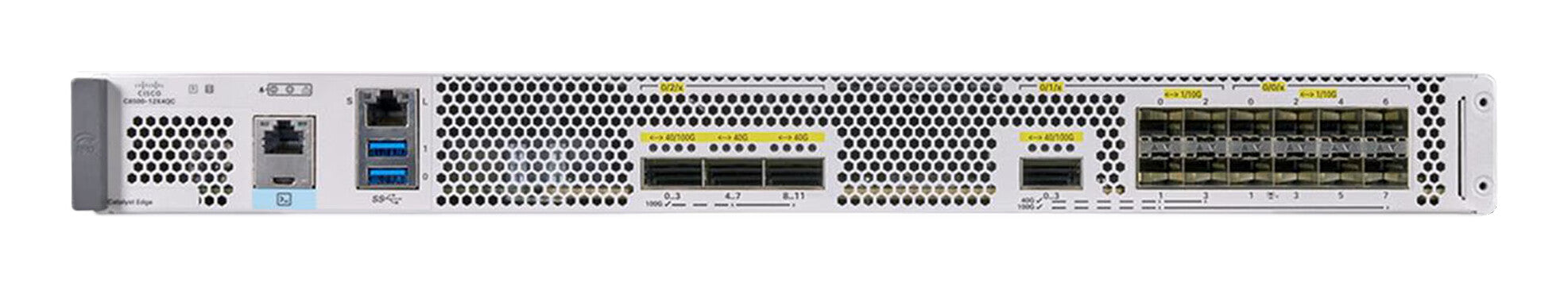

Cisco C8500-20X6C network switch Managed L2/L3 1U Grey
Couldn't load pickup availability
- Managed L2/L3 Web-based management
- Quality of Service (QoS) support
- Console port: RJ-45
- 10G support
- 4000 Access Control List (ACL)
- 1U Rack mounting
- AC
The Cisco Catalyst 8500 Series Edge Platforms are high-performance cloud edge platforms designed for accelerated services, multi-layer security, cloud-native agility, and edge intelligence to accelerate your journey to cloud.
Foundation for Software-Defined WAN
Cisco® Catalyst® 8500 Series Edge Platforms (Catalyst 8500 and Catalyst 8500L) with Cisco IOS® XE SD-WAN Software deliver Cisco’s secure, cloud-scale SD-WAN solution for aggregation sites. The Catalyst 8500 Edge Platforms feature the all-new third-generation Cisco Quantum Flow Processor (QFP), the Catalyst 8500 Series Edge Platforms are built for services from the ground up. The Catalyst 8500L Edge Platform features an x86 based platform architecture that is purpose built to continue delivering the same experience as an ASR1000 platform. The Catalyst 8500 Series Edge Platforms are compact 1RU devices with flexible interface options, including 1GE, 10GE, 40GE, and 100GE ports. Powered by Cisco IOS XE, fully programmable software architecture, and API support, these platforms can facilitate automation at scale to achieve zero-touch IT capability while migrating workloads to the cloud.
| Management features | |
|---|---|
| Switch type | Managed |
| Switch layer | L2/L3 |
| Quality of Service (QoS) support | Yes |
| Web-based management | Yes |
| Ports & interfaces | |
|---|---|
| Basic switching RJ-45 Ethernet ports type | No |
| SFP+ module slots quantity | 20 |
| Console port | RJ-45 |
| Network | |
|---|---|
| Networking standards | IEEE 802.1Q, IEEE 802.1ag, IEEE 802.3ah |
| 10G support | Yes |
| Port mirroring | Yes |
| IP routing | Yes |
| Data transmission | |
|---|---|
| Throughput | 51000 Mpps |
| Security | |
|---|---|
| DHCP features | DHCP client, DHCP relay, DHCP server |
| Access Control List (ACL) | Yes |
| Access Control List (ACL) rules | 4000 |
| Access Control List (ACL) IPv4 entries | 380000 |
| Security algorithms | 128-bit AES, 256-bit AES, IPSec, MD5, RSA, SHA-256, SHA-384, SHA-512 |
| Multicast features | |
|---|---|
| Multicast support | Yes |
| Design | |
|---|---|
| Rack mounting | Yes |
| Form factor | 1U |
| Product colour | Grey |
| LED indicators | Yes |
| Power | |
|---|---|
| Power source | AC |
| AC input voltage | 85 - 264 V |
| DC input voltage | 40 - 72 V |
| Power over Ethernet (PoE) | |
|---|---|
| Power over Ethernet (PoE) | No |
| Operational conditions | |
|---|---|
| Operating temperature (T-T) | 0 - 40 °C |
| Storage temperature (T-T) | -40 - 70 °C |
| Operating relative humidity (H-H) | 10 - 85% |
| Storage relative humidity (H-H) | 5 - 95% |
| Operating altitude | 152 - 3048 m |
| Weight & dimensions | |
|---|---|
| Width | 444.5 mm |
| Depth | 468.9 mm |
| Height | 43.9 mm |
