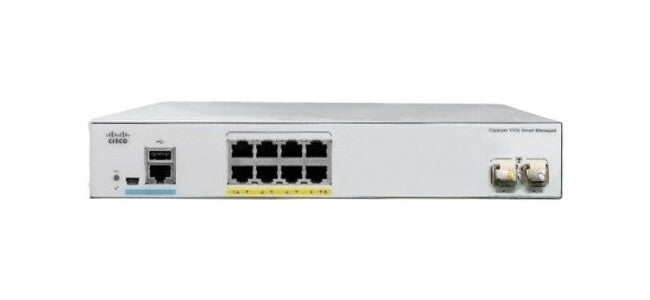

Cisco C1000-8T-E-2G-L Managed L2 Gigabit Ethernet (10/100/1000) Grey
£201.99
Couldn't load pickup availability
- Managed L2 Web-based management SNMP
- Quality of Service (QoS) support Configuring Location Settings (CLI)
- Basic switching RJ-45 Ethernet ports quantity: 8
- MAC address table: 15360 entries Switching capacity: 20 Gbit/s
- Access Control List (ACL)
- Power supply included
Cisco Catalyst 1000 Series Switches are fixed managed Gigabit Ethernet enterprise-class Layer 2 switches designed for small businesses and branch offices. These are simple, flexible and secure switches ideal for out-of-the-wiring-closet and critical Internet of Things (IoT) deployments. Cisco Catalyst 1000 operate on Cisco IOS Software and support simple device management and network management via a Command-Line Interface (CLI) as well as an on-box web UI. These switches deliver enhanced network security, network reliability, and operational efficiency for Small and Medium Sized (SMB) organizations.
| Management features | |
|---|---|
| MIB support | Y |
| Traffic classification | Yes |
| ARP inspection | Yes |
| Configuring Location Settings (CLI) | Yes |
| Web-based management | Yes |
| Quality of Service (QoS) support | Yes |
| Switch layer | L2 |
| Switch type | Managed |
| Ports & interfaces | |
|---|---|
| USB 2.0 ports quantity | 1 |
| Combo SFP ports quantity | 2 |
| Basic switching RJ-45 Ethernet ports type | Gigabit Ethernet (10/100/1000) |
| Basic switching RJ-45 Ethernet ports quantity | 8 |
| Network | |
|---|---|
| VLAN support | Yes |
| Link aggregation | Yes |
| Auto MDI/MDI-X | Yes |
| Auto-negotiation | Yes |
| Broadcast storm control | Yes |
| Ethernet LAN data rates | 10,100,1000 Mbit/s |
| Spanning tree protocol | Yes |
| Full duplex | Yes |
| Networking standards | IEEE 802.1p, IEEE 802.1s, IEEE 802.1w, IEEE 802.3, IEEE 802.3ad, IEEE 802.3az, IEEE 802.3u, IEEE 802.3z |
| Data transmission | |
|---|---|
| Jumbo frames | 10240 |
| Jumbo frames support | Yes |
| Static route | Yes |
| Forwarding rate | 10000 Mpps |
| Switching capacity | 20 Gbit/s |
| MAC address table | 15360 entries |
| Security | |
|---|---|
| Loop protection | Yes |
| Authentication | Web-based authentication |
| Authentication type | RADIUS |
| SSH/SSL support | Yes |
| BPDU filtering/protection | Yes |
| IGMP snooping | Yes |
| IGMP entries | 1024 |
| Access Control List (ACL) | Yes |
| DHCP features | DHCP snooping |
| Multicast features | |
|---|---|
| IPv4 multicast entries | 1024 |
| Multicast support | Yes |
| Protocols | |
|---|---|
| Management protocols | SNMP |
| Design | |
|---|---|
| Product colour | Grey |
| Performance | |
|---|---|
| Mean time between failures (MTBF) | 2171669 h |
| Flash memory | 256 MB |
| Internal memory | 512 MB |
| Memory type | DRAM |
| Processor frequency | 800 MHz |
| Processor model | ARM7 |
| Built-in processor | Yes |
| Power | |
|---|---|
| Power consumption (max) | 14.9 W |
| Power consumption (typical) | 14.2 W |
| Input current | 0.22 A |
| AC input voltage | 110 - 240 V |
| Power supply included | Yes |
| Operational conditions | |
|---|---|
| Non-operating altitude | 0 - 4500 m |
| Operating altitude | 0 - 3000 m |
| Storage relative humidity (H-H) | 5 - 95% |
| Operating relative humidity (H-H) | 5 - 90% |
| Storage temperature (T-T) | -25 - 70 °C |
| Operating temperature (T-T) | -5 - 50 °C |
| Logistics data | |
|---|---|
| Harmonized System (HS) code | 85176990 |
