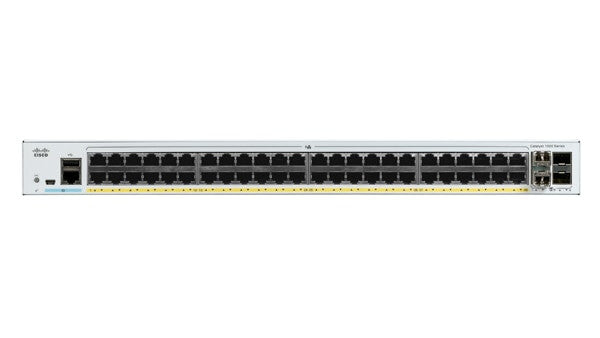

Cisco C1000-48FP-4X-L Managed L2 Gigabit Ethernet (10/100/1000) Power over Ethernet (PoE) Grey
Couldn't load pickup availability
- Managed L2 Web-based management
- Quality of Service (QoS) support Configuring Location Settings (CLI)
- Basic switching RJ-45 Ethernet ports quantity: 48 Console port: RJ-45/Mini-USB
- 10G support
- MAC address table: 15360 entries Switching capacity: 176 Gbit/s
- Access Control List (ACL)
- Power over Ethernet (PoE)
Simplicity, flexibility, and security
Cisco Catalyst 1000 Series switches provide enterprise-grade network access sized for small businesses. With a wide range of Power over Ethernet (PoE) and port combinations, these easy-to-manage switches provide the performance a modern small office needs.
Quiet and compact
The compact, fanless design means Catalyst 1000 switches can hide in plain sight in open-plan spaces.
Simplified management
Catalyst 1000 switches run on classic Cisco IOS and can be configured with an intuitive on-box web UI, making management simple and easy.
Enhanced security
With Catalyst 1000 switches' larger-scale access-control tables and additional security features, you can segment traffic for greater security.
Power over Ethernet
With a range of PoE options featuring Perpetual PoE, Catalyst 1000 switches make installing IoT devices as easy as plugging in cables.
Compare Catalyst 1000 models
The Catalyst 1000 Series switch platform provides a range of options to fulfill almost any small-business network’s requirements. All models include an easy-to-use web UI for configuration, management, and monitoring.
| Management features | |
|---|---|
| MIB support | Y |
| Traffic classification | Yes |
| ARP inspection | Yes |
| Configuring Location Settings (CLI) | Yes |
| Web-based management | Yes |
| Quality of Service (QoS) support | Yes |
| Switch layer | L2 |
| Switch type | Managed |
| Ports & interfaces | |
|---|---|
| USB 2.0 ports quantity | 1 |
| Console port | RJ-45/Mini-USB |
| SFP+ module slots quantity | 4 |
| Basic switching RJ-45 Ethernet ports type | Gigabit Ethernet (10/100/1000) |
| Basic switching RJ-45 Ethernet ports quantity | 48 |
| Network | |
|---|---|
| Number of VLANs | 256 |
| VLAN support | Yes |
| Link aggregation | Yes |
| Auto MDI/MDI-X | Yes |
| Broadcast storm control | Yes |
| Spanning tree protocol | Yes |
| Full duplex | Yes |
| 10G support | Yes |
| Networking standards | IEEE 802.1AX, IEEE 802.1D, IEEE 802.1Q, IEEE 802.1ab, IEEE 802.1p, IEEE 802.1s, IEEE 802.1w, IEEE 802.1x, IEEE 802.3ad, IEEE 802.3ae, IEEE 802.3af, IEEE 802.3ah, IEEE 802.3at, IEEE 802.3az, IEEE 802.3u |
| Data transmission | |
|---|---|
| Jumbo frames | 10240 |
| Jumbo frames support | Yes |
| Number of static routes | 16 |
| Static route | Yes |
| Forwarding rate | 77.38 Mpps |
| Switching capacity | 176 Gbit/s |
| MAC address table | 15360 entries |
| Security | |
|---|---|
| Loop protection | Yes |
| Authentication | Web-based authentication |
| Authentication type | RADIUS |
| SSH/SSL support | Yes |
| BPDU filtering/protection | Yes |
| IGMP snooping | Yes |
| IGMP entries | 1024 |
| Access Control List (ACL) | Yes |
| DHCP features | DHCP snooping |
| Multicast features | |
|---|---|
| IPv6 multicast entries | 1024 |
| IPv4 multicast entries | 1024 |
| Multicast support | Yes |
| Design | |
|---|---|
| LED indicators | Yes |
| Product colour | Grey |
| Performance | |
|---|---|
| Mean time between failures (MTBF) | 856329 h |
| Noise level | 35 dB |
| Flash memory | 256 MB |
| Internal memory | 512 MB |
| Memory type | DRAM |
| Processor frequency | 800 MHz |
| Processor model | ARM7 |
| Built-in processor | Yes |
| Power | |
|---|---|
| AC input voltage | 110 - 220 V |
| Power over Ethernet (PoE) | |
|---|---|
| Total Power over Ethernet (PoE) budget | 740 W |
| Power over Ethernet plus (PoE+) ports quantity | 48 |
| Power over Ethernet (PoE) | Yes |
| Operational conditions | |
|---|---|
| Non-operating altitude | 0 - 4500 m |
| Operating altitude | 0 - 3000 m |
| Storage relative humidity (H-H) | 5 - 95% |
| Operating relative humidity (H-H) | 5 - 90% |
| Storage temperature (T-T) | -25 - 70 °C |
| Operating temperature (T-T) | -5 - 50 °C |
| Weight & dimensions | |
|---|---|
| Weight | 5.82 kg |
| Height | 44 mm |
| Depth | 350 mm |
| Width | 444.5 mm |
| Certificates | |
|---|---|
| Certification | UL 60950-1 Second Edition, CAN/CSA-C22.2 No. 60950-1 Second Edition, EN 60950-1 Second Edition, IEC 60950-1 Second Edition, AS/NZS 60950-147CFR Part 15 (CFR 47) Class A, AS/NZS CISPR22 Class A, CISPR22 Class A, EN55022 Class A, ICES003 Class A, VCCI Class A, EN61000-3-2, EN61000-3-3, KN22 Class A, CNS13438 Class AEN55024 (including EN 61000-4-5), CISPR24, EN300386, KN24Reduction of Hazardous Substances (RoHS) including Directive 2011/65/EUCommon Language Equipment Identifier (CLEI) code |
| Logistics data | |
|---|---|
| Harmonized System (HS) code | 85176990 |
