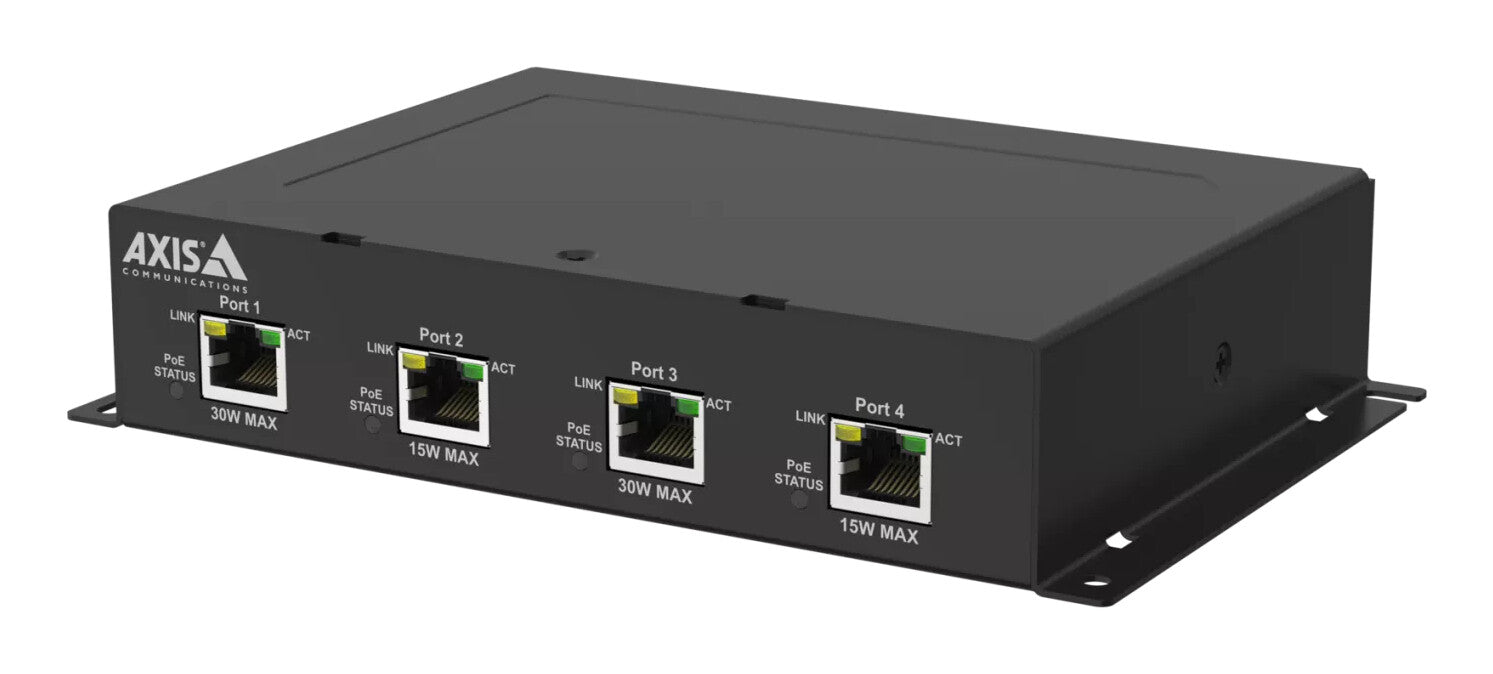

Axis TU8011 Fast Ethernet, Gigabit Ethernet
Couldn't load pickup availability
- Extend PoE connection with 100 m
- Supports up to four 15 W devices
- IEEE 802.3bt Type 4 Class 8
- Plenum-rated
- Connects to existing network
Ideal for installations where it's difficult to add power, this PoE extender can power up four 15 W devices and offers an easy way to extend PoE connectivity with up to 100 m range.
Extend your system
This PoE extender can extend the connection between your PoE switch and Axis devices up to 100 m (328 ft). It offers flexible installation, and it can be installed in areas where plenum rating is required. Furthermore, this PoE Extender can withstand temperatures between -40 °C to 65 °C (-40 °F to 149 °F). When installed in an IP66-rated Axis surveillance cabinet it becomes weatherproof and vandal resistant.
Expand your system
With AXIS TU8011 you can connect four 15 W Axis devices, or one 30 W device combined with two 15 W devices, reducing costs and installation time, as well as minimizing port usage in the switch.
| Network | |
|---|---|
| Networking standards | IEEE 802.3af, IEEE 802.3at, IEEE 802.3bt |
| Cable types supported | Cat5e, Cat6, Cat6+, Cat6a, Cat7 |
| Power over Ethernet (PoE) type supported | Passive PoE, PoE+ |
| Power over Ethernet (PoE) | Yes |
| Cabling technology | 10/100/1000 |
| Ethernet LAN data rates | 10,100,1000 Mbit/s |
| Ethernet interface type | Fast Ethernet, Gigabit Ethernet |
| Features | |
|---|---|
| Safety | BSMI-mark, CAN/CSA C22.2 No. 62368-1 ed. 3, IEC/EN/UL 62368-1 ed. 3, KC-mark, NOM-001, UL 2043 (plenum rated) |
| LED indicators | Yes |
| Maximum operating distance | 100 m |
| Plug and Play | Yes |
| Rack mounting | Yes |
| Wall mountable | Yes |
| Housing material | Metal |
| Product colour | Black |
| Ports & interfaces | |
|---|---|
| RJ-45 output ports | 4 |
| RJ-45 input ports | 1 |
| Ethernet LAN (RJ-45) ports | 5 |
| Power | |
|---|---|
| Power over Ethernet (PoE) power per port | 15 W |
| Total Power over Ethernet (PoE) budget | 60 W |
| Output power | 60 W |
| Certificates | |
|---|---|
| Certification | UL/cUL, CE, KC, VCCI, RCM, NOM, C, BSMI |
| Operational conditions | |
|---|---|
| Storage relative humidity (H-H) | 0 - 95% |
| Storage temperature (T-T) | -40 - 85 °C |
| Operating relative humidity (H-H) | 0 - 95% |
| Operating temperature (T-T) | -40 - 65 °C |
| Weight & dimensions | |
|---|---|
| Weight | 800 g |
| Packaging content | |
|---|---|
| Quick installation guide | Yes |
| Number of products included | 1 pc(s) |
| Logistics data | |
|---|---|
| Warranty period | 3 year(s) |
