• Extend PoE connection with 100 m
• Supports up to two 30 W devices
• IEEE 802.3bt Type 4 Class 8 or Type 3 Class 6
• Plenum-rated
• Connects to existing network

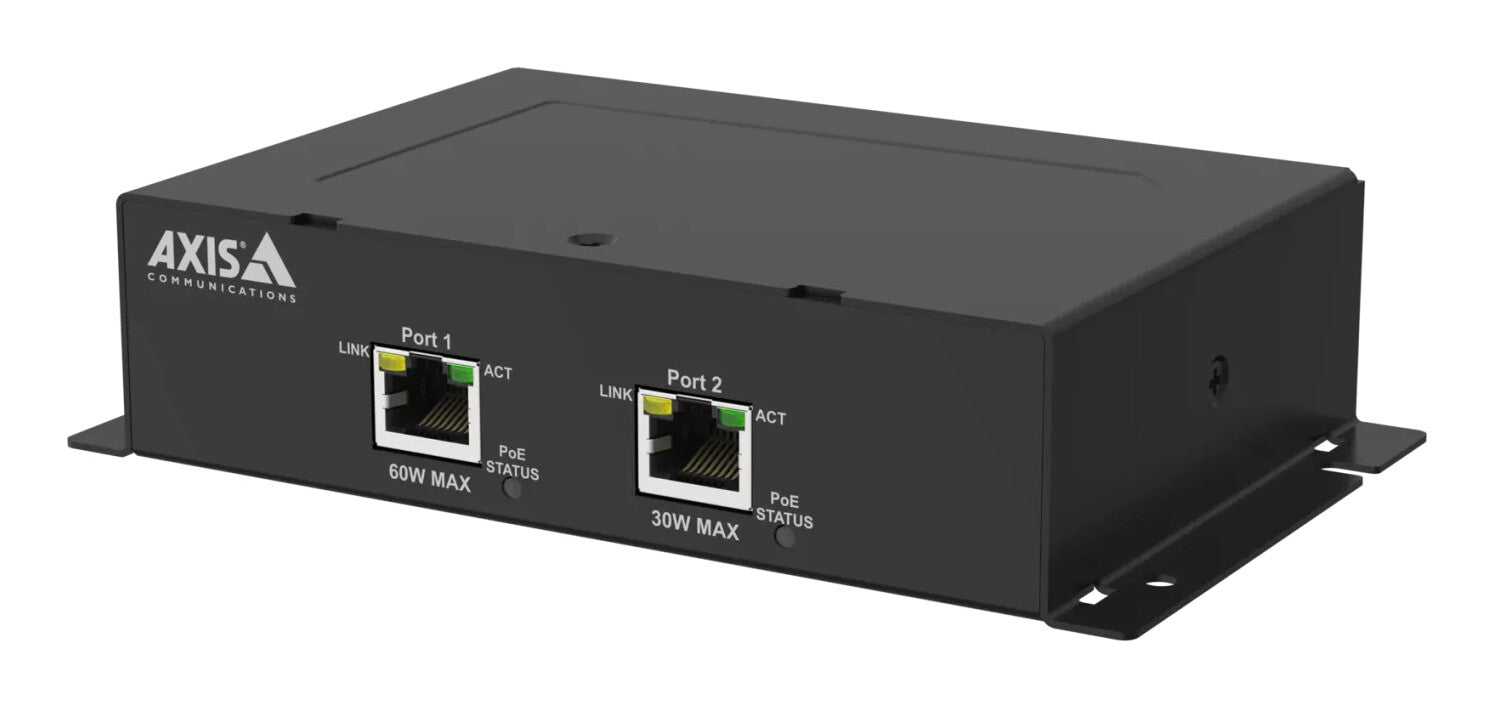

Ideal for installations where it's difficult to add power, this PoE extender connects to existing infrastructure and offers an easy way to extend PoE connectivity with up to 100 m range. It can power up two 30 W devices or one 60 W.

Extend your system

This PoE extender can extend the connection between your PoE switch and a 60 W Axis device supporting IEEE 802.3bt up to 100 m (328 ft). It offers flexible installation, and it can be placed in areas where plenum rating is required. Furthermore, this PoE Extender can withstand temperatures between -40 °C to 65 °C (-40 °F to 149 °F). When installed in an IP66-rated Axis surveillance cabinet it becomes weatherproof and vandal resistant.

Expand your system

With AXIS TU8010 you can also connect two 30 W Axis devices, reducing costs and installation time, as well as minimizing port usage in the switch. Furthermore, this PoE Extender requires IEEE 802.3bt Type 4 Class 8 for full functionality but can also work with IEEE Type 3 Class 6 with a more limited power output.
