Axis 01633-001 network switch Managed Gigabit Ethernet (10/100/1000) Power over Ethernet (PoE) Black
£796.99
Couldn't load pickup availability
- 60 W per port, 240 W power budget; Compliant with High PoE 60 W; Dual DC power redundancy; High availability with Rapid Ring; NEMA TS-2 compliant

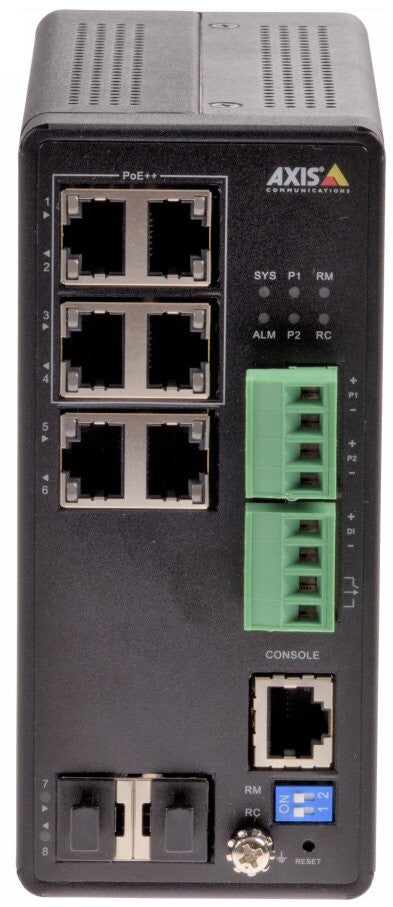

AXIS T8504-R Industrial PoE Switch is a 4-port managed industrial PoE Gigabit switch. In addition, the switch is equipped with two RJ45 and two SFP data ports that allows for extra devices to be connected. The switch uses the same intuitive administrator interface as AXIS T85 PoE Network Switch Series. The ruggedized switch is perfect for challenging environments when mounted inside a surveillance cabinet. It is designed to withstand shock, vibrations and temperatures from -40 °C to 75 °C (-40 °F to 167 °F), making it perfect for high demanding installations such as alongside highways and tunnels.
| Management features | |
|---|---|
| Switch type | Managed |
| Ports & interfaces | |
|---|---|
| Power connector | DC-in jack |
| Console port | RJ-45 |
| Fiber optic connector | SFP |
| Basic switching RJ-45 Ethernet ports type | Gigabit Ethernet (10/100/1000) |
| Basic switching RJ-45 Ethernet ports quantity | 4 |
| Network | |
|---|---|
| VLAN support | Yes |
| 10G support | No |
| Networking standards | IEEE 802.1Q, IEEE 802.1x |
| Data transmission | |
|---|---|
| Jumbo frames | 9216 |
| Jumbo frames support | Yes |
| Throughput | 11.9 Mpps |
| Switching capacity | 16 Gbit/s |
| MAC address table | 8000 entries |
| Security | |
|---|---|
| Security algorithms | HTTPS, SNMP, SNMPv3 |
| Authentication type | RADIUS |
| Password protection | Yes |
| Design | |
|---|---|
| Housing material | Aluminium |
| Product colour | Black |
| Power | |
|---|---|
| Surge protection | Yes |
| DC input voltage | 54 - 57 V |
| Power over Ethernet (PoE) | |
|---|---|
| Total Power over Ethernet (PoE) budget | 240 W |
| Power over Ethernet (PoE) power per port | 60 W |
| Power over Ethernet (PoE) ports quantity | 4 |
| Power over Ethernet (PoE) | Yes |
| Operational conditions | |
|---|---|
| Operating relative humidity (H-H) | 5 - 95% |
| Storage temperature (T-T) | -40 - 85 °C |
| Operating temperature (T-T) | -40 - 75 °C |
| Weight & dimensions | |
|---|---|
| Weight | 600 g |
| Height | 135 mm |
| Depth | 130 mm |
| Width | 62 mm |
| Packaging content | |
|---|---|
| Quick start guide | Yes |
| Packaging data | |
|---|---|
| Mounting brackets included | Yes |
| Certificates | |
|---|---|
| Certification | EN 55032, EN 55024, FCC, ICES-003, VCCI, RCM AS/NZS CISPR 32, EN 50121-4, EN 61000-3-2, EN 61000-3-3, EN 61000-6-1, EN 61000-6-2, EN 61000-6-3, EN 61000-6-4 IEC 62236-4, IEC/EN/UL 60950-1, IEC 60068-2-6, IEC 60068-2-27, 60068-2-31, NEMA TS-2-2003 |
| Logistics data | |
|---|---|
| Harmonized System (HS) code | 85176990 |
