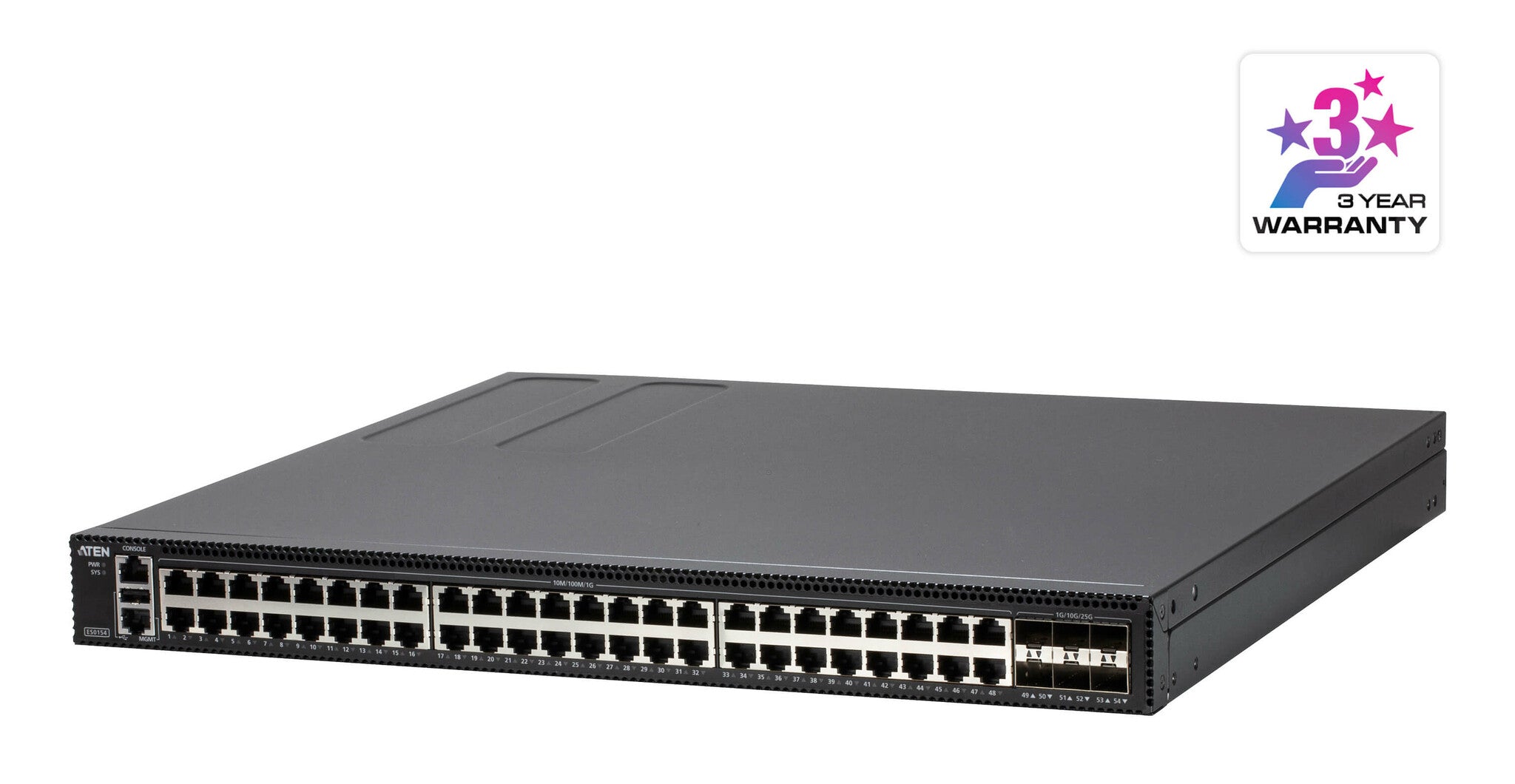

ATEN ES0154 network switch Managed L2+ Gigabit Ethernet (10/100/1000) Black
Couldn't load pickup availability
- Supports plug-and-play with KE, VE89 series devices
- Supports 48 Gigabit Ethernet ports and 6 SFP28 uplink ports (up to 25Gbps)
- High-performance Gigabit Ethernet L2+ access switch with 396 Gbps switching capacity – significantly improve the responsiveness of applications and file transfer times
- Supports IGMP v1/v2/v3 Snooping and IGMP v1/v2 Querier
- Supports IGMP Snooping Fast Leave
- Supports Flow Control
- Comprehensive QoS – allowing the marking, classification, and scheduling of up to four traffic types across the network
- Enhanced Security – Port Security limits the total number of devices using a switch port and protects against MAC flooding attacks
- Supports IEEE 802.1w Rapid Spanning Tree Protocol – ensuring a faster recovery from failed links and enhancing overall network stability and reliability
- Supports IPv4, IPv6
The ES0154 54-Port Layer 2+ Gigabit Ethernet Managed Switch is ideal for installation with ATEN KVM over IP products. It simplifies the process of building OT infrastructure with the ATEN KVM over IP series by eliminating the complexities of setup. It provides a high-performance 54-port configuration, a complete array of L2+ features, and advanced functionalities including Layer 3 static route, DHCP server, IPv6 support, and LLDP, making it a versatile solution for enhancing network performance. It offers a combination of SFP28 (fiber) and RJ-45 (copper) ports for servicing a range of network needs.

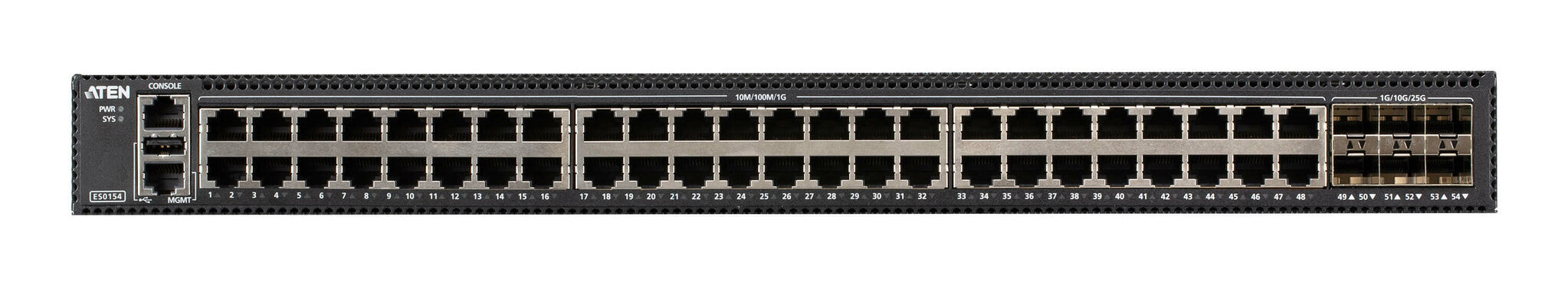

The ES0154 delivers 6 (1G/10G/25G) SFP28 and 48 (10M/100M/1G) RJ-45 ports.
Deploying the ES0154 is quick and hassle-free. Its plug-and-play design eliminates the need for software installation or device configuration. Just connect the transmitters and receivers to the ES0154 using Cat 5e/6 cables. With a full range of functions to help with optimizing network efficiency, manageability and reliability for their network environment, the ES0154 serves as an ideal network switch solution. It is particularly valuable in applications where connected devices play a critical role in network operation, including OT infrastructure for both SMBs and enterprises.
| Management features | |
|---|---|
| Quality of Service (QoS) support | Yes |
| Switch layer | L2+ |
| Switch type | Managed |
| Ports & interfaces | |
|---|---|
| USB 2.0 ports quantity | 1 |
| Console port | RJ-45 |
| Fiber optic connector | SFP28 |
| SFP module slots quantity | 6 |
| Basic switching RJ-45 Ethernet ports type | Gigabit Ethernet (10/100/1000) |
| Basic switching RJ-45 Ethernet ports quantity | 48 |
| Network | |
|---|---|
| Flow control support | Yes |
| Auto-negotiation | Yes |
| 10G support | Yes |
| Networking standards | IEEE 802.1w, IEEE 802.3af, IEEE 802.3at, IEEE 802.3bt |
| Data transmission | |
|---|---|
| Jumbo frames | 10000 |
| Jumbo frames support | Yes |
| Forwarding rate | 295 Mpps |
| Switching capacity | 396 Gbit/s |
| MAC address table | 32000 entries |
| Security | |
|---|---|
| IGMP snooping | Yes |
| Protocols | |
|---|---|
| Supported network protocols | IGMP v1/v2/v3, IGMP v1/v2 |
| Design | |
|---|---|
| Housing material | Metal |
| Product colour | Black |
| Rack mounting | Yes |
| Performance | |
|---|---|
| Flash memory | 256 MB |
| Internal memory | 1000 MB |
| Power | |
|---|---|
| Power consumption (max) | 54 W |
| AC input frequency | 50/60 Hz |
| AC input voltage | 100 - 240 V |
| Power source | AC |
| Operational conditions | |
|---|---|
| Operating relative humidity (H-H) | 5 - 95% |
| Storage temperature (T-T) | -20 - 70 °C |
| Operating temperature (T-T) | -5 - 45 °C |
| Weight & dimensions | |
|---|---|
| Weight | 4.68 kg |
| Height | 43.6 mm |
| Depth | 442 mm |
| Width | 420 mm |
| Packaging data | |
|---|---|
| Package weight | 7.18 kg |
| Package height | 150 mm |
| Package depth | 650 mm |
| Package width | 550 mm |
| Logistics data | |
|---|---|
| Country of origin | Taiwan |
