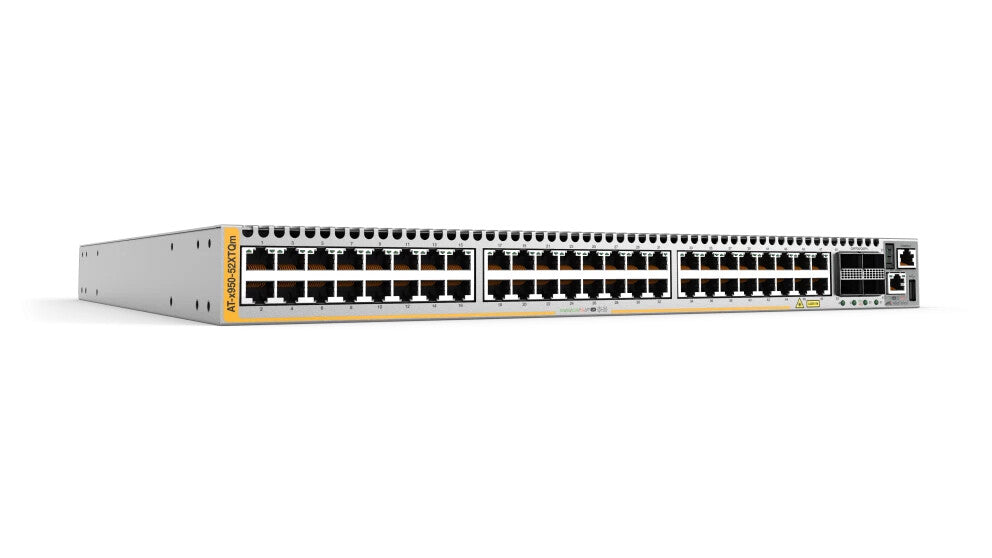

Allied Telesis x950-52XTQm Managed L3+ 10G Ethernet (100/1000/10000) 1U Grey
£18,602.99
Couldn't load pickup availability
- Managed L3+ Web-based management
- Quality of Service (QoS) support
- Basic switching RJ-45 Ethernet ports quantity: 48
- 10G support
- MAC address table: 96000 entries Switching capacity: 1920 Gbit/s
- Access Control List (ACL)
- 1U Rack mounting Stackable
- AC/DC Power supply included
Ideal for high-performing modern enterprise network cores, with stacking to create a resilient local or distributed solution, and integrated management of wired and wireless network devices. These powerful switches have 100 Gigabit connectivity built-in, and are expandable, delivering the capacity to enable today’s Smart City and IoT networks.
| Management features | |
|---|---|
| System event log | Yes |
| Traffic classification | Yes |
| Traffic shaping | Yes |
| ARP inspection | Yes |
| Web-based management | Yes |
| Quality of Service (QoS) support | Yes |
| Switch layer | L3+ |
| Switch type | Managed |
| Ports & interfaces | |
|---|---|
| Basic switching RJ-45 Ethernet ports type | 10G Ethernet (100/1000/10000) |
| Basic switching RJ-45 Ethernet ports quantity | 48 |
| Network | |
|---|---|
| Number of VLANs | 4000 |
| Virtual LAN features | Policy-based VLAN, Stacked VLAN |
| VLAN support | Yes |
| Link aggregation | Yes |
| Flow control support | Yes |
| Broadcast storm control | Yes |
| Full duplex | Yes |
| Port mirroring | Yes |
| 10G support | Yes |
| Networking standards | IEEE 802.1AE, IEEE 802.1AX, IEEE 802.1D, IEEE 802.1Q, IEEE 802.1ad, IEEE 802.1s, IEEE 802.1v, IEEE 802.1w, IEEE 802.2ad, IEEE 802.3, IEEE 802.3ab, IEEE 802.3ac, IEEE 802.3u |
| Data transmission | |
|---|---|
| Packet buffer memory | 16 MB |
| Jumbo frames | 10000 |
| Jumbo frames support | Yes |
| Static route | Yes |
| Forwarding rate | 1309 Mpps |
| Switching capacity | 1920 Gbit/s |
| MAC address table | 96000 entries |
| Security | |
|---|---|
| Loop protection | Yes |
| Security algorithms | EAP, HTTPS, MD5, PEAP, SSH, SSH-2, SSL/TLS, TLS, TTLS |
| MAC address filtering | Yes |
| SSH/SSL support | Yes |
| BPDU filtering/protection | Yes |
| IGMP snooping | Yes |
| Access Control List (ACL) | Yes |
| DHCP features | DHCPv6 client, DHCPv6 relay, DHCPv6 snooping |
| Multicast features | |
|---|---|
| Multicast MAC address table | 8000 entries |
| Multicast support | Yes |
| Design | |
|---|---|
| Product colour | Grey |
| Form factor | 1U |
| Stackable | Yes |
| Rack mounting | Yes |
| Power | |
|---|---|
| AC input frequency | 47/63 Hz |
| AC input voltage | 100 - 240 V |
| Number of power supply units | 2 |
| Power supply included | Yes |
| Power source | AC/DC |
| Power over Ethernet (PoE) | |
|---|---|
| Power over Ethernet (PoE) | No |
| Operational conditions | |
|---|---|
| Operating altitude | 0 - 3050 m |
| Storage relative humidity (H-H) | 5 - 95% |
| Operating relative humidity (H-H) | 5 - 90% |
| Storage temperature (T-T) | -25 - 70 °C |
| Operating temperature (T-T) | 0 - 50 °C |
| Weight & dimensions | |
|---|---|
| Height | 44 mm |
| Depth | 449 mm |
| Width | 441 mm |
