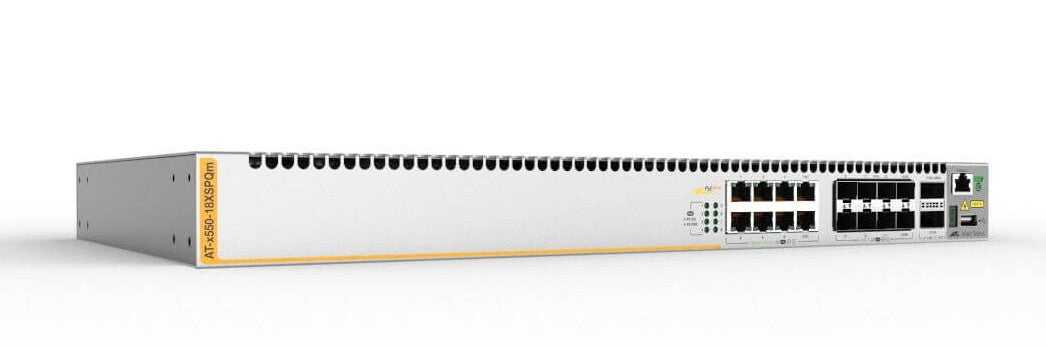

Allied Telesis X550-18XSPQM Managed 10G Ethernet (100/1000/10000) Power over Ethernet (PoE) Silver
£5,694.99
Couldn't load pickup availability
- Allied Telesis Autonomous Management Framework (AMF)
- Flexible deployment with a combination of copper and fiber ports, along with 40G uplinks
- Support high-speed wireless networking with 2.5G Ethernet connectivity to 802.11ac Wave2 access points, without the need for new cabling
- Ethernet Protection Switched Ring (EPSRing™) supports resilient high-speed ring-based networks
- SDN-ready
Stackable 10 Gigabit Intelligent Switches
The x550-18XSPQm stackable 10 Gigabit Layer 3 switch is a high-performing and feature-rich solution, with 8 x 1G/10G SFP+ slots, 8 x 1G/10G Ethernet ports, and 2 x 40G uplinks.
| Management features | |
|---|---|
| Switch type | Managed |
| Ports & interfaces | |
|---|---|
| Installed SFP+ modules quantity | 8 |
| Basic switching RJ-45 Ethernet ports type | 10G Ethernet (100/1000/10000) |
| Basic switching RJ-45 Ethernet ports quantity | 8 |
| Network | |
|---|---|
| Number of VLANs | 4094 |
| VLAN support | Yes |
| Link aggregation | Yes |
| IP routing | Yes |
| Port mirroring | Yes |
| 10G support | Yes |
| Networking standards | IEEE 1588, IEEE 802.1AX, IEEE 802.1D, IEEE 802.1s, IEEE 802.1v, IEEE 802.1w, IEEE 802.1x, IEEE 802.2, IEEE 802.3, IEEE 802.3ab, IEEE 802.3ac, IEEE 802.3ad, IEEE 802.3ae, IEEE 802.3af, IEEE 802.3an, IEEE 802.3at, IEEE 802.3az, IEEE 802.3ba, IEEE 802.3bz, IEEE 802.3x, IEEE 802.3z |
| Optical fiber | |
|---|---|
| Switching optical modules type | 40 Gigabit Ethernet |
| Data transmission | |
|---|---|
| Packet buffer memory | 4 MB |
| Jumbo frames support | Yes |
| Number of queues | 8 |
| Latency (10 Gbps) | 3 µs |
| Latency (1 Gbps) | 3.8 µs |
| Latency (10-100 Mbps) | 2.3 µs |
| Forwarding rate | 357.1 Mpps |
| Switching capacity | 480 Gbit/s |
| MAC address table | 16000 entries |
| Security | |
|---|---|
| BPDU filtering/protection | Yes |
| DHCP features | DHCP client |
| Design | |
|---|---|
| Safety | UL, cUL, TUV |
| Product colour | Silver |
| Stackable | Yes |
| Performance | |
|---|---|
| Noise level | 47 dB |
| Flash memory | 1024 MB |
| Internal memory | 1024 MB |
| Memory type | DDR-SDRAM |
| Power | |
|---|---|
| Power consumption (max) | 391 W |
| Power consumption (typical) | 99 W |
| Power over Ethernet (PoE) | |
|---|---|
| Total Power over Ethernet (PoE) budget | 240 W |
| Power over Ethernet (PoE) power per port | 30 W |
| Power over Ethernet plus (PoE+) ports quantity | 8 |
| Power over Ethernet (PoE) | Yes |
| Operational conditions | |
|---|---|
| Heat dissipation | 1334 BTU/h |
| Operating altitude | 0 - 3048 m |
| Storage relative humidity (H-H) | 5 - 95% |
| Operating relative humidity (H-H) | 5 - 90% |
| Storage temperature (T-T) | -25 - 70 °C |
| Operating temperature (T-T) | 0 - 45 °C |
| Weight & dimensions | |
|---|---|
| Weight | 4.2 kg |
| Height | 44 mm |
| Depth | 260 mm |
| Width | 440 mm |
