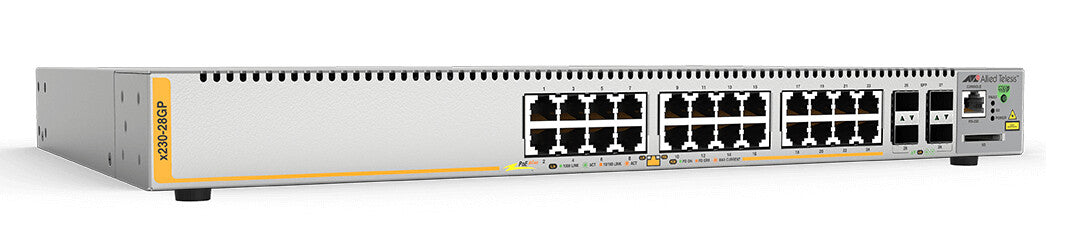

Allied Telesis x230-28GP Managed L3 Gigabit Ethernet (10/100/1000) Power over Ethernet (PoE) 1U Grey

Allied Telesis x230-28GP Managed L3 Gigabit Ethernet (10/100/1000) Power over Ethernet (PoE) 1U Grey

Allied Telesis
£1,010.99
Stock Available: 0
  • Managed L3 Web-based management SNMPv1, v2c, v3
  • Quality of Service (QoS) support Configuring Location Settings (CLI)
  • Basic switching RJ-45 Ethernet ports quantity: 24
  • 10BASE-T, 100BASE-T, 1000BASE-T
  • MAC address table: 16000 entries Switching capacity: 56 Gbit/s
  • Access Control List (ACL)
  • 1U Rack mounting Stackable
  • Power supply included Power over Ethernet (PoE)

The Allied Telesis x230-28GP features 24 10/100/1000T PoE+ ports with 4 SFP Gigabit uplink ports. Its full feature-set and Power over Ethernet Plus (PoE+) are ideal for applications at the network edge. The x230-28GP supports today’s converged networks with Gigabit Ethernet to the desktop, while powering VoIP phones, wireless access points, and IP security cameras.

Management features
System event log Yes
Traffic classification Yes
ARP inspection Yes
Configuring Location Settings (CLI) Yes
Web-based management Yes
Quality of Service (QoS) support Yes
Switch layer L3
Switch type Managed
Ports & interfaces
Compatible memory cards SD, SDHC
Fiber optic connector SFP
SFP module slots quantity 4
Gigabit Ethernet (copper) ports quantity 24
Basic switching RJ-45 Ethernet ports type Gigabit Ethernet (10/100/1000)
Basic switching RJ-45 Ethernet ports quantity 24
Network
Number of VLANs 2048
Virtual LAN features Private VLAN, Stacked VLAN, Tagged VLAN
VLAN support Yes
Link aggregation Yes
Flow control support Yes
Active link detection Yes
Rate limiting Yes
Broadcast storm control Yes
Spanning tree protocol Yes
IP routing Yes
Full duplex Yes
Port mirroring Yes
Copper ethernet cabling technology 10BASE-T, 100BASE-T, 1000BASE-T
10G support No
Networking standards IEEE 802.2, IEEE 802.3, IEEE 802.3ab, IEEE 802.3af, IEEE 802.3at, IEEE 802.3az, IEEE 802.3u, IEEE 802.3x, IEEE 802.3z
Optical fiber
Fiber ethernet cabling technology 100BASE-X, 1000BASE-X
Data transmission
Packet buffer memory 1.5 MB
Jumbo frames 10000
Jumbo frames support Yes
Static route Yes
Number of queues 8
Latency (1 Gbps) 4.3 µs
Forwarding rate 41.7 Mpps
Switching capacity 56 Gbit/s
MAC address table 16000 entries
Security
Loop protection Yes
Security algorithms 3DES, AES, MD5, PEAP, SHA-1, SHA-2, SNMPv3, SSH, SSL/TLS, TTLS
Authentication Guest VLAN, MAC-based authentication, Web-based authentication
Authentication type AAA, IEEE 802.1x
Queue scheduling algorithms SP, Weighted Round Robin (WRR)
MAC address filtering Yes
Password protection Yes
SSH/SSL support Yes
BPDU filtering/protection Yes
IGMP snooping Yes
Access Control List (ACL) Yes
DHCP features DHCP client, DHCP snooping, DHCPv6 client
Multicast features
Multicast MAC address table 512 entries
Multicast support Yes
Protocols
Routing protocols RIP, RIP-2
Management protocols SNMPv1, v2c, v3
Design
Electromagnetic compatibility EN55022 class A, FCC class A, VCCI class A
LED indicators Yes
Product colour Grey
Form factor 1U
Stackable Yes
Rack mounting Yes
Performance
Firmware upgradeable Yes
Noise level 34 dB
Flash memory 64 MB
Internal memory 256 MB
Memory type DDR-SDRAM
Power
Power consumption (max) 520 W
Input current 2.4 A
AC input frequency 50 - 60 Hz
AC input voltage 100 - 240 V
Power supply included Yes
Power over Ethernet (PoE)
Total Power over Ethernet (PoE) budget 370 W
Power over Ethernet plus (PoE+) ports quantity 24
Power over Ethernet (PoE) Yes
Operational conditions
Heat dissipation 303 BTU/h
Operating altitude 0 - 2000 m
Storage relative humidity (H-H) 0 - 95%
Operating relative humidity (H-H) 0 - 90%
Storage temperature (T-T) -20 - 60 °C
Operating temperature (T-T) 0 - 50 °C
Weight & dimensions
Weight 4.7 kg
Height 44 mm
Depth 290 mm
Width 440 mm
Packaging data
Package weight 6.35 kg
Package height 150 mm
Package depth 430 mm
Package width 530 mm
Certificates
Certification UL, cUL, UL-EU, RoHS
Logistics data
Country of origin China
