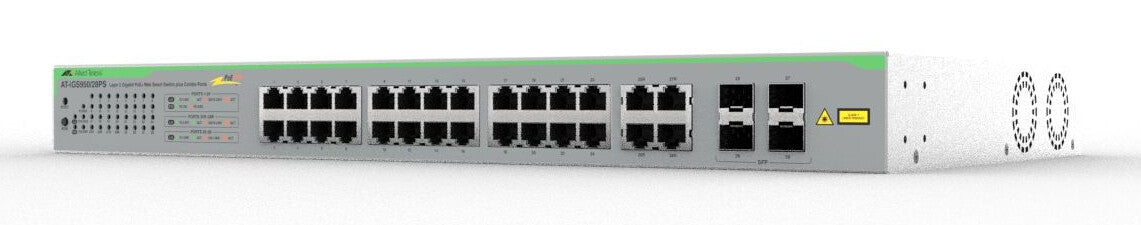

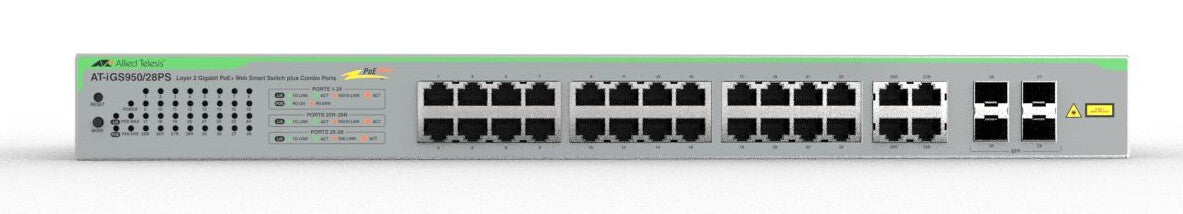

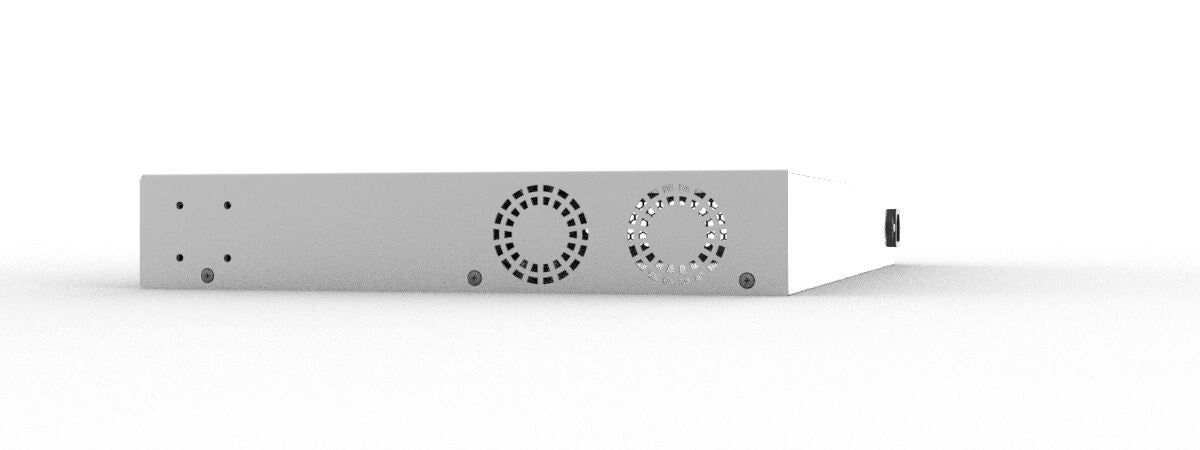

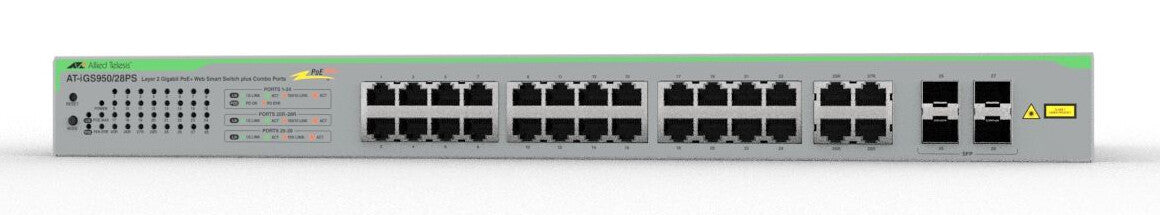

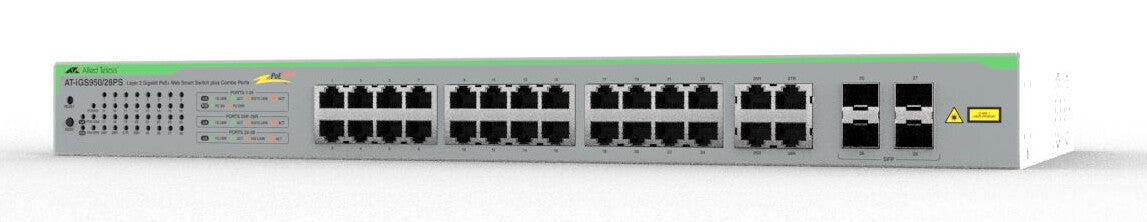

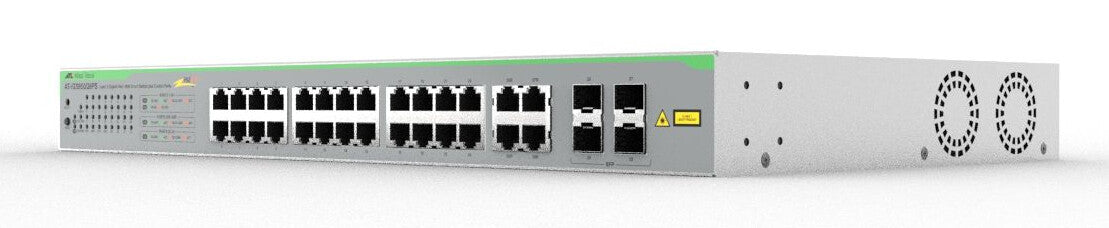

Allied Telesis iGS950/28PS Managed L2 Gigabit Ethernet (10/100/1000) Power over Ethernet (PoE) Desktop/Wall-Mounting Silver
Couldn't load pickup availability
- VLAN
- Quality of Service Classification
- IP Multicast Support (IPv4)
- IEEE 802.3ad Link Aggregation
- IEEE 802.1x Port-based, MAC-based and Network Access Control
The Allied Telesis iGS950 Series of WebSmart network switches demonstrates the Allied Telesis commitment to environmentally-friendly processes and products, minimizing power consumption through the use of a high efficiency power supply and a low power chipset. Featuring PoE+, iGS950 Series switches at the network edge are the ideal cost-effective solution for small businesses.
Ease of management and high performance
These advanced Allied Telesis WebSmart switches combine the simplicity of unmanaged switches with the performance and reliability of managed switches. This provides a cost-effective, secure and reliable solution for integrated management at the network edge. With user-friendly web-based management, the iGS950 Series is ideal for integrating simple management and security into your network solution.
Power over Ethernet (PoE)
The iGS950/10PS, 20PS, 28PS and 52PS switches are available in PoE+ (IEEE 802.3at), with the capability of delivering up to 30W per port. PoE allows users to connect and power a device using a single Ethernet cable, thus eliminating the need for additional power outlets and simplifying installation. Furthermore, this system is unaffected by any local variance in AC power, offering a standardized power infrastructure.
| Management features | |
|---|---|
| Switch type | Managed |
| Switch layer | L2 |
| Quality of Service (QoS) support | Yes |
| Web-based management | Yes |
| Configuring Location Settings (CLI) | Yes |
| MIB support | RFC 1213 MIB-II RFC 1643 Ethernet MIB RFC 1493 Bridge MIB RFC 2131 DHCPv4 server and client Private Enterprise MIB (Allied Telesis provides the spec) |
| Ports & interfaces | |
|---|---|
| Basic switching RJ-45 Ethernet ports quantity | 24 |
| Basic switching RJ-45 Ethernet ports type | Gigabit Ethernet (10/100/1000) |
| Gigabit Ethernet (copper) ports quantity | 24 |
| Combo SFP ports quantity | 4 |
| Network | |
|---|---|
| Networking standards | IEEE 802.1D, IEEE 802.1w, IEEE 802.1s, IEEE 802.1p, IEEE 802.3ad, IEEE 802.1x, IEEE 802.3at |
| 10G support | No |
| Copper ethernet cabling technology | 10BASE-T, 100BASE-T, 1000BASE-T |
| Full duplex | Yes |
| Link aggregation | Yes |
| Ethernet LAN data rates | 10,1000,100 Mbit/s |
| VLAN support | Yes |
| Number of VLANs | 256 |
| Optical fiber | |
|---|---|
| Fiber ethernet cabling technology | 100BASE-FX, 1000BASE-SX, 1000BASE-LX |
| Data transmission | |
|---|---|
| MAC address table | 8000 entries |
| Switching capacity | 56 Gbit/s |
| Forwarding rate | 41.7 Mpps |
| Jumbo frames support | Yes |
| Jumbo frames | 10000 |
| Packet buffer memory | 0.512 MB |
| Security | |
|---|---|
| DHCP features | DHCP client |
| Access Control List (ACL) | Yes |
| Access Control List (ACL) IPv4 entries | 256 |
| IGMP snooping | Yes |
| SSH/SSL support | Yes |
| Multicast features | |
|---|---|
| Multicast support | Yes |
| Design | |
|---|---|
| Rack mounting | Yes |
| Form factor | Desktop/Wall-Mounting |
| Product colour | Silver |
| Reset button | Yes |
| LED indicators | Yes |
| Wall mountable | Yes |
| Performance | |
|---|---|
| Memory type | DRAM |
| Internal memory | 256 MB |
| Flash memory | 32 MB |
| Telnet | Yes |
| Noise level | 51.7 dB |
| Fanless | No |
| Power | |
|---|---|
| Power source | AC |
| AC input voltage | 100 - 240 V |
| AC input frequency | 50/60 Hz |
| Input current | 7 A |
| Power consumption (typical) | 29.8 W |
| Power consumption (max) | 446.1 W |
| Power plug type | Type F |
| Power over Ethernet (PoE) | |
|---|---|
| Power over Ethernet (PoE) | Yes |
| Power over Ethernet (PoE) type supported | PoE+ |
| Power over Ethernet (PoE) ports quantity | 24 |
| Power over Ethernet plus (PoE+) ports quantity | 12 |
| Power over Ethernet (PoE) power per port | 30 W |
| Total Power over Ethernet (PoE) budget | 370 W |
| Other features | |
|---|---|
| Size (imperial) | 48.3 cm (19") |
| Operational conditions | |
|---|---|
| Operating temperature (T-T) | -5 - 50 °C |
| Storage temperature (T-T) | -25 - 70 °C |
| Operating relative humidity (H-H) | 5 - 90% |
| Storage relative humidity (H-H) | 5 - 95% |
| Operating altitude | 0 - 3000 m |
| Heat dissipation | 1521.9 BTU/h |
| Weight & dimensions | |
|---|---|
| Width | 440 mm |
| Depth | 250 mm |
| Height | 44 mm |
| Weight | 3.92 kg |
| Packaging content | |
|---|---|
| Cables included | Power |
| Rack mount kit | Yes |
| Packaging data | |
|---|---|
| Screws included | Yes |
| Mounting brackets included | Yes |
| Rubber feet | Yes |
| Sustainability | |
|---|---|
| Doesn't contain | Lead, Mercury, Cadmium |
| Certificates | |
|---|---|
| Compliance certificates | Trade Agreements Act (TAA), CE, UKCA, Federal Communications Commission (FCC), UL, TÜV mark, RoHS |
