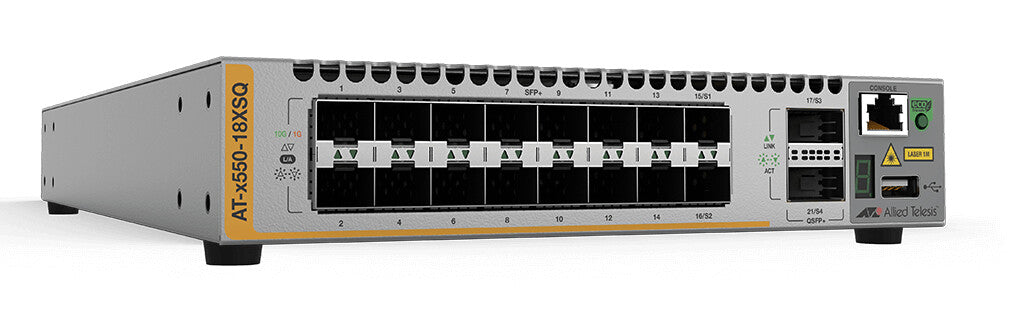

Allied Telesis AT-X550-18XSQ-30 network switch Managed L3 10G Ethernet (100/1000/10000) Grey
£5,475.99
Couldn't load pickup availability
- Managed L3 Web-based management
- Quality of Service (QoS) support
- 10G support
- MAC address table: 16000 entries Switching capacity: 480 Gbit/s
- Access Control List (ACL)
- Rack mounting Stackable
The x550-18XSQ stackable 10 Gigabit Layer 3 switch is a high-performing and feature-rich solution, with 16 x 1G/10G SFP+ slots and 2 x 40G uplinks.
Key Features
- AlliedWare Plus™ Enterprise-class operating system
- Ethernet Protection Switched Ring (EPSRing™) supports resilient high-speed ring-based networks
- SDN-ready with OpenFlow v1.3
- sFlow enables network performance monitoring and optimization
| Management features | |
|---|---|
| Web-based management | Yes |
| Quality of Service (QoS) support | Yes |
| Switch layer | L3 |
| Switch type | Managed |
| Ports & interfaces | |
|---|---|
| Installed QSFP+ modules quantity | 2 |
| Installed SFP+ modules quantity | 16 |
| Basic switching RJ-45 Ethernet ports type | 10G Ethernet (100/1000/10000) |
| Network | |
|---|---|
| Number of VLANs | 4094 |
| VLAN support | Yes |
| Flow control support | Yes |
| Spanning tree protocol | Yes |
| IP routing | Yes |
| Full duplex | Yes |
| Port mirroring | Yes |
| 10G support | Yes |
| Networking standards | IEEE 802.2, IEEE 802.3 |
| Data transmission | |
|---|---|
| Packet buffer memory | 4 MB |
| Jumbo frames support | Yes |
| Latency (10 Gbps) | 3 µs |
| Latency (1 Gbps) | 3.9 µs |
| Switching capacity | 480 Gbit/s |
| MAC address table | 16000 entries |
| Security | |
|---|---|
| Loop protection | Yes |
| MAC address filtering | Yes |
| SSH/SSL support | Yes |
| BPDU filtering/protection | Yes |
| IGMP snooping | Yes |
| Access Control List (ACL) | Yes |
| DHCP features | DHCP server, DHCP client |
| Multicast features | |
|---|---|
| Multicast support | Yes |
| Design | |
|---|---|
| Product colour | Grey |
| Stackable | Yes |
| Rack mounting | Yes |
| Performance | |
|---|---|
| Noise level | 46 dB |
| Flash memory | 1024 MB |
| Internal memory | 1024 MB |
| Power | |
|---|---|
| Power consumption (max) | 111 W |
| AC input frequency | 47/63 Hz |
| AC input voltage | 90 - 260 V |
| Power over Ethernet (PoE) | |
|---|---|
| Power over Ethernet (PoE) | No |
| Operational conditions | |
|---|---|
| Heat dissipation | 378 BTU/h |
| Operating altitude | 0 - 3048 m |
| Storage relative humidity (H-H) | 5 - 95% |
| Operating relative humidity (H-H) | 5 - 90% |
| Storage temperature (T-T) | -25 - 70 °C |
| Operating temperature (T-T) | 0 - 45 °C |
| Weight & dimensions | |
|---|---|
| Height | 42.5 mm |
| Depth | 346 mm |
| Width | 210 mm |
| Logistics data | |
|---|---|
| Country of origin | China |
