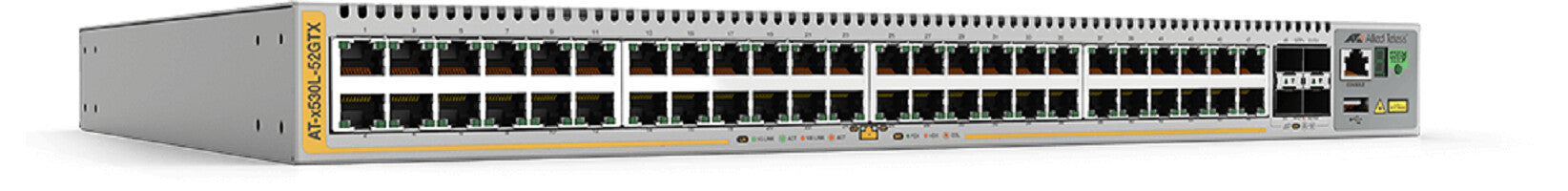

Allied Telesis AT-x530L-52GTX-50 Managed L3 Gigabit Ethernet (10/100/1000) Grey
£2,633.99
Couldn't load pickup availability
- AlliedWare Plus™ Enterprise-class operating system
- VCStack up to 8 units locally or over distance to support resilient networking
- Ethernet Protection Switched Ring (EPSRing™) and G.8032 ERPS supports high-speed resilient ring-based networks
- Dual load-sharing power supplies enable maximum uptime and minimal maintenance
- Active Fiber Monitoring secures fiber networks
The x530L-52GTX stackable Gigabit Layer 3 switch is high-performing and feature-rich, with 48 x 10M/100M/1G ports, and 4 x 10G uplinks.
| Management features | |
|---|---|
| Switch type | Managed |
| Switch layer | L3 |
| Quality of Service (QoS) support | Yes |
| Web-based management | Yes |
| Configuring Location Settings (CLI) | Yes |
| Ports & interfaces | |
|---|---|
| Basic switching RJ-45 Ethernet ports quantity | 48 |
| Basic switching RJ-45 Ethernet ports type | Gigabit Ethernet (10/100/1000) |
| SFP+ module slots quantity | 4 |
| Network | |
|---|---|
| Networking standards | IEEE 802.1Q, IEEE 802.1ab, IEEE 802.1ad, IEEE 802.1v, IEEE 802.2, IEEE 802.3, IEEE 802.3ab, IEEE 802.3ac, IEEE 802.3ae, IEEE 802.3af, IEEE 802.3at, IEEE 802.3az, IEEE 802.3u, IEEE 802.3x, IEEE 802.3z |
| 10G support | Yes |
| Copper ethernet cabling technology | 10BASE-T, 100BASE-TX, 1000BASE-T |
| Port mirroring | Yes |
| Full duplex | Yes |
| Auto-negotiation | Yes |
| Flow control support | Yes |
| VLAN support | Yes |
| Virtual LAN features | Private VLAN, Tagged VLAN |
| Number of VLANs | 4094 |
| Optical fiber | |
|---|---|
| Fiber ethernet cabling technology | 100BASE-X, 1000BASE-X |
| Data transmission | |
|---|---|
| MAC address table | 16000 entries |
| Switching capacity | 176 Gbit/s |
| Forwarding rate | 130.9 Mpps |
| Latency (10-100 Mbps) | 8.34 µs |
| Latency (1 Gbps) | 5.27 µs |
| Latency (10 Gbps) | 1.67 µs |
| Jumbo frames support | Yes |
| Jumbo frames | 10000 |
| Packet buffer memory | 3 MB |
| Security | |
|---|---|
| DHCP features | DHCPv6 client, DHCPv6 relay, DHCPv6 server |
| Access Control List (ACL) | Yes |
| IGMP snooping | Yes |
| Password protection | Yes |
| BPDU filtering/protection | Yes |
| Authentication type | IEEE 802.1x |
| Authentication | Guest VLAN, MAC-based authentication, Web-based authentication |
| Security algorithms | HTTPS, PEAP, SHA-2, SNMP, SSH-2, SSL/TLS, TTLS |
| Loop protection | Yes |
| MAC address filtering | Yes |
| Multicast features | |
|---|---|
| Multicast support | Yes |
| Design | |
|---|---|
| Rack mounting | Yes |
| Stackable | Yes |
| Product colour | Grey |
| Electromagnetic compatibility | EN55032 A, FCC A, VCCI A, ICES-003 A |
| Performance | |
|---|---|
| Physical stacking (units) | 4 |
| Memory type | DDR3-SDRAM |
| Internal memory | 1024 MB |
| Flash memory | 256 MB |
| Noise level | 42 dB |
| Power | |
|---|---|
| Power consumption (max) | 950 W |
| Power over Ethernet (PoE) | |
|---|---|
| Power over Ethernet (PoE) | No |
| Operational conditions | |
|---|---|
| Operating temperature (T-T) | 0 - 50 °C |
| Storage temperature (T-T) | -25 - 70 °C |
| Operating relative humidity (H-H) | 5 - 90% |
| Storage relative humidity (H-H) | 5 - 95% |
| Operating altitude | 0 - 3048 m |
| Heat dissipation | 205 BTU/h |
| Weight & dimensions | |
|---|---|
| Width | 441 mm |
| Depth | 323 mm |
| Height | 44 mm |
| Weight | 5.2 kg |
| Packaging content | |
|---|---|
| Quick start guide | Yes |
| Manual | Yes |
| User guide | Yes |
| Packaging data | |
|---|---|
| Package type | Box |
| Package width | 577 mm |
| Package depth | 440 mm |
| Package height | 153 mm |
| Package weight | 7.1 kg |
| Certificates | |
|---|---|
| Certification | UL, cUL, RoHS, UL60950-1, CAN/CSA-C22.2 No. 60950-1-03, EN60950-1, EN60825-1, AS/NZS, 60950.1 |
