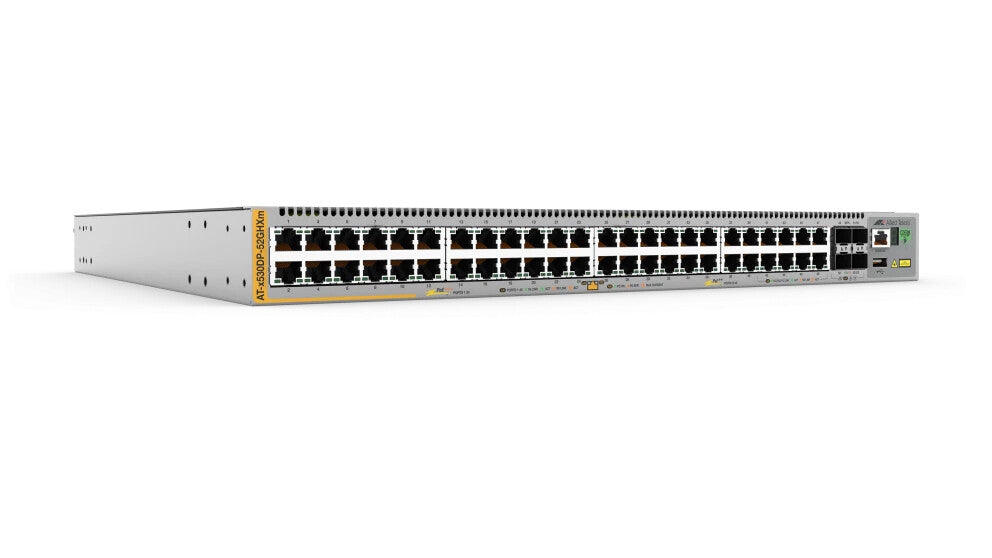

Allied Telesis AT-X530DP-52GHXM-B01 network switch Managed L3 5G Ethernet (100/1000/5000) Power over Ethernet (PoE) Grey
£4,564.99
Couldn't load pickup availability
- Build a resilient network core or distribution solution with the ability to stack multiple units using VCStack™
- Extend network reach with distributed backbones that are easy to manage using long-distance stacking
- Support high-speed wireless, and network upgrades over legacy cabling, with Multi-Gigabit (2.5/5G) connectivity
- Connect and power Wi-Fi 6 APs, security cameras, and other high-power devices with up to 90 Watts of PoE per port (depending on model – see specifications tab)
- Reduce costs and automate network and device management with Autonomous Management Framework™ Plus (AMF Plus)
- Vista Manager mini enables integrated wireless management, including floor and heat-maps for visual performance monitoring
- Dual load-sharing PSUs enable maximum uptime and minimal maintenance
- Dual hot-swappable PSUs and extended temperature operation of 0-65°C (on DP models) support flexible high resiliency deployment, and multi device IoT networks
- Deployable as an AMF Plus master or as an AMF Plus member switch
- Flexible Multi-Gigabit connectivity options at 1G, 2.5G, 5G and 10G
- EPSRing™ and G.8032 ERPS for fast-failover resilient ring networks
- 30W, 60W, or 90W PoE per port (depending on model – see specifications tab)
- PoE power budget of up to 1480W (depending on model – see specifications tab)
- Continuous PoE maximizes endpoint connectivity
- Active Fiber Monitoring™ (AFM) for secure fiber networks
- FIPS 140-2 certified
Powerful Multi-Gigabit switches with high capacity and easy management, making them the ideal choice for demanding distribution and high-speed connectivity applications. Dual hot-swap PSU models maximize resiliency, while PoE models enable flexible endpoint support.
| Management features | |
|---|---|
| Switch layer | L3 |
| Switch type | Managed |
| Ports & interfaces | |
|---|---|
| SFP+ module slots quantity | 4 |
| Basic switching RJ-45 Ethernet ports type | 5G Ethernet (100/1000/5000) |
| Basic switching RJ-45 Ethernet ports quantity | 48 |
| Network | |
|---|---|
| Number of VLANs | 4094 |
| VLAN support | Yes |
| Link aggregation | Yes |
| 10G support | Yes |
| Networking standards | IEEE 802.1x, IEEE 802.2, IEEE 802.3, IEEE 802.3ab, IEEE 802.3ae, IEEE 802.3af, IEEE 802.3at, IEEE 802.3az, IEEE 802.3bt, IEEE 802.3bz, IEEE 802.3u, IEEE 802.3x, IEEE 802.3z |
| Data transmission | |
|---|---|
| Packet buffer memory | 4.5 MB |
| Forwarding rate | 179 Mpps |
| Switching capacity | 240 Gbit/s |
| MAC address table | 16000 entries |
| Security | |
|---|---|
| Authentication type | AAA, RADIUS |
| Design | |
|---|---|
| Product colour | Grey |
| Stackable | Yes |
| Rack mounting | Yes |
| Performance | |
|---|---|
| Noise level | 63 dB |
| Flash memory | 256 MB |
| Internal memory | 16 MB |
| Memory type | DDR3-SDRAM |
| Power | |
|---|---|
| Power consumption (max) | 170 W |
| Power supply included | Yes |
| Power source | AC/DC/PoE |
| Power over Ethernet (PoE) | |
|---|---|
| Total Power over Ethernet (PoE) budget | 1930 W |
| Power over Ethernet 4PPoE (PoE++) ports quantity | 8 |
| Power over Ethernet (PoE) ports quantity | 48 |
| Power over Ethernet (PoE) | Yes |
| Operational conditions | |
|---|---|
| Heat dissipation | 580 BTU/h |
| Operating altitude | 0 - 3048 m |
| Storage relative humidity (H-H) | 5 - 95% |
| Operating relative humidity (H-H) | 5 - 90% |
| Storage temperature (T-T) | -25 - 70 °C |
| Operating temperature (T-T) | 0 - 65 °C |
| Weight & dimensions | |
|---|---|
| Weight | 5.6 kg |
| Height | 44 mm |
| Depth | 421 mm |
| Width | 441 mm |
| Packaging data | |
|---|---|
| Package weight | 7.7 kg |
| Package height | 153 mm |
| Package depth | 548 mm |
| Package width | 557 mm |
