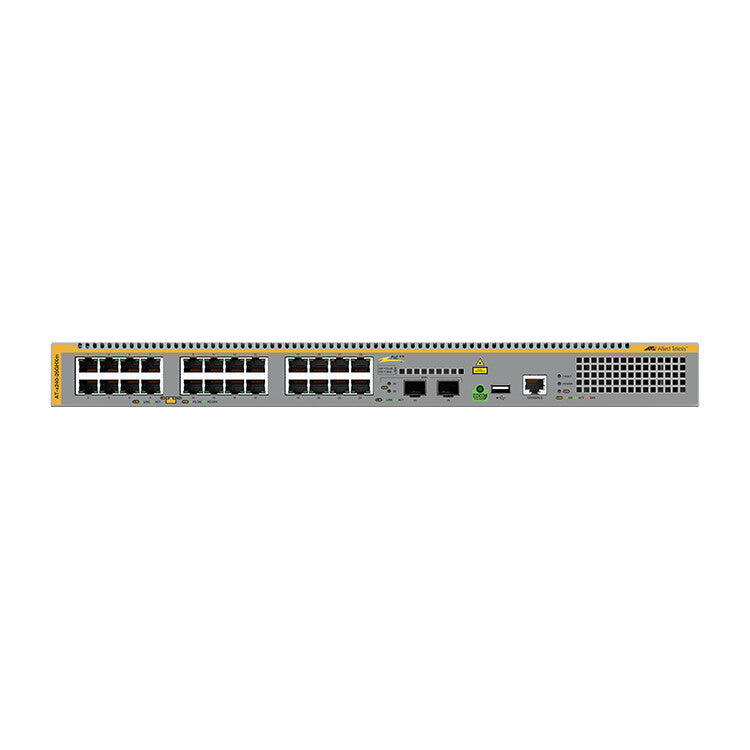

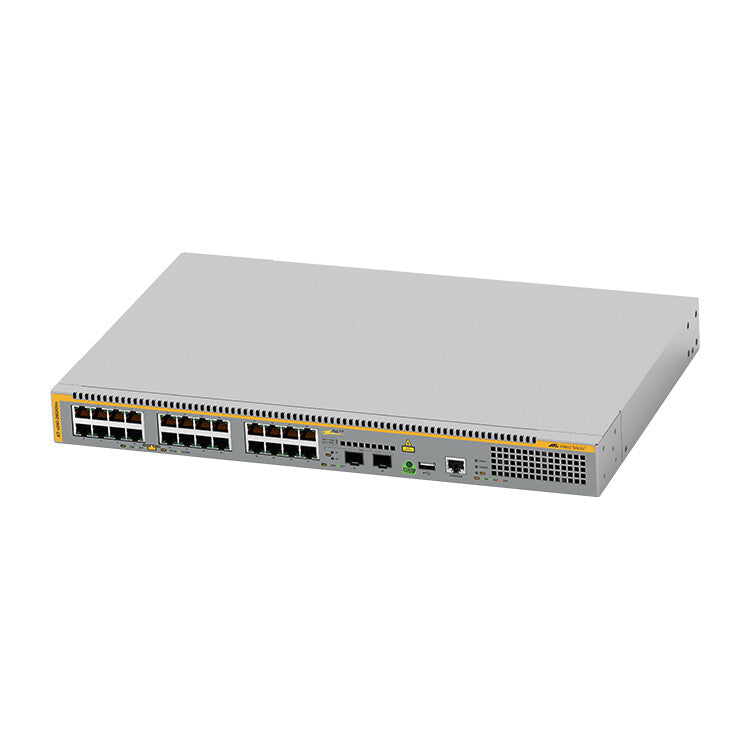

Allied Telesis AT-x240-26GHXm-50 Managed L3 5G Ethernet (100/1000/5000) Power over Ethernet (PoE) 1U Grey
Allied Telesis AT-x240-26GHXm-50 Managed L3 5G Ethernet (100/1000/5000) Power over Ethernet (PoE) 1U Grey
Allied Telesis AT-x240-26GHXm-50 Managed L3 5G Ethernet (100/1000/5000) Power over Ethernet (PoE) 1U Grey
Allied Telesis AT-x240-26GHXm-50 Managed L3 5G Ethernet (100/1000/5000) Power over Ethernet (PoE) 1U Grey

Allied Telesis AT-x240-26GHXm-50 Managed L3 5G Ethernet (100/1000/5000) Power over Ethernet (PoE) 1U Grey

Allied Telesis
£2,645.99
Stock Available: 0
  • Build a high-performing network access solution with multi-gigabit speeds of 10M/100M/1/2.5/5G on all edge ports to connect any device, old or new
  • Utilize different uplink options to meet requirements, with easy network upgrades over legacy cabling at multi-gigabit speeds, or maximum 10G performance
  • Connect and power Wi-Fi 6 APs, security cameras, IoT sensors, and other high-power devices with up to 90 Watts of PoE++ per port
  • Reduce costs and automate network and device management with Autonomous Management Framework™ Plus (AMF Plus)
  • Prevent eavesdropping of sensitive data on fiber links with Active Fiber Monitoring
  • Support resilient high-speed ring-based networks with Ethernet Protection Switched Ring (EPSRing™) and standards-based G.8032 ERPS
  • AlliedWare Plus™ Enterprise-class operating system
  • Static and dynamic (RIP) routing for L3 environments
  • Continuous PoE maximizes endpoint connectivity
  • ACLs manage access and traffic control across the network
  • Loop and storm protection for maximum uptime
  • Link monitoring for proactive network health management

x240 Series
Stackable Multi-Gigabit Edge Switches

Allied Telesis x240 Series Layer 3 stackable multi-gigabit switches, with 10 gigabit uplinks, offer an impressive set of features in a compact design. Power over Ethernet models add deployment flexibility by combining power delivery of up to 90 watts to next-generation endpoints, with high-speed throughput. The ability to stack 2 units creates a resilient network edge solution that’s ready for modern business operation.

Management features
Switch type Managed
Switch layer L3
Quality of Service (QoS) support Yes
Web-based management Yes
ARP inspection Yes
System event log Yes
MIB support Y
Ports & interfaces
Basic switching RJ-45 Ethernet ports quantity 24
Basic switching RJ-45 Ethernet ports type 5G Ethernet (100/1000/5000)
SFP+ module slots quantity 2
Network
Number of VLANs 4094
Data transmission
MAC address table 32000 entries
Switching capacity 280 Gbit/s
Forwarding rate 208.3 Mpps
Static route Yes
Jumbo frames support Yes
Jumbo frames 9000
Packet buffer memory 3 MB
Security
DHCP features DHCP snooping, DHCPv6 client, DHCPv6 relay
Access Control List (ACL) Yes
IGMP snooping Yes
BPDU filtering/protection Yes
Authentication type RADIUS, TACACS+
Authentication MAC-based authentication, Web-based authentication
Security algorithms SHA-1, SHA-256, SHA-384, SHA-512, SSH, SSL/TLS
SSH/SSL support Yes
Loop protection Yes
MAC address filtering Yes
Multicast features
Multicast support Yes
Design
Rack mounting Yes
Stackable Yes
Form factor 1U
Product colour Grey
LED indicators Yes
Performance
Memory type DDR4-SDRAM
Internal memory 1024 MB
Flash memory 256 MB
Export Control Classification Number (ECCN) 5A992A
Power
Power supply included Yes
Power over Ethernet (PoE)
Power over Ethernet (PoE) Yes
Power over Ethernet 4PPoE (PoE++) ports quantity 24
Operational conditions
Operating temperature (T-T) 0 - 50 °C
Storage temperature (T-T) -25 - 70 °C
Operating relative humidity (H-H) 5 - 90%
Storage relative humidity (H-H) 5 - 95%
Operating altitude 0 - 3000 m
Weight & dimensions
Width 440 mm
Depth 290 mm
Height 44 mm
Weight 4.3 kg
Packaging data
Package width 547 mm
Package depth 364 mm
Package height 115 mm
Package weight 5.6 kg
