Allied Telesis AT-X230-10GP-30 network switch Managed L3 Gigabit Ethernet (10/100/1000) Power over Ethernet (PoE) Grey
£861.99
Couldn't load pickup availability
- Managed L3 Web-based management
- Quality of Service (QoS) support
- Basic switching RJ-45 Ethernet ports quantity: 8
- MAC address table: 16000 entries Switching capacity: 12.8 Gbit/s
- Access Control List (ACL)
- Rack mounting Stackable
- Power over Ethernet (PoE)
Gigabit Edge Switch

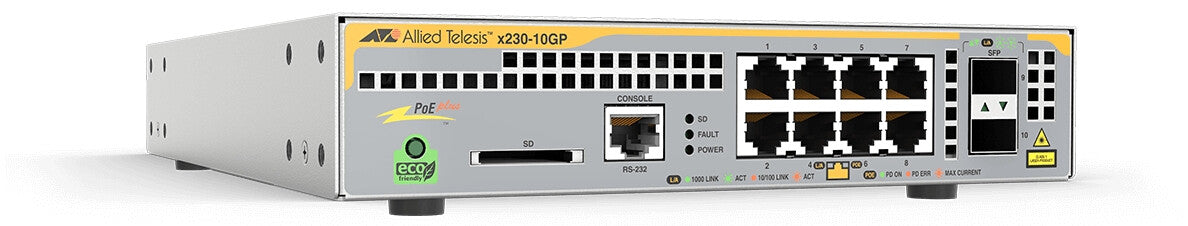

The Allied Telesis x230-10GP features 8 x 10/100/1000T PoE+ ports with 2 SFP Gigabit uplink ports. The compact design provides flexible deployment options, and Power over Ethernet Plus (PoE+) provides up to 30 Watts to support high power connected edge devices such as multi-band wireless access points and Pan, Tilt, and Zoom digital security cameras.
| Management features | |
|---|---|
| MIB support | Y |
| System event log | Yes |
| ARP inspection | Yes |
| Web-based management | Yes |
| Quality of Service (QoS) support | Yes |
| Switch layer | L3 |
| Switch type | Managed |
| Ports & interfaces | |
|---|---|
| Power connector | DC-in jack |
| Combo SFP ports quantity | 2 |
| Basic switching RJ-45 Ethernet ports type | Gigabit Ethernet (10/100/1000) |
| Basic switching RJ-45 Ethernet ports quantity | 8 |
| Network | |
|---|---|
| Link aggregation | Yes |
| Flow control support | Yes |
| Full duplex | Yes |
| Port mirroring | Yes |
| 10G support | No |
| Networking standards | IEEE 802.3, IEEE 802.3ad, IEEE 802.3af, IEEE 802.3az, IEEE 802.3u, IEEE 802.3x, IEEE 802.3z |
| Data transmission | |
|---|---|
| Throughput | 6.5 Mpps |
| Switching capacity | 12.8 Gbit/s |
| MAC address table | 16000 entries |
| Security | |
|---|---|
| Security algorithms | 802.1x RADIUS |
| IGMP snooping | Yes |
| Access Control List (ACL) | Yes |
| DHCP features | DHCP server, DHCP client |
| Multicast features | |
|---|---|
| Multicast support | Yes |
| Design | |
|---|---|
| Safety | UL60950-1, CAN/CSA-C22.2 No. 60950-1-03, EN60950-1, EN60825-1, AS/NZS 60950.1 |
| LED indicators | Yes |
| Product colour | Grey |
| Stackable | Yes |
| Rack mounting | Yes |
| Performance | |
|---|---|
| Internal memory | 256 MB |
| Power | |
|---|---|
| Power consumption (typical) | 24 W |
| AC input frequency | 47/63 Hz |
| AC input voltage | 90 - 260 V |
| Power over Ethernet (PoE) | |
|---|---|
| Power over Ethernet plus (PoE+) ports quantity | 8 |
| Power over Ethernet (PoE) | Yes |
| Operational conditions | |
|---|---|
| Heat dissipation | 81 BTU/h |
| Operating altitude | 0 - 3048 m |
| Storage relative humidity (H-H) | 5 - 95% |
| Operating relative humidity (H-H) | 5 - 90% |
| Storage temperature (T-T) | -25 - 70 °C |
| Operating temperature (T-T) | 0 - 50 °C |
| Weight & dimensions | |
|---|---|
| Weight | 2.4 kg |
| Height | 44 mm |
| Depth | 215 mm |
| Width | 340 mm |
