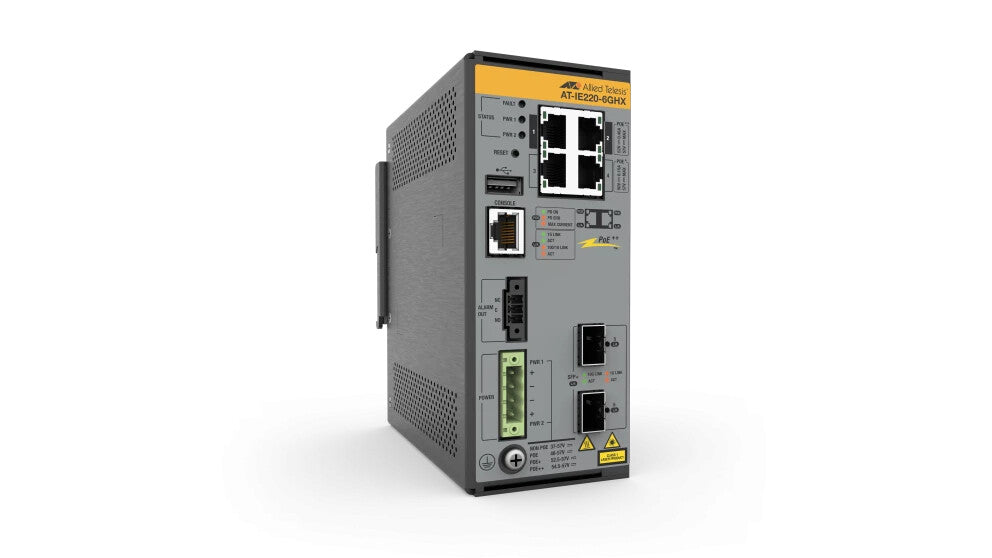

Allied Telesis AT-IE220-6GHX-80 Managed L2 Gigabit Ethernet (10/100/1000) Power over Ethernet (PoE) Grey
£738.99
Couldn't load pickup availability
- Managed L2 Web-based management SNMPv1/v2c/v3
- Quality of Service (QoS) support Configuring Location Settings (CLI)
- Basic switching RJ-45 Ethernet ports quantity: 4
- MAC address table: 16000 entries Switching capacity: 48 Gbit/s
- Access Control List (ACL)
- DC/PoE Power over Ethernet (PoE)
Industrial Ethernet Layer 2+ PoE++ Switches with 10G uplinks
Ruggedized switches built for enduring performance in harsh environments. Power over Ethernet (PoE++) connects and powers environmental, system control, and other key IIoT devices for a reliable and high-performing solution and 10G fiber uplinks ensure capacity for demanding edge applications. The IE220 Series enables safety, security, and smooth operation for building automation, intelligent transportation, and smart city networks.
| Management features | |
|---|---|
| System event log | Yes |
| Traffic classification | Yes |
| Traffic shaping | Yes |
| ARP inspection | Yes |
| Configuring Location Settings (CLI) | Yes |
| Web-based management | Yes |
| Quality of Service (QoS) support | Yes |
| Switch layer | L2 |
| Switch type | Managed |
| Ports & interfaces | |
|---|---|
| USB 2.0 ports quantity | 1 |
| Combo SFP ports quantity | 2 |
| Gigabit Ethernet (copper) ports quantity | 6 |
| Basic switching RJ-45 Ethernet ports type | Gigabit Ethernet (10/100/1000) |
| Basic switching RJ-45 Ethernet ports quantity | 4 |
| Network | |
|---|---|
| Number of VLANs | 4094 |
| VLAN support | Yes |
| Link aggregation | Yes |
| Flow control support | Yes |
| Full duplex | Yes |
| 10G support | No |
| Networking standards | IEEE 802.3ac, IEEE 802.3bt, IEEE 802.1ad, IEEE 802.1p, IEEE 802.1s, IEEE 802.1AX, IEEE 802.1D, IEEE 802.1v, IEEE 802.1Q, IEEE 802.1w, IEEE 802.1x |
| Data transmission | |
|---|---|
| Packet buffer memory | 2 MB |
| Jumbo frames support | Yes |
| Throughput | 37.7 Mpps |
| Switching capacity | 48 Gbit/s |
| MAC address table | 16000 entries |
| Security | |
|---|---|
| Security algorithms | 802.1x RADIUS |
| Authentication | MAC-based authentication, Port-based authentication |
| BPDU filtering/protection | Yes |
| IGMP snooping | Yes |
| Access Control List (ACL) | Yes |
| DHCP features | DHCP client, DHCP snooping |
| Multicast features | |
|---|---|
| Multicast support | Yes |
| Protocols | |
|---|---|
| Management protocols | SNMPv1/v2c/v3 |
| Design | |
|---|---|
| Wall mountable | Yes |
| International Protection (IP) code | IP30 |
| DIN rail mounting | Yes |
| Housing material | Aluminium, Metal |
| Product colour | Grey |
| Rack mounting | No |
| Performance | |
|---|---|
| Export Control Classification Number (ECCN) | 5A992C |
| Flash memory | 128 MB |
| Internal memory | 512 MB |
| Power | |
|---|---|
| Power consumption (max) | 17.4 W |
| Input voltage | 37 - 57 V |
| Power source | DC/PoE |
| Power over Ethernet (PoE) | |
|---|---|
| Power over Ethernet 4PPoE (PoE++) ports quantity | 2 |
| Power over Ethernet plus (PoE+) ports quantity | 4 |
| Power over Ethernet (PoE) | Yes |
| Weight & dimensions | |
|---|---|
| Height | 155 mm |
| Depth | 137 mm |
| Width | 65 mm |
| Logistics data | |
|---|---|
| Harmonized System (HS) code | 8517.62.0050 |
