Allied Telesis AT-GS970M/28-30 network switch Managed L3 Gigabit Ethernet (10/100/1000) 1U Grey

Allied Telesis AT-GS970M/28-30 network switch Managed L3 Gigabit Ethernet (10/100/1000) 1U Grey

Allied Telesis
£555.99
Stock Available: 0
  • AlliedWare Plus Enterprise-class operating system
  • Eco-friendly for reduced running costs
  • Network Access Control (NAC) for edge security
  • Ethernet Protection Switched Ring (EPSR) enables resilient high-speed ring-based networks
  • Static Routing and RIP support Layer 3 environments

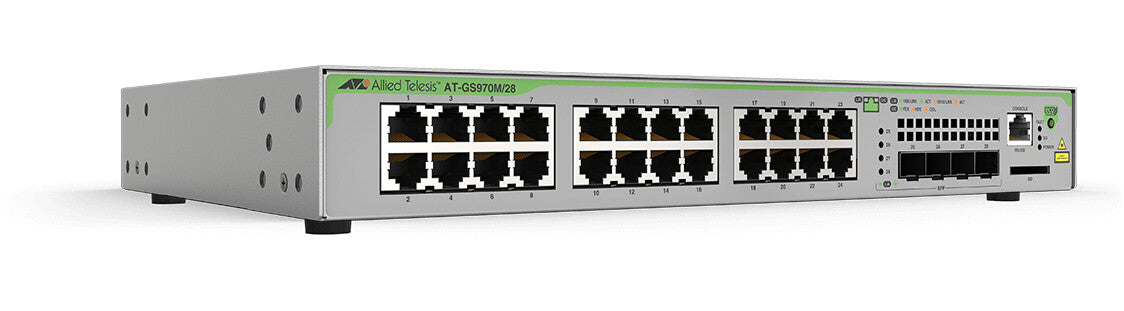

The Allied Telesis CentreCOM® GS970M/28 Layer 3 managed switch features twenty-four 10/100/1000T Gigabit Ethernet ports and four 100/1000X SFP ports for secure connectivity at the network edge.

Management features
MIB support SNMP MIB
System event log Yes
Traffic classification Yes
ARP inspection Yes
Web-based management Yes
Quality of Service (QoS) support Yes
Switch layer L3
Switch type Managed
Ports & interfaces
Compatible memory cards SD, SDHC
Console port RS-232
Fiber optic connector SFP
Combo SFP ports quantity 4
Gigabit Ethernet (copper) ports quantity 24
Basic switching RJ-45 Ethernet ports type Gigabit Ethernet (10/100/1000)
Basic switching RJ-45 Ethernet ports quantity 24
Network
Number of VLANs 4094
Virtual LAN features Private VLAN, Voice VLAN, Tagged VLAN, Protocol-based VLAN, Port-based VLAN
VLAN support Yes
Link aggregation Yes
Fast leave Yes
Ethernet Ring Protection Switching (ERPS) Yes
Flow control support Yes
Broadcast storm control Yes
Spanning tree protocol Yes
Full duplex Yes
Port mirroring Yes
Copper ethernet cabling technology 10BASE-T, 100BASE-T, 1000BASE-T
10G support No
Networking standards IEEE 802.2, IEEE 802.3, IEEE 802.3ab, IEEE 802.3af, IEEE 802.3at, IEEE 802.3az, IEEE 802.3u, IEEE 802.3x, IEEE 802.3z
Optical fiber
Fiber ethernet cabling technology 100BASE-X, 1000BASE-X
Data transmission
Jumbo frames 10000
Jumbo frames support Yes
Static route Yes
Latency (1 Gbps) 4.3 µs
Latency (10-100 Mbps) 8.6 µs
Forwarding rate 41.7 Mpps
Switching capacity 56 Gbit/s
MAC address table 16000 entries
Security
Loop protection Yes
Security algorithms 3DES, AES, MD5, PEAP, RSA, SHA-1, SHA-2, SSH, SSH-2, SSL/TLS, TTLS
Authentication MAC-based authentication, Port-based authentication, Web-based authentication
Authentication type AAA, IEEE 802.1x, Network Access Control (NAC), RADIUS
MAC address filtering Yes
Password protection Yes
SSH/SSL support Yes
BPDU filtering/protection Yes
Neighbor discovery snooping Yes
Root protection Yes
IGMP snooping Yes
Access Control List (ACL) Yes
DHCP features DHCP snooping, DHCP client
Multicast features
Multicast support Yes
Protocols
Routing protocols RIP, RIP-2
Design
Safety EN60950-1 (TUV), UL 60950- 1(cULus), EN60825-1
Wall mountable Yes
LED indicators Yes
Product colour Grey
Form factor 1U
Rack mounting Yes
Performance
Telnet Yes
Noise level 34 dB
Flash memory 64 MB
Internal memory 512 MB
Memory type DDR-SDRAM
Power
Power consumption (max) 26 W
Input current 2.4 A
AC input frequency 50 - 60 Hz
AC input voltage 100 - 240 V
Power over Ethernet (PoE)
Power over Ethernet (PoE) No
Operational conditions
Heat dissipation 89 BTU/h
Non-operating altitude 0 - 4000 m
Operating altitude 0 - 3000 m
Storage relative humidity (H-H) 5 - 95%
Operating relative humidity (H-H) 5 - 90%
Storage temperature (T-T) -25 - 70 °C
Operating temperature (T-T) 0 - 50 °C
Weight & dimensions
Weight 2.4 kg
Height 44 mm
Depth 231 mm
Width 341 mm
Packaging data
Package weight 4 kg
Package height 150 mm
Package depth 360 mm
Package width 430 mm
Included power plug types UK
Certificates
Certification FCC Class A, EN55022 Class A, EN61000-3-2, EN61000-3-3, VCCI Class A, CISPR Class A
Logistics data
Country of origin China
