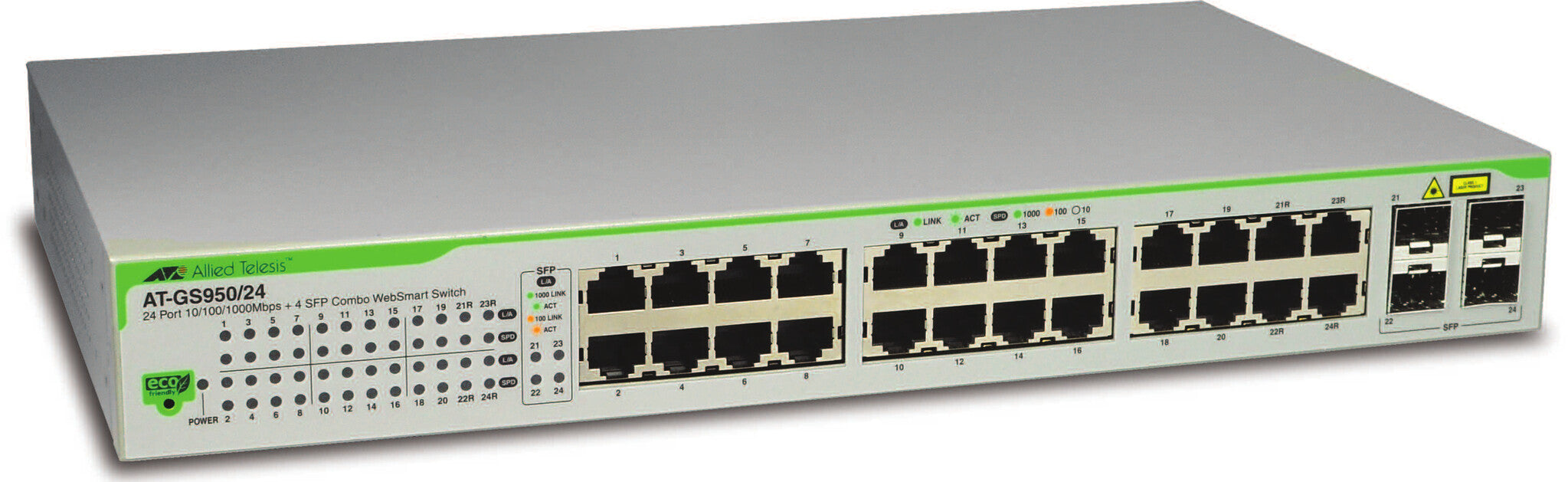

Allied Telesis AT-GS950/24 Managed
£355.99
Couldn't load pickup availability
- Managed Web-based management
- Quality of Service (QoS) support
- Basic switching RJ-45 Ethernet ports quantity: 24
- MAC address table: 8000 entries
The WebSmart AT-GS950/24 features a Web-based interface that allows you to set up 802.1Q VLANs to segregate traffic, QoS to prioritize mission-critical data such as voice or video packets, and link aggregation to create traffic pipelines. The AT-GS950/24 also provides network monitoring tools such as port mirroring and basic port statistics. Remote product management enables simple monitoring from anywhere you have connectivity. This WebSmart switch provides managed features for simple QoS applications, 24 10/100/1000T ports, and two combo SFP ports for Gigabit connections.
| Management features | |
|---|---|
| Web-based management | Yes |
| Quality of Service (QoS) support | Yes |
| Switch type | Managed |
| Ports & interfaces | |
|---|---|
| SFP/SFP+ slots quantity | 2 |
| Combo SFP ports quantity | 4 |
| Basic switching RJ-45 Ethernet ports quantity | 24 |
| Network | |
|---|---|
| Link aggregation | Yes |
| Flow control support | Yes |
| Port mirroring | Yes |
| Networking standards | IEEE 802.1d, IEEE 802.1p, IEEE 802.1Q, IEEE 802.1x, IEEE 802.3ad, IEEE 802.3u, IEEE 802.3x, IEEE 802.3z |
| Data transmission | |
|---|---|
| Packet buffer memory | 0.5 MB |
| Maximum data transfer rate | 1 Gbit/s |
| Supported data transfer rates | 10/100/1000 Mbps |
| MAC address table | 8000 entries |
| Design | |
|---|---|
| Stackable | No |
| Performance | |
|---|---|
| Flash memory | 2 MB |
| Internal memory | 8 MB |
| Power over Ethernet (PoE) | |
|---|---|
| Power over Ethernet (PoE) | No |
| Other features | |
|---|---|
| Non-operating relative humidity (non-condensing) | 5 - 95% |
| Networking features | Gigabit Ethernet |
| Packet transfer speed | 1488000 pps |
| Power requirements | 100-240V AC, 50/60Hz |
| Dimensions (WxDxH) | 440 x 257 x 43.2 mm |
| Operational conditions | |
|---|---|
| Operating relative humidity (H-H) | 5 - 90% |
| Storage temperature (T-T) | -25 - 70 °C |
| Operating temperature (T-T) | 0 - 40 °C |
| Weight & dimensions | |
|---|---|
| Weight | 3.24 kg |
| Certificates | |
|---|---|
| Certification | UL 1950FCC/EN55022 Class AVCCI Class AC-TickEN60950 (TUV)EN55024CE |
