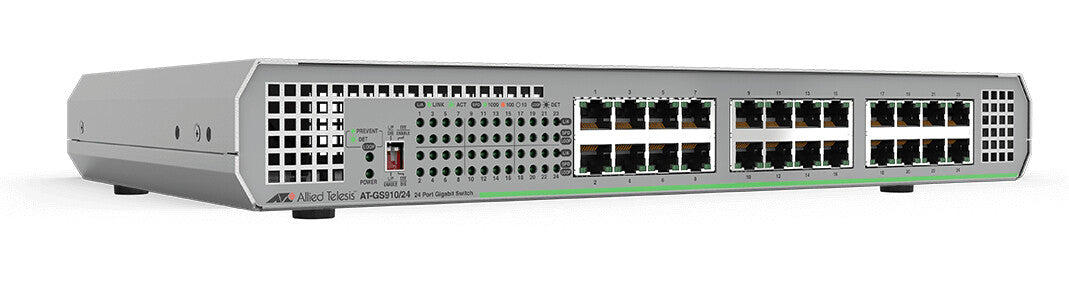

Allied Telesis AT-GS910/24-30 network switch Unmanaged Gigabit Ethernet (10/100/1000) 1U Grey
£190.99
Couldn't load pickup availability
- EAP/BPDU passthrough
- Wirespeed performance
- Non-blocking architecture
- Auto-negotiation Gigabit ports
- Auto MDI/MDI-X on TX ports
- Full-duplex flow control
- Silent operation; fanless
- Operating temperature 0-50°C
The Allied Telesis GS910 Series offers unmanaged Gigabit switching solutions for the desktop, and small networks. With minimal to no set-up, GS910 Series switches provide simple and seamless connectivity to existing network infrastructure.
| Management features | |
|---|---|
| Web-based management | Yes |
| Switch type | Unmanaged |
| Ports & interfaces | |
|---|---|
| Console port | RJ-45 |
| Gigabit Ethernet (copper) ports quantity | 24 |
| Basic switching RJ-45 Ethernet ports type | Gigabit Ethernet (10/100/1000) |
| Basic switching RJ-45 Ethernet ports quantity | 24 |
| Network | |
|---|---|
| Flow control support | Yes |
| Auto-negotiation | Yes |
| Broadcast storm control | Yes |
| Full duplex | Yes |
| Copper ethernet cabling technology | 10BASE-T, 100BASE-T, 1000BASE-T |
| 10G support | No |
| Networking standards | IEEE 802.3, IEEE 802.3az, IEEE 802.3u, IEEE 802.3x |
| Data transmission | |
|---|---|
| Packet forwarding rate (100 Mbps) | 148800 pps |
| Packet forwarding rate (10 Mbps) | 14880 pps |
| Packet forwarding rate (1 Gbps) | 1488000 pps |
| Jumbo frames | 10000 |
| Jumbo frames support | Yes |
| Throughput | 35.7 Mpps |
| Switching capacity | 48 Gbit/s |
| MAC address table | 8000 entries |
| Security | |
|---|---|
| Loop protection | Yes |
| BPDU filtering/protection | Yes |
| Design | |
|---|---|
| Safety | UL60950-1, 2nd Edition, CSA C22.2 No.60950-1-07, 2nd Edition, IEC60950-1(UL-EU, UL-CB) |
| Wall mountable | Yes |
| LED indicators | Yes |
| Housing material | Metal |
| Product colour | Grey |
| Form factor | 1U |
| Rack mounting | Yes |
| Performance | |
|---|---|
| Buffer size | 524 KB |
| Power | |
|---|---|
| Power consumption (max) | 17 W |
| Input current | 0.4 A |
| AC input frequency | 50 - 60 Hz |
| AC input voltage | 100 - 240 V |
| Power over Ethernet (PoE) | |
|---|---|
| Power over Ethernet (PoE) | No |
| Operational conditions | |
|---|---|
| Storage relative humidity (H-H) | 5 - 95% |
| Operating relative humidity (H-H) | 5 - 90% |
| Storage temperature (T-T) | -25 - 70 °C |
| Operating temperature (T-T) | 0 - 50 °C |
| Weight & dimensions | |
|---|---|
| Weight | 2.1 kg |
| Height | 44 mm |
| Depth | 210 mm |
| Width | 341 mm |
| Packaging data | |
|---|---|
| Included power plug types | UK |
| Certificates | |
|---|---|
| Certification | EAC certification, EN55024, ICES Class A, VCCI Class A, FCC Class A, RCM, CE, EN55022, CISPR 55022 |
