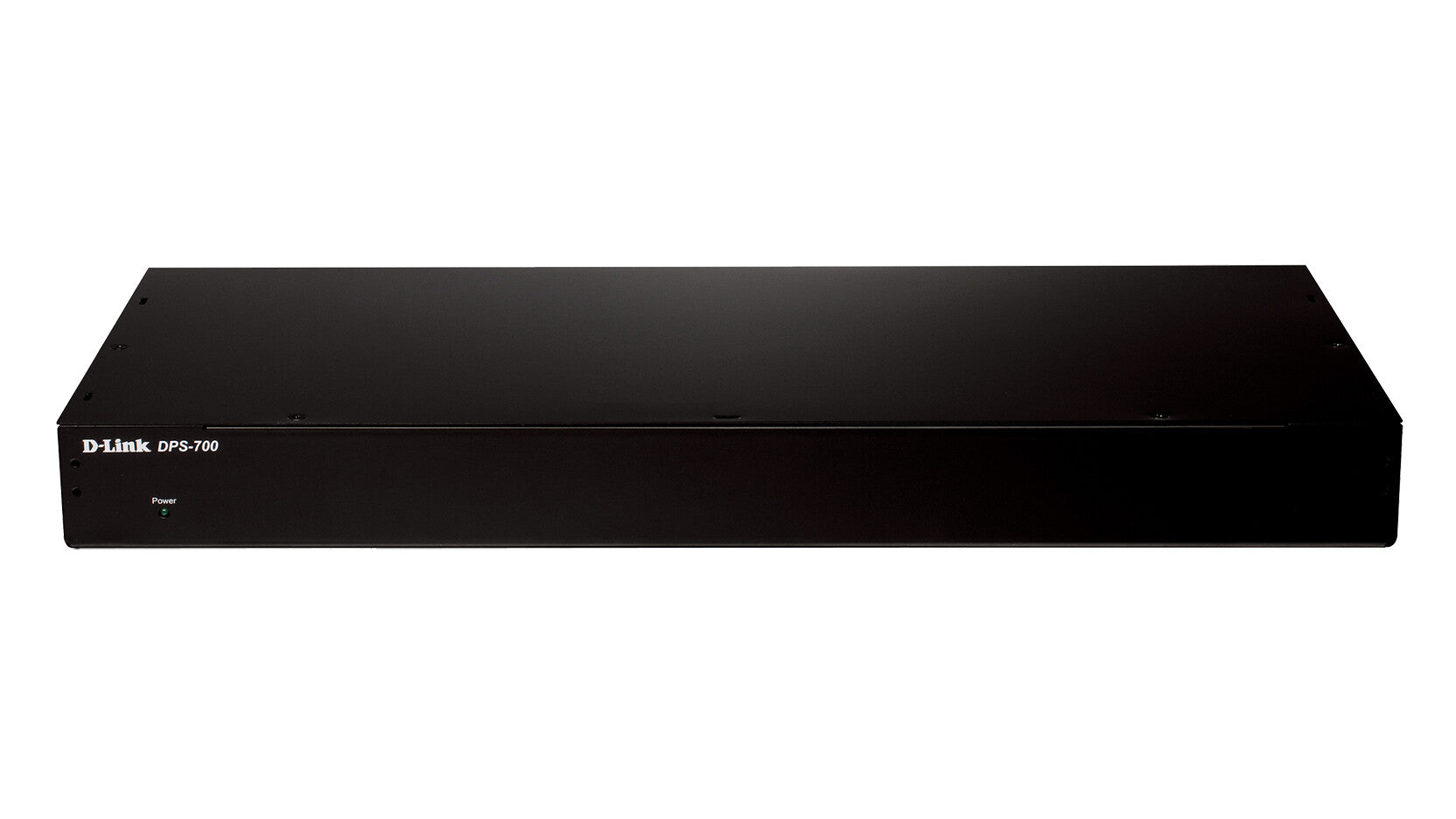

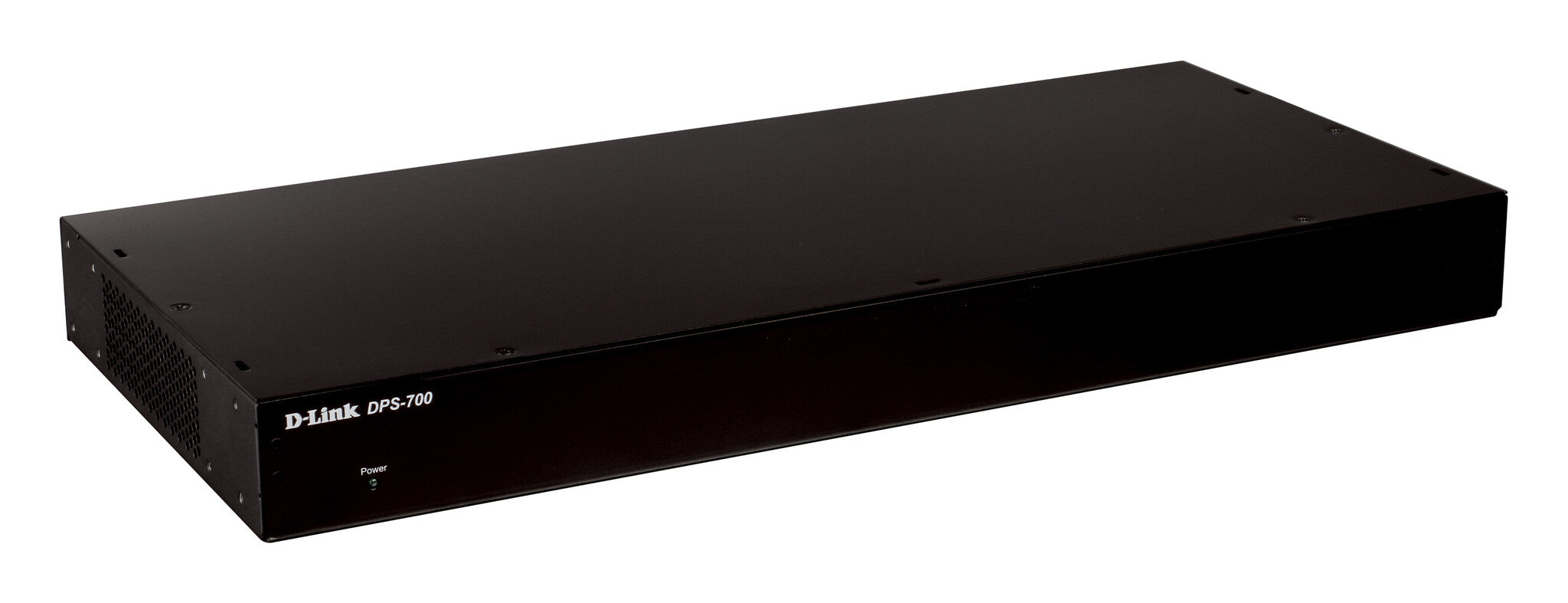

D-Link 589W Redundant Power Supply
£1,068.99
Couldn't load pickup availability
- Redundant Power Supply keeps your switch online in case of Power Supply Failure
- 1+1 PoE Budget, allowing you to extend your PoE budget by 370 Watts on supported switches
- Rack Mountable for ease of installation
The combination of D-Link’s fully managed switch line and DPS Series of Redundant Power Supplies enables today’s business networks with unmatched flexibility, performance, scalability, and availability. When paired with a supported D-Link switch, the DPS-700 provides uninterrupted fail-over in the unlikely event of a mechanical power supply failure. Additionally, the DPS-700 supports a 1+1 power budget allowing you to double the PoE budget on supported switches.
| Features | |
|---|---|
| Compatibility | DGS-1510-52XMPDGS-1520-28MPDGS-1520-52MPDGS-3120-48PCDGS-3120-24PCDGS-3130-30PS/SIDGS-3130-54PS/SIDGS-3420-28PCDGS-3420-52PCDGS-3620-28PCDGS-3620-52PCDGS-3630-28PCDGS-3630-52PC |
| Mean time between failures (MTBF) | 624961 h |
| LED indicators | Yes |
| Product colour | Black |
| Product type | Power supply |
| Power | |
|---|---|
| Maximum current | 7.5 A |
| AC input frequency | 50 - 60 Hz |
| AC input voltage | 90 - 264 V |
| Total power | 589 W |
| Certificates | |
|---|---|
| Certification | ULCULFCC Class BCE |
| Safety | UL 60950 3rd Edition, CSA 22.2 NO.234, EN 60 950 |
| Operational conditions | |
|---|---|
| Operating relative humidity (H-H) | 5 - 95% |
| Storage temperature (T-T) | -40 - 85 °C |
| Operating temperature (T-T) | 0 - 65 °C |
| Weight & dimensions | |
|---|---|
| Weight | 3.7 kg |
| Height | 50 mm |
| Depth | 196 mm |
| Width | 195 mm |
| Packaging data | |
|---|---|
| Package weight | 5.6 kg |
| Package height | 132 mm |
| Package depth | 559 mm |
| Package width | 344 mm |
| Logistics data | |
|---|---|
| Shipping (inner) case length | 57.7 cm |
| Shipping (inner) case width | 42.4 cm |
| Shipping (inner) case height | 37.6 cm |
| Shipping (inner) case net weight | 16.8 kg |
| Products per shipping (inner) case | 3 pc(s) |
| Pallet gross weight (air) | 238.4 kg |
| Master (outer) cases per pallet (air) | 12 pc(s) |
| Products per pallet (air) | 36 pc(s) |
| Pallet gross length | 120 cm |
| Pallet gross width | 100 cm |
| Pallet height (air) | 126.3 cm |
| Pallet gross weight (sea) | 384 kg |
| Master (outer) cases per pallet (sea) | 20 pc(s) |
| Products per pallet (sea) | 60 pc(s) |
| Pallet height (sea) | 2.02 m |
| Shipping (inner) case gross weight | 18.2 kg |
| Harmonized System (HS) code | 85177900 |
