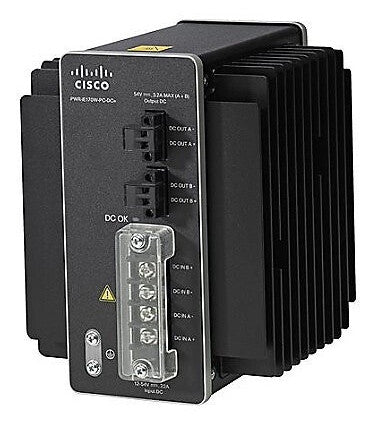

Cisco PWR-IE170W-PC-DC= network switch component Power supply
£1,258.99
Couldn't load pickup availability
- Power supply
- Internal
- 170 W
- Black
The Cisco industrial din-rail power supplies offer a variety of rugged, reliable, and compact AC and DC power supply options to power Cisco’s industrial Ethernet switches, industrial routers (including industrial gateways), and industrial computing products. Some key features include:
- Power supply options from 50W to 480W
- Operating temperatures ranging between -40°C and +85°C
- Din-rail mountable options
- Enablement of high capacity Power over Ethernet (PoE)
- Conformal coating options
| Features | |
|---|---|
| Mean time between failures (MTBF) | 2164641 h |
| DIN rail mounting | Yes |
| Internal | Yes |
| Product colour | Black |
| Product type | Power supply |
| Power | |
|---|---|
| DC output voltage | 54 V |
| DC voltage range | 10.8 - 60 V |
| Inrush current | 17.3 A |
| Total power | 170 W |
| Certificates | |
|---|---|
| Certification | EN 60950-1: 2006 + A11:2009 + A1:2010 + A12:2011 + A2:2013UL 508 Class 1, Div 2/Zone 2EN61000-4-2, EN61000-4-3, EN61000-4-4,EN61000-4-5, EN61000-4-6, EN61000-4-8,EN 55032:2015, EN 55024: 2010+A1:2015EN55032:2015, EN 55024: 2010FCC 15BIEC 61850-3, IEEE1613EN 61000-6-4, EN 61000-6-2 |
| Safety | IP20 |
| Operational conditions | |
|---|---|
| Storage temperature (T-T) | -40 - 85 °C |
| Operating temperature (T-T) | -40 - 75 °C |
| Weight & dimensions | |
|---|---|
| Weight | 1.67 kg |
| Height | 146 mm |
| Depth | 150 mm |
| Width | 114 mm |
| Logistics data | |
|---|---|
| Harmonized System (HS) code | 85177900 |
