Shuttle WLN-M1 - Intel WLAN-ax/Bluetooth Combo Kit with M.2 card, cables and external antennas
£43.99
Couldn't load pickup availability
- Wireless
- PCI Express WLAN / Bluetooth
- 2400 Mbit/s
- Wi-Fi Dual-band (2.4 GHz / 5 GHz) Bluetooth 5.2
- Internal Component for: PC/Laptop

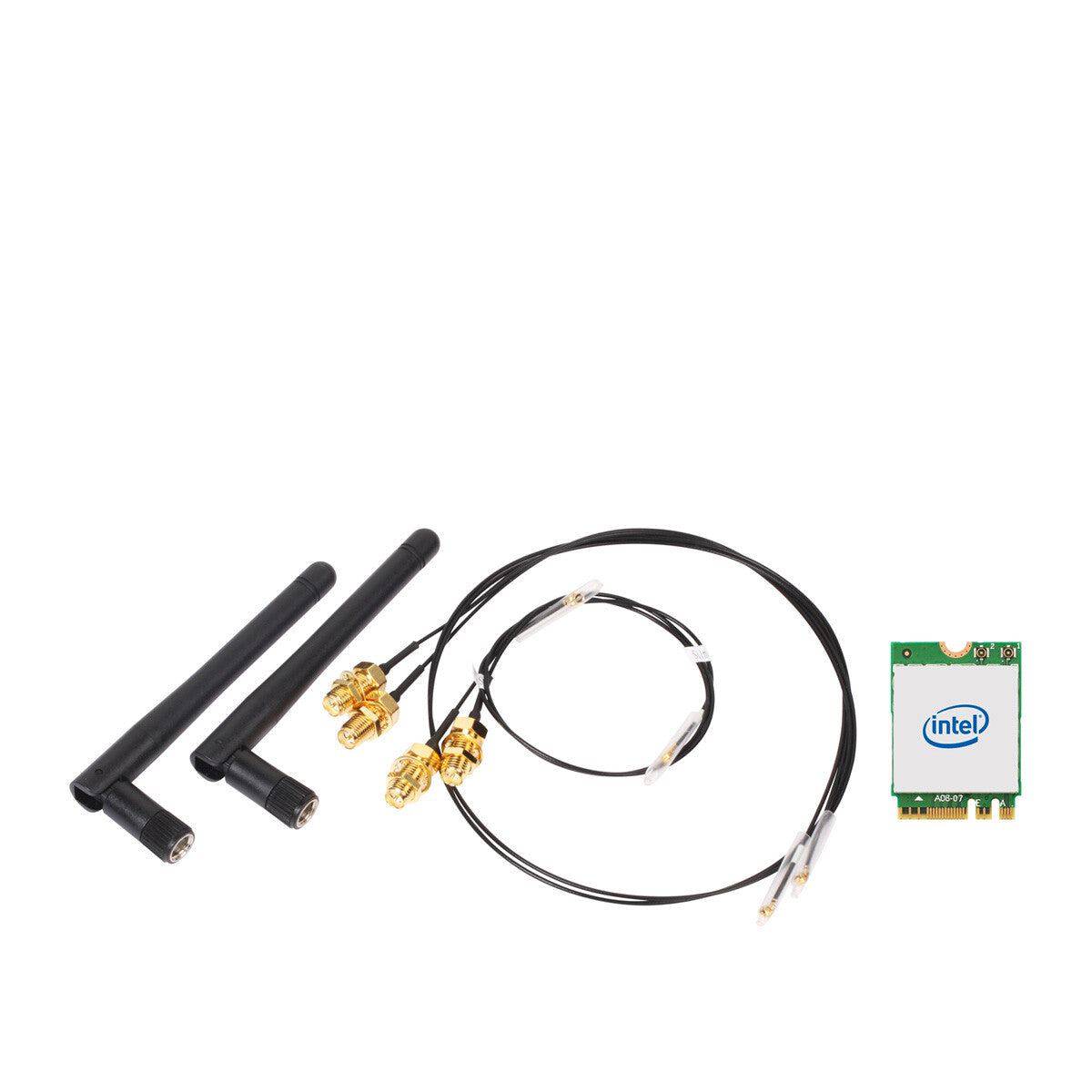

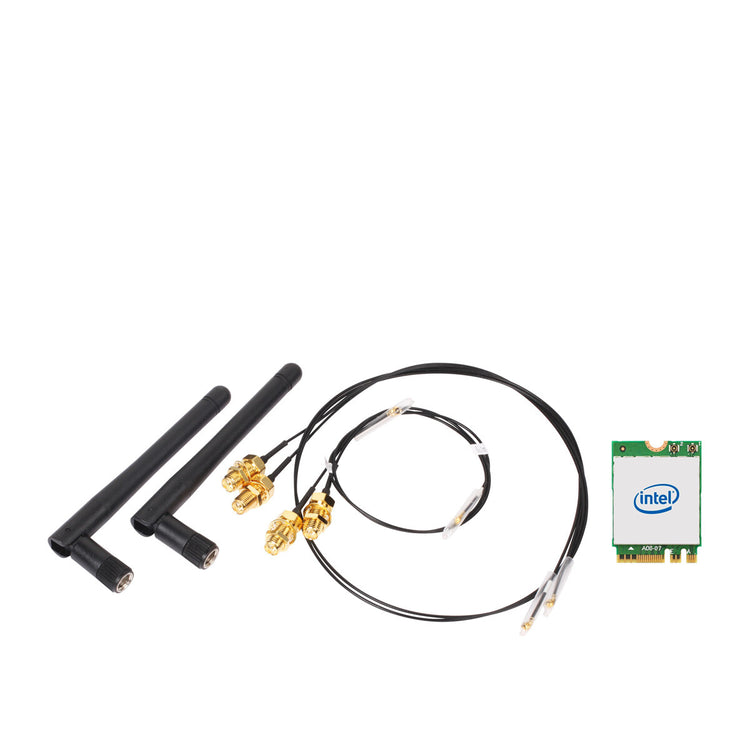

The Shuttle Accessory WLN-M1 is a wireless LAN kit consisting of an Intel AX200 M.2-2230 card, two antennas and appropriate cables. The WLN-M1 is intended for certain Shuttle XPC barebones to equip them with the wireless LAN standard according to IEEE 802.11n/ac/ax at 2.4 / 5 GHz. At the same time, his combo device also supports Bluetooth 5.2.
| Ports & interfaces | |
|---|---|
| Connectivity technology | Wireless |
| Host interface | PCI Express |
| Interface | WLAN / Bluetooth |
| Network | |
|---|---|
| Maximum data transfer rate | 2400 Mbit/s |
| Networking standards | IEEE 802.11ac, IEEE 802.11ax, IEEE 802.11b, IEEE 802.11g, IEEE 802.11n |
| Wi-Fi | Yes |
| Wi-Fi band | Dual-band (2.4 GHz / 5 GHz) |
| Top Wi-Fi standard | Wi-Fi 6 (802.11ax) |
| Wi-Fi standards | 802.11b, 802.11g, Wi-Fi 4 (802.11n), Wi-Fi 5 (802.11ac), Wi-Fi 6 (802.11ax) |
| Security algorithms | 64-bit WEP, 128-bit AES, 128-bit WEP, 256-bit AES, AES-CCMP, AES-GCMP, EAP-AKA, EAP-SIM, EAP-TLS, EAP-TTLS, MSCHAPv2, PEAP, TKIP, WPA2, WPA3, WPS |
| Bluetooth | Yes |
| Bluetooth version | 5.2 |
| Design | |
|---|---|
| Internal | Yes |
| Component for | PC/Laptop |
| Antenna design | External |
| Antenna | Yes |
| Antenna connector type | RP-SMA |
| Antenna direction type | Omni-directional |
| Country of origin | China |
| Compatible products | DH410(S), DH470, DH610(S), DH670, XH510G(2), XH610(V),DL10J, DL20N(6), DH02Ux, SH310R4(V2), SH370R6(V2)(Plus), SH370R8, SH510R4, SH570R6 (Plus), SH570R8, SW580R8, P20U, P22U, P51U(3), P52U(3), X50V7xx, X50V8xx, EN01J3, EN01J4,NC10Ux series, |
| System requirements | |
|---|---|
| Windows operating systems supported | Windows 10, Windows 11 |
| Linux operating systems supported | Yes |
| Operational conditions | |
|---|---|
| Operating temperature (T-T) | 0 - 80 °C |
| Weight & dimensions | |
|---|---|
| Width | 30 mm |
| Depth | 22 mm |
| Height | 2.4 mm |
| Antenna diameter | 1 cm |
| Antenna length | 10.8 cm |
| Packaging content | |
|---|---|
| Quick installation guide | Yes |
| Logistics data | |
|---|---|
| Harmonized System (HS) code | 85176990 |
| Other features | |
|---|---|
| Detachable antenna(s) | Yes |
| Antennas quantity | 2 |
| Supported Under vPro | No |
