The PSE01 enables the EN01 to supply another network device with power via PoE

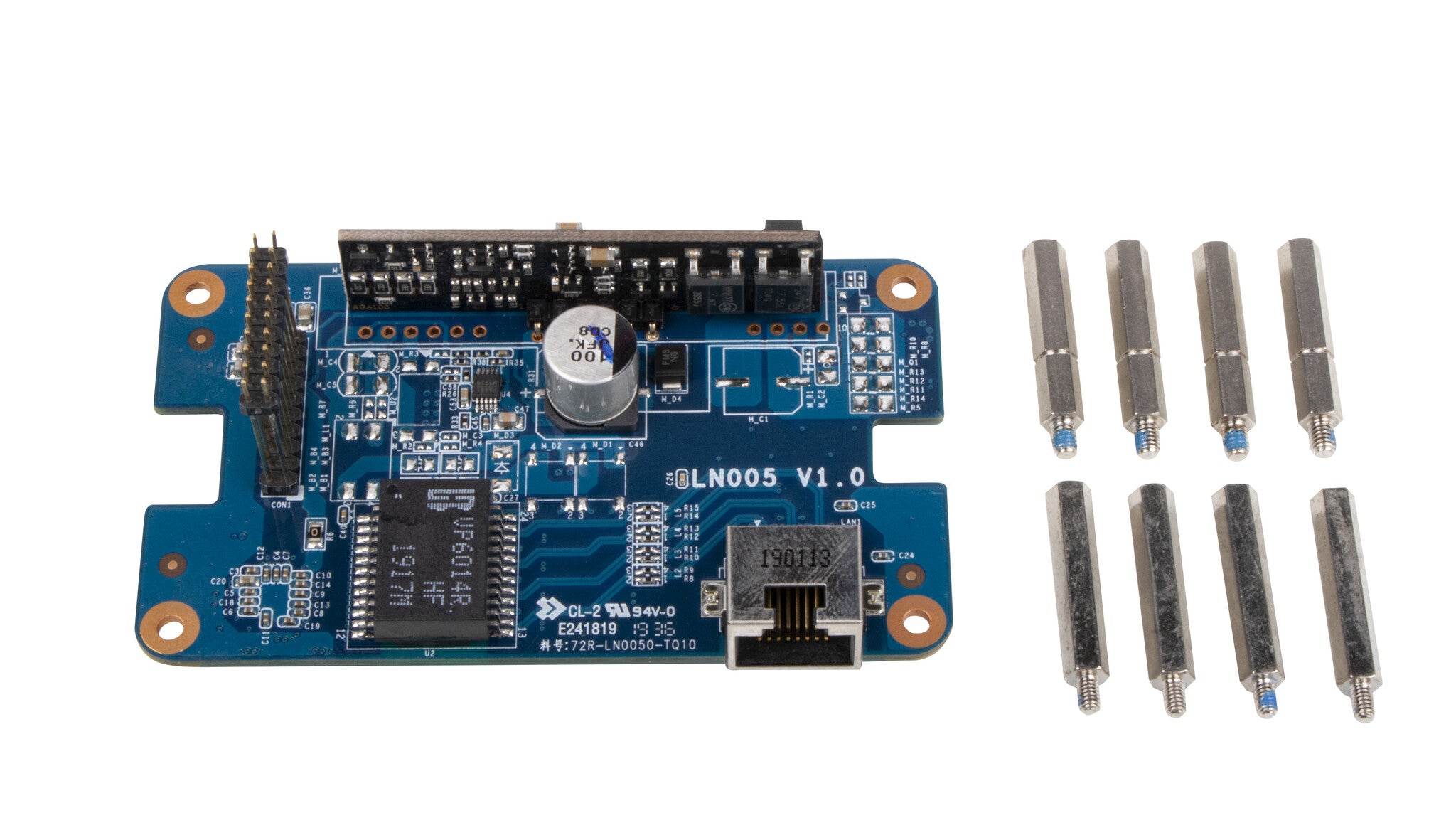

The Shuttle accessory PSE01 is a daughterboard for the EN01 series which provides a second Gigabit network port with Power-over-Ethernet (PoE) function. This makes the EN01 act as Power Sourcing Equipment (PSE) that carries both data and operating voltage to a connected network device, such as an IP camera.
Contents:
- PoE daughterboard with RJ45 network connector
- 8× standoff (4 of these have a marking)
- Adhesive membrane
- Quick guide
Technical data:
- LAN controller: Realtek RTL8119I supports 1 Gbit/s
- PoE output wattage at the LAN port: 48 Vdc, max. 0.5 A
- Supports 802.3AT & 802.3AF PoE standards
Recommended power adapter for EN01:
≥ 40 W, if the accessory PSE01 is not used
≥ 65 W, if the accessory PSE01 is installed
Compatibility:
Compatible with the following Shuttle products:
Edge EN01J3, EN01J4, EN01E, EN01B
