Cisco UCSC-P-V5Q50G-D network card Internal Fiber 50000 Mbit/s
Couldn't load pickup availability
- Wired
- PCI Express 4.0 Fiber
- 50000 Mbit/s
- Internal Component for: Server

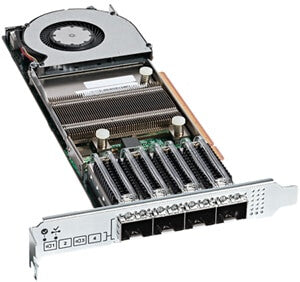

The Cisco UCS VIC 15425 is a quad-port small-form-factor pluggable (SFP+/SFP28/SFP56) PCIe card designed for Cisco UCS C-series M6/M7/M8 rack servers. The card supports 10/25/50-Gbps Ethernet or FCoE. The card can present PCIe standards-compliant interfaces to the host, and these can be dynamically configured as either NICs or HBAs.
When a UCS rack server with VIC 15425 is connected to a fabric interconnect (FI-6536/6400/6300), the VIC 15425 is provisioned through Cisco Intersight Managed Mode (IMM) or Cisco UCS Manager (UCSM) policies. When the UCS rack server with VIC 15425 is connected to a ToR switch such as Cisco Nexus® 9000 Series, the VIC 15425 is provisioned through the Cisco IMC or Intersight policies for a standalone server.
| Ports & interfaces | |
|---|---|
| Connectivity technology | Wired |
| Host interface | PCI Express |
| Interface | Fiber |
| Fiber optic connector | SFP56 |
| Fiber ports quantity | 4 |
| PCI version | 4.0 |
| Network | |
|---|---|
| Maximum data transfer rate | 50000 Mbit/s |
| Networking standards | IEEE 802.3x, IEEE 802.1Q, IEEE 802.1p, IEEE 802.1Qaz, IEEE 802.1Qbb, IEEE 802.3cd, IEEE 802.3ba, IEEE 802.3bj, IEEE 802.3bm, IEEE 802.3by, IEEE 802.3ae, IEEE 802.3ap |
| Jumbo frames | 9216 |
| Jumbo frames support | Yes |
| VLAN support | Yes |
| Design | |
|---|---|
| Internal | Yes |
| Component for | Server |
| Product colour | Black, Silver |
| Compatible products | UCS C-Series M7/M8 |
