Cisco UCS VIC 1455 Internal Ethernet 25000 Mbit/s
£1,092.99
Couldn't load pickup availability
- Wired
- PCI Express Ethernet
- 10 Gigabit Ethernet, 25 Gigabit Ethernet 25000 Mbit/s
- Internal Component for: Server
Cisco VIC 1455

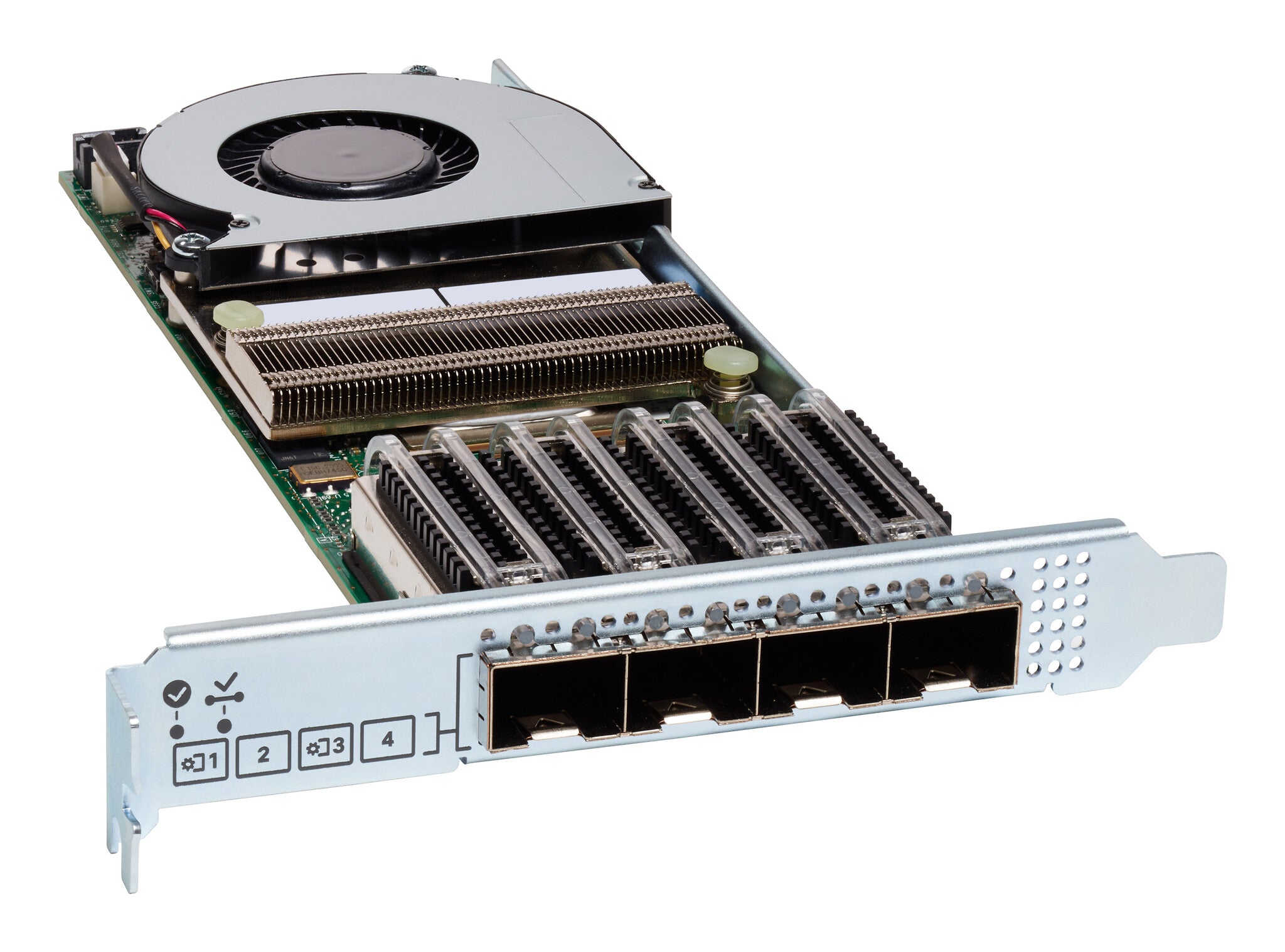

The Cisco UCS VIC 1455 (Figure 13) is a quad-port Small Form-Factor Pluggable (SFP28) half-height PCIe card designed for Cisco UCS C-Series M5 and M6 Rack Servers. The card supports 10/25-Gbps Ethernet or FCoE. The card can present PCIe standards-compliant interfaces to the host, and these can be dynamically configured as either NICs or HBAs.
| Ports & interfaces | |
|---|---|
| Connectivity technology | Wired |
| Host interface | PCI Express |
| Interface | Ethernet |
| Ethernet LAN (RJ-45) ports | 4 |
| Network | |
|---|---|
| Maximum data transfer rate | 25000 Mbit/s |
| Ethernet LAN | Yes |
| Ethernet interface type | 10 Gigabit Ethernet, 25 Gigabit Ethernet |
| Ethernet LAN data rates | 10000,25000 Mbit/s |
| Design | |
|---|---|
| Internal | Yes |
| Component for | Server |
| Compatible products | C220 M5/M6, C240 M5/M6, S3260 M5, C240 SD M5, C480 M5, C480 ML M5, C125 M5, S3260 M5, C225 M6, C245 M6 |
| Packaging content | |
|---|---|
| Manual | Yes |
