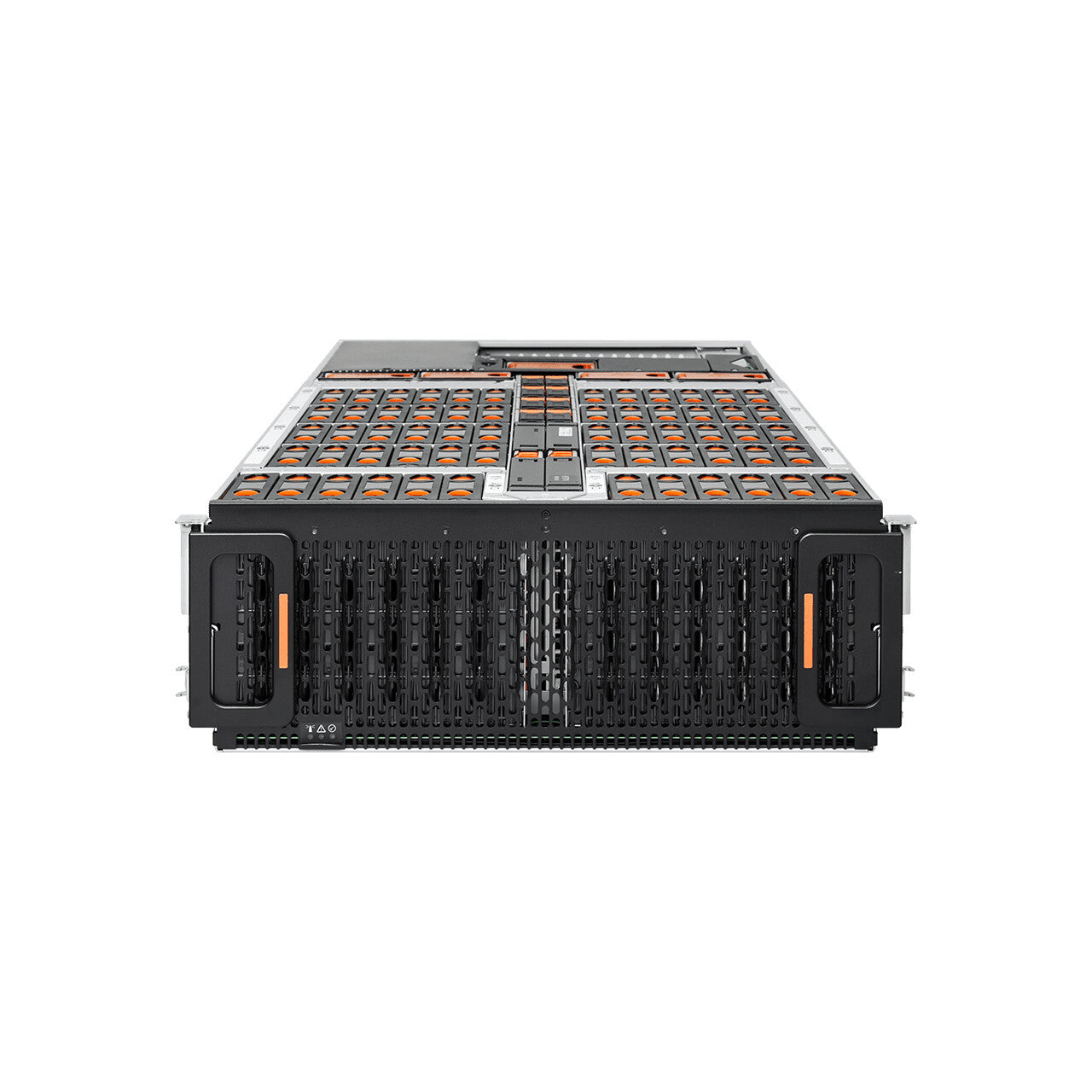

Western Digital Ultrastar Serv60+8 288TB nTAA SAS 512E Storage server Rack (4U) DDR4 Grey, Black

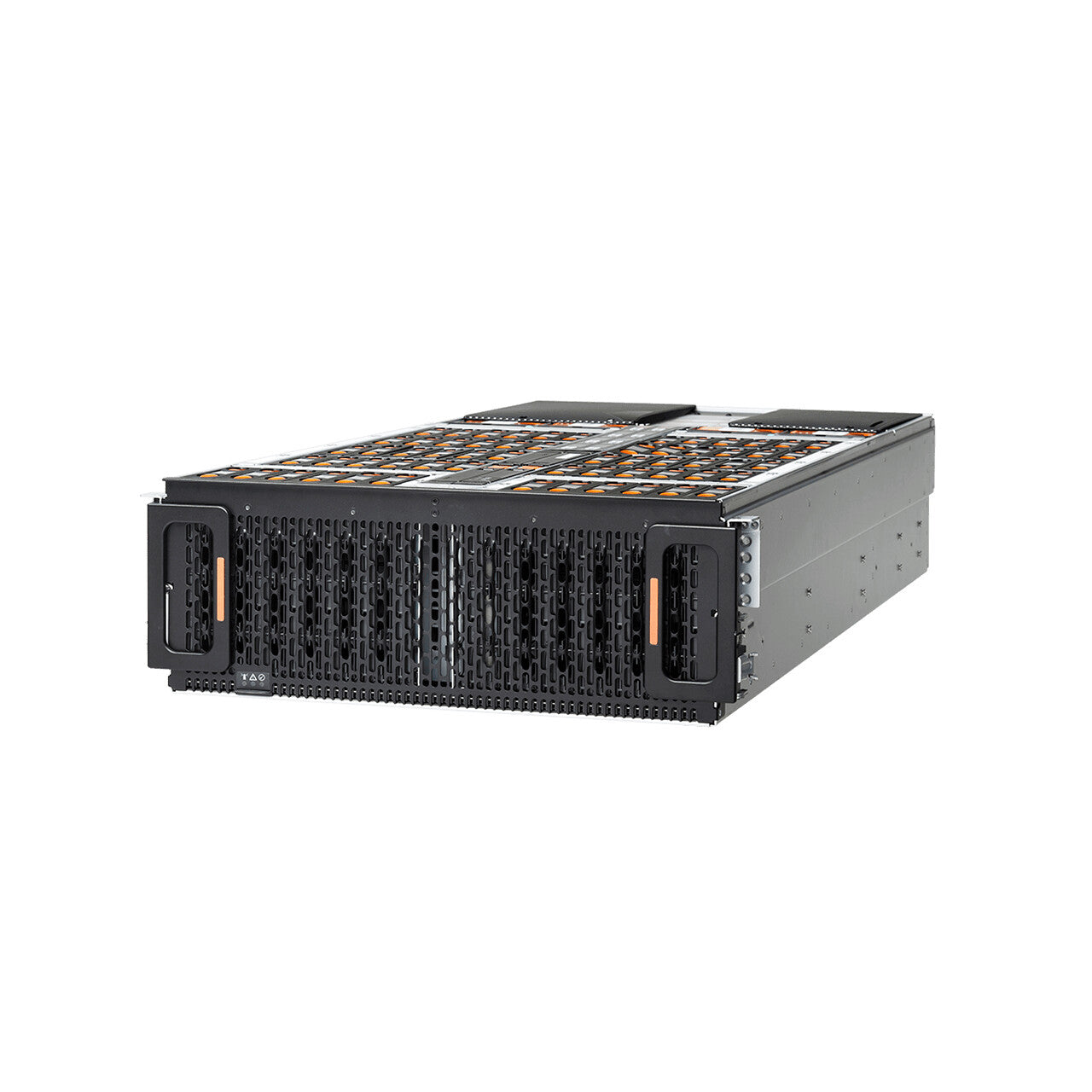

Western Digital Ultrastar Serv60+8 288TB nTAA SAS 512E Storage server Rack (4U) DDR4 Grey, Black - image 2
Western Digital Ultrastar Serv60+8 288TB nTAA SAS 512E Storage server Rack (4U) DDR4 Grey, Black
Western Digital Ultrastar Serv60+8 288TB nTAA SAS 512E Storage server Rack (4U) DDR4 Grey, Black - image 2

Western Digital Ultrastar Serv60+8 288TB nTAA SAS 512E Storage server Rack (4U) DDR4 Grey, Black

Western Digital
£21,864.99
Stock Available: 0
  • High-performance Intel Xeon® scalable processor-based server
  • Choice of CPUs to match workloads
  • Up to 60 (SAS or SATA) HDDs plus up to 8 (SAS or SATA) SSDs
  • Hybrid support with up to 24 SSDs (SAS or SATA) in place of HDDs for a data acceleration tier
  • Up to 1.3PB1 raw capacity in a 4U enclosure with 20TB SMR HDDs
  • Enterprise-grade redundant and hot-swappable PSUs and fans

The Ultrastar Serv60+8 Hybrid Storage Server has dual high-performance Intel® Xeon® scalable processor-based CPUs to manage the demanding workloads in Software-Defined Storage (SDS) environments. With a choice of CPUs, memory, and drives, it balances performance with cost.

The Ultrastar Serv60+8 hybrid storage server addresses the demanding needs of large enterprise customers, OEMs, cloud service providers, as well as systems integrators that require dense, shared HDD or hybrid storage with compute included.

Storage
Storage drives installed Yes
Total installed storage capacity 288 TB
Number of storage drives supported 68
Supported storage drive types HDD & SSD
Storage drive interface Serial ATA
Supported storage drive interfaces Serial ATA
Storage drive sizes supported 2.5,3.5"
Maximum supported storage capacity 12 TB
Processor
Processor manufacturer Intel
Number of processors supported 2
Memory
Internal memory type DDR4
Maximum RAM supported 2 TB
Memory form factor LRDIMM
Memory slots 16
Network
Ethernet LAN Yes
Ethernet LAN data rates 10000 Mbit/s
Ethernet LAN data rate supported (max) 10000 Mbit/s
Ports & interfaces
Ethernet LAN (RJ-45) ports 2
USB port Yes
USB 2.0 ports quantity 2
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity 2
VGA (D-Sub) ports quantity 1
Design
Chassis type Rack (4U)
Cooling type Active
Product colour Grey, Black
Number of fans 6 fan(s)
Performance
Type Storage server
Device class Large Enterprise Business
Power
Power supply location Built-in
Power supply unit (PSU) capacity 2000 W
AC input voltage 200-240 V
AC input frequency 50-60 Hz
Weight & dimensions
Width 447 mm
Depth 1099 mm
Height 175 mm
Operational conditions
Operating temperature (T-T) 5 - 35 °C
Operating relative humidity (H-H) 8 - 90%
Storage relative humidity (H-H) 8 - 90%
Storage temperature (T-T) -40 - 70 °C
Logistics data
Harmonized System (HS) code 84714100
