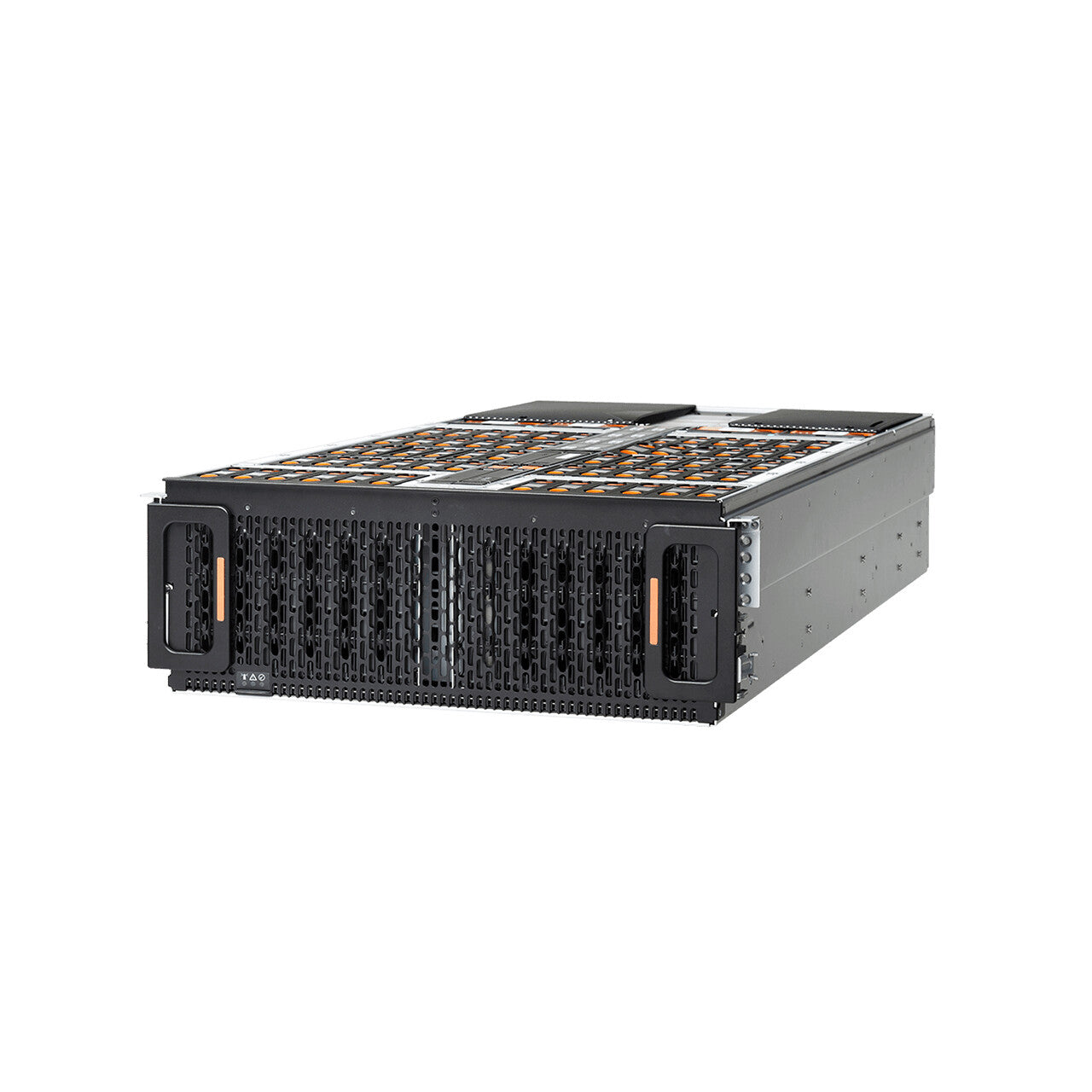

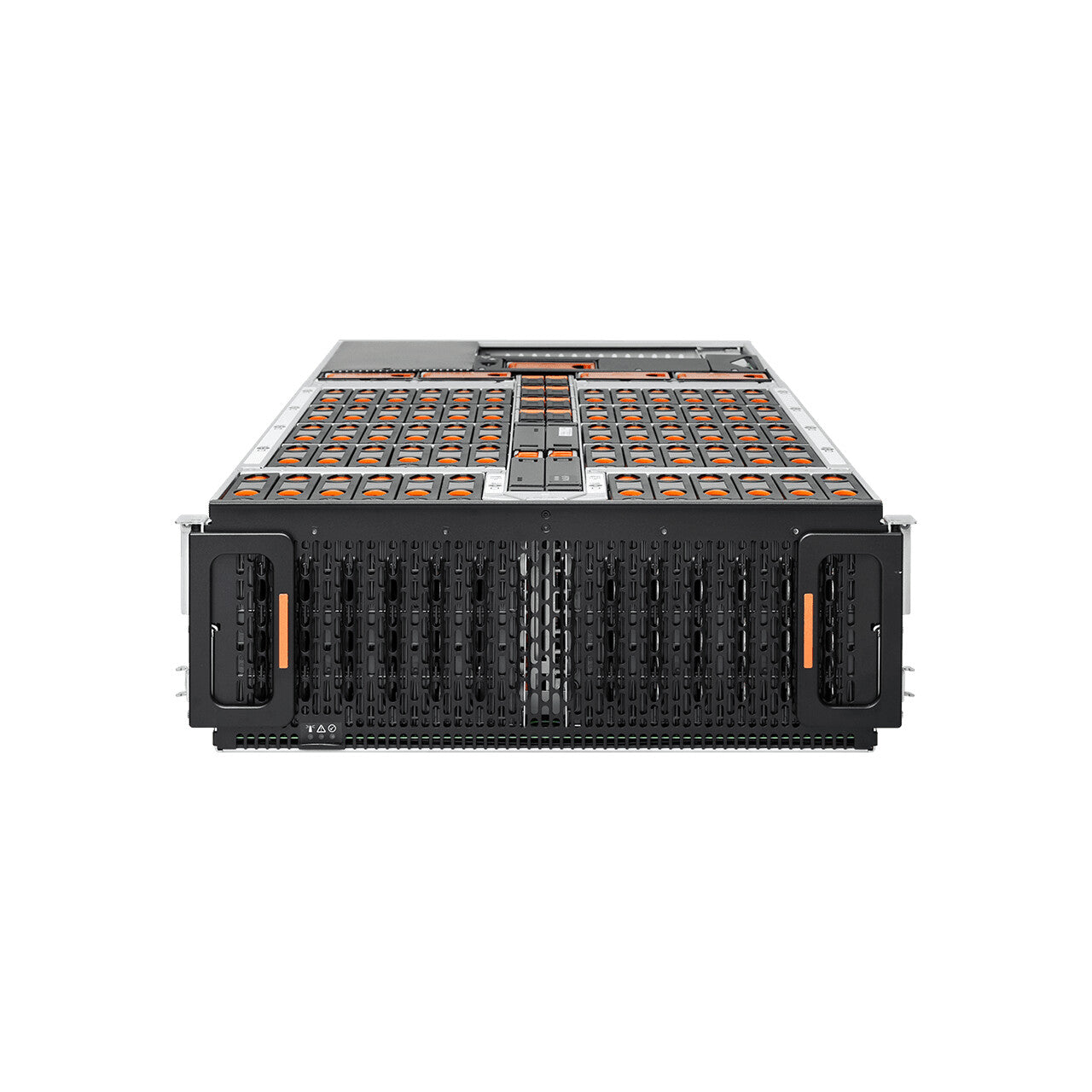

Western Digital Serv60+8-24 Found144TB Storage server Rack (4U) DDR4 144 TB Grey, Black
£17,193.99
Couldn't load pickup availability
- High-performance Intel Xeon® scalable processor-based server
- Choice of CPUs to match workloads
- Up to 60 (SAS or SATA) HDDs plus up to 8 (SAS or SATA) SSDs
- Hybrid support with up to 24 SSDs (SAS or SATA) in place of HDDs for a data acceleration tier
- Up to 1.3PB1 raw capacity in a 4U enclosure with 20TB SMR HDDs
- Enterprise-grade redundant and hot-swappable PSUs and fans
The Ultrastar Serv60+8 Hybrid Storage Server has dual high-performance Intel® Xeon® scalable processor-based CPUs to manage the demanding workloads in Software-Defined Storage (SDS) environments. With a choice of CPUs, memory, and drives, it balances performance with cost.
The Ultrastar Serv60+8 hybrid storage server addresses the demanding needs of large enterprise customers, OEMs, cloud service providers, as well as systems integrators that require dense, shared HDD or hybrid storage with compute included.
| Storage | |
|---|---|
| Storage drives installed | Yes |
| Total installed storage capacity | 144 TB |
| Number of storage drives supported | 68 |
| Supported storage drive types | HDD & SSD |
| Storage drive interface | Serial ATA |
| Supported storage drive interfaces | Serial ATA |
| Storage drive sizes supported | 2.5,3.5" |
| Maximum supported storage capacity | 12 TB |
| Processor | |
|---|---|
| Processor manufacturer | Intel |
| Number of processors supported | 2 |
| Memory | |
|---|---|
| Internal memory type | DDR4 |
| Maximum RAM supported | 2 TB |
| Memory form factor | LRDIMM |
| Memory slots | 16 |
| Network | |
|---|---|
| Ethernet LAN | Yes |
| Ethernet LAN data rates | 10000 Mbit/s |
| Ethernet LAN data rate supported (max) | 10000 Mbit/s |
| Ports & interfaces | |
|---|---|
| Ethernet LAN (RJ-45) ports | 2 |
| USB port | Yes |
| USB 2.0 ports quantity | 2 |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity | 2 |
| VGA (D-Sub) ports quantity | 1 |
| Design | |
|---|---|
| Chassis type | Rack (4U) |
| Cooling type | Active |
| Product colour | Grey, Black |
| Number of fans | 6 fan(s) |
| Performance | |
|---|---|
| Type | Storage server |
| Device class | Large Enterprise Business |
| Power | |
|---|---|
| Power supply location | Built-in |
| Power supply unit (PSU) capacity | 2000 W |
| AC input voltage | 200-240 V |
| AC input frequency | 50-60 Hz |
| Weight & dimensions | |
|---|---|
| Width | 447 mm |
| Depth | 1099 mm |
| Height | 175 mm |
| Operational conditions | |
|---|---|
| Operating temperature (T-T) | 5 - 35 °C |
| Operating relative humidity (H-H) | 8 - 90% |
| Storage relative humidity (H-H) | 8 - 90% |
| Storage temperature (T-T) | -40 - 70 °C |
| Logistics data | |
|---|---|
| Harmonized System (HS) code | 84714100 |
