£209.99

Stock Available: 7
  • Ready for Advanced AI PCs: Designed for the future of AI computing, with the power and connectivity needed for demanding AI applications
  • Intel® LGA 1851 Socket: Ready for Intel® Core™ Ultra Processors (Series 2)
  • ASUS CSM Program: A stable motherboard supply, end-of-life notifications, and IT software for business motherboards
  • ASUS Control Center Express: Integrated IT monitoring and management software that simplifies enterprise-level system administration
  • Enhanced System Security: Boot defender with NIST SP800-193 compliance, a self-recovering BIOS, and TPM to safeguard PCs
  • Consistent and Reliable Performance: High-quality components and rigorous testing to help ensure durability in harsh environments
  • Efficient Management and Customization: An event log and commercial BIOS kit to enable easy maintenance
  • Better Serviceability: Q-LED Core diagnostic display and COM debug header to facilitate building and support processes
  • Ultrafast Connectivity: PCIe 5.0, DDR5 SO-DIMM slots , rear and front USB 10Gbps Type-C®
  • DIY Friendly Design: SafeSlot, Dual DIMM clips, Box headers

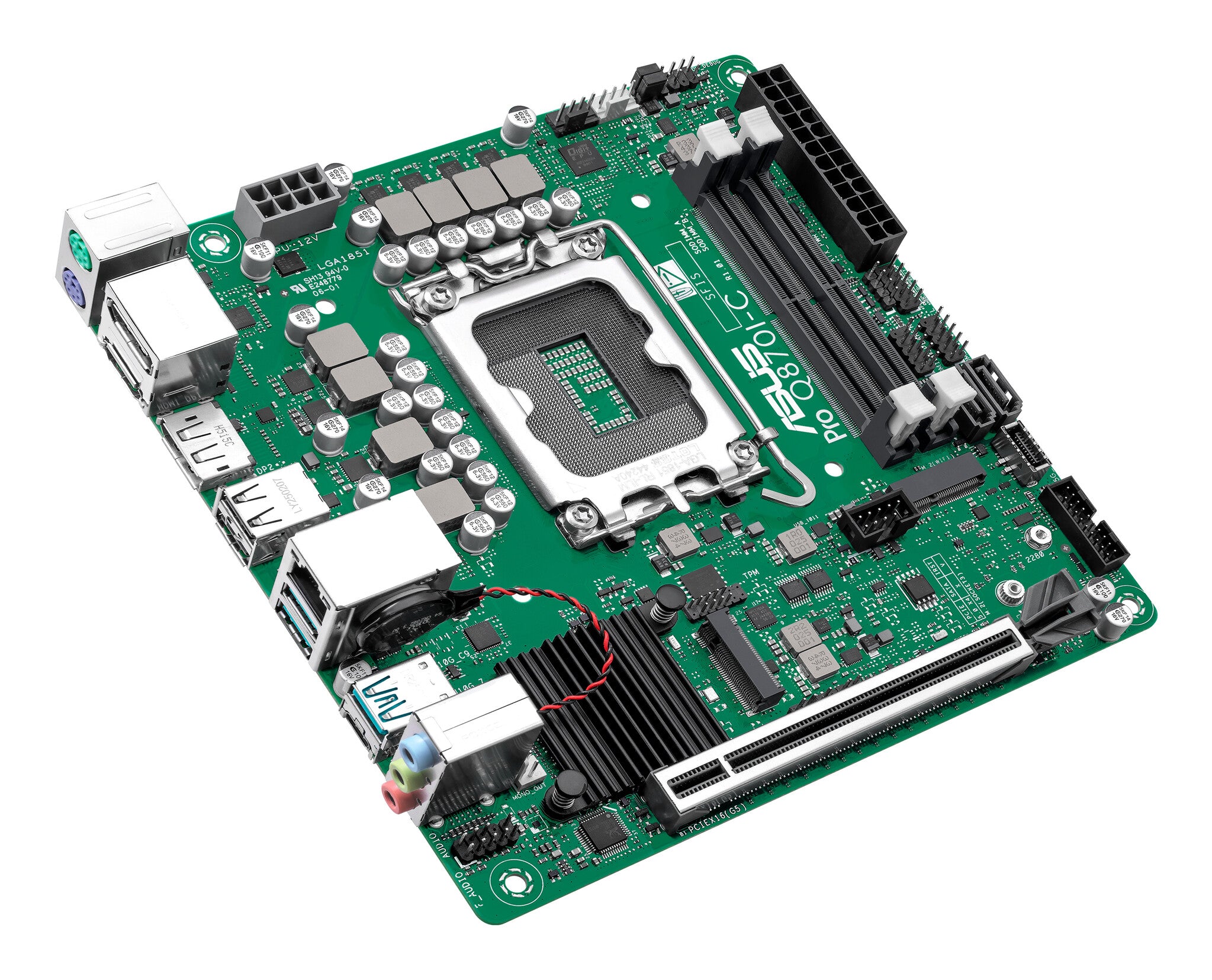

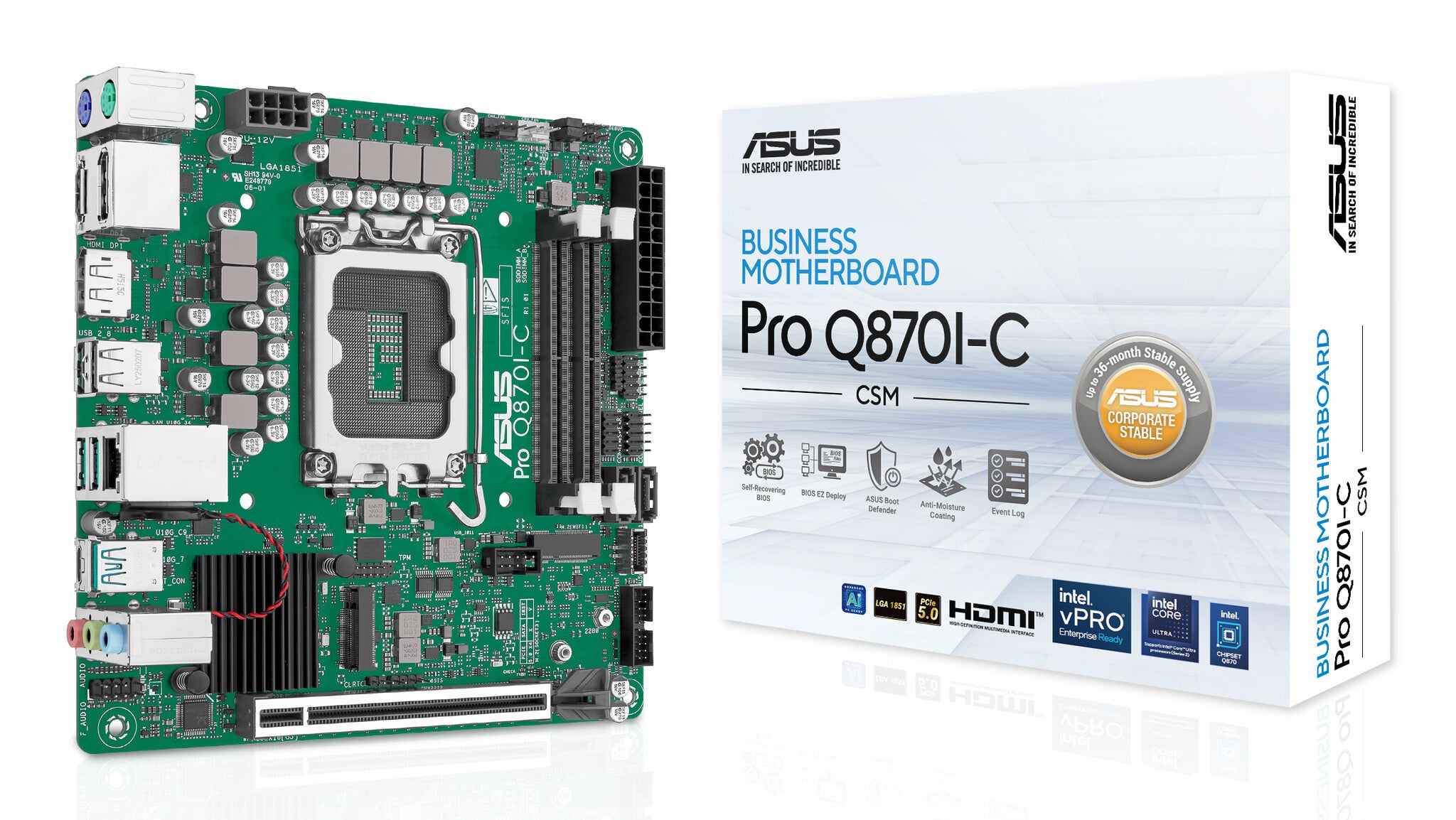

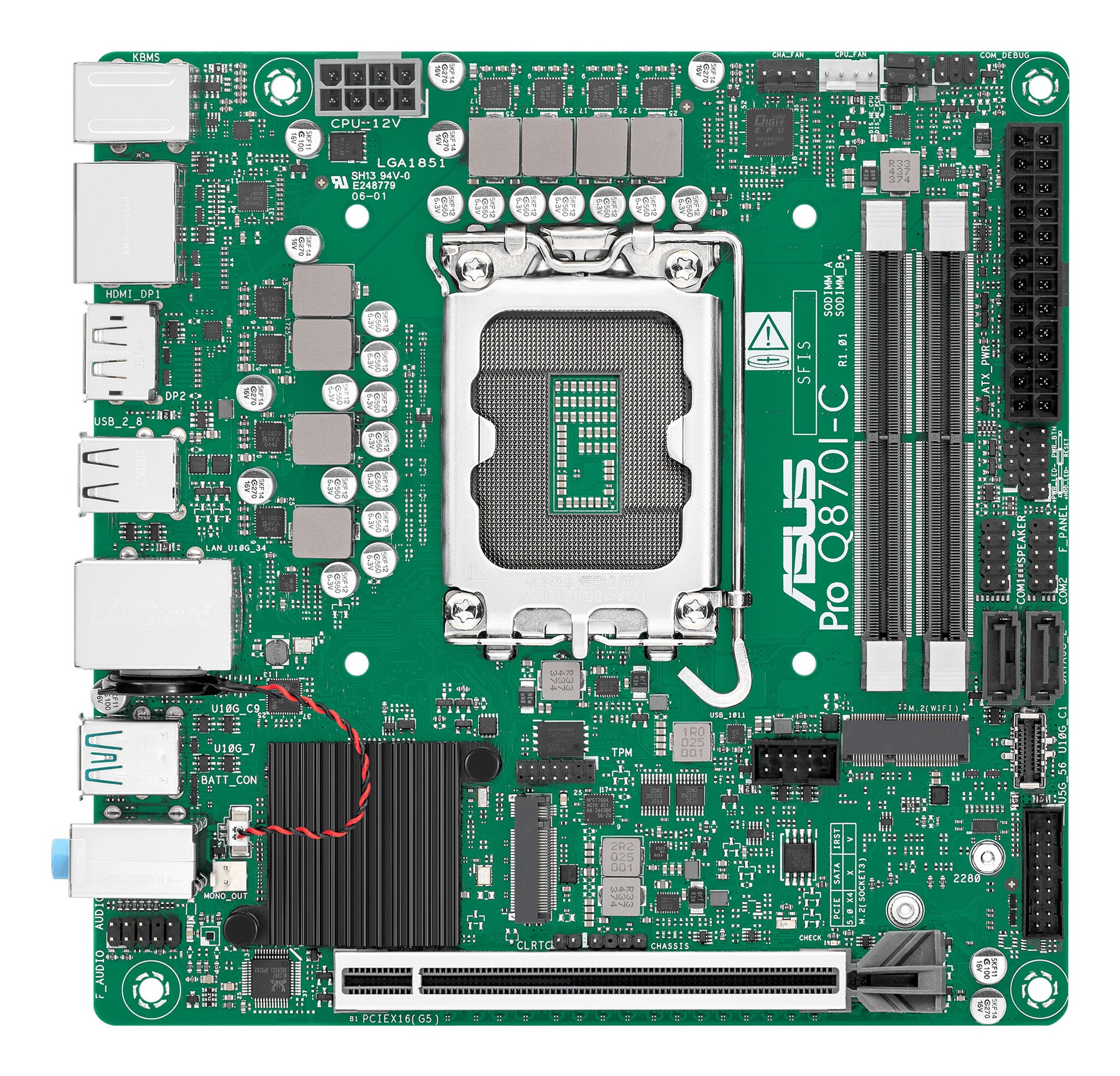

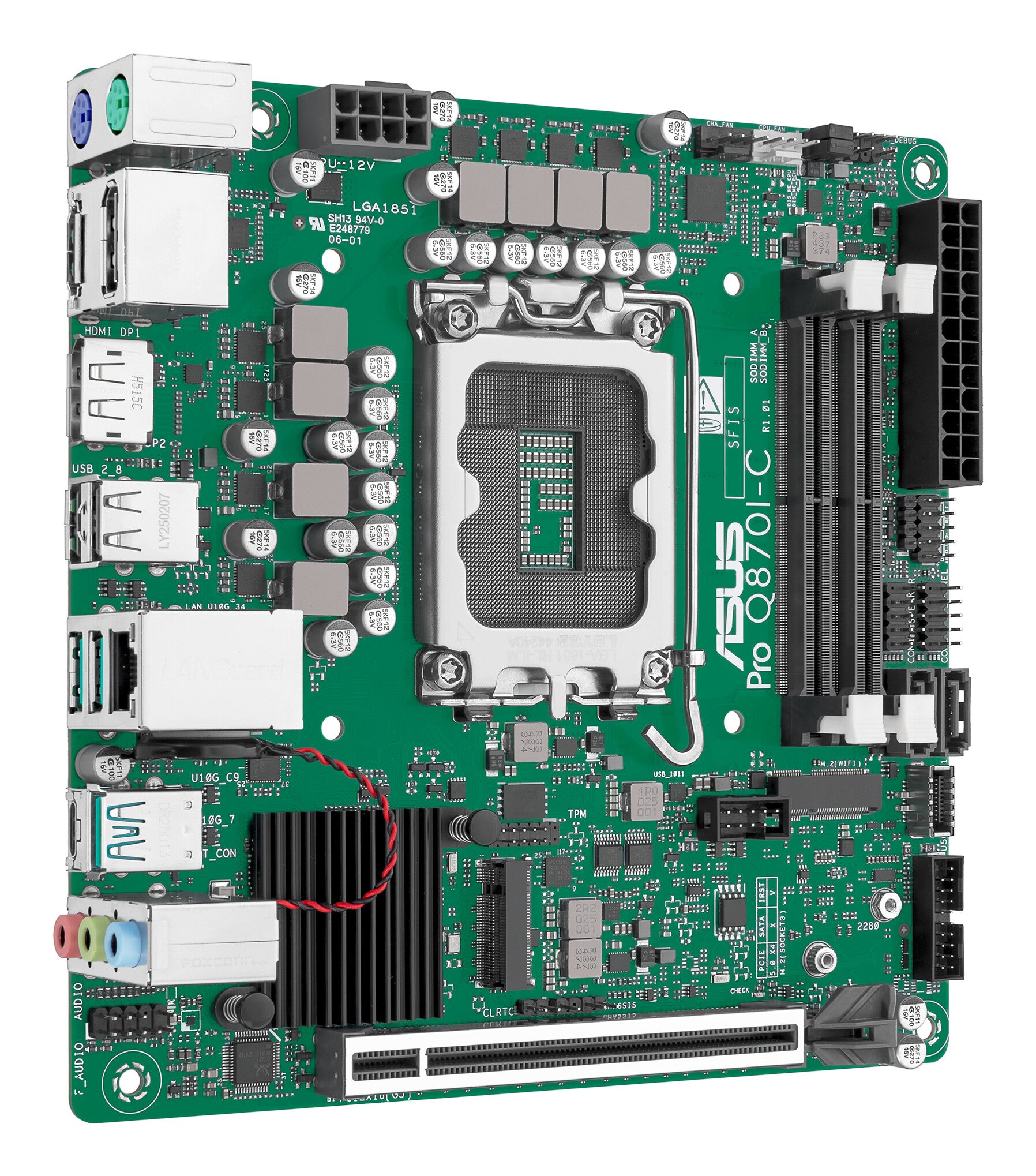

Mini-ITX Q870 business motherboard with Intel® vPro support and enhanced security, reliability and manageability
ASUS Pro business motherboards provide enhanced features to smooth your IT operations, including comprehensive system protection, 24/7 stability and reliability and an improved management suite for easier customization. Known as the world's biggest and best-known motherboard brand, ASUS provides world-class after-sales service and guaranteed long-term availability to maximize your investment over the product life cycle and offers a high-quality, TCO-optimized solution for your business computing-needs.

Processor
Compatible processor series Intel Core Ultra (Series 2)
Processor socket LGA 1851 (Socket V1)
Processor manufacturer Intel
Memory
Unbuffered memory Yes
Maximum internal memory 128 GB
Supported memory clock speed (max) 6400 MHz
ECC сompatibility Non-ECC
Memory channels Dual-channel
Memory slots type SO-DIMM
Number of memory slots 2
Supported memory types DDR5-SDRAM
Storage controllers
Number of storage drives supported 3
Number of HDDs supported 2
Supported storage drive interfaces M.2, SATA III
Supported storage drive types HDD & SSD
Graphics
Parallel processing technology support Not supported
Internal I/O
Number of COM connectors 2
12V power connector Yes
EPS power connector (8-pin) Yes
Number of chassis fan connectors 1
Number of CPU fan connectors 1
CPU fan connector Yes
ATX Power connector (24-pin) Yes
Front panel audio connector Yes
Number of SATA III connectors 2
USB 3.2 Gen 2 (3.1 Gen 2) connectors 1
USB 3.2 Gen 1 (3.1 Gen 1) connectors 1
USB 2.0 connectors 1

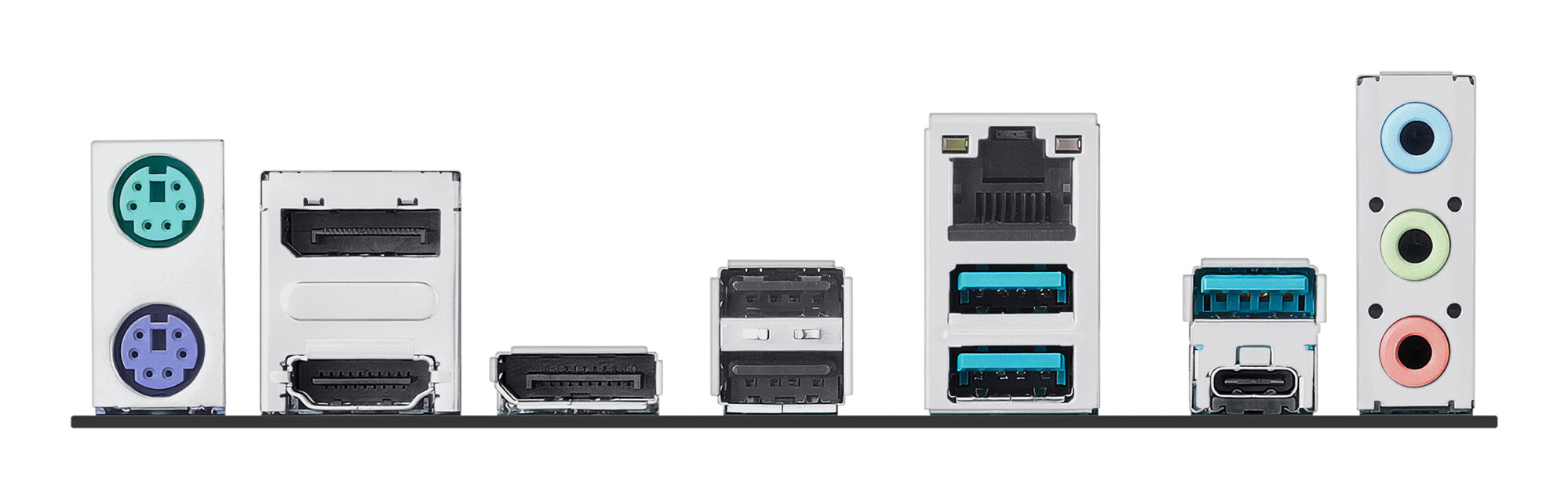

Rear panel I/O ports
Microphone in Yes
DisplayPorts quantity 2
HDMI ports quantity 1
PS/2 ports quantity 2
Ethernet LAN (RJ-45) ports 1
USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity 1
USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity 3
USB 2.0 ports quantity 2
Network
Wi-Fi No
LAN controller Intel WGI219LM
Ethernet interface type Fast Ethernet, Gigabit Ethernet
Ethernet LAN Yes
Features
Windows operating systems supported Windows 10 x64, Windows 11
Product colour Multicolour
Audio output channels 7.1 channels
Motherboard chipset Intel Q870
Motherboard chipset family Intel
Motherboard form factor mini ITX
Component for PC
Expansion slots
Number of M.2 (M) slots 1
PCI Express x16 (Gen 5.x) slots 1
BIOS
BIOS memory size 256 Mbit
Packaging data
Package weight 640 g
Package height 60 mm
Package depth 185 mm
Package width 230 mm
Weight & dimensions
Height 50 mm
Depth 170 mm
Width 170 mm
Other features
Weight 405 g
