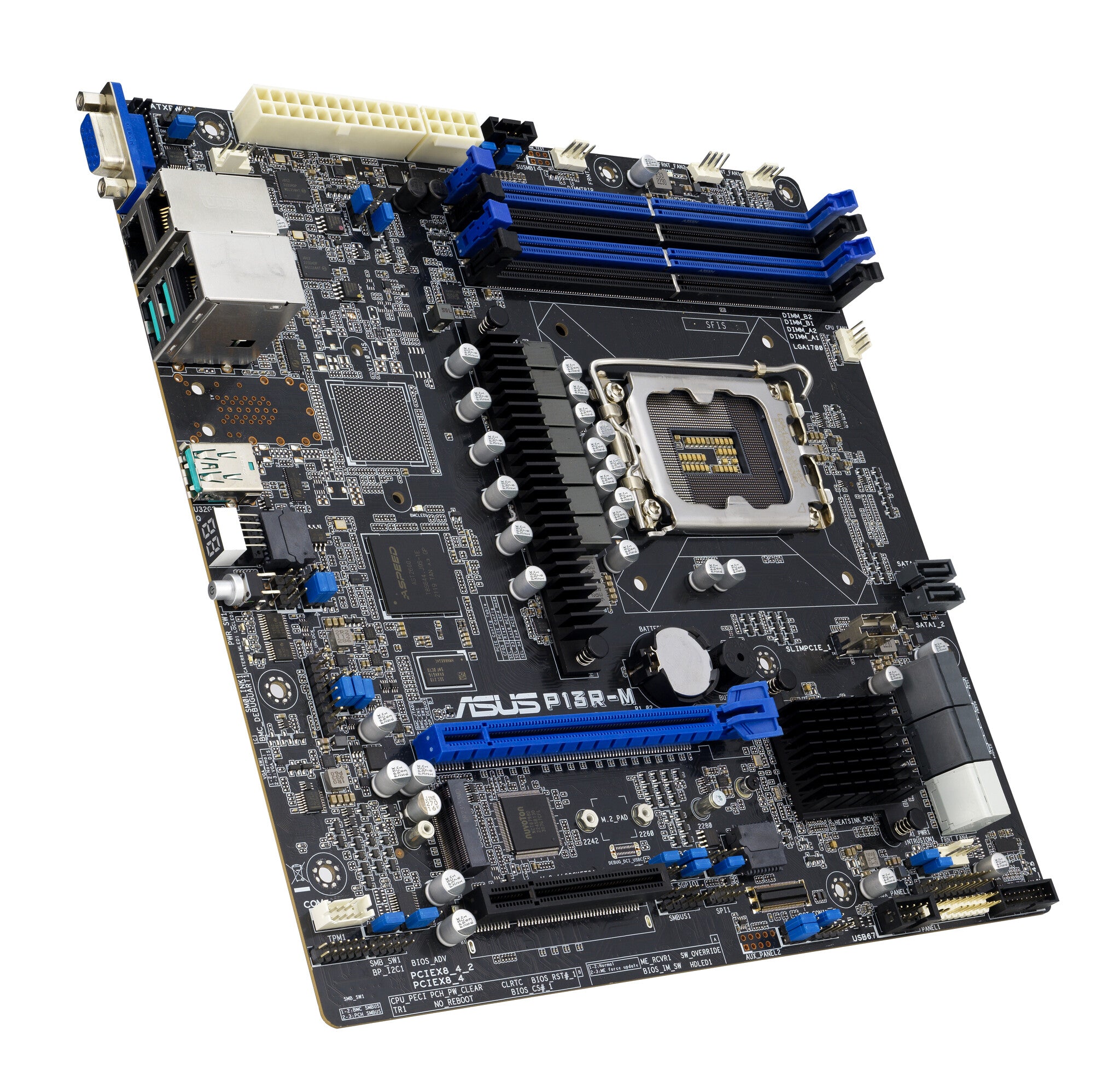

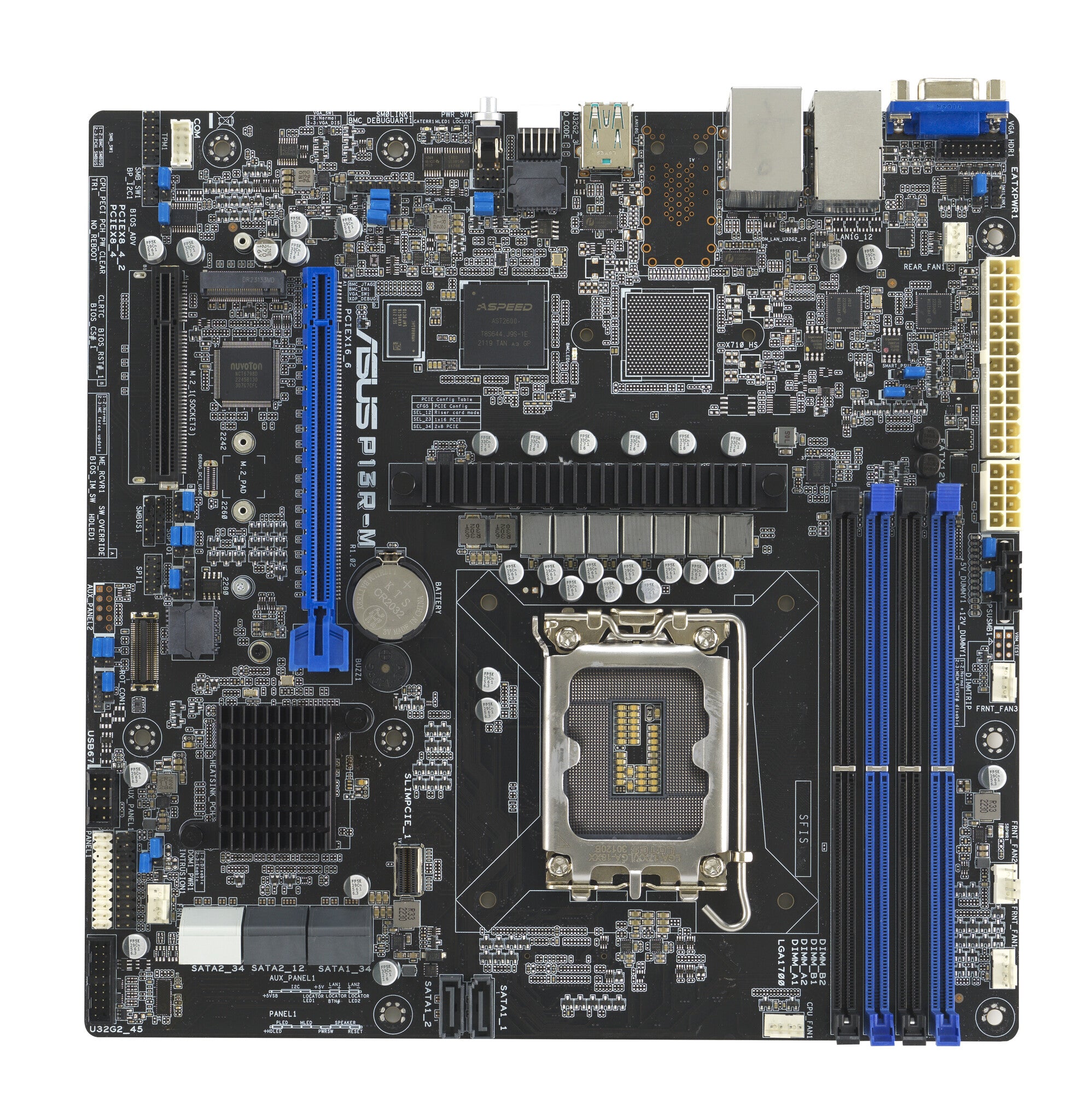

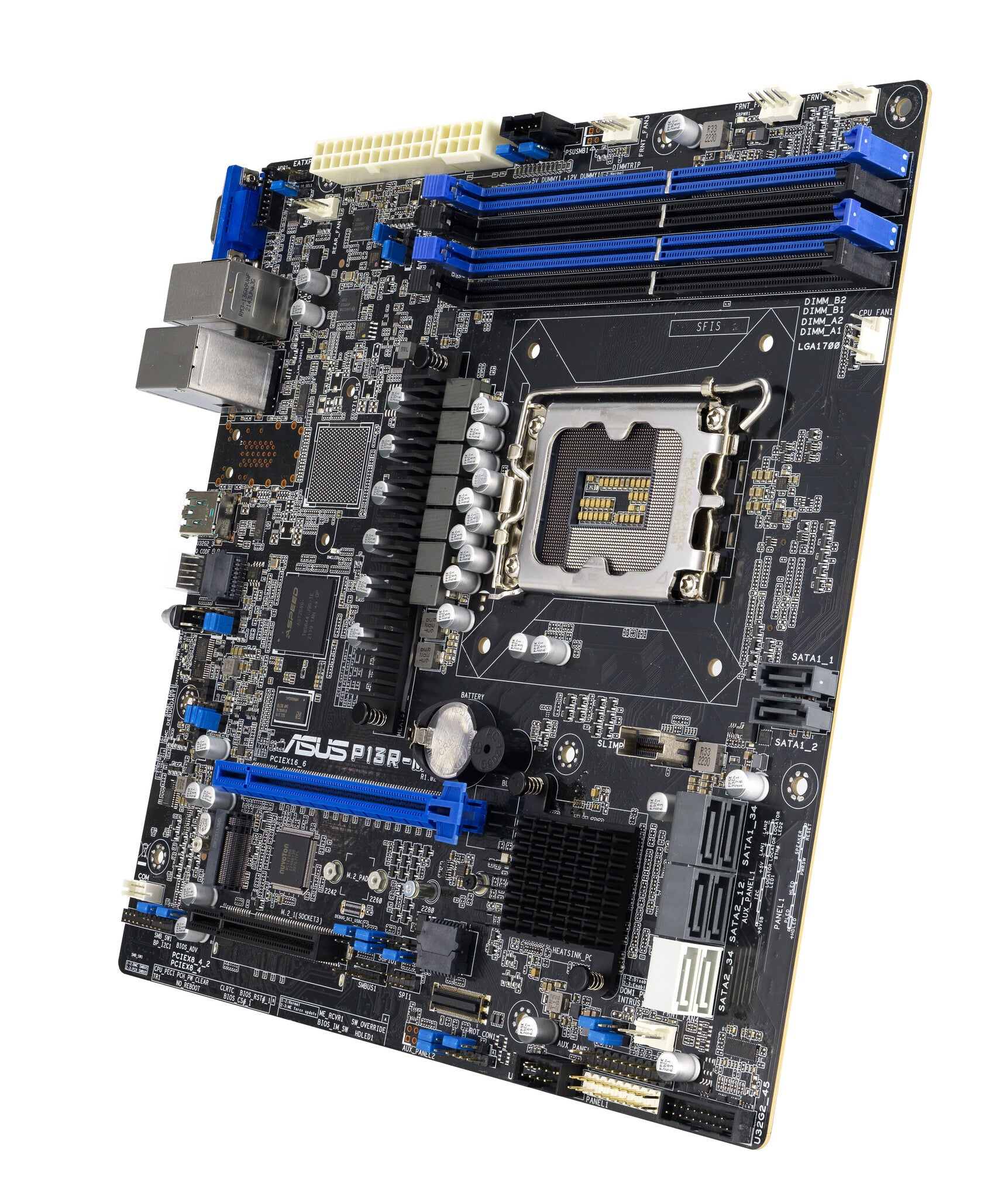

ASUS P13R-M Intel C262 LGA 1700 micro ATX
£382.99
Couldn't load pickup availability
- Powered by eight-core Intel Xeon E-2400 series and Intel Xeon 6300 series processor with support for up to 95 W TDP
- Flexible expandability with eight native SATA HDDs, one PCIe 5.0 slot and one PCIe 4.0 slot
- Dual Intel I210-AT gigabit Ethernet with teaming support
- One M.2 for up to 32 Gbps performance for faster OS booting
- Onboard ASUS ASMB11-iKVM with ASPEED AST2600 controller for out-of-band management
- Integrated PFR FPGA as the platform Root-of-Trust solution for firmware resiliency
PCIe 5.0 Ready
Faster storage, graphics and networking capabilities PCI Express® (PCIe®) 5.0 delivers 32GT/s bandwidth, which is twice the speed of PCIe 4.0, and offers lower power consumption, better land scalability and backwards compatibility. ASUS servers are PCIe 5.0 ready with scalability design to satisfy the increasing workloads for modern data center.
| Processor | |
|---|---|
| Compatible processor series | Intel® Pentium®, Intel Xeon E |
| Processor socket | LGA 1700 |
| Processor manufacturer | Intel |
| Memory | |
|---|---|
| Supported memory module capacities | 8GB, 16GB, 32GB |
| Maximum internal memory | 128 GB |
| Supported memory clock speeds | 3600,4000,4400 MHz |
| Memory channels | Dual-channel |
| Memory slots type | DIMM |
| Number of memory slots | 4 |
| Supported memory types | DDR5-SDRAM |
| Storage controllers | |
|---|---|
| Number of HDDs supported | 8 |
| Supported storage drive interfaces | M.2, SATA III |
| Supported storage drive types | HDD & SSD |
| Graphics | |
|---|---|
| Graphics card | AST2600 |
| Graphics card family | ASPEED |
| Internal I/O | |
|---|---|
| Serial port headers | 1 |
| TPM connector | Yes |
| EPS power connector (8-pin) | Yes |
| ATX Power connector (24-pin) | Yes |
| Number of SATA III connectors | 8 |
| USB 3.2 Gen 2 (3.1 Gen 2) connectors | 3 |
| USB 3.2 Gen 1 (3.1 Gen 1) connectors | 1 |
| USB 2.0 connectors | 1 |

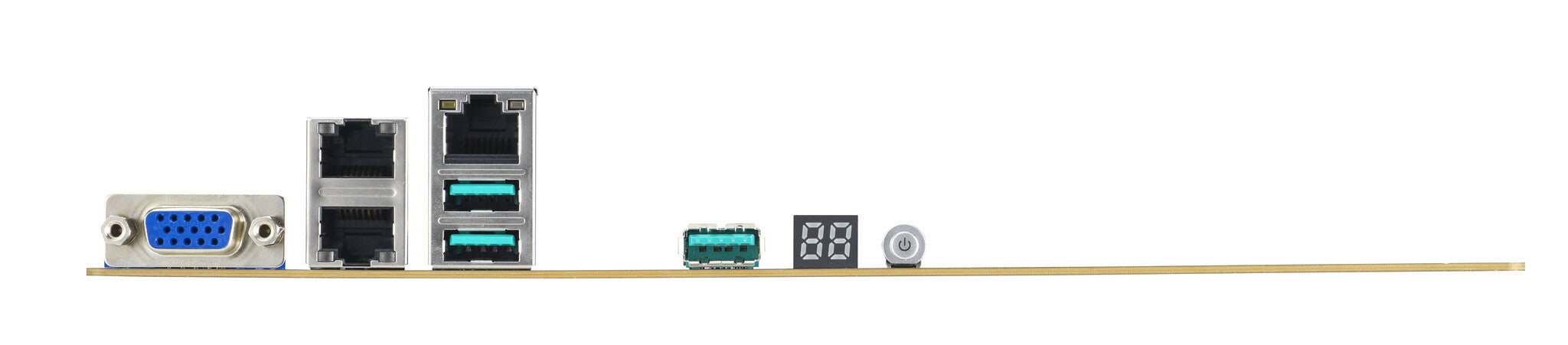

| Rear panel I/O ports | |
|---|---|
| VGA (D-Sub) ports quantity | 1 |
| Ethernet LAN (RJ-45) ports | 2 |
| USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity | 3 |
| Network | |
|---|---|
| LAN controller | Intel® I210-AT |
| Ethernet interface type | Fast Ethernet, Gigabit Ethernet |
| Ethernet LAN | Yes |
| Features | |
|---|---|
| Motherboard chipset | Intel C262 |
| Motherboard chipset family | Intel |
| Motherboard form factor | micro ATX |
| Component for | Server |
| Expansion slots | |
|---|---|
| 1st M.2 largest key size | 2280 |
| Number of M.2 (M) slots | 1 |
| PCI Express x16 (Gen 5.x) slots | 1 |
| PCI Express x8 (Gen 4.x) slots | 1 |
| Operational conditions | |
|---|---|
| Storage relative humidity (H-H) | 20 - 90% |
| Operating temperature (T-T) | 10 - 50 °C |
| Storage temperature (T-T) | -40 - 70 °C |
| Packaging data | |
|---|---|
| Package weight | 1.3 kg |
| Package height | 78 mm |
| Package depth | 281 mm |
| Package width | 341 mm |
| Weight & dimensions | |
|---|---|
| Depth | 244 mm |
| Width | 244 mm |
| Packaging content | |
|---|---|
| Cables included | SATA |
| Other features | |
|---|---|
| Weight | 760 g |
