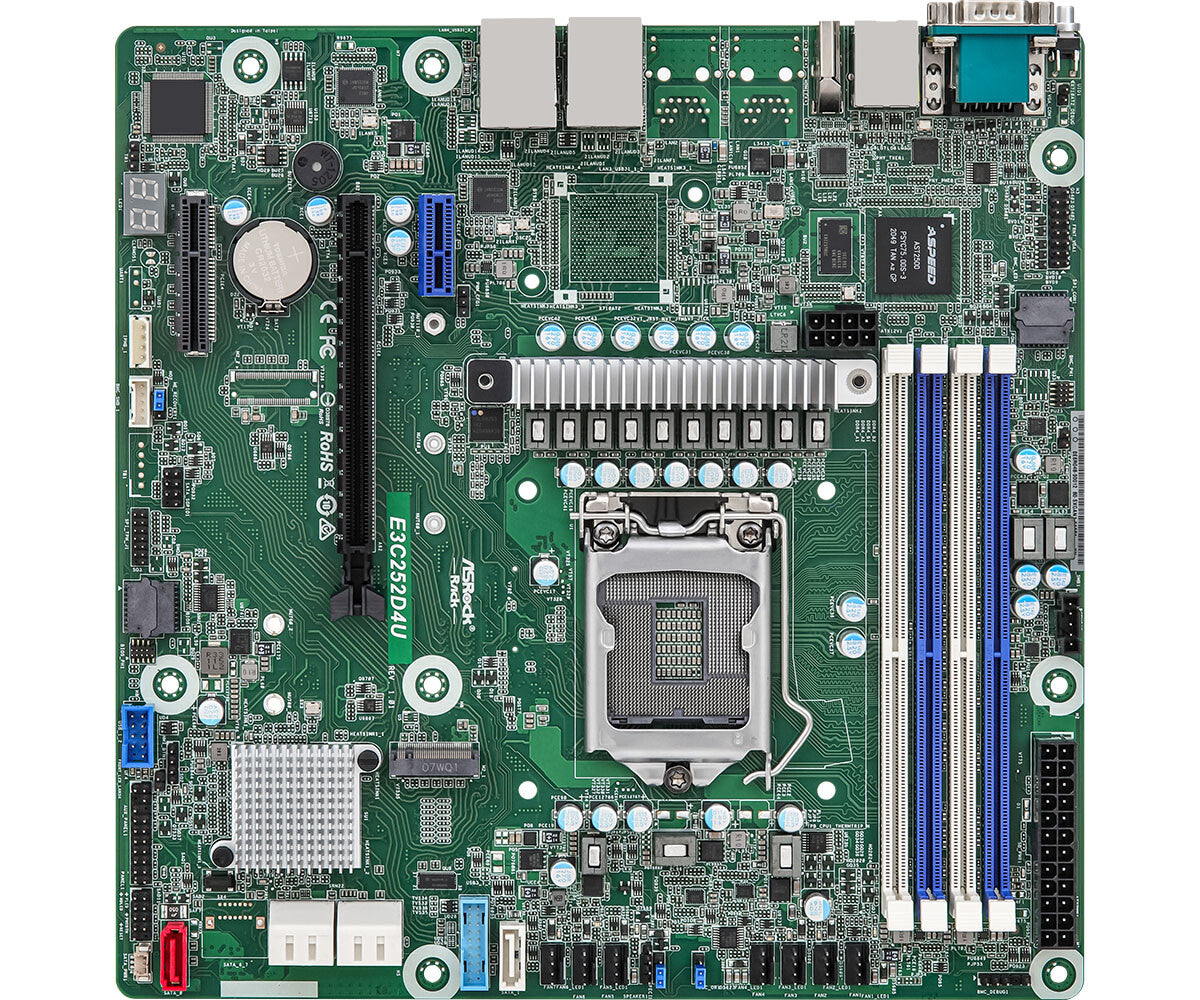

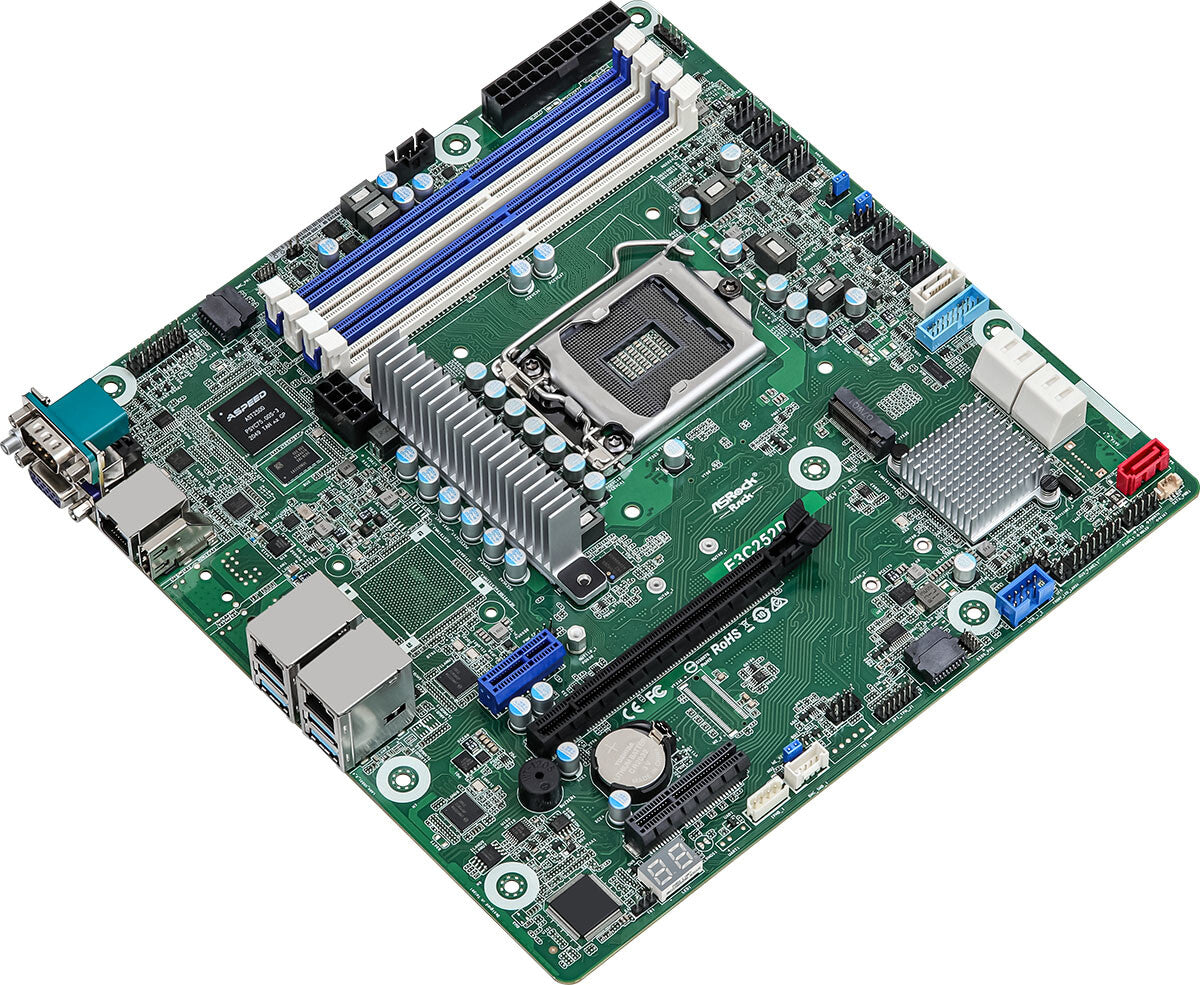

Asrock E3C252D4U motherboard Intel C252 LGA 1200 (Socket H5) micro ATX
£339.99
Couldn't load pickup availability
- Micro-ATX (9.6" x 9.6")
- Supports Intel® Xeon® E-2300 and 10th Gen Intel® Pentium® series processors
- 4 DIMM slots (2DPC), supports DDR4 ECC/non-ECC UDIMM
- 1 PCIe4.0 x16, 1 PCIe4.0 x4, 1 PCIe3.0 x1
- Supports 1 M.2 (PCIe3.0 x2 or SATA 6Gb/s)
- 6 SATA 6Gb/s

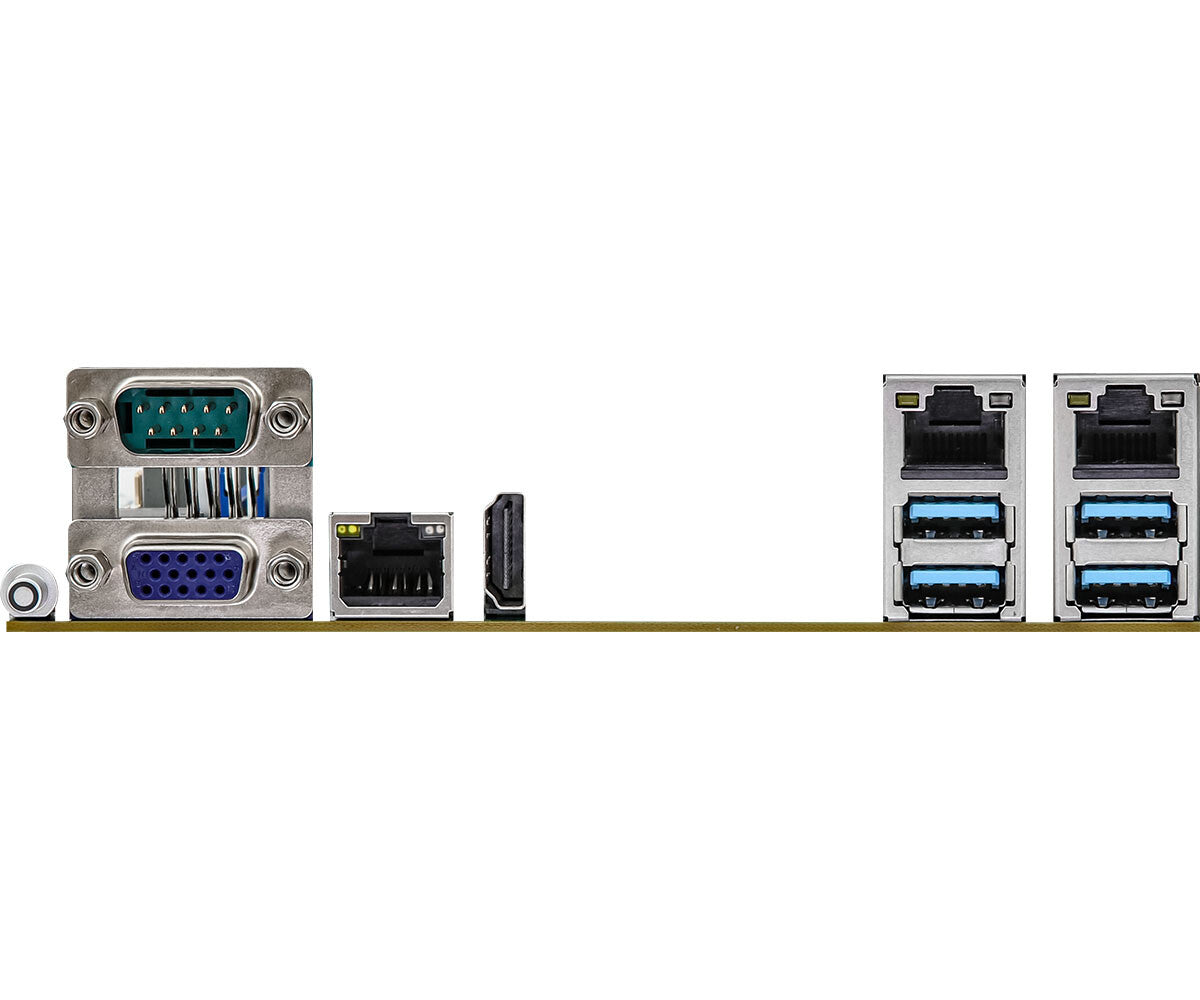

- 2 RJ45 (1GbE) by Intel® i210
- VGA, HDMI
- Remote Management (IPMI)
| Processor | |
|---|---|
| Intel Xeon series | E-2300 |
| Compatible processor series | Intel® Xeon® |
| Processor socket | LGA 1200 (Socket H5) |
| Processor manufacturer | Intel |
| Memory | |
|---|---|
| Maximum internal memory | 32 GB |
| Supported memory clock speed (max) | 2666 MHz |
| ECC сompatibility | ECC & Non-ECC |
| Memory voltage | 1.2 V |
| Memory slots type | DIMM |
| Number of memory slots | 4 |
| Supported memory types | DDR4-SDRAM |
| Storage controllers | |
|---|---|
| RAID levels | 0, 1, 5, 10 |
| RAID support | Yes |
| Supported storage drive interfaces | M.2, SATA |
| Graphics | |
|---|---|
| On-board graphics card model | Aspeed AST2500 |
| On-board graphics card memory | 256 MB |
| Graphics card | AST2500 |
| Graphics card family | ASPEED |
| Internal I/O | |
|---|---|
| USB 3.2 Gen 1 (3.1 Gen 1) connectors | 1 |
| Network | |
|---|---|
| Wi-Fi | No |
| LAN controller | Intel I210 |
| Ethernet interface type | Gigabit Ethernet |
| Ethernet LAN | Yes |
| Features | |
|---|---|
| Motherboard chipset | Intel C252 |
| Motherboard chipset family | Intel |
| Motherboard form factor | micro ATX |
| Component for | PC |
| Expansion slots | |
|---|---|
| PCI Express x16 (Gen 4.x) slots | 1 |
| PCI Express x4 (Gen 4.x) slots | 1 |
| PCI Express x1 (Gen 3.x) slots | 1 |
| BIOS | |
|---|---|
| System Management BIOS (SMBIOS) version | 3.3 |
| ACPI version | 6.2 |
| BIOS type | UEFI AMI |
