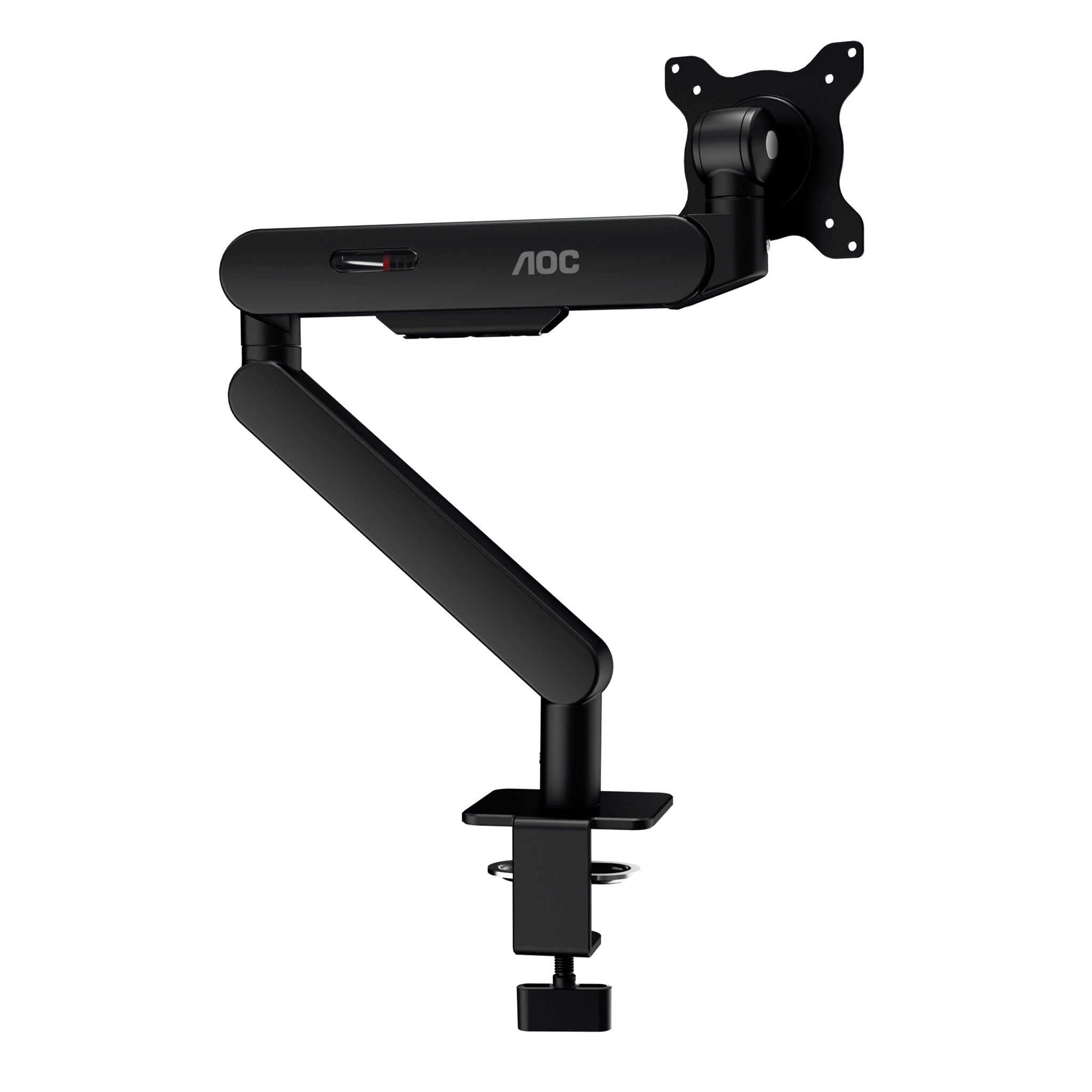

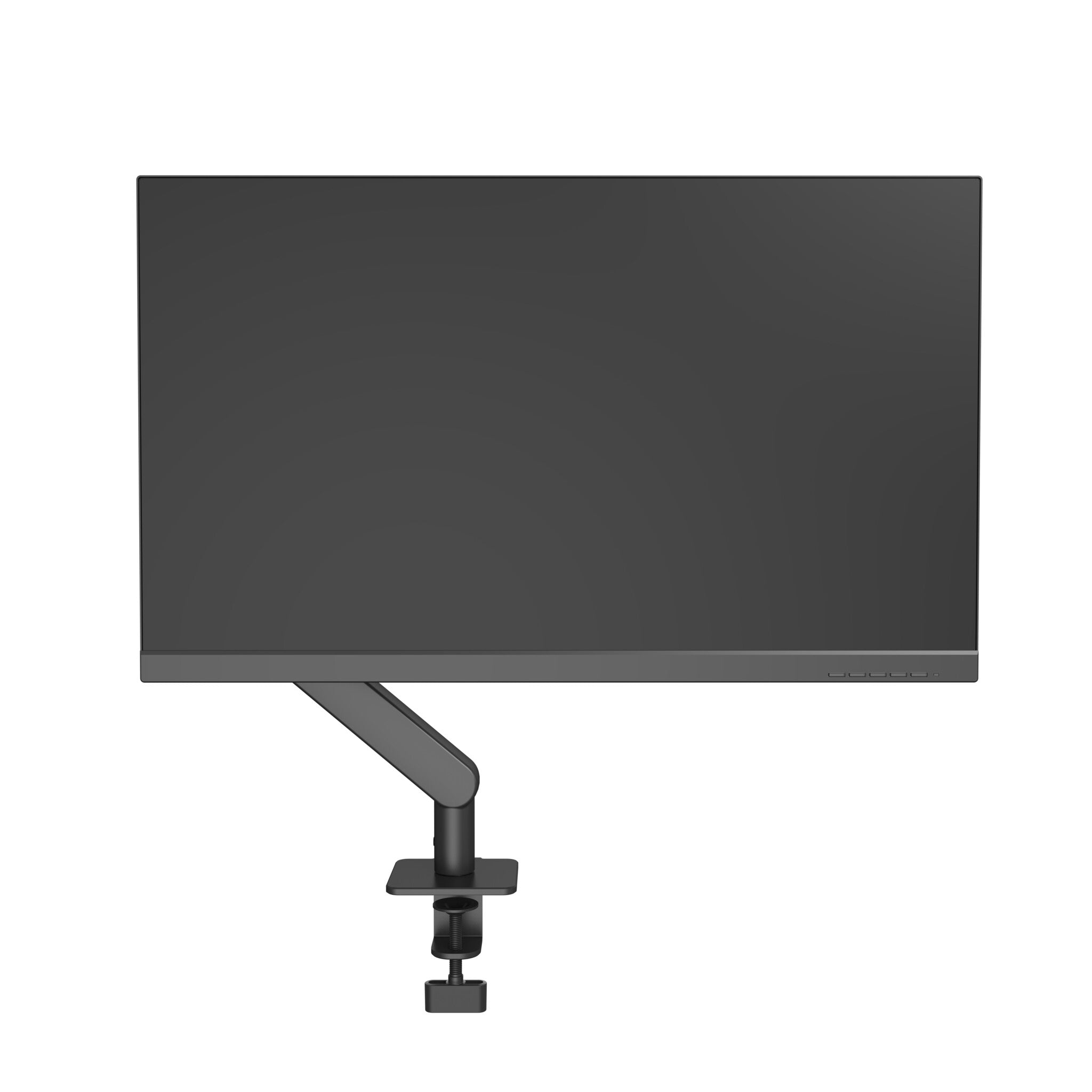

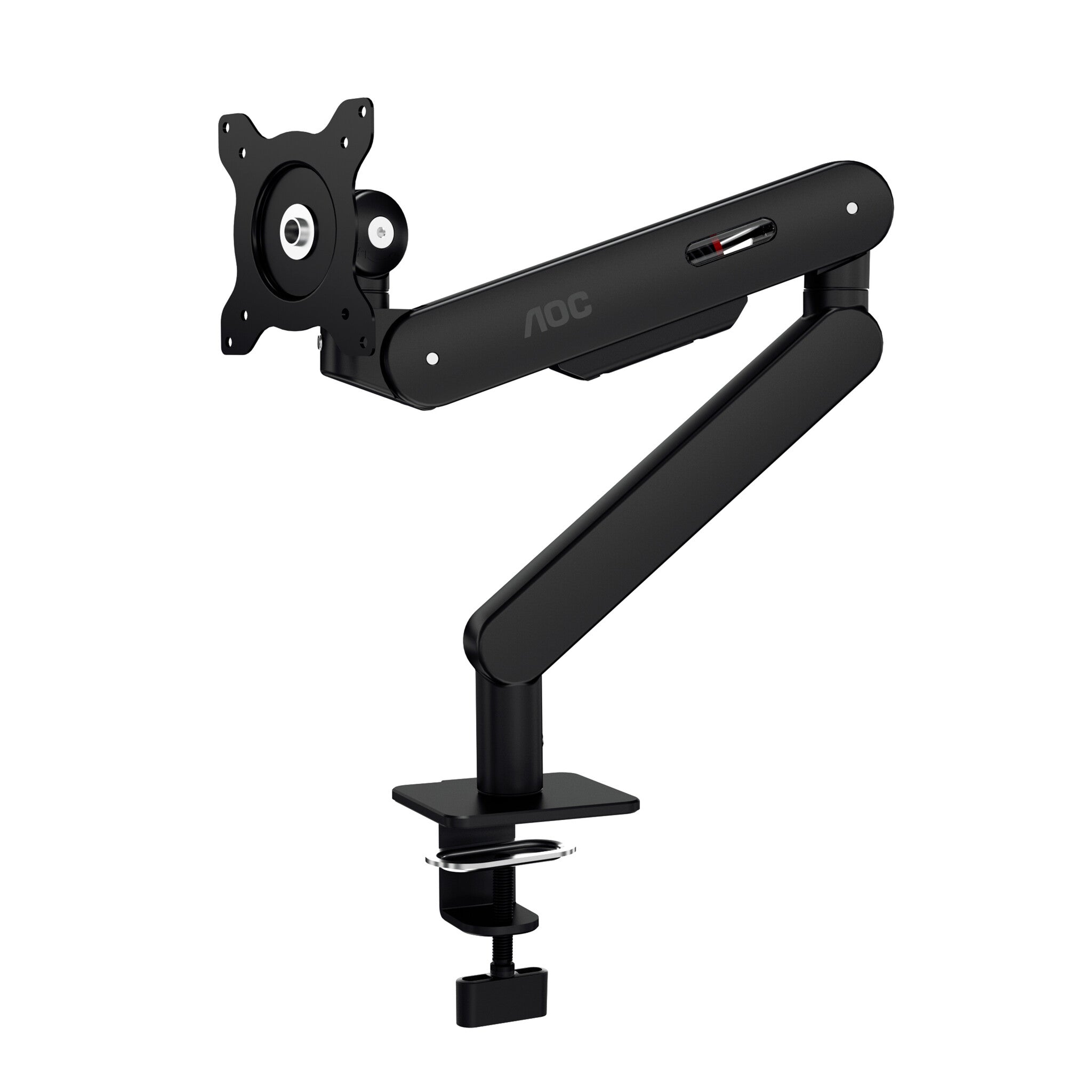

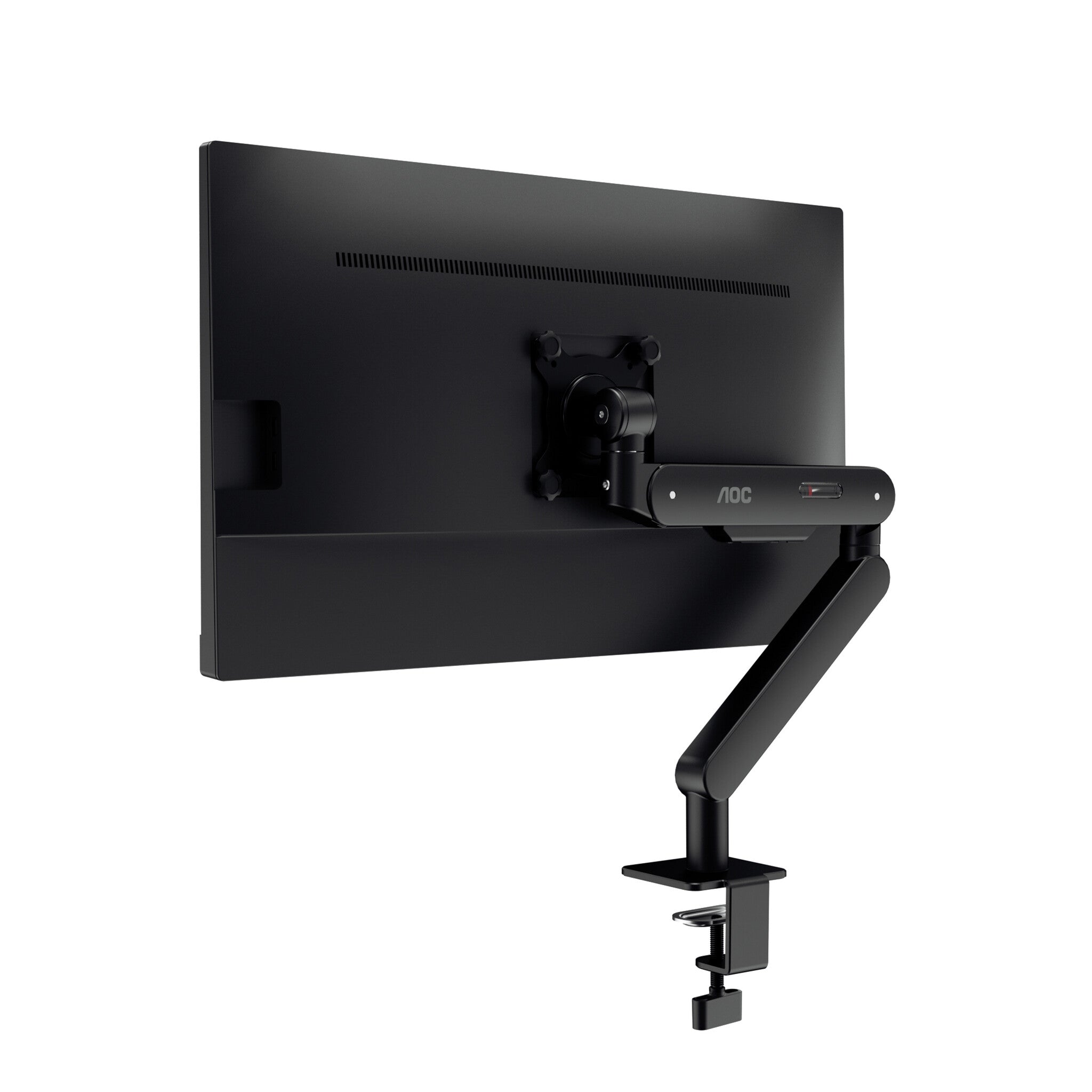

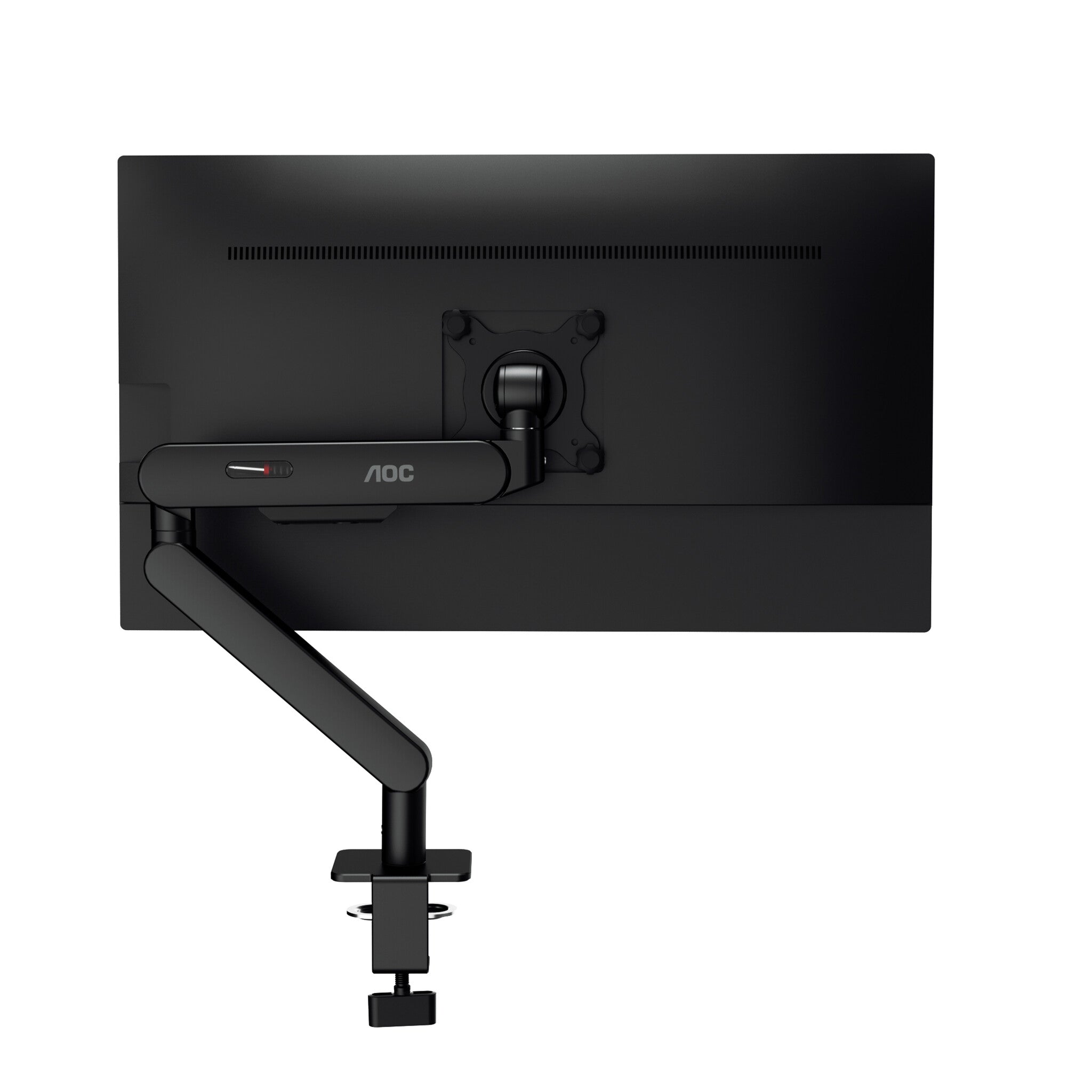

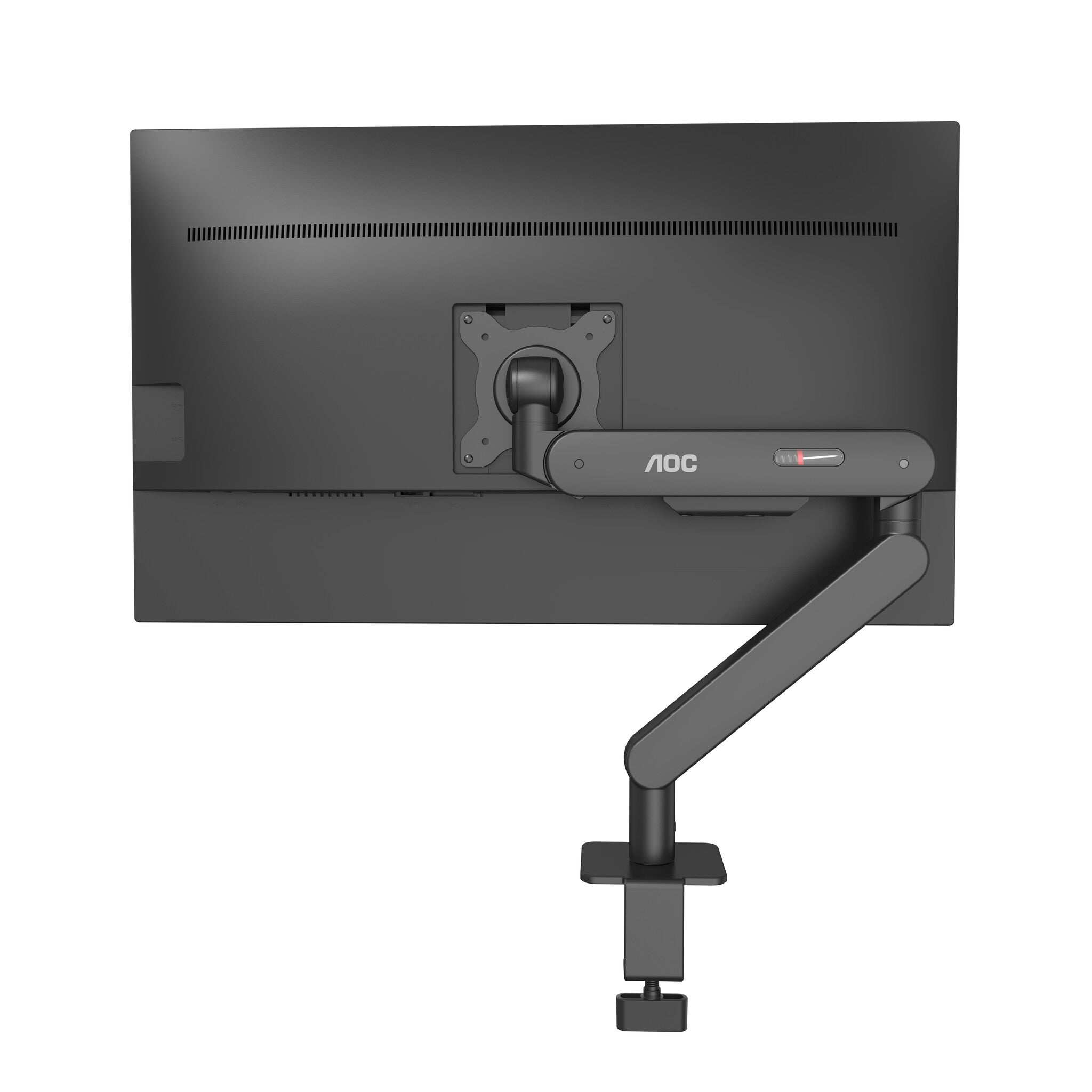

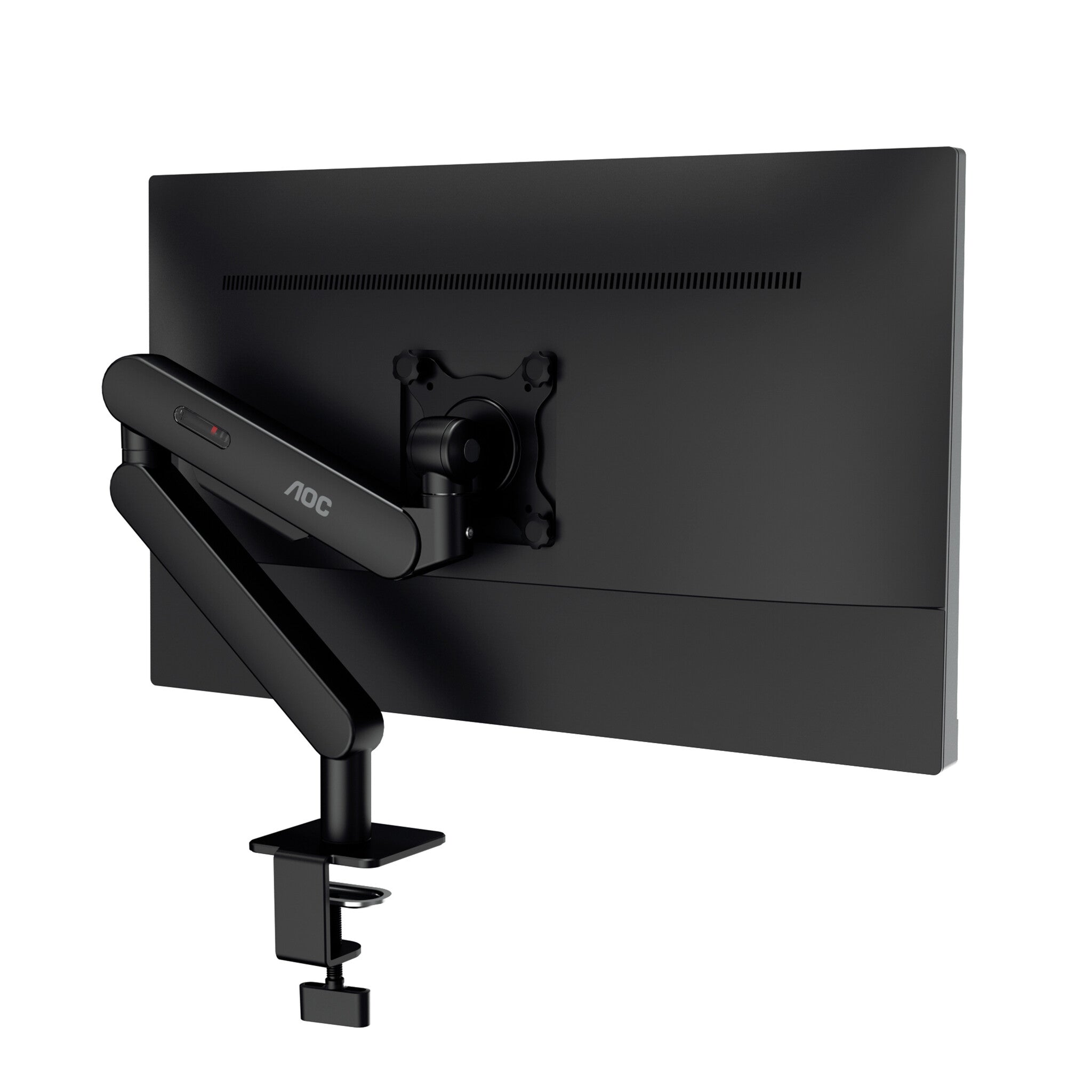

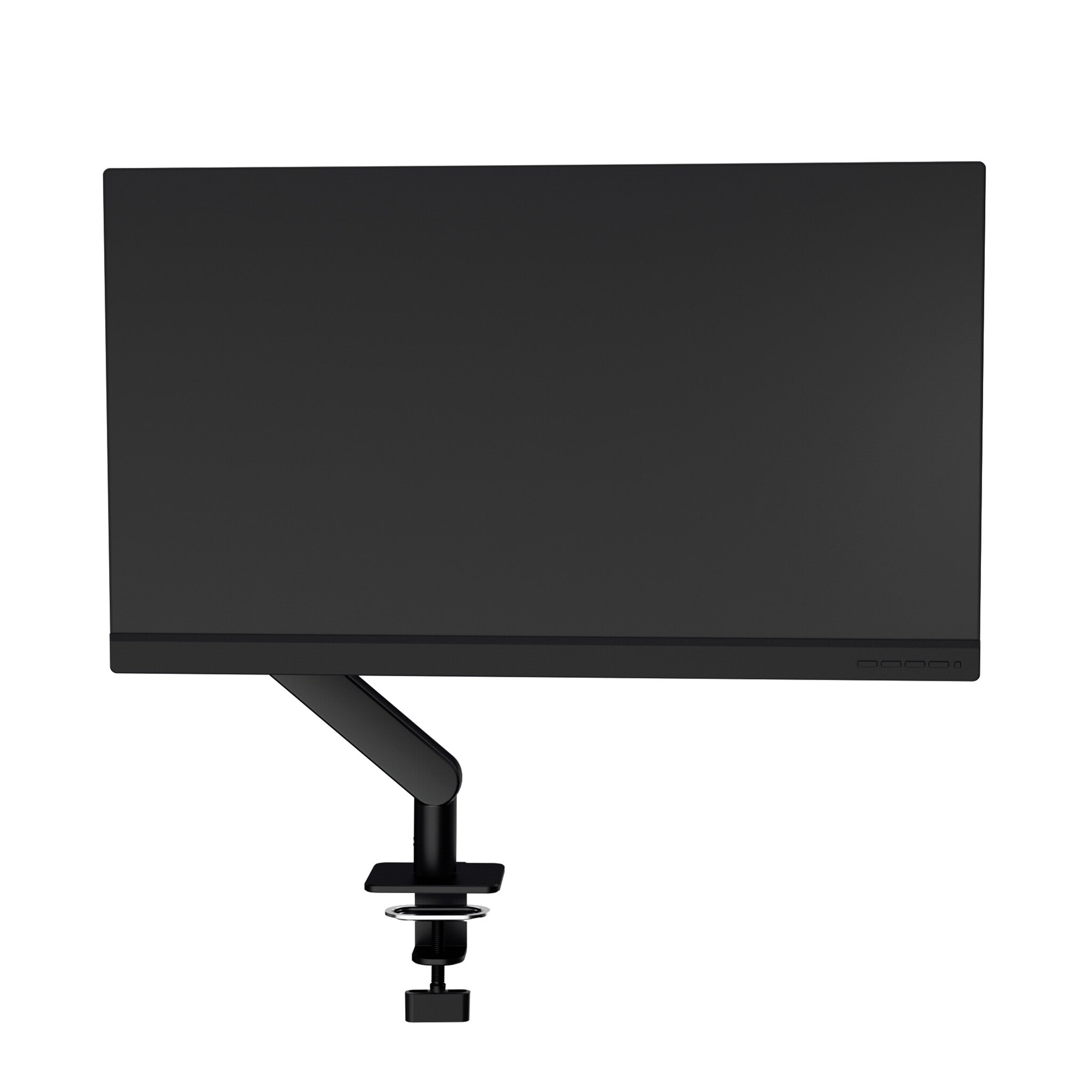

AOC AM400B monitor mount / stand 86.4 cm (34") Desk Black
Couldn't load pickup availability
- Maximum weight capacity: 9 kg
- Minimum screen size: 43.2 cm (17") Maximum screen size: 86.4 cm (34")
- Clamp/Bolt-through Mounting type: Desk
- Manual Height adjustment Tilt adjustment
- Cable management
- Aluminium Black
Enhance your workspace: the AM400B universal monitor arm - Seamlessly integrate, maximize space, and manage cables.
Crafted to perfection with an aluminum alloy build, the AM400B accommodates monitor sizes from 17” to 34”, with a maximum weight capacity of 9 kg. Its durable mechanical spring mechanism ensures sturdy support, while VESA compatibility (75x75, 100x100mm) allows for easy integration. Enjoy a versatile range of motion, including up to 495 mm height adjustment, up to 456 mm extension, -15°/90° tilt, -90°/90° swivel, and 360° pivot range, enhancing your workspace flexibility. Select between C Clamp or Grommet installation methods to suit your setup and elevate your ergonomic experience with the universal monitor arm AM400B.
| Mounting | |
|---|---|
| Clamp mount desk thickness (max) | 5 cm |
| Desk thickness (max) | 5 cm |
| Desk thickness (min) | 1.5 cm |
| Panel mounting interface | 75 x 75,100 x 100 mm |
| Mounting | Clamp/Bolt-through |
| Maximum weight capacity (per display) | 9 kg |
| Mounting type | Desk |
| Maximum screen size | 86.4 cm (34") |
| Minimum screen size | 43.2 cm (17") |
| Maximum weight capacity | 9 kg |
| Ergonomics | |
|---|---|
| Cable management | Yes |
| Pivot angle | 0 - 360° |
| Swivel angle range | -90 - 90° |
| Swivelling | Yes |
| Tilt angle range | -15 - 90° |
| Tilt adjustment | Yes |
| Depth adjustment range | 0 - 455 mm |
| Height adjustment range | 250 - 495 mm |
| Height adjustment type | Manual |
| Height adjustment | Yes |
| Design | |
|---|---|
| Housing material | Aluminium |
| Product colour | Black |
| Weight & dimensions | |
|---|---|
| Weight | 2.2 kg |
| Packaging data | |
|---|---|
| Package weight | 2.6 kg |
| Package height | 100 mm |
| Package depth | 398 mm |
| Package width | 190 mm |
| Packaging content | |
|---|---|
| Packaging content | User Manual, Monitor Arm, Clamp mount, Grommet mount, Installation materials |
| Manual | Yes |
| Mounting kit | Yes |
| Clamp included | Yes |
| Other features | |
|---|---|
| Warranty period | 5 year(s) |
| Height (max) | 49.5 cm |
