Neomounts FPMA-HAC100 Medical monitor arm ceiling 10-24" - h 0-170 cm - gas spring
Couldn't load pickup availability
- Maximum weight capacity: 6 kg
- Minimum screen size: 25.4 cm (10") Maximum screen size: 61 cm (24")
- Number of displays supported: 1
- Mounting type: Ceiling
- Maximum VESA mount: 100 x 100 mm
- Gas spring Height adjustment Tilt adjustment
- Aluminium White

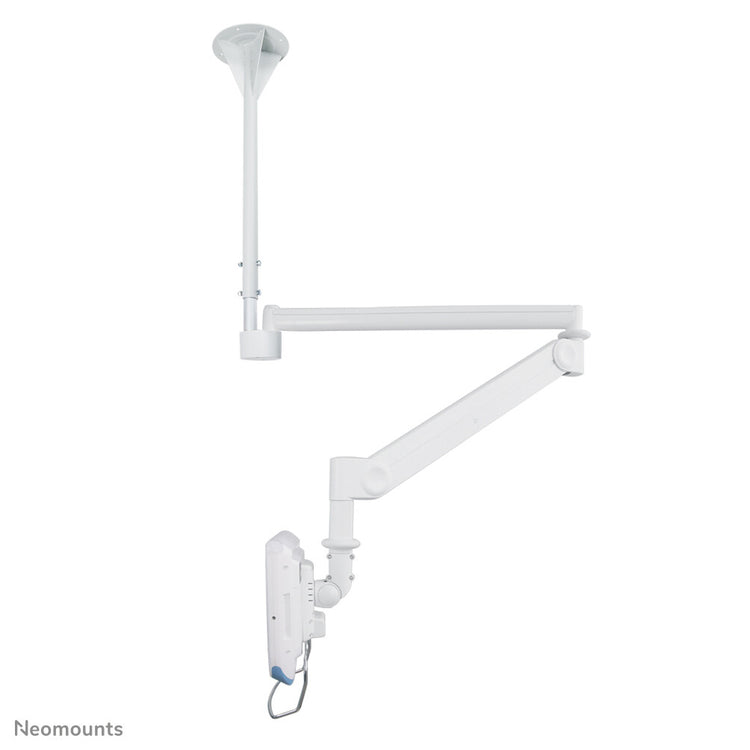

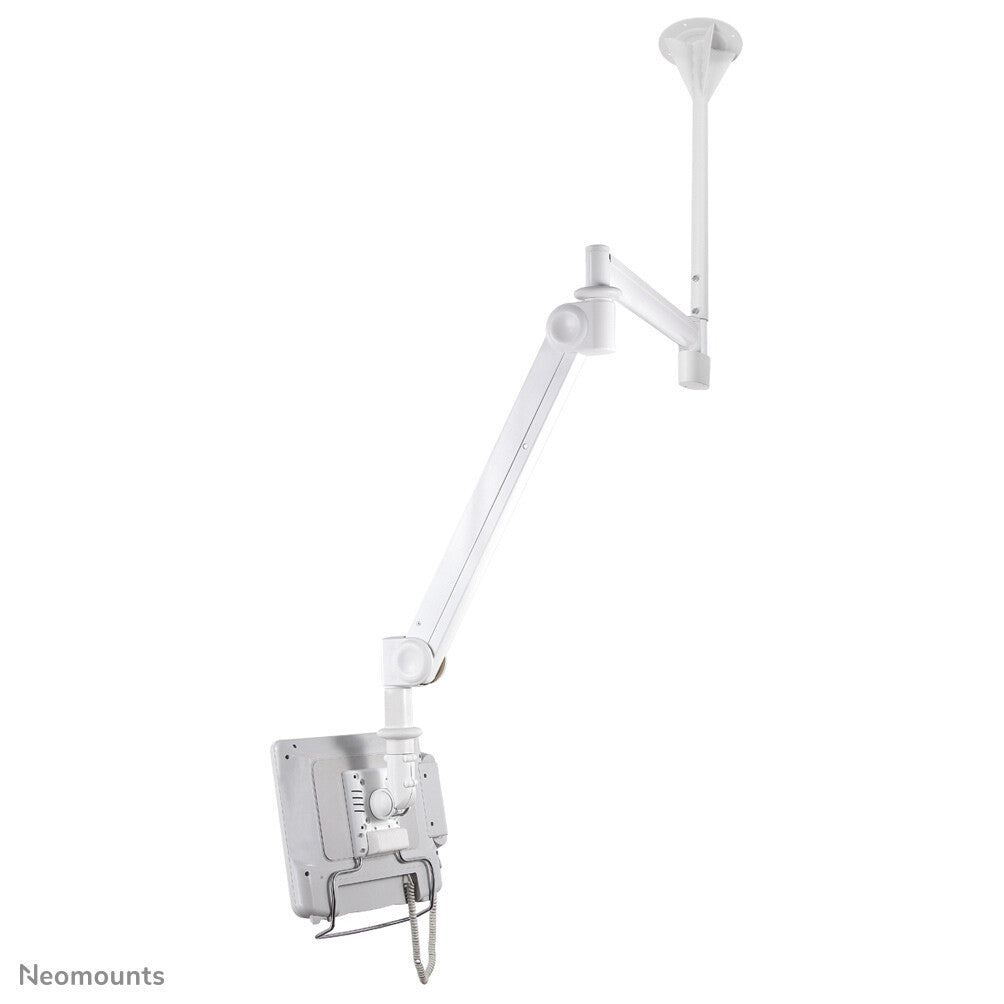

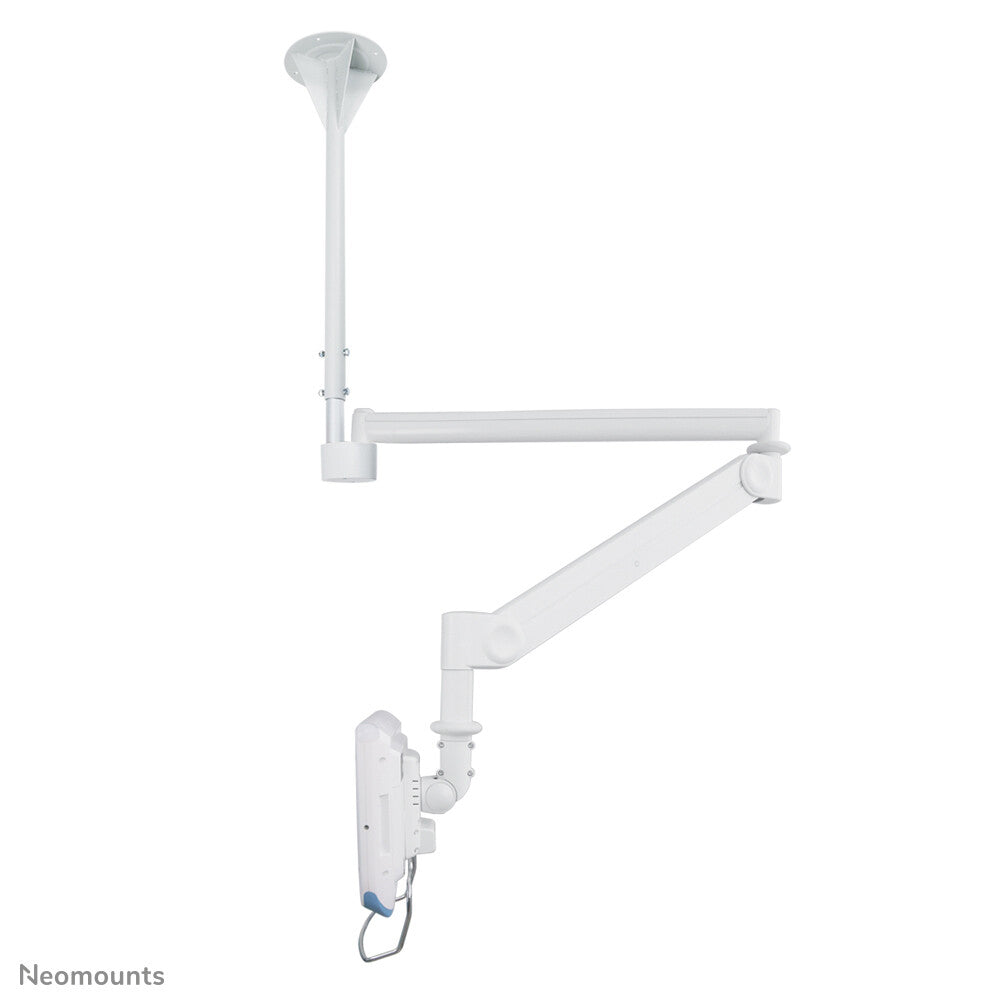

The Neomounts ceiling mount, model FPMA-HAC100 is a tilt- and swivel ceiling mount for medical flat screens up to 24". This mount is a great choice for space saving placement or when wall mounting and floor placement is not an option.
Neomounts versatile tilt (55°) and swivel (370°) technology allows the mount to change to any viewing angle to fully benefit from the capabilities of the flat screen. The support is easily height adjustable from 0 to 170 centimetres using a gas spring. Depth adjustable from 0 to 170 centimetres. An innovative cable management conceals and routes cables from mount to flat screen. Hide your cables to keep the workplace nice and tidy.
Neomounts FPMA-HAC100 has two pivot points and is suitable for screens up to 24" (61 cm). The weight capacity of this product is 6 kg each screen. The ceiling mount is suitable for screens that meetVESA hole pattern 75x75 or 100x100mm. Different hole patterns can be covered using Neomounts VESA adapter plates.
All installation material is included with the product.

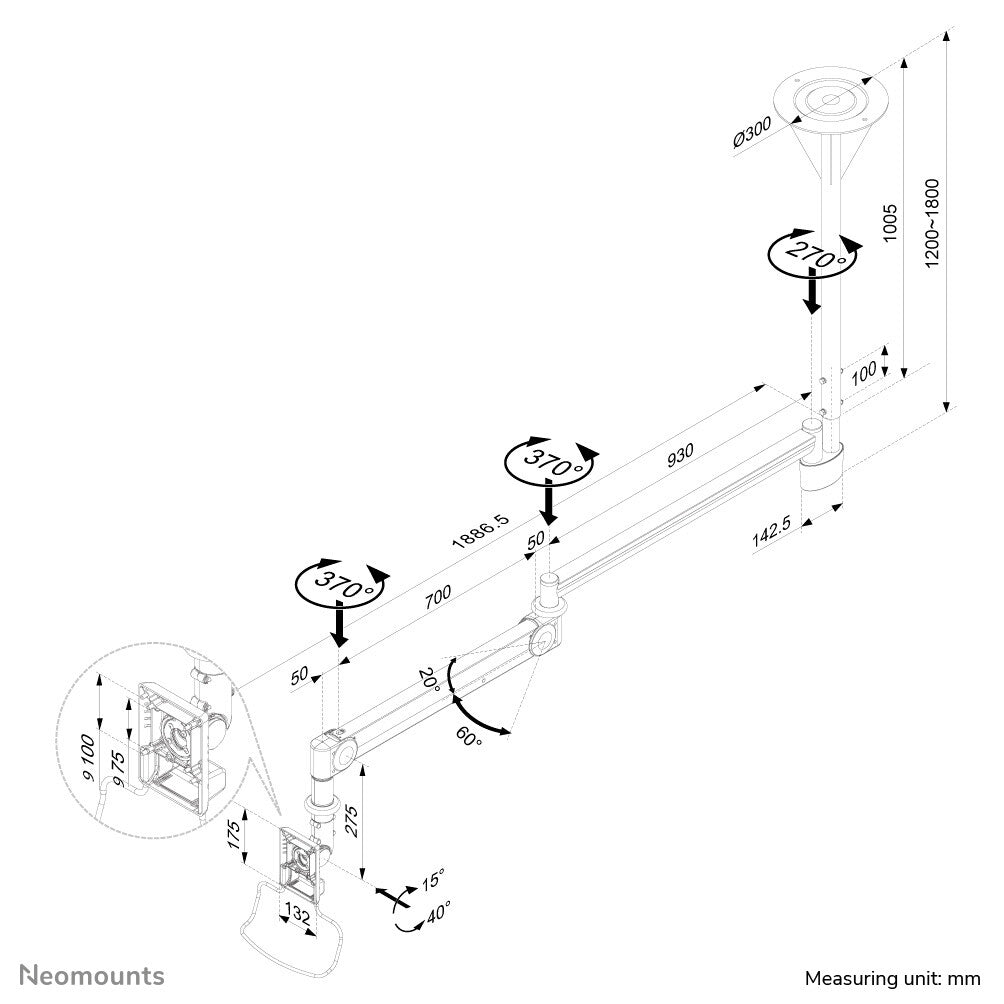

| Mounting | |
|---|---|
| Maximum distance to ceiling | 170 cm |
| Distance to the wall (max) | 170 cm |
| Number of displays supported | 1 |
| Panel mounting interface | 75 x 75 mm |
| Maximum VESA mount | 100 x 100 mm |
| Minimum VESA mount | 75 x 75 mm |
| Maximum weight capacity (per display) | 6 kg |
| Mounting type | Ceiling |
| Maximum screen size | 61 cm (24") |
| Minimum screen size | 25.4 cm (10") |
| Maximum weight capacity | 6 kg |
| Ergonomics | |
|---|---|
| Number of pivot points | 3 |
| Rotating | Yes |
| Swivel angle | 370° |
| Swivelling | Yes |
| Tilt angle range | 0 - 55° |
| Tilt adjustment | Yes |
| Depth adjustment range | 0 - 1890 mm |
| Height adjustment range | 0 - 1700 mm |
| Height adjustment type | Gas spring |
| Height adjustment | Yes |
| Design | |
|---|---|
| Housing material | Aluminium |
| Product colour | White |
| Weight & dimensions | |
|---|---|
| Weight | 13.6 kg |
| Height | 1700 mm |
| Depth | 1890 mm |
| Packaging data | |
|---|---|
| Package net weight | 13.9 kg |
| Package weight | 13.9 kg |
| Package height | 390 mm |
| Package depth | 390 mm |
| Package width | 1250 mm |
| Logistics data | |
|---|---|
| Country of origin | Taiwan |
| Master (outer) case net weight | 13.9 kg |
| Harmonized System (HS) code | 83025000 |
| Products per pallet (EU) | 4 pc(s) |
| Products per master (outer) case | 1 pc(s) |
| Master (outer) case gross weight | 18.2 kg |
| Master (outer) case height | 390 mm |
| Master (outer) case length | 390 mm |
| Master (outer) case width | 1250 mm |
