Multibrackets M VESA Full Motion Medical Arm HD 6-12kg
£661.99
Couldn't load pickup availability
- Designed for medical environments
- Heavy Duty monitors 6-12kg weight
- Light weight & compact
- Great stability and reach
- Easy to stow away after use
- Simple to install
- Hardware kit included

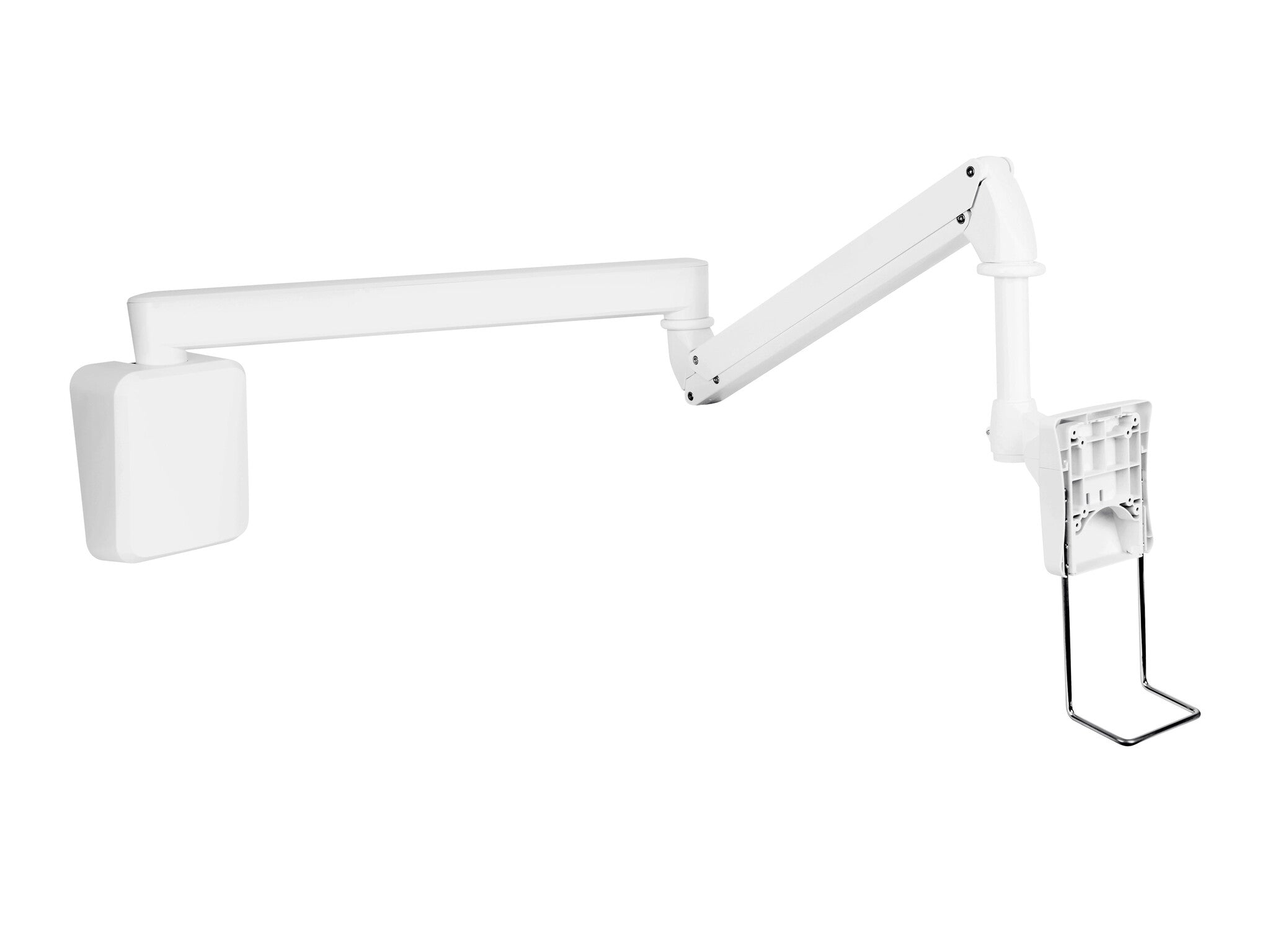

Our M VESA Full Motion Medical Arm was designed to be both light-weight and compact which could allow for a simple and fast installation. Featuring standard VESA 75 and 100 mounting for maximum compatibility to today’s small and medium sized TV’s and infotainment systems. With a flexible tilt function makes this arm easy to maneuver, providing the user with a comfortable position at all times. The design allows for very simple stow away after usage is over.

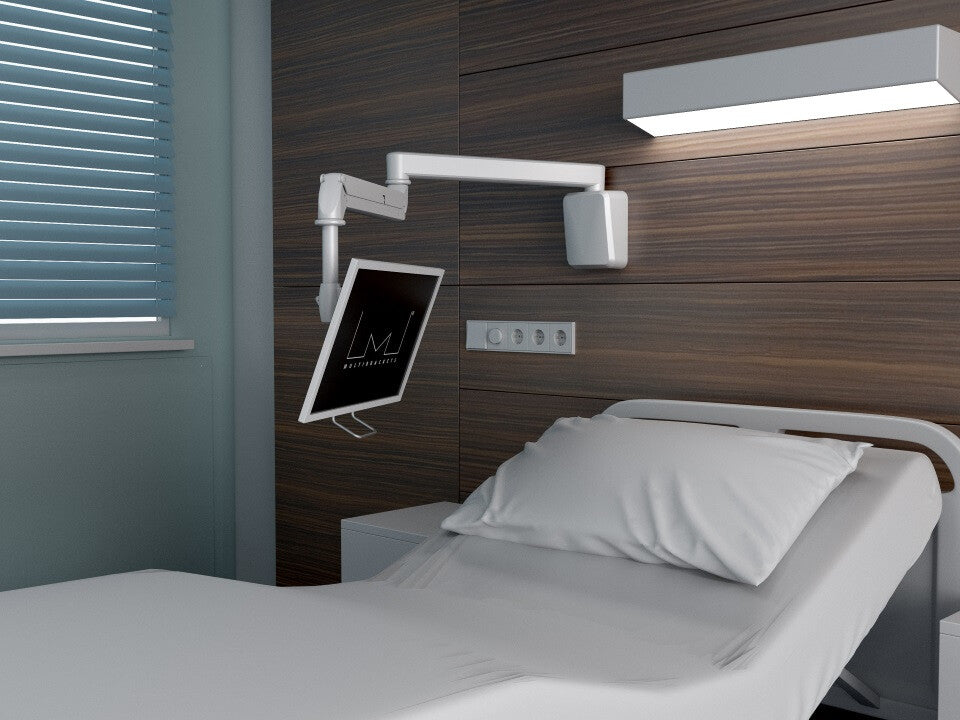

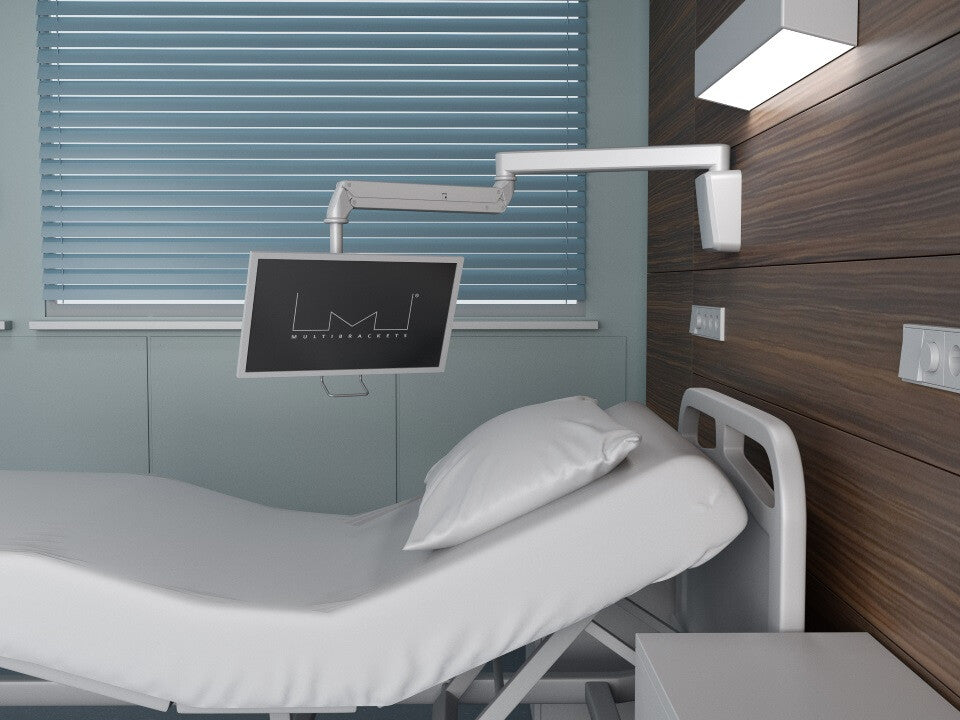

The M VESA Full Motion Medical Arm is designed for hospital environments, it is covered and easy to clean and disinfect to ensure patient safety.
| Mounting | |
|---|---|
| Number of displays supported | 1 |
| Panel mounting interface | 75 x 75,100 x 100 mm |
| Maximum VESA mount | 100 x 100 mm |
| Minimum VESA mount | 75 x 75 mm |
| Mounting type | Wall |
| Maximum screen size | 68.6 cm (27") |
| Minimum screen size | 38.1 cm (15") |
| Maximum weight capacity | 12 kg |
| Ergonomics | |
|---|---|
| Cable management | Yes |
| Swivel angle range | -185 - 185° |

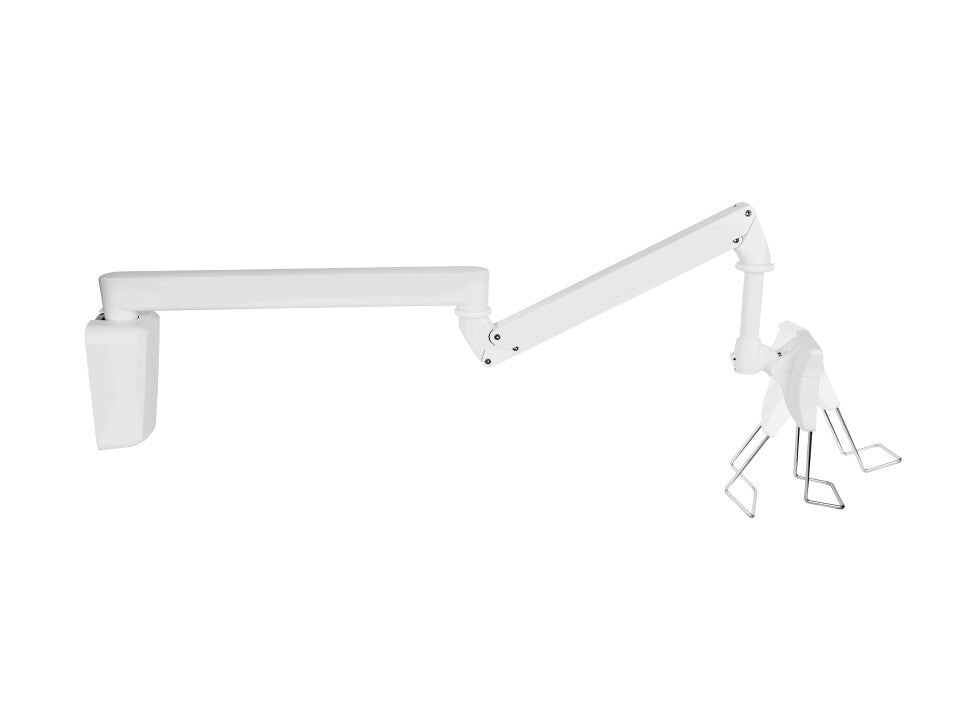

| Tilt angle range | -60 - 20° |
| Tilt adjustment | Yes |

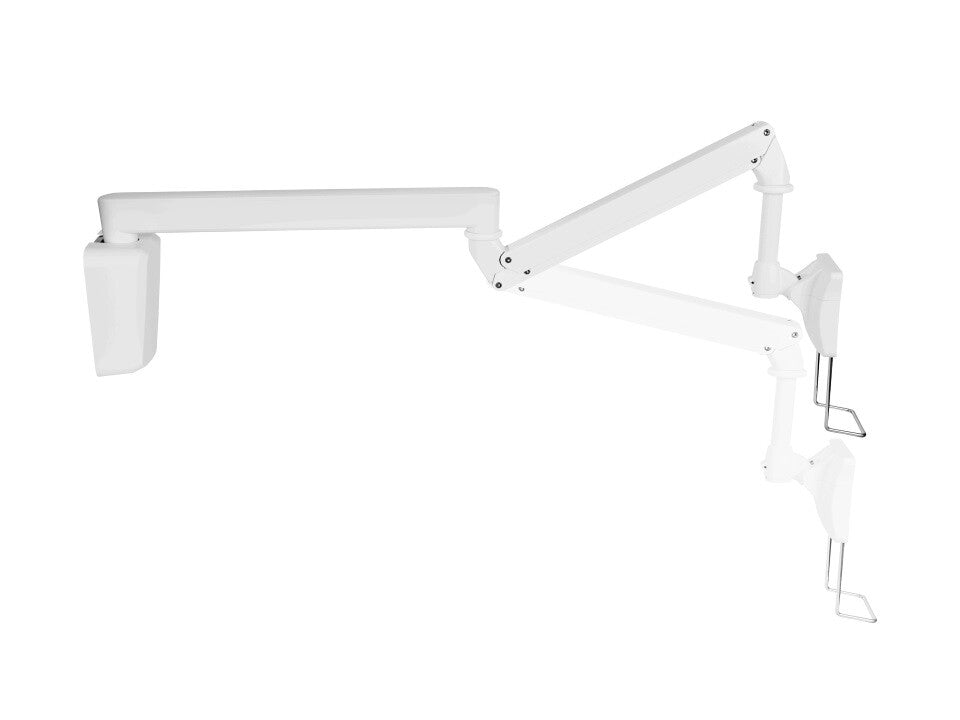

| Height adjustment range | 0 - 671 mm |
| Height adjustment type | Manual |
| Height adjustment | Yes |
| Design | |
|---|---|
| Housing material | Aluminium, Plastic, Steel |
| Product colour | White |

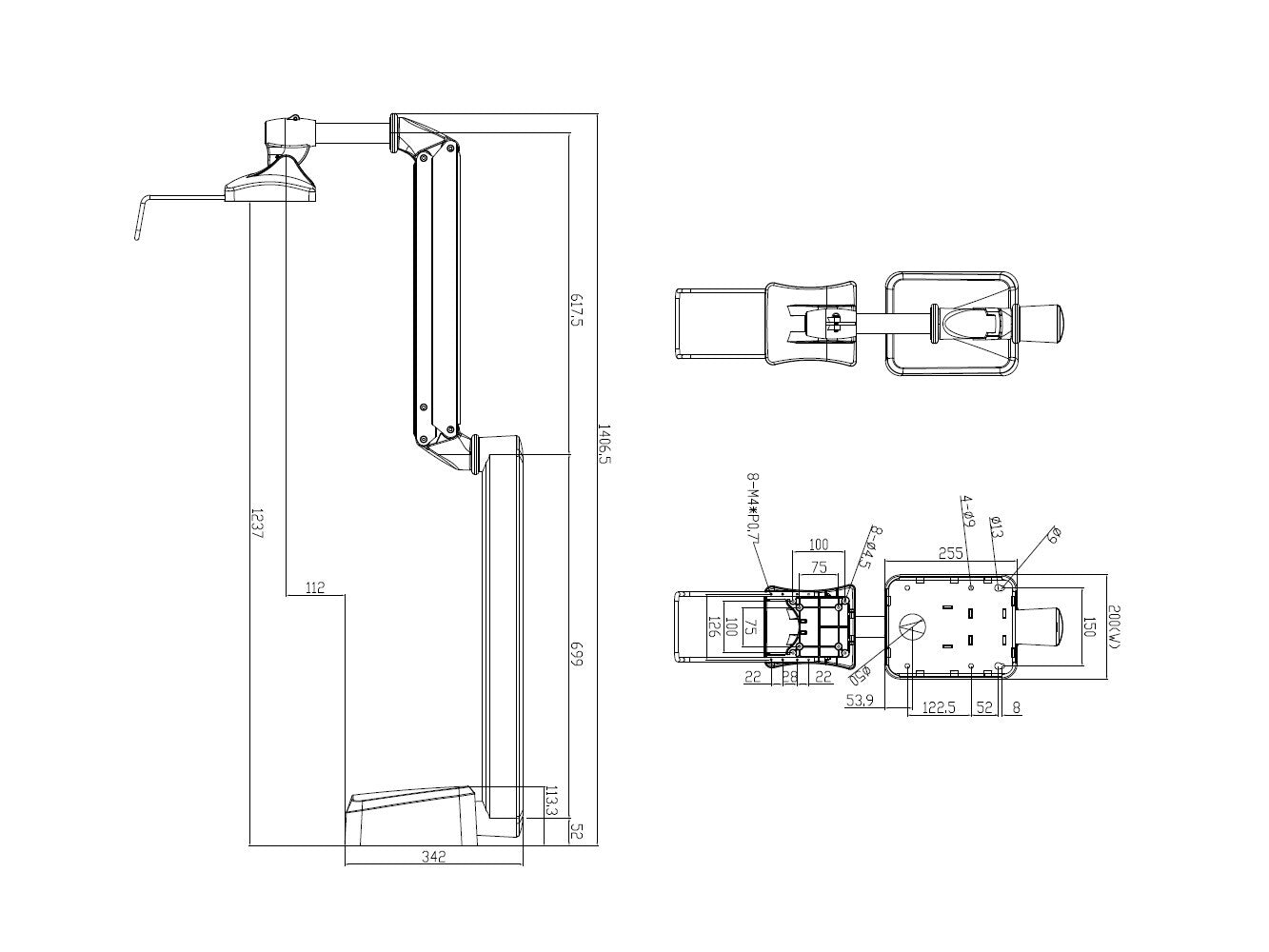

| Weight & dimensions | |
|---|---|
| Weight | 11.4 kg |
| Height | 1406.5 mm |
| Width | 342 mm |
| Packaging data | |
|---|---|
| Package type | Box |
| Package weight | 13.8 kg |
| Package height | 183 mm |
| Package depth | 894 mm |
| Package width | 559 mm |
| Logistics data | |
|---|---|
| Products per shipping (inner) case | 1 pc(s) |
| Shipping (inner) case gross weight | 13.8 kg |
| Shipping (inner) case height | 18.3 cm |
| Shipping (inner) case length | 89.4 cm |
| Shipping (inner) case width | 55.9 cm |
