  • Designed for medical environments
  • Hold monitors 0.5-2kg weight
  • Light weight & compact
  • Great stability and reach
  • Easy to stow away after use
  • Simple to install
  • Hardware kit included

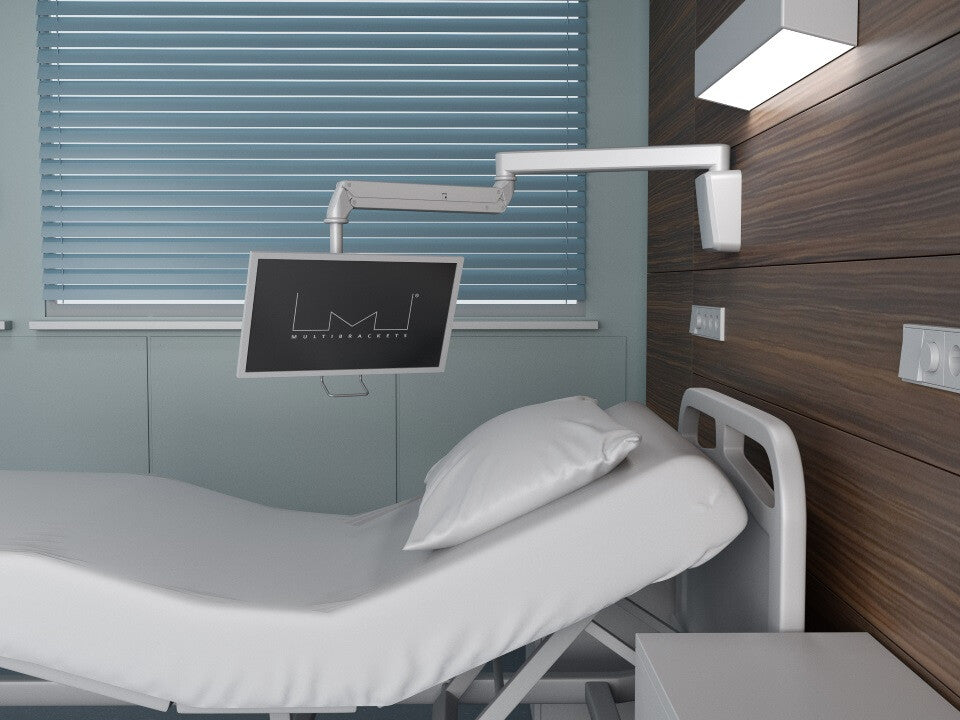

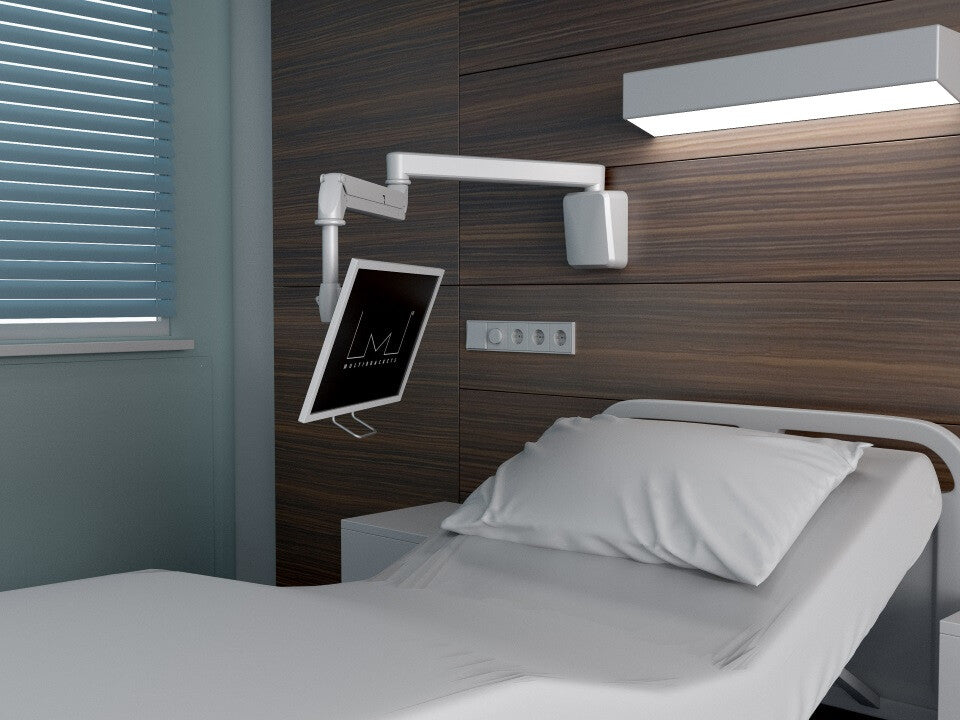

Meet our new wall-mounted articulated monitor arm for LCD’s and infotainment terminals - suitable for hospital environments. Holds monitors weights between 0.5-2kg._x000D_
Our M VESA Full Motion Medical Arm is designed for use with LCD’s or infotainment system found in Hospitals and other health related environments. _x000D_
The arm itself holds high medical quality levels in all areas and offer wide flexibility for installation at bedside in a typical hospital room or other such environments. _x000D_
Finally a perfect fit for any installation requiring good reach from a typical swivel arm still compact when stowed away._x000D_
This arm is both light-weight and compact which allows for an easy installation and even easier usage. It features a standard VESA mounting for maximum compatibility. _x000D_

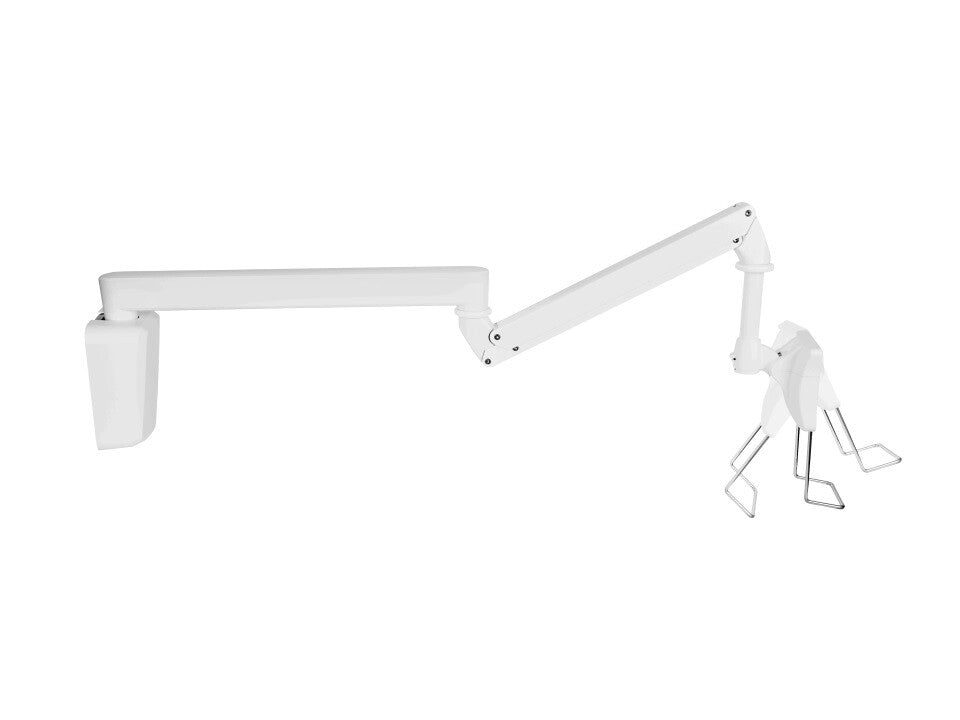

An ingenious tilt mechanism developed by Multibrackets ensures the arm is very easy to maneuver, providing the user with the most comfortable position when using the screen or touch screen of the infotainment system. _x000D_
_x000D_
Flexible wallmount designed for medical environments._x000D_
_x000D_
_x000D_
_x000D_
Easy to install - simple to operate_x000D_
Our M VESA Full Motion Medical Arm was designed to be both light-weight and compact which could allow for a simple and fast installation. Featuring standard VESA 75 and 100 mounting for maximum compatibility to today’s small and medium sized TV’s and infotainment systems. With a flexible tilt function makes this arm easy to maneuver, providing the user with a comfortable position at all times. The design allows for very simple stow away after usage is over._x000D_
_x000D_
Designed for Hospital environments_x000D_
The M VESA Full Motion Medical Arm is designed for hospital environments, it is covered and easy to clean and disinfect to ensure patient safety._x000D_
H

Mounting
Number of displays supported 1
Panel mounting interface 75 x 75,100 x 100 mm
Maximum VESA mount 100 x 100 mm
Minimum VESA mount 75 x 75 mm
Mounting type Wall
Maximum screen size 68.6 cm (27")
Minimum screen size 38.1 cm (15")
Maximum weight capacity 2 kg
Ergonomics
Cable management Yes
Swivel angle range -185 - 185°
Tilt angle range -60 - 20°
Tilt adjustment Yes
Height adjustment range 0 - 671 mm
Height adjustment type Manual
Height adjustment Yes
Design
Housing material Aluminium, Plastic, Steel
Product colour White
Weight & dimensions
Weight 11.4 kg
Height 1406.5 mm
Width 342 mm
Packaging data
Package type Box
Package weight 13.8 kg
Package height 183 mm
Package depth 894 mm
Package width 559 mm
Logistics data
Shipping (inner) case gross weight 13.8 kg
Shipping (inner) case height 18.3 cm
Shipping (inner) case length 89.4 cm
Shipping (inner) case width 55.9 cm
Products per pallet (EU) 5 pc(s)
