Multibrackets M VESA Deskmount Officeline Dual Vertical Black
Couldn't load pickup availability
- A high level designed productline for office use
- Made for the semi professional user
- Creates maximum ergonomic comfort for displays up to 30"
- Simplified installation and simple after adjustment possibilities
- Plexi based cable management (included)
- Optional through hole installation with Grommet Base
- M VESA Deskmount Officeline Grommet Base Black - Art: 5884
M VESA Deskmount Officeline Dual Vertical Black frees up space and allows positioning of your display for greater productivity. Flexible, sleek and streamlined, the Dual Vertical version you can position two screens ontop of each other. Create a monitorwall on your desk.
Reposition your LCD´s with ease and align them with the ones positioned next to each other. Tilt, upwards tilt, left or right is now just a matter of your choice.
Finally comfort and ergonomics is really possible to achieve while building a multiple screen solution on a desk. With the M VESA Deskmount Officeline Dual Vertical Black you can easily manage each screens specific position.

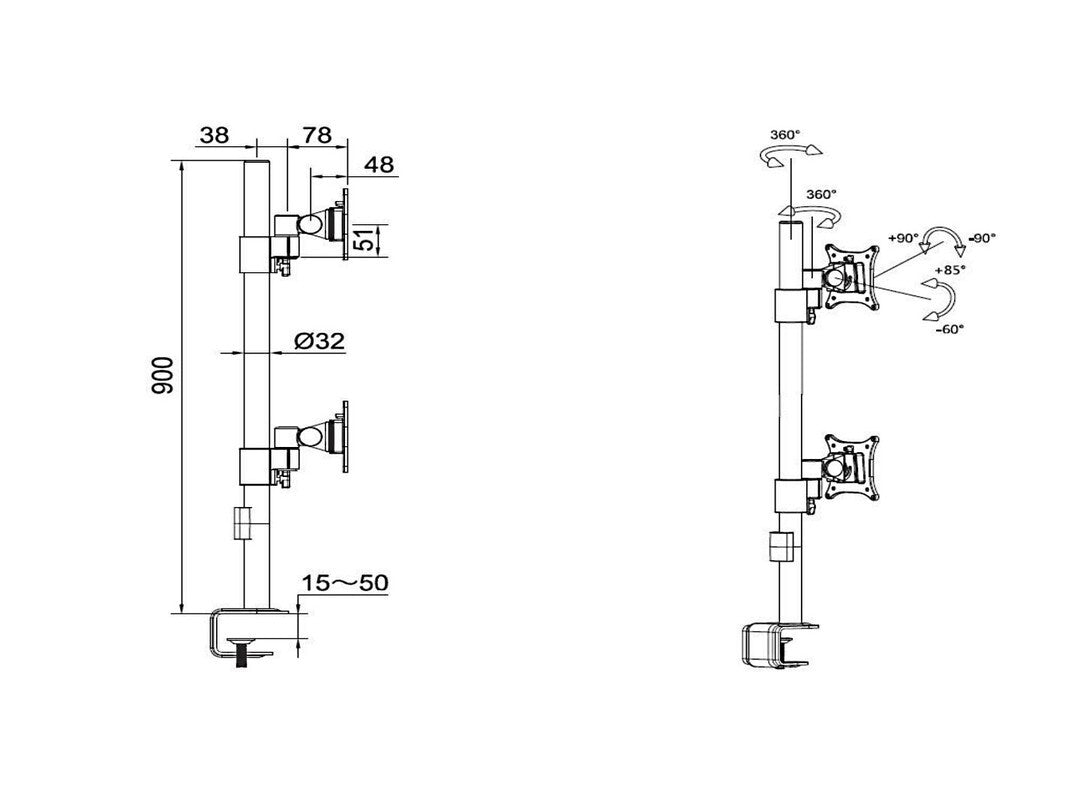

The M VESA Deskmount Officeline Dual Vertical Black works with almost all LCD screens on the market supporting VESA standards of 75/100mm holding screens weight up to 8 kg each, height of pillar is 710mm allowing two screens up to aprox combined 930mm height.
| Mounting | |
|---|---|
| Desk thickness (max) | 5 cm |
| Desk thickness (min) | 1.5 cm |
| Number of displays supported | 2 |
| Panel mounting interface | 75 x 75,100 x 100 mm |
| Maximum VESA mount | 100 x 100 mm |
| Minimum VESA mount | 75 x 75 mm |
| Mounting | Clamp/Bolt-through |
| Mounting type | Desk |
| Maximum screen size | 76.2 cm (30") |
| Minimum screen size | 38.1 cm (15") |
| Maximum weight capacity | 16 kg |
| Ergonomics | |
|---|---|
| Cable management | Yes |
| Pivot angle | -90 - 90° |
| Swivel angle | 360° |
| Tilt angle range | 85 - -60° |
| Height adjustment range | 0 - 910 mm |
| Height adjustment type | Manual |
| Height adjustment | Yes |
| Design | |
|---|---|
| Easy to install | Yes |
| Housing material | Steel |
| Product colour | Black |
| Weight & dimensions | |
|---|---|
| Weight | 2.4 kg |
| Height | 910 mm |
| Depth | 116 mm |
| Width | 32 mm |
| Packaging data | |
|---|---|
| Package type | Box |
| Package weight | 3.7 kg |
| Package height | 155 mm |
| Package depth | 850 mm |
| Package width | 200 mm |
| Logistics data | |
|---|---|
| Products per shipping (inner) case | 1 pc(s) |
| Shipping (inner) case gross weight | 4 kg |
| Shipping (inner) case height | 15.5 cm |
| Shipping (inner) case length | 105 cm |
| Shipping (inner) case width | 20 cm |
