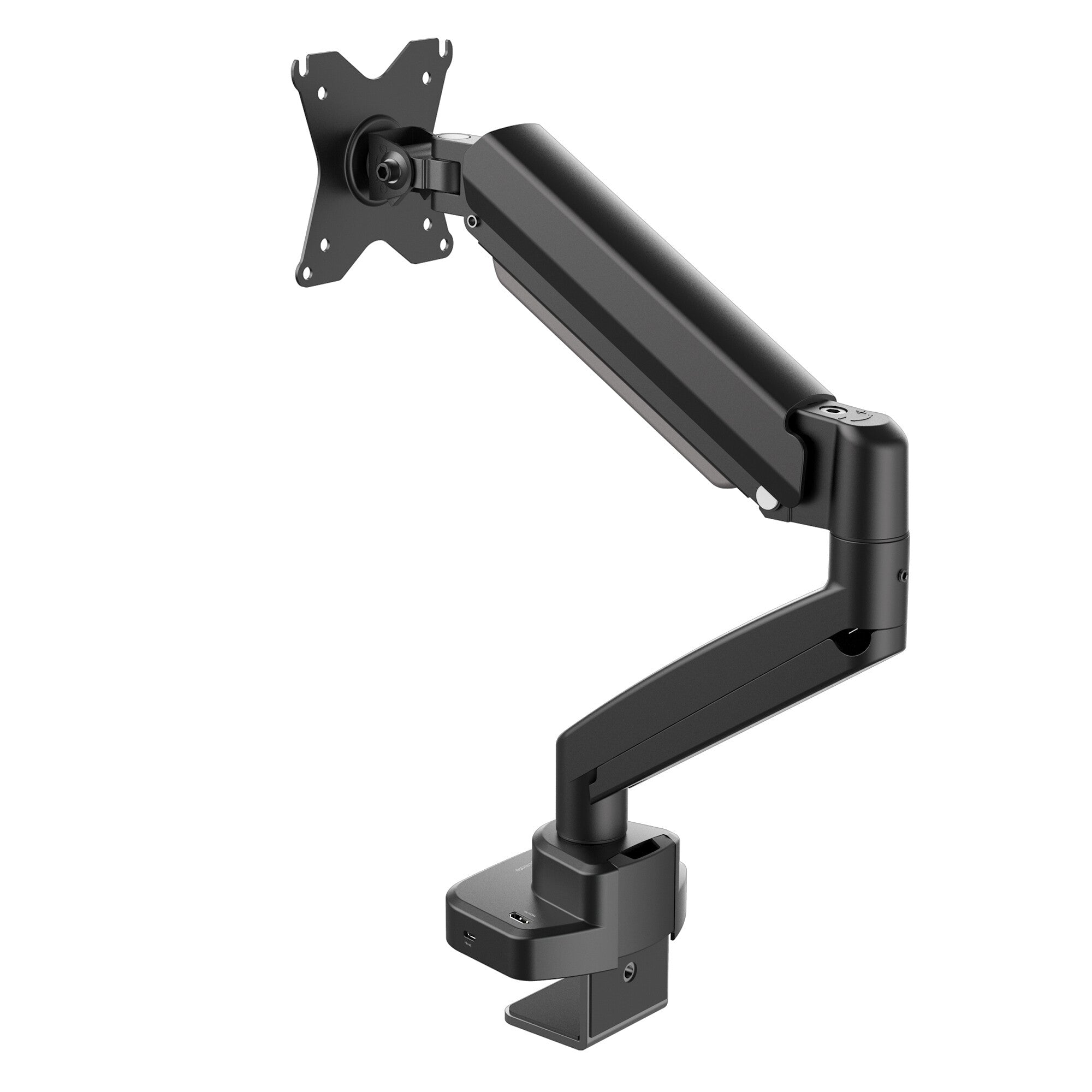

j5create JTSA301 Ergonomic Monitor Mount with Dock, Black
iFrame
£116.99
Couldn't load pickup availability

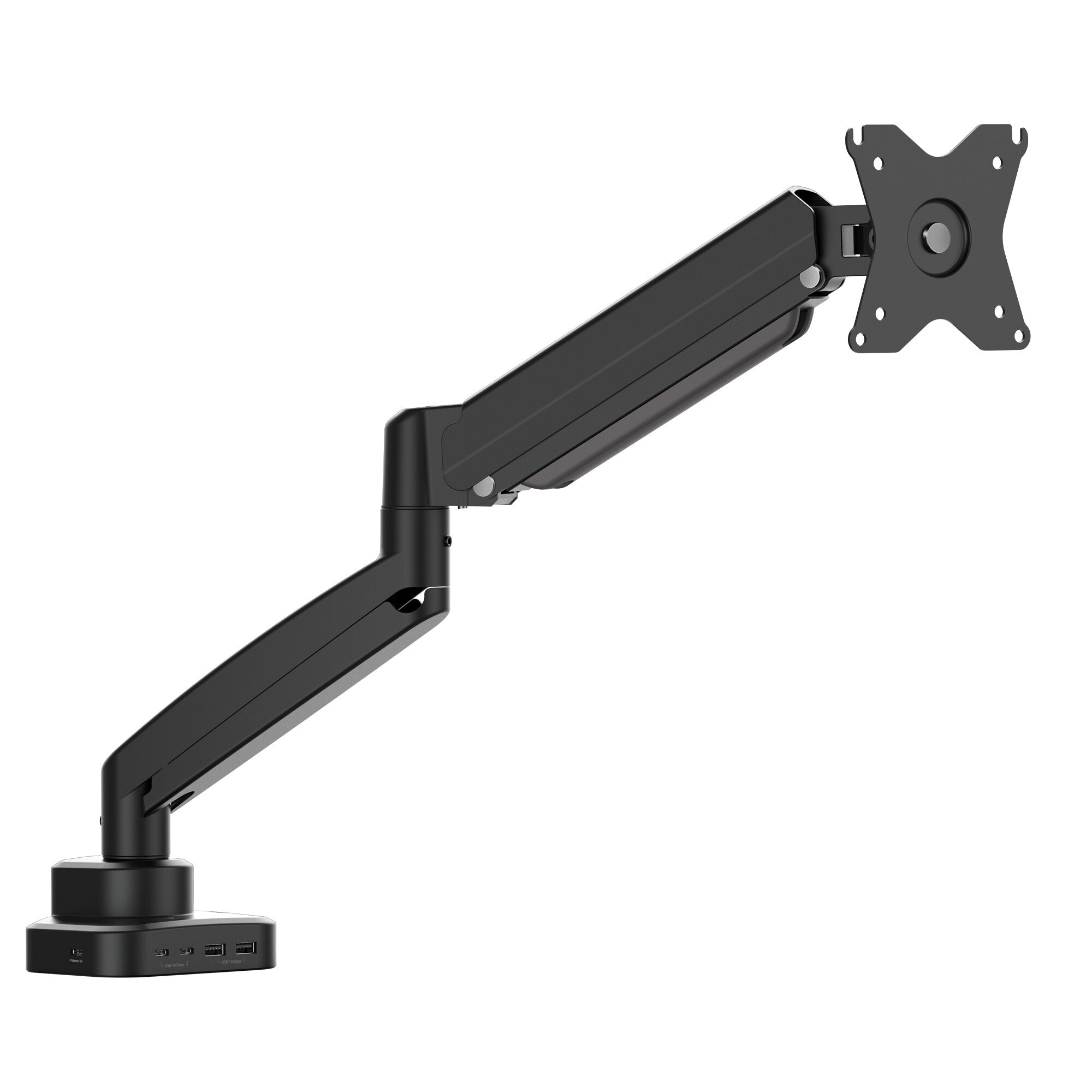

- Fully adjustable gas spring monitor mount with multi-function dock

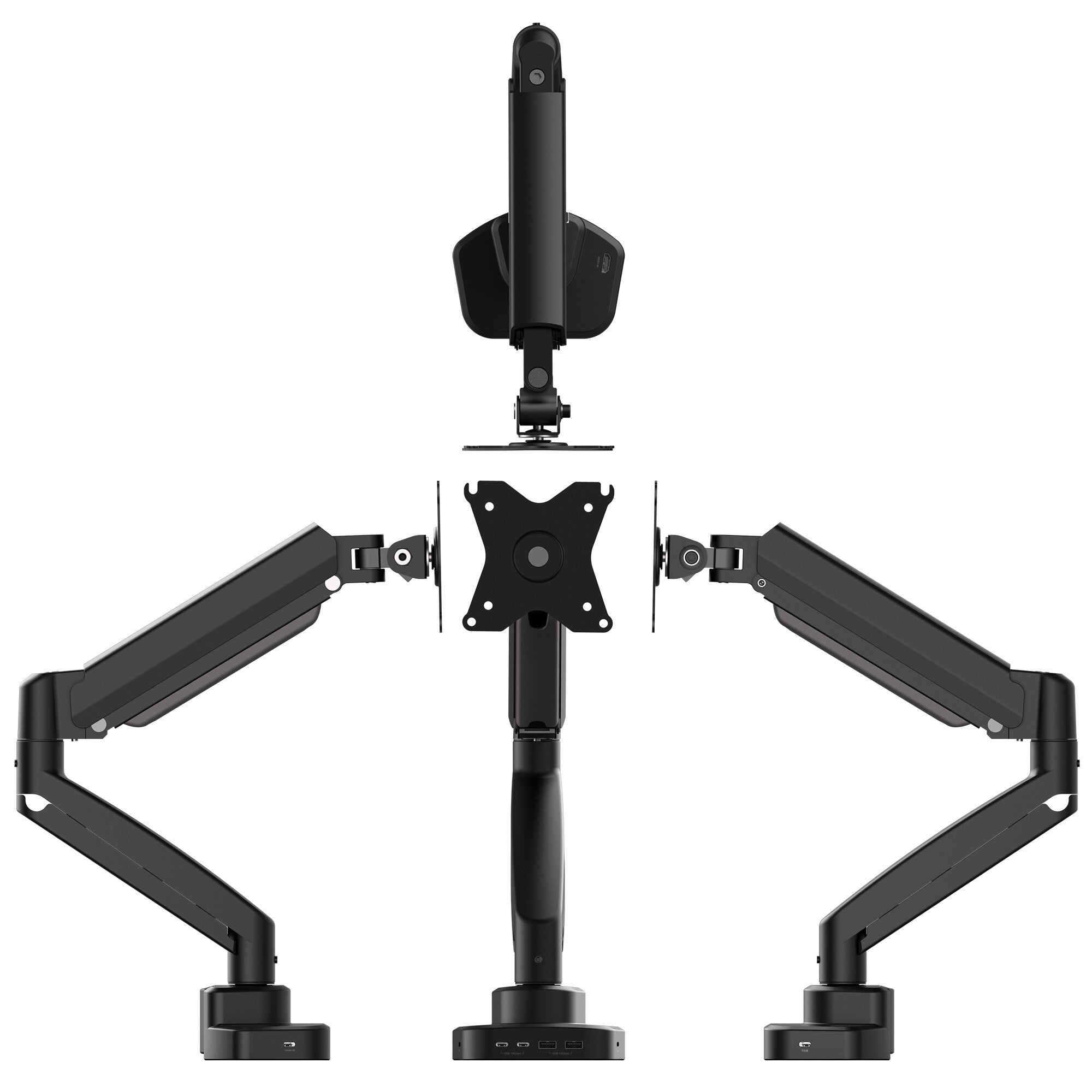

- Easily adjusts monitor to any height and allows the screen to swivel 180°, tilt -45° to +90° and rotate 360° Conveniently set your monitor at an optimal angle

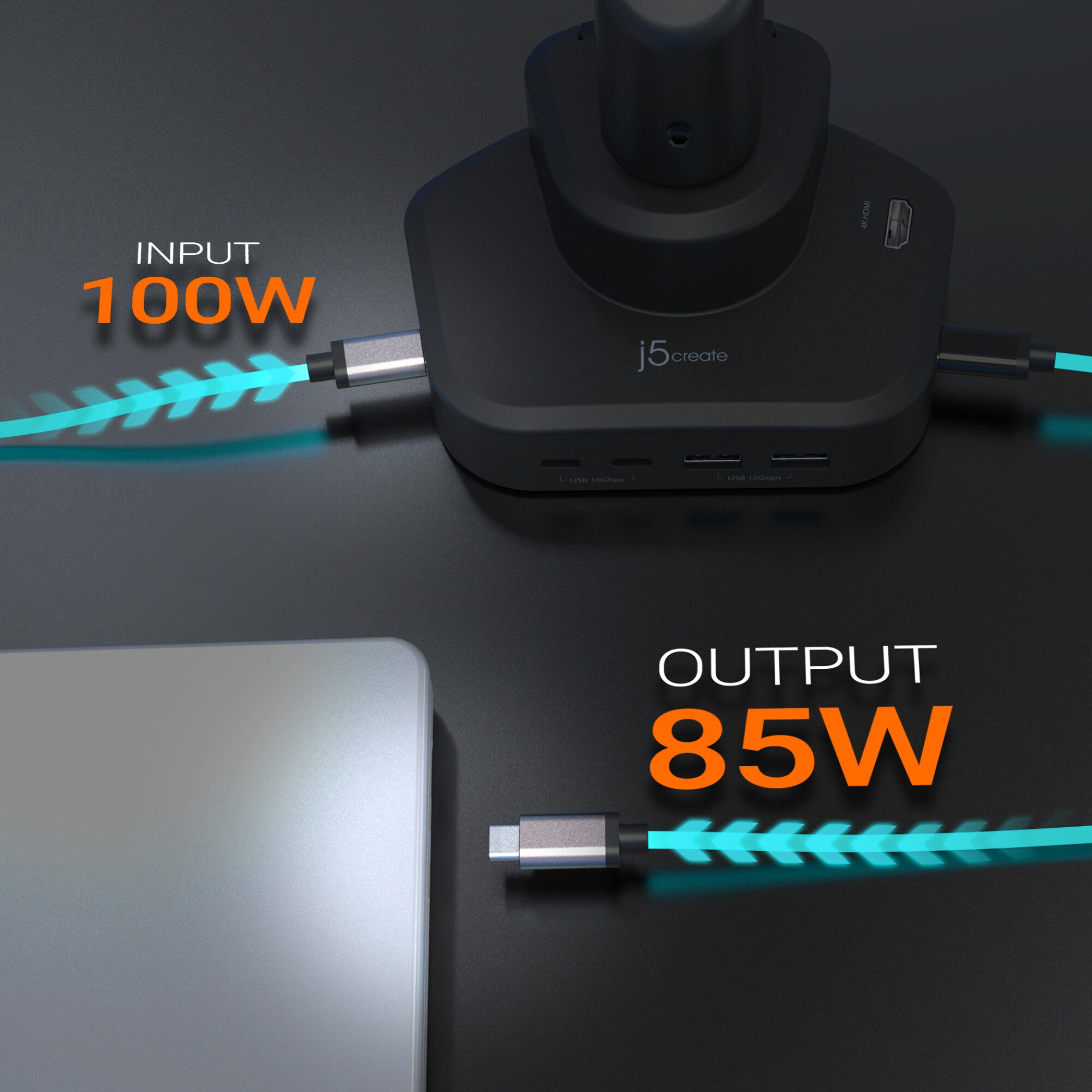

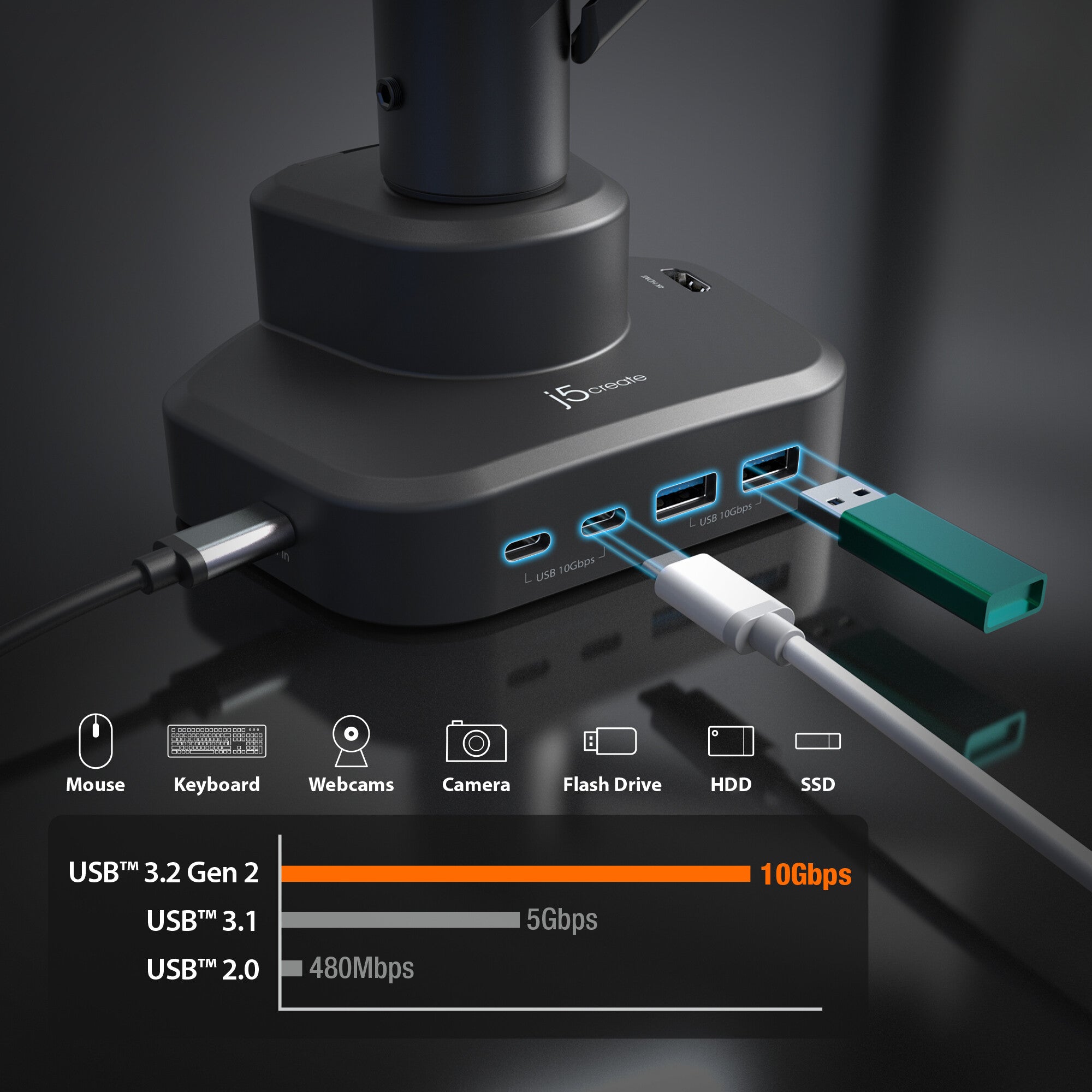

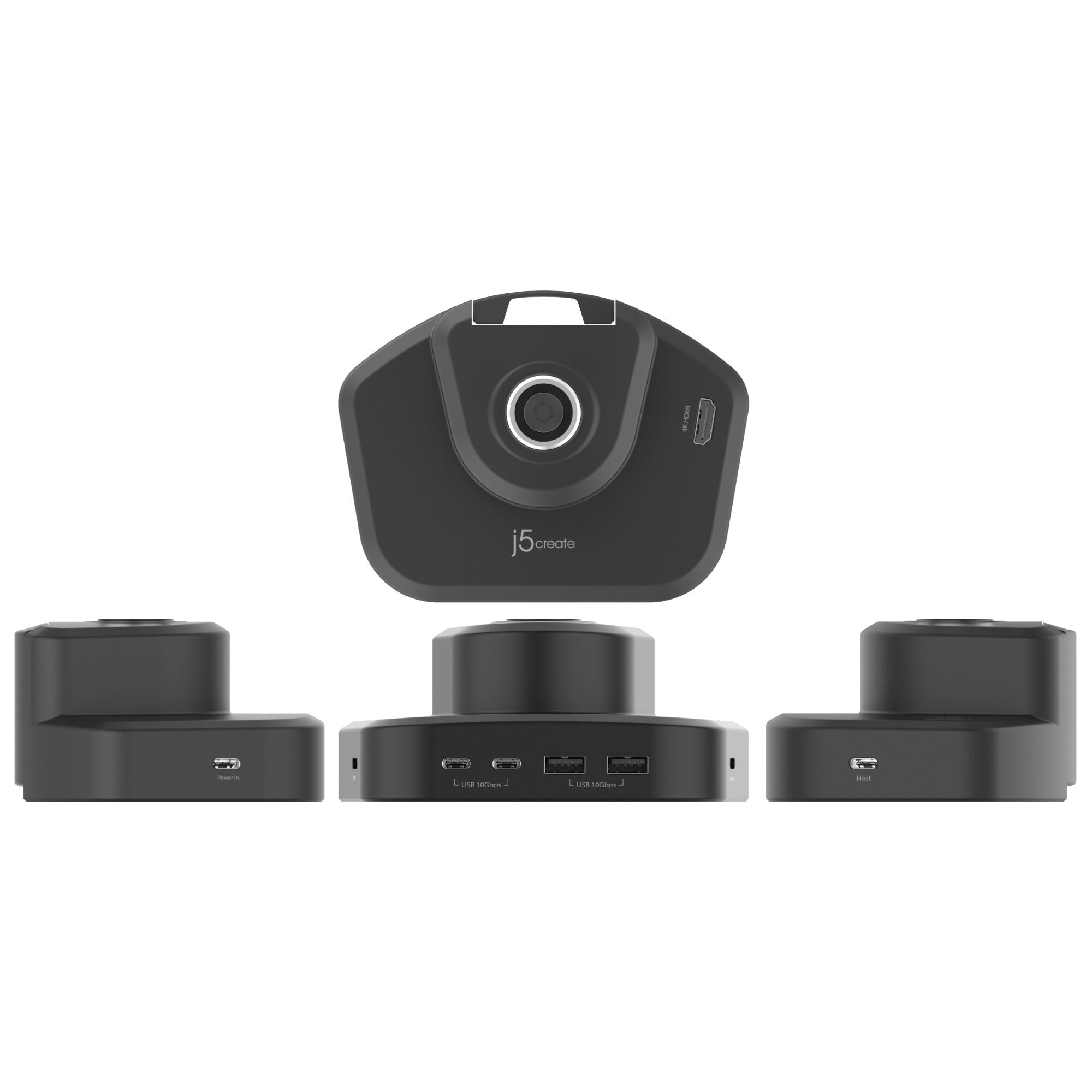

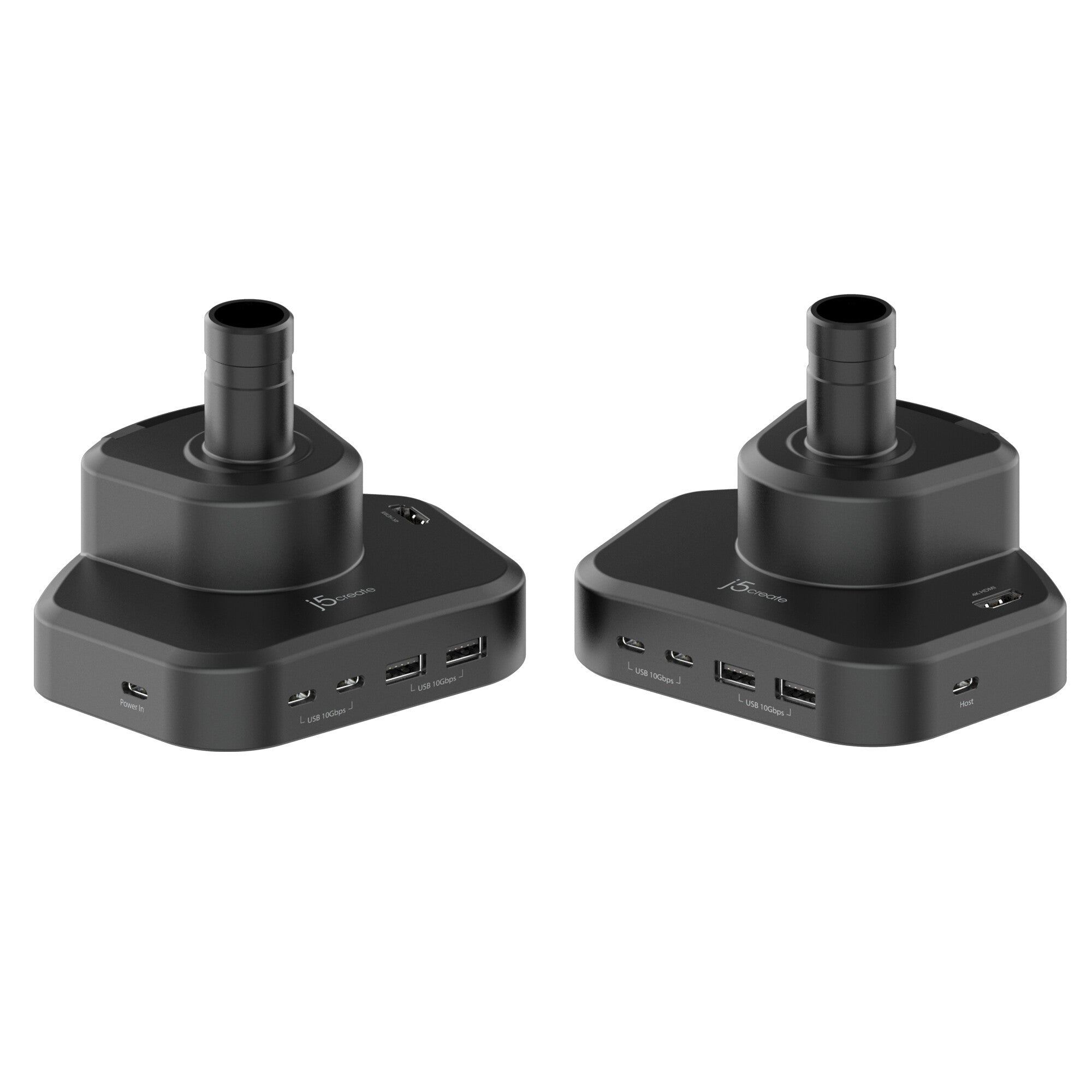

- Equipped a 6-in-1 dock with 4K60Hz HDMI™, 2 x USB™ Type-A 10Gbps, 2 x USB-C® 10Gbps, and up to 100W PD pass through charging
The JTSA301 is a gas spring monitor mount. Equipped a 6-in-1 dock with 4K60Hz HDMI™, 2 x USB™ Type-A 10Gbps, 2 x USB-C® 10Gbps, and up to 100W PD pass through charging. The arm can hold max a 32” screen weighting up to 8kg/17.6 lbps. Easily adjust your screen to any height. The gas spring allows the screen to swivel 180°, tilt -45° to +90°and rotate 360°. Conveniently set your monitor at an optimal angle. This monitor mount gives you the ability to create a more efficient workspace, whether you need extra space or a standing desk setup.
| Mounting | |
|---|---|
| Grommet mount desk thickness (max) | 5 cm |
| Clamp mount desk thickness (max) | 5 cm |
| Desk thickness (min) | 1 cm |
| Number of displays supported | 1 |
| Maximum VESA mount | 100 x 100 mm |
| Minimum VESA mount | 75 x 75 mm |

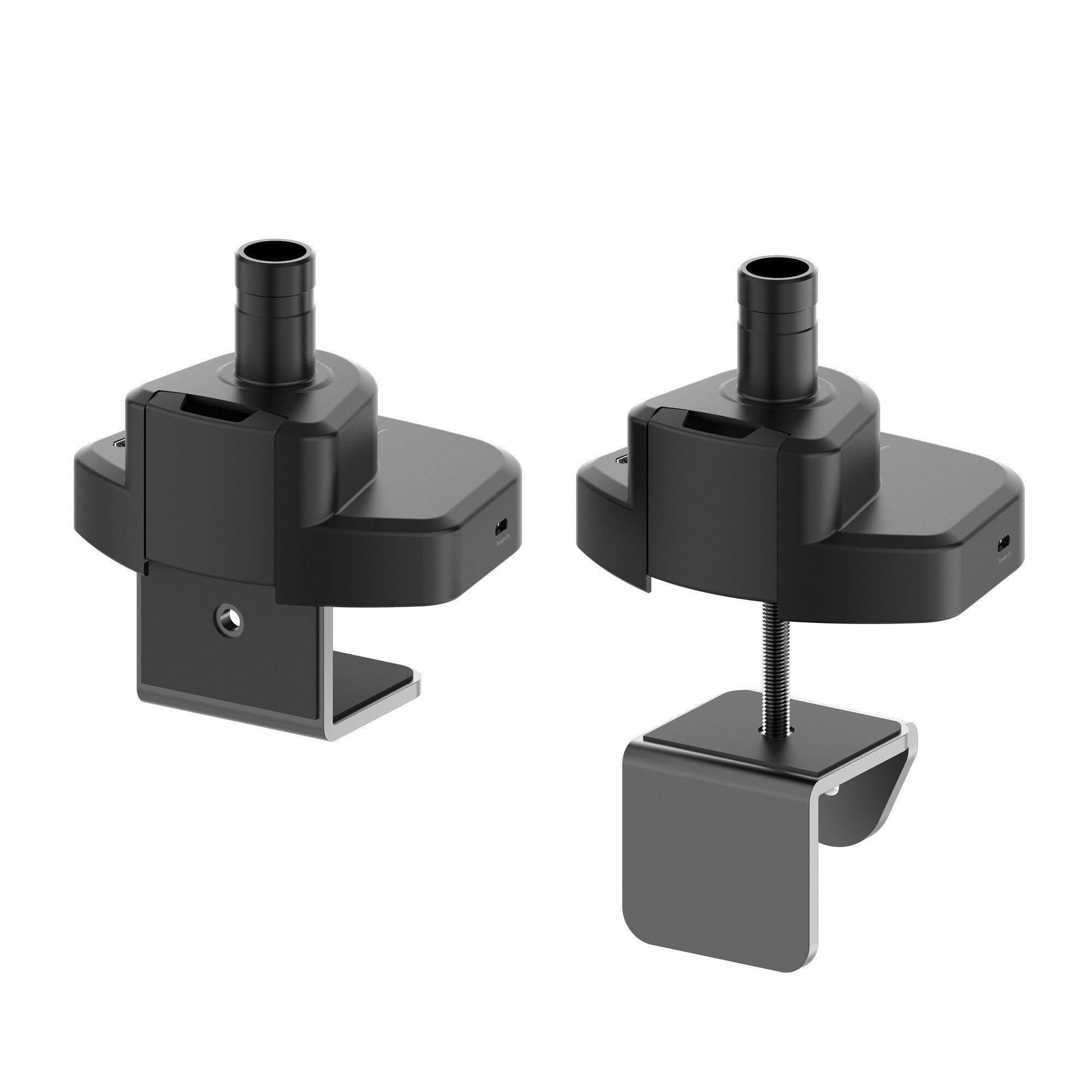

| Mounting | Clamp/Grommet |
| Mounting type | Desk |
| Maximum screen size | 81.3 cm (32") |
| Minimum screen size | 43.2 cm (17") |
| Maximum weight capacity | 8 kg |
| Ergonomics | |
|---|---|
| Cable management | Yes |
| Angle of rotation | 360° |
| Rotating | Yes |
| Swivel angle | 180° |
| Swivelling | Yes |
| Tilt angle range | -45 - 90° |
| Tilt adjustment | Yes |
| Adjustable depth | Yes |
| Height adjustment | Yes |
| Design | |
|---|---|
| Easy to install | Yes |
| Orientation | Landscape/Portrait |
| Housing material | Aluminium, Plastic, Steel |
| Product colour | Black |
| Ports & interfaces | |
|---|---|
| HDMI ports quantity | 1 |
| Data transfer rate | 10 Gbit/s |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity | 2 |
| USB hub version | 3.2 Gen 2 (3.1 Gen 2) |
| Built-in USB hub | Yes |
| Power | |
|---|---|
| Input voltage | 20 V |
| Weight & dimensions | |
|---|---|
| Weight | 2.11 kg |
| Height | 465 mm |
| Depth | 320 mm |
| Width | 130 mm |
| Packaging data | |
|---|---|
| Package type | Box |
| Package weight | 2.74 kg |
| Package height | 106 mm |
| Package depth | 465 mm |
| Package width | 208 mm |
| Quantity per pack | 1 pc(s) |
| Packaging content | |
|---|---|
| Packaging content | 1- JTSA301 Ergonomic Monitor Mount with Dock1 - USB-C® 10Gbps male to male host cable (100 cm / 3.3 ft)1- Installation tools & accessories1 - Quick Installation Guide (QIG) |
| Operational conditions | |
|---|---|
| Operating temperature (T-T) | 0 - 30 °C |
| Storage temperature (T-T) | -10 - 65 °C |
| Operating relative humidity (H-H) | 0 - 85% |
| Maximum operating temperature | 30 °C |
| Storage relative humidity (H-H) | 0 - 85% |
| Sustainability | |
|---|---|
| Sustainability compliance | Yes |
| Other features | |
|---|---|
| Warranty period | 2 year(s) |
| Compliance certificates | CE, REACH, RoHS |
| Technical details | |
|---|---|
| Display resolution | 3840 x 2160 pixels |
| Compatible operating systems | Windows®macOS® |
| Logistics data | |
|---|---|
| Country of origin | China |
| Master (outer) case net weight | 5.9 kg |
| Export Control Classification Number (ECCN) | EAR99 |
| Master (outer) case GTIN (EAN/UPC) | 24712795088285 |
| Products per master (outer) case | 2 pc(s) |
| Master (outer) case height | 240 mm |
| Master (outer) case length | 486 mm |
| Master (outer) case width | 233 mm |
