Ergotron HX Series HX ARM WITH VERY HEAVY DUTY PIVOT DESK 144.8 cm (57") Black
iFrame
£313.99
Couldn't load pickup availability
- Protect your investment
- Combines a strong monitor arm and very heavy-duty pivot for secure support
- Immersive viewing
- Tilts +20/-5° to work or play comfortably
- G9 compatible
- Designed for 57″ 1000R curved monitors like the Samsung 57″ Odyssey G9
- Neat look
- Cables stay hidden under the arm and through the extension
- Reclaim space
- Replaces bulky monitor bases and lifts screens above the desktop
- Simple adjustment
- Enables precise screen positioning with Constant Force™ Technology
Enable immersive viewing experiences and take back your desk space. Our best-selling HX Monitor Arm is now available with a very heavy-duty tilt pivot, giving gamers and office professionals the freedom to move and position ultra-wide curved displays 9.1"–13.8” (23–35 cm) deep and 28.7–37.5 lbs (13–17 kg), like the Samsung® 57″ Odyssey G9 Gaming Monitor.
note: Other variations of the Samsung G9 are compatible with the standard HX Arm or the HX Arm with HD Pivot. Check your display’s weight and depth to ascertain which mount is appropriate.
| Mounting | |
|---|---|
| Desk thickness (max) | 6.6 cm |
| Desk thickness (min) | 1 cm |

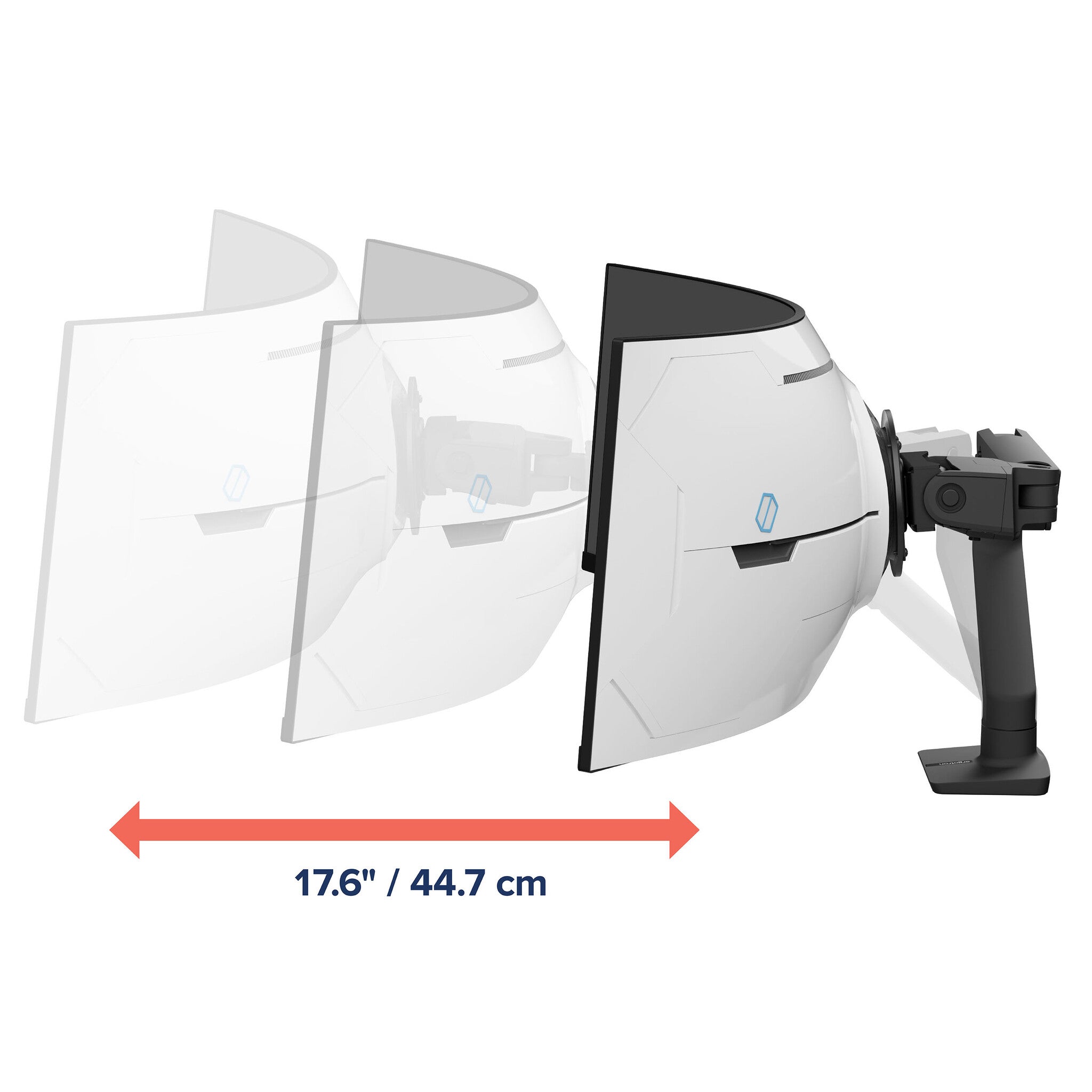

| Extension arm (max) | 44.7 cm |
| Number of displays supported | 1 |
| Panel mounting interface | 75 x 75,100 x 100 mm |
| Maximum VESA mount | 100 x 100 mm |
| Minimum VESA mount | 75 x 75 mm |
| Suitable for TV | Yes |
| Mounting | Clamp |
| Maximum weight capacity (per curved/ultra-wide display) | 17 kg |
| Maximum weight capacity (per display) | 17 kg |
| Mounting type | Desk |
| Maximum screen size | 144.8 cm (57") |
| Maximum weight capacity | 17 kg |
| Ergonomics | |
|---|---|
| Cable management | Yes |
| Number of arms | 1 |
| Pan range | 0 - 180° |
| Angle of rotation | 20° |
| Rotating | Yes |
| Swivelling | Yes |
| Tilt angle range | 5 - 20° |
| Tilt adjustment | Yes |
| Adjustable depth | Yes |

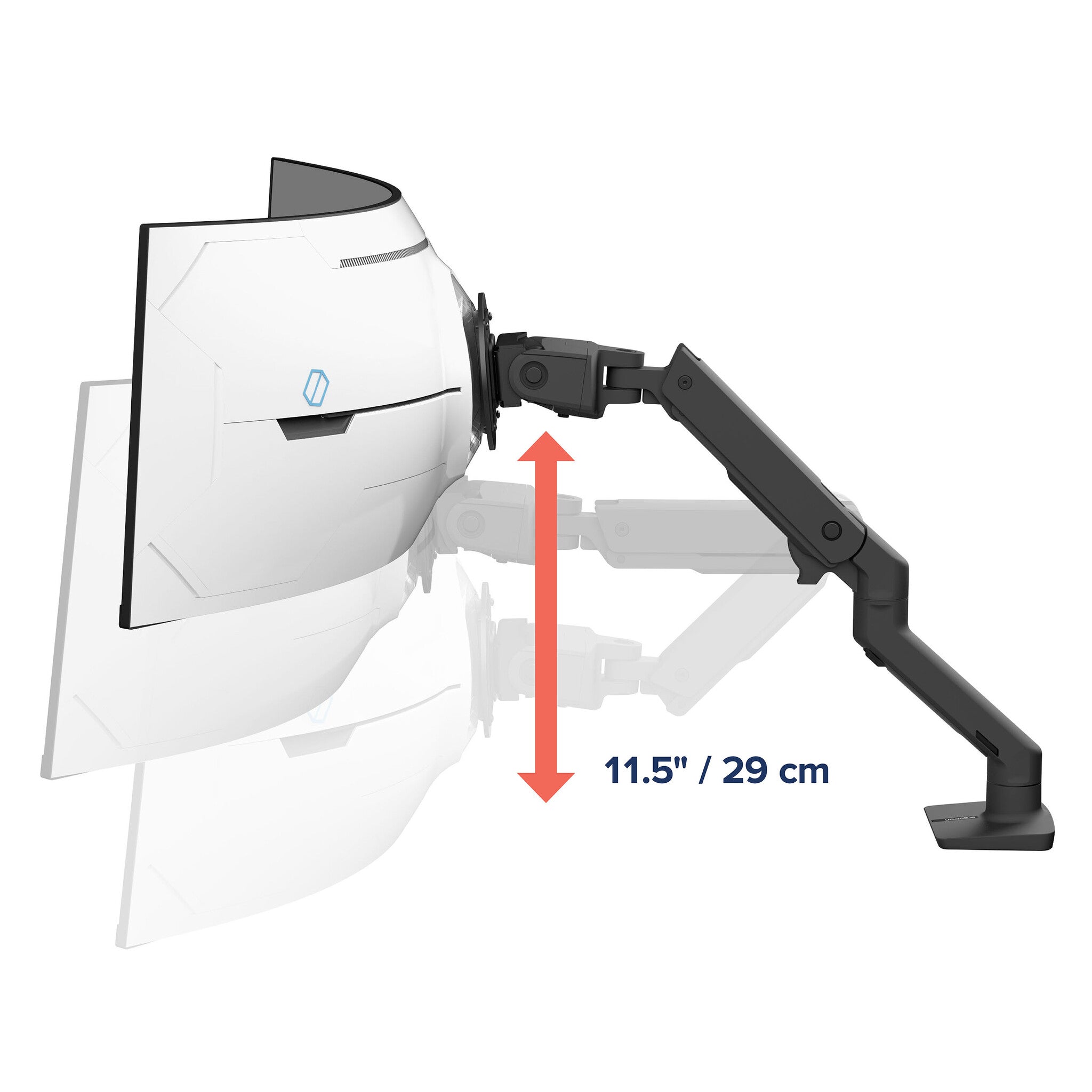

| Height adjustment range | 0 - 292 mm |
| Height adjustment | Yes |
| Design | |
|---|---|
| Easy to install | Yes |
| Orientation | Landscape |
| Product colour | Black |
| Packaging content | |
|---|---|

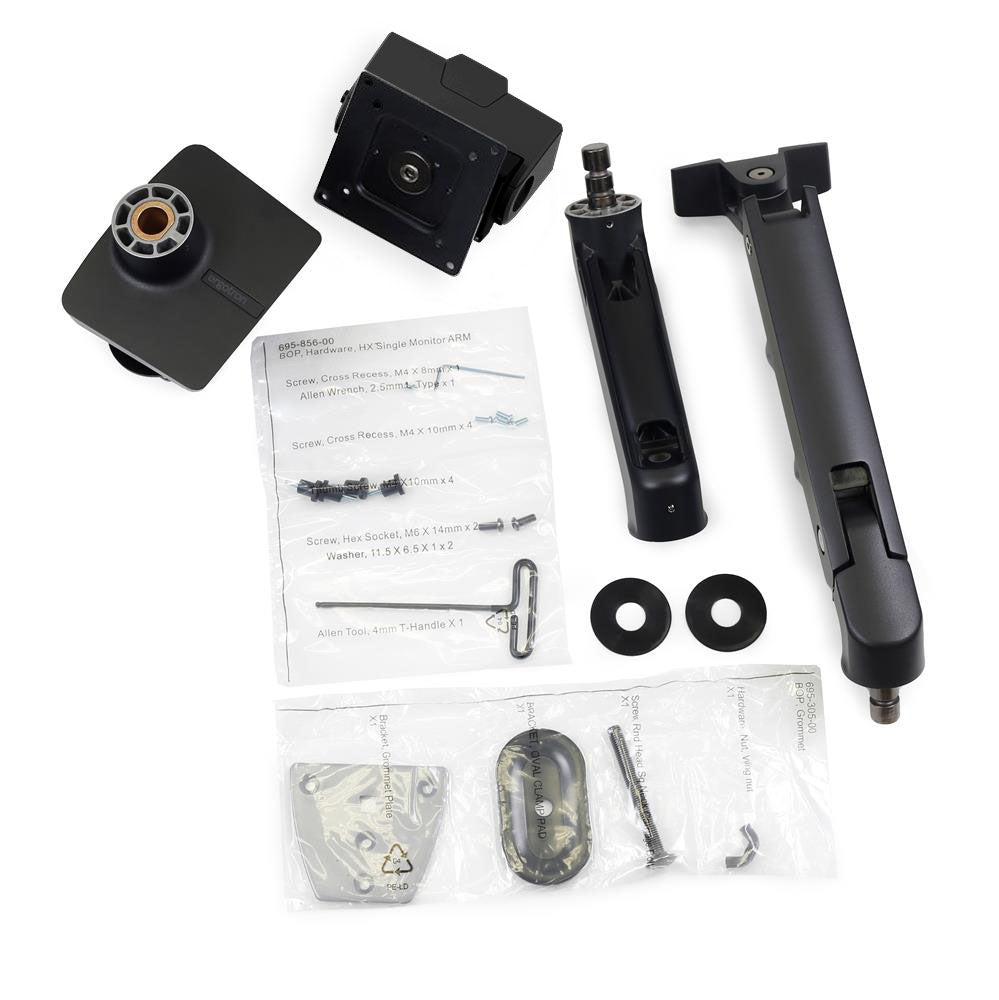

| Packaging content | HX Arm, Very Heavy-Duty Tilt Pivot, extension, desk clamp, grommet mount, mounting hardware |
| Manual | Yes |
| Mounting kit | Yes |
| VESA mount included | Yes |
| Clamp included | Yes |
| General | |
|---|---|
| Product family | HX Series |
| Other features | |
|---|---|
| Warranty period | 10 year(s) |
| Logistics data | |
|---|---|
| Country of origin | China |
