AOC AD110D0 monitor mount / stand 81.3 cm (32") Desk Black
£72.99
Couldn't load pickup availability
- Maximum weight capacity: 9 kg
- Minimum screen size: 33 cm (13") Maximum screen size: 81.3 cm (32")
- Number of displays supported: 2
- Clamp/Bolt-through Mounting type: Desk
- Maximum VESA mount: 100 x 100 mm
- Gas spring Height adjustment Tilt adjustment
- Cable management
- Aluminium Black

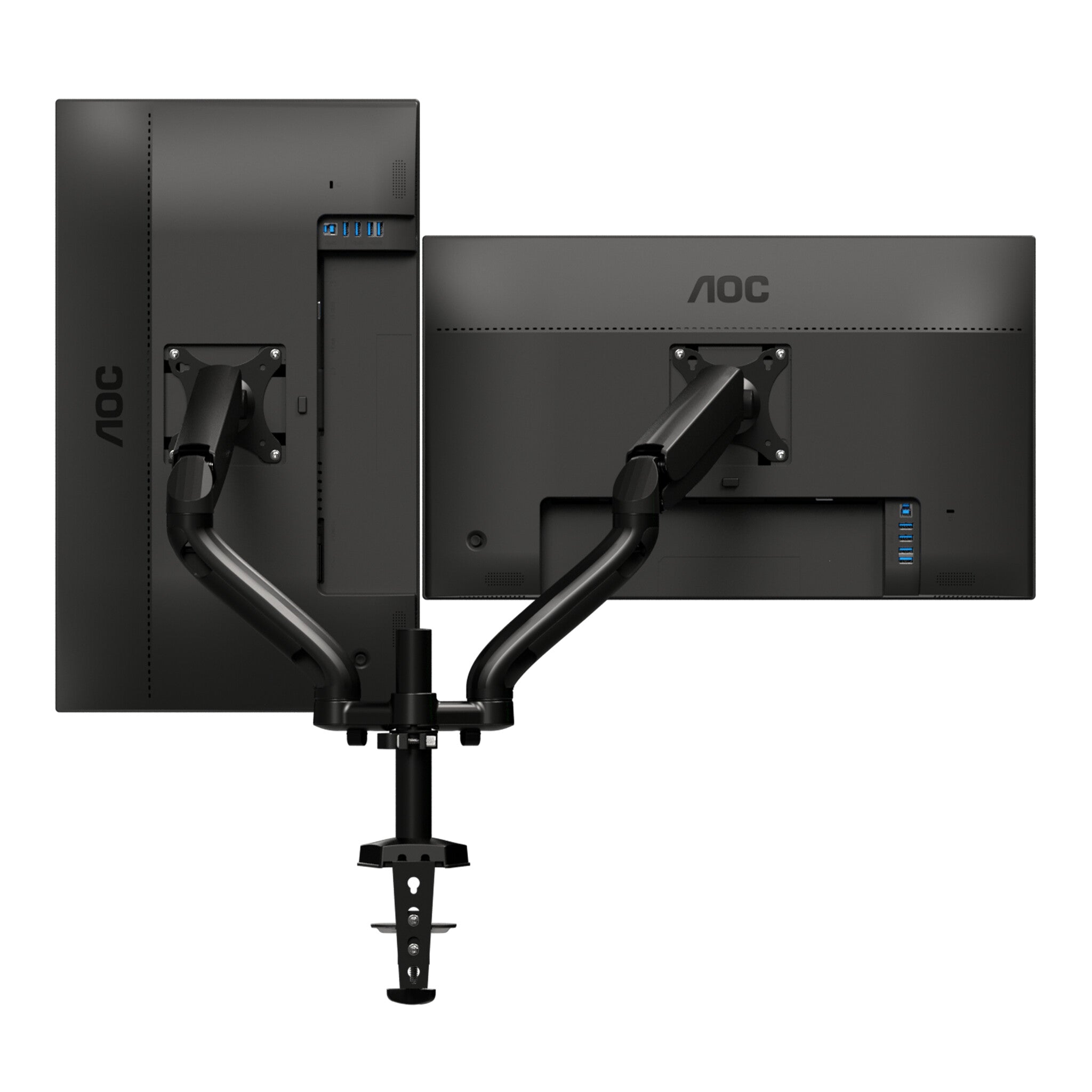

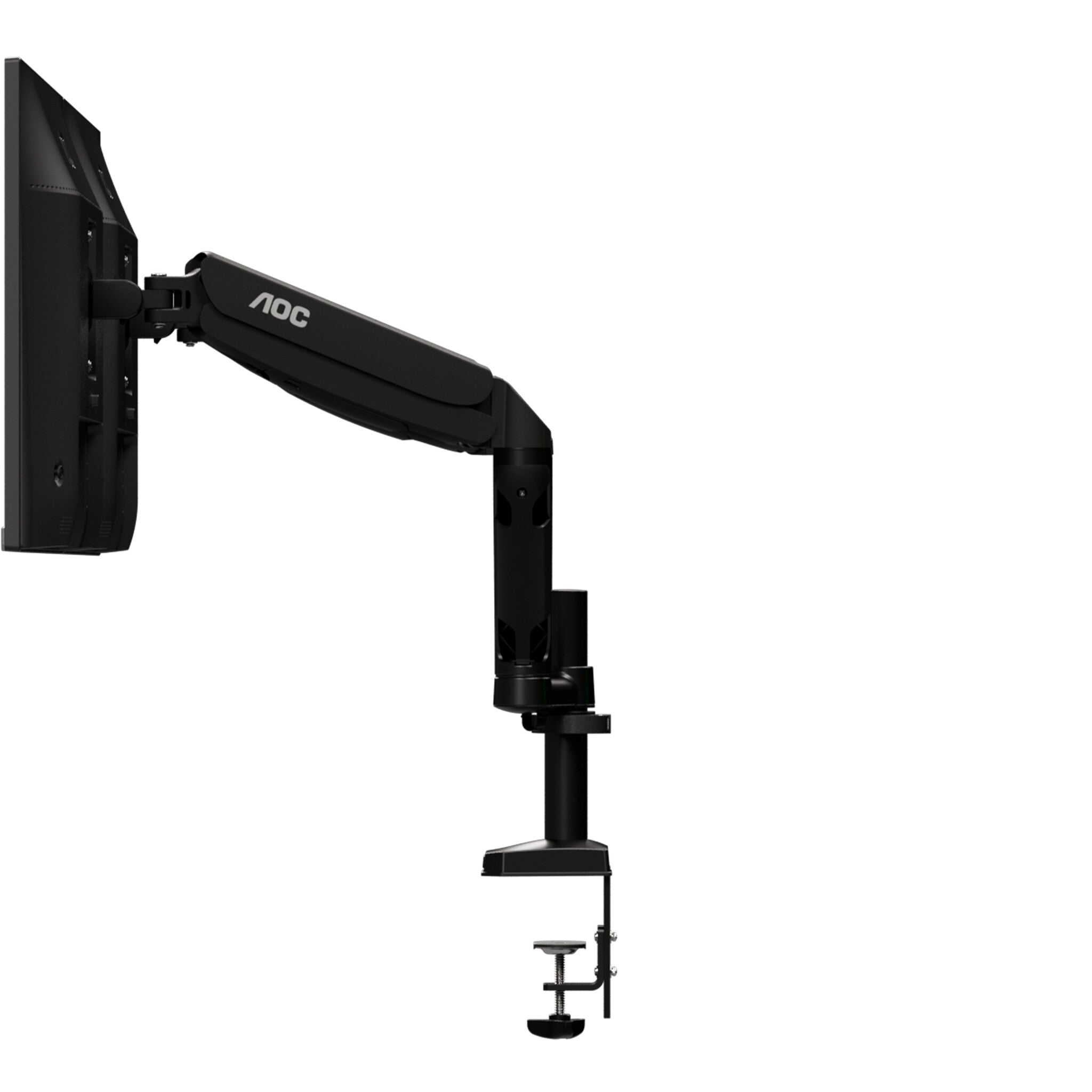

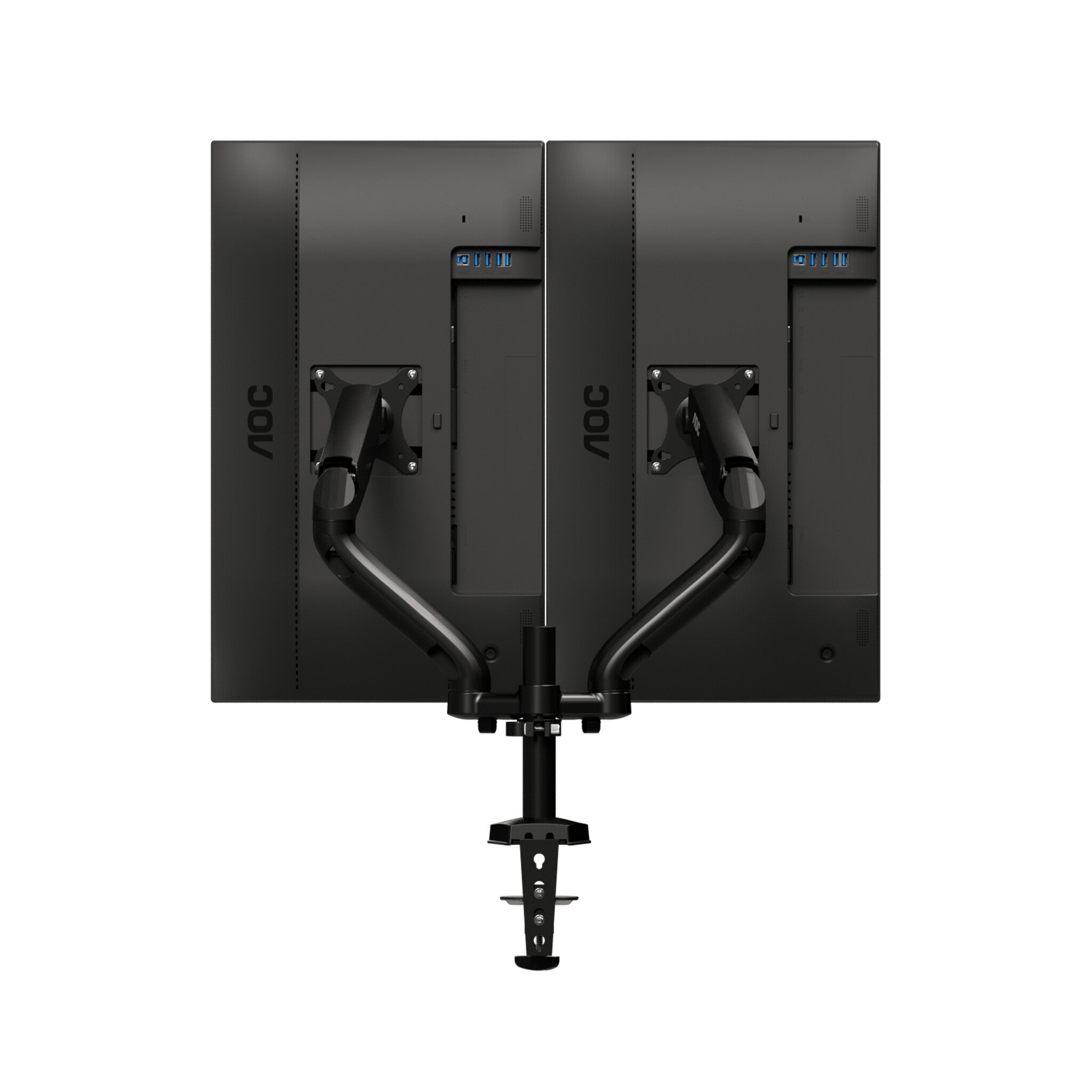

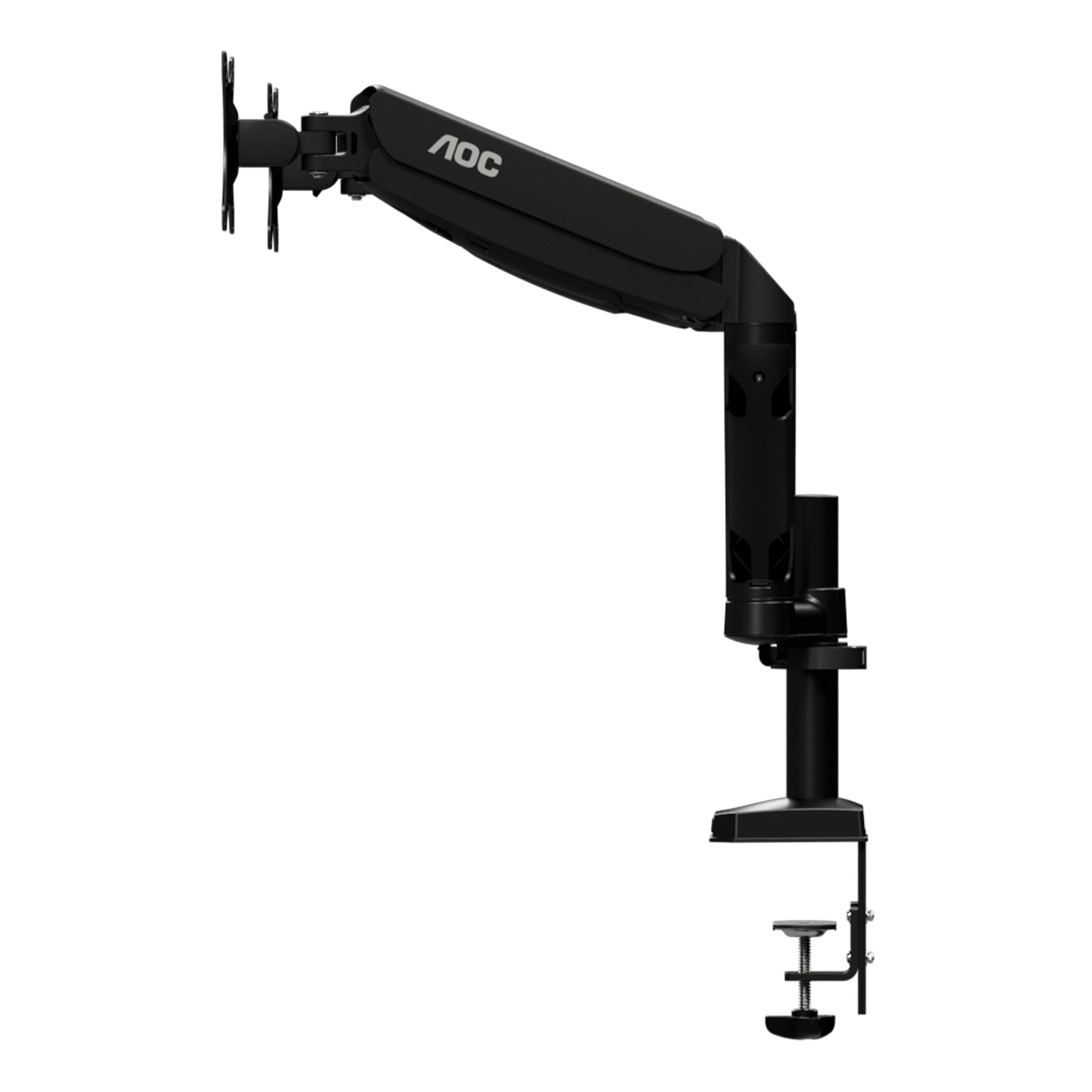

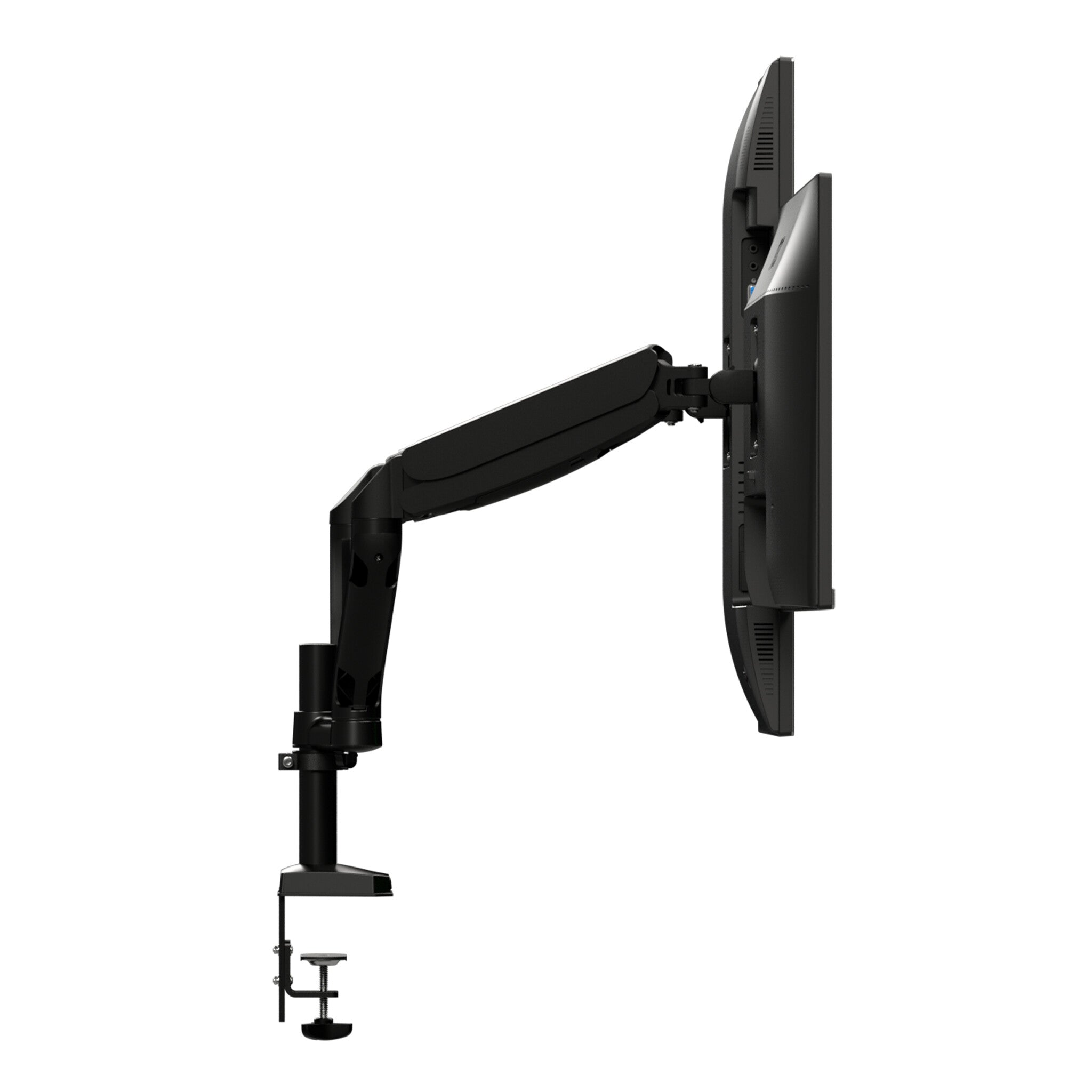

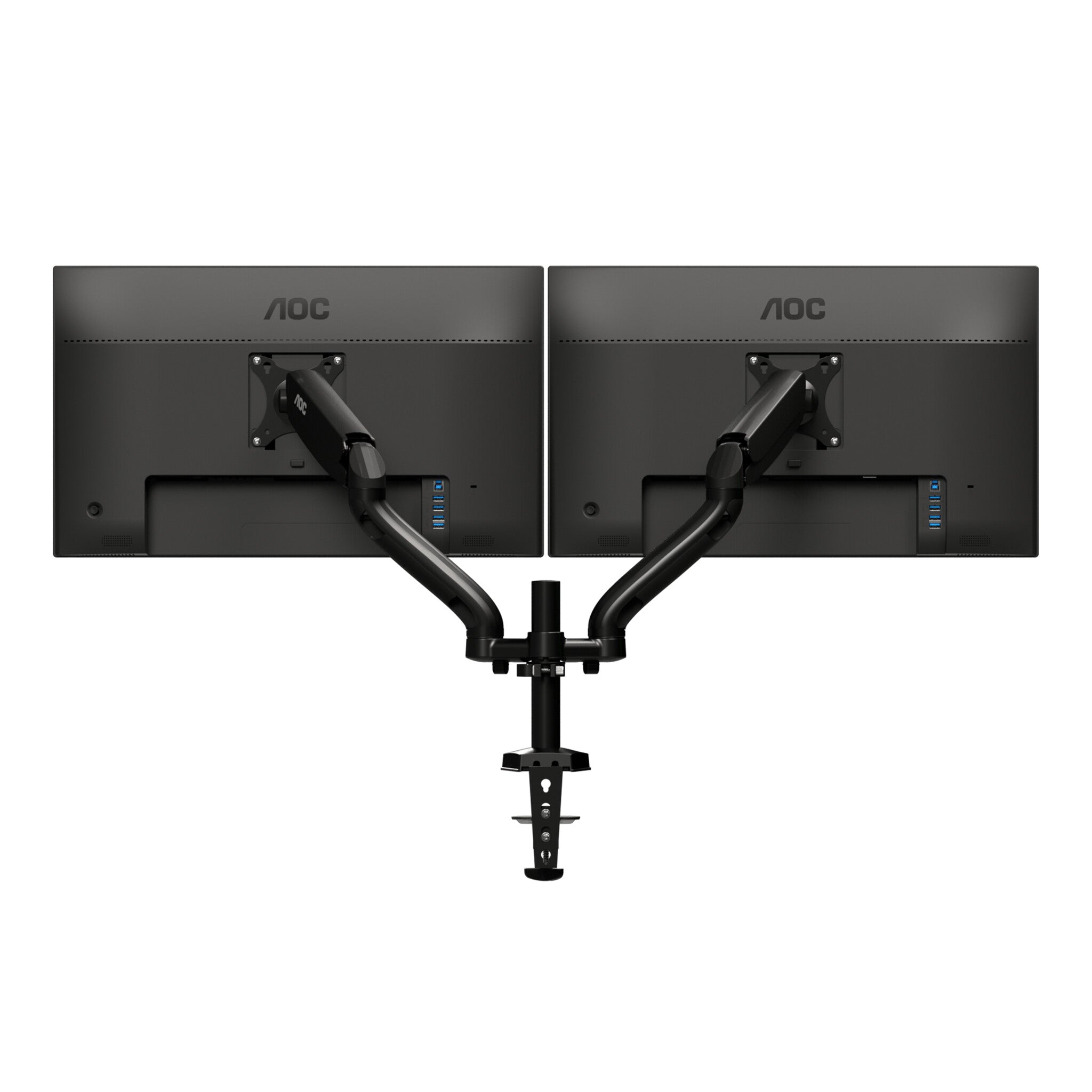

Dual monitor arm for up to 32“ displays
The gas-spring loaded, sleek AD100 dual monitor arm can be clamped to desks, holds two displays up to 32“ size. 360° pivot range, wide tilt range, 320 mm height range delivers huge flexibility.
| Mounting | |
|---|---|
| Mounting hole range | 7 - 87 mm |
| Grommet mount desk thickness (max) | 8 cm |
| Clamp mount desk thickness (max) | 8 cm |
| Desk thickness (max) | 8 cm |
| Desk thickness (min) | 1.5 cm |
| Number of displays supported | 2 |
| Panel mounting interface | 100 x 100,75 x 75 mm |
| Maximum VESA mount | 100 x 100 mm |
| Minimum VESA mount | 75 x 75 mm |
| Mounting | Clamp/Bolt-through |
| Maximum weight capacity (per display) | 9 kg |
| Mounting type | Desk |
| Maximum screen size | 81.3 cm (32") |
| Minimum screen size | 33 cm (13") |
| Maximum weight capacity | 9 kg |
| Ergonomics | |
|---|---|
| Cable management | Yes |
| Pivot angle | 0 - 360° |
| Swivel angle range | -90 - 90° |
| Swivel angle | 360° |
| Swivelling | Yes |
| Tilt angle range | -45 - 60° |
| Tilt adjustment | Yes |
| Depth adjustment range | 0 - 460 mm |
| Adjustable depth | Yes |
| Height adjustment range | 320 - 440 mm |
| Height adjustment type | Gas spring |
| Height adjustment | Yes |
| Design | |
|---|---|
| Housing material | Aluminium |
| Product colour | Black |
| Weight & dimensions | |
|---|---|
| Weight | 4.12 kg |
| Height | 24.5 mm |
| Depth | 12.5 mm |
| Width | 69 mm |
| Packaging data | |
|---|---|
| Package weight | 5.1 kg |
| Package height | 245 mm |
| Package depth | 690 mm |
| Package width | 125 mm |
| Packaging content | |
|---|---|
| Packaging content | User Manual, Monitor Arm, Clamp mount, Grommet mount, Installation materials |
| Manual | Yes |
| Mounting kit | Yes |
| Clamp included | Yes |
| Other features | |
|---|---|
| Warranty period | 5 year(s) |
| Height (max) | 58 cm |
| Technical details | |
|---|---|
| Height adjustment | 32 cm |
| Weight (with stand) | 5.7 kg |
| Adjustment type | Gas spring |
| Logistics data | |
|---|---|
| Harmonized System (HS) code | 85299097 |
