Multibrackets M Ceiling Extension Pro - OM55N-D/OM46N-D
Couldn't load pickup availability
- Works with both M Ceiling Mount Pro OM55N and OM46N
- Smart and simple installation process
- Concealed cable management included

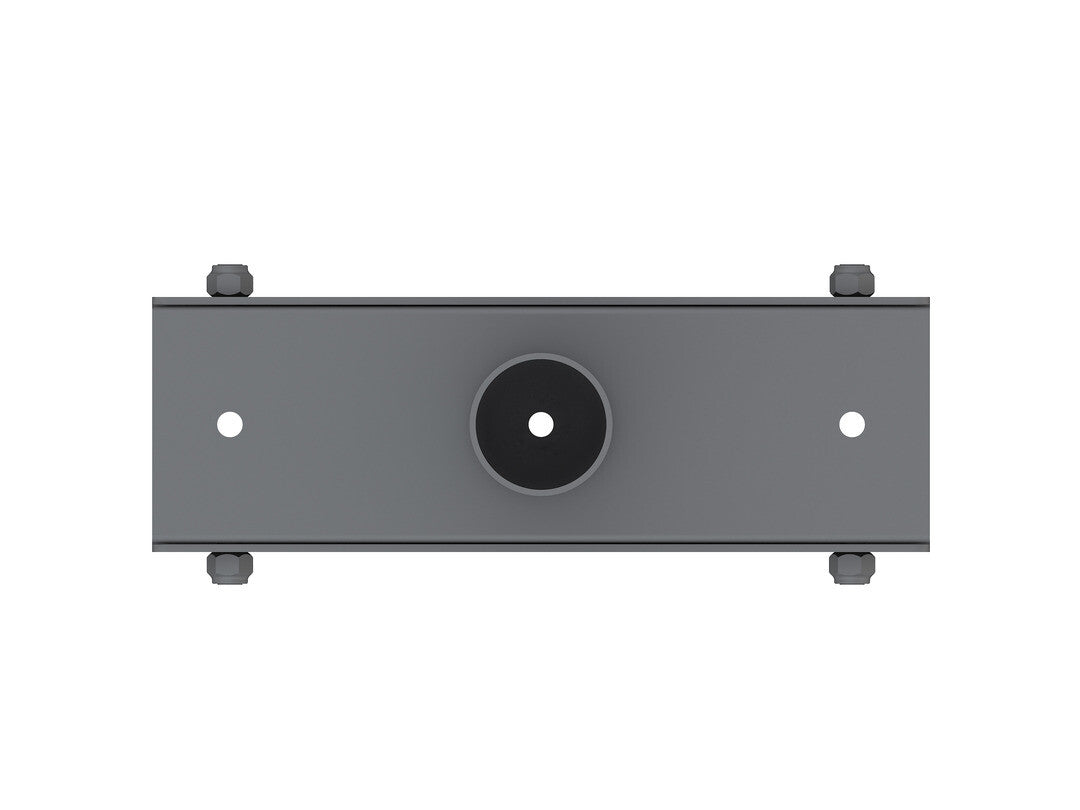

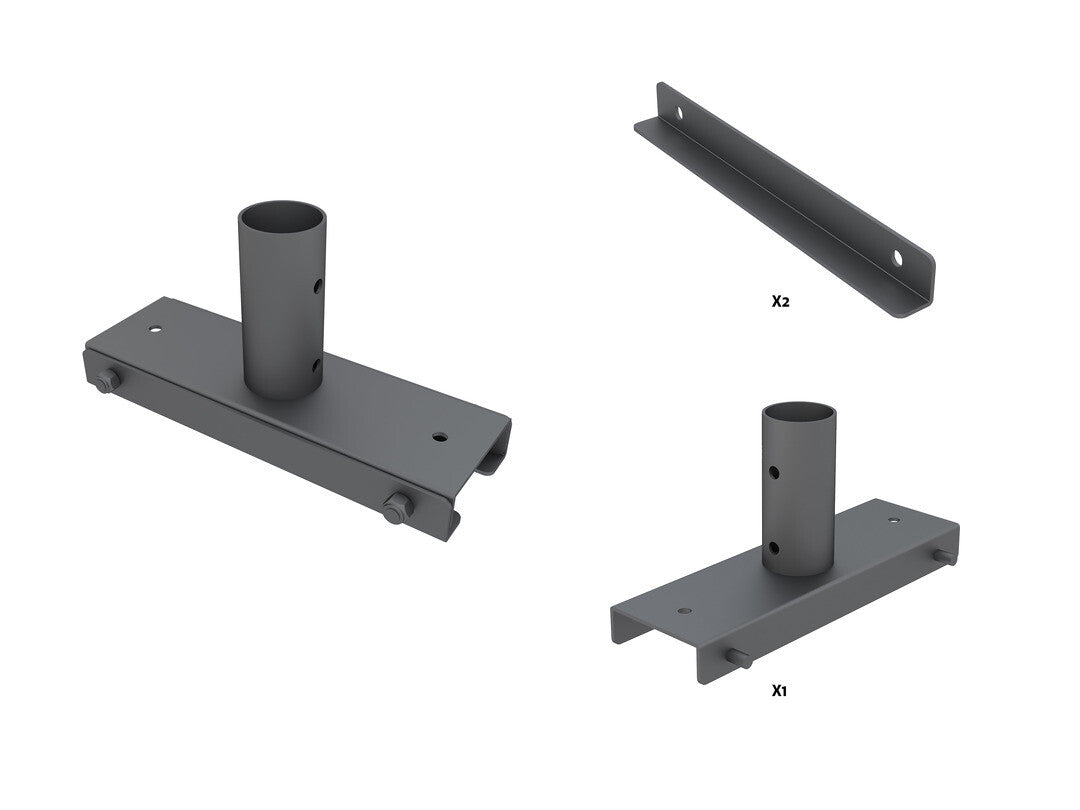

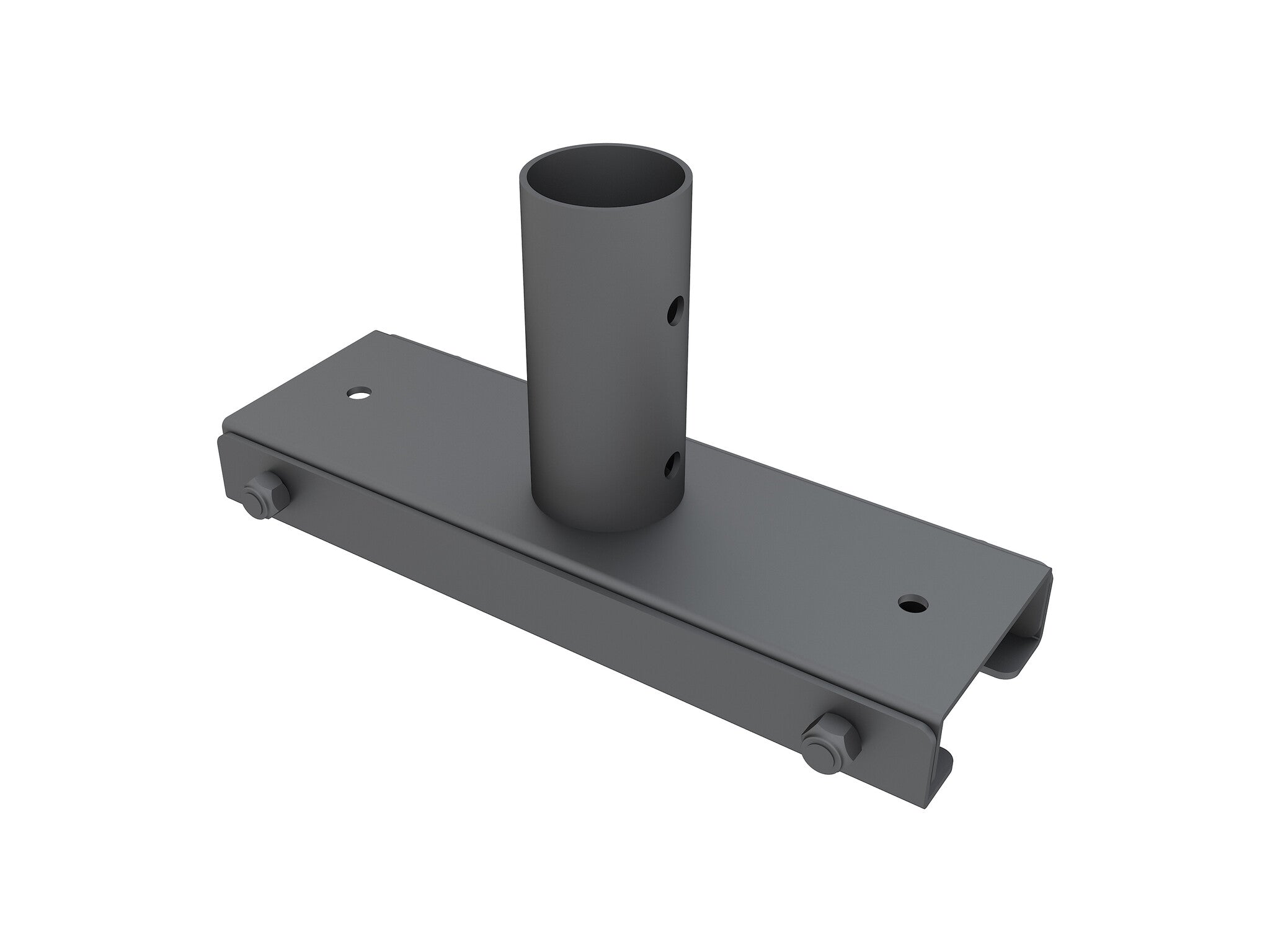

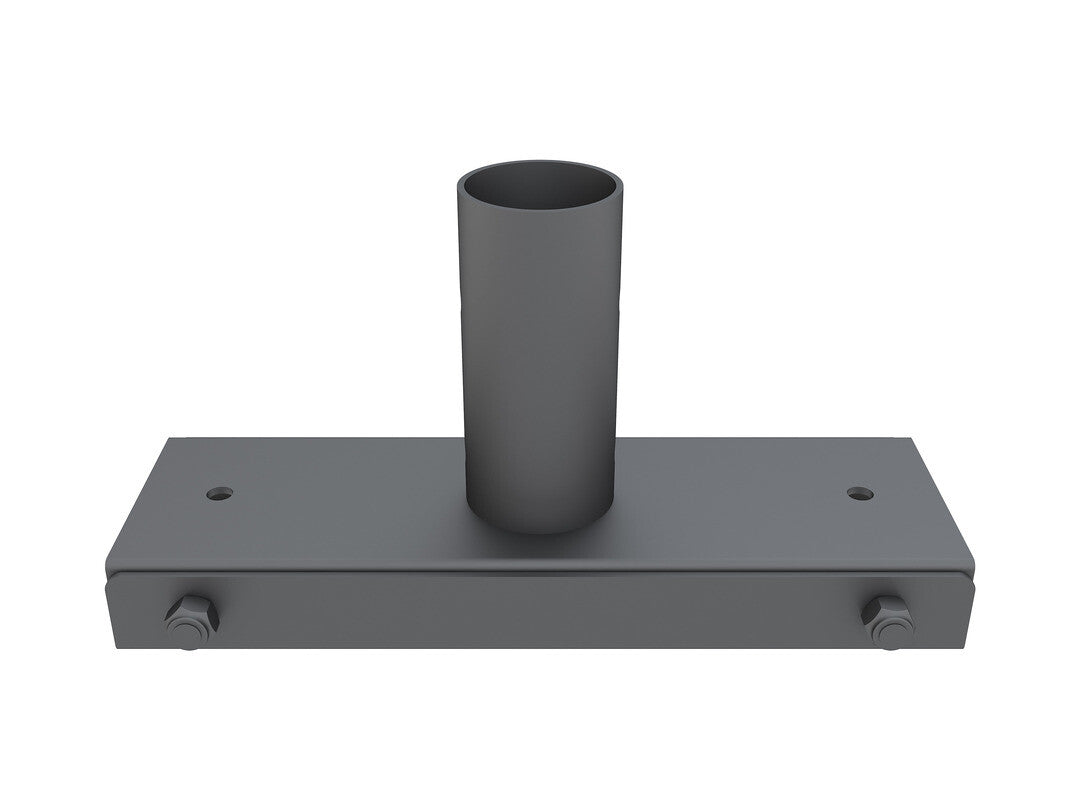

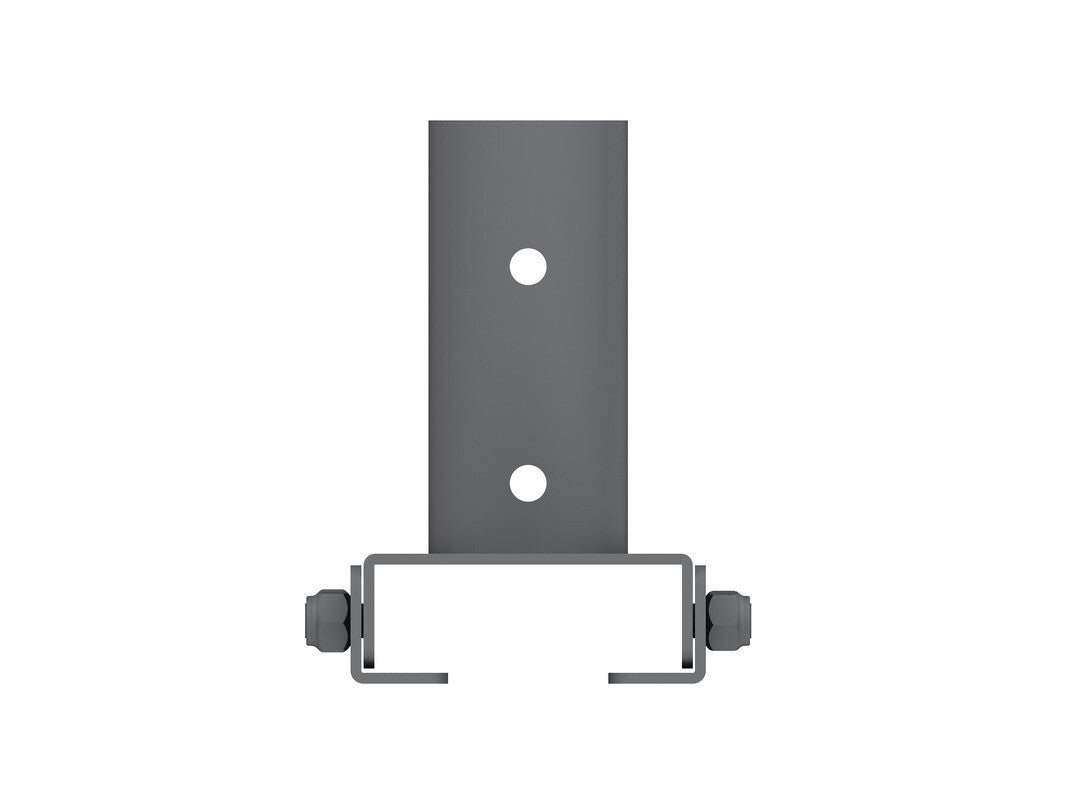

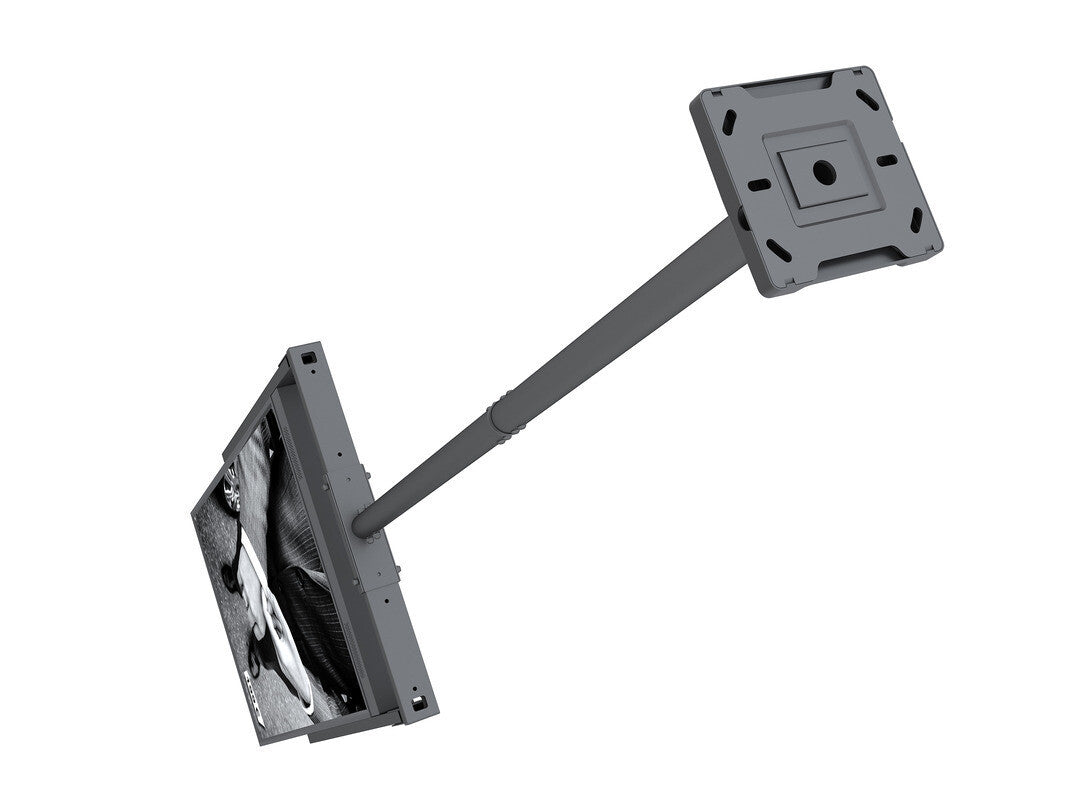

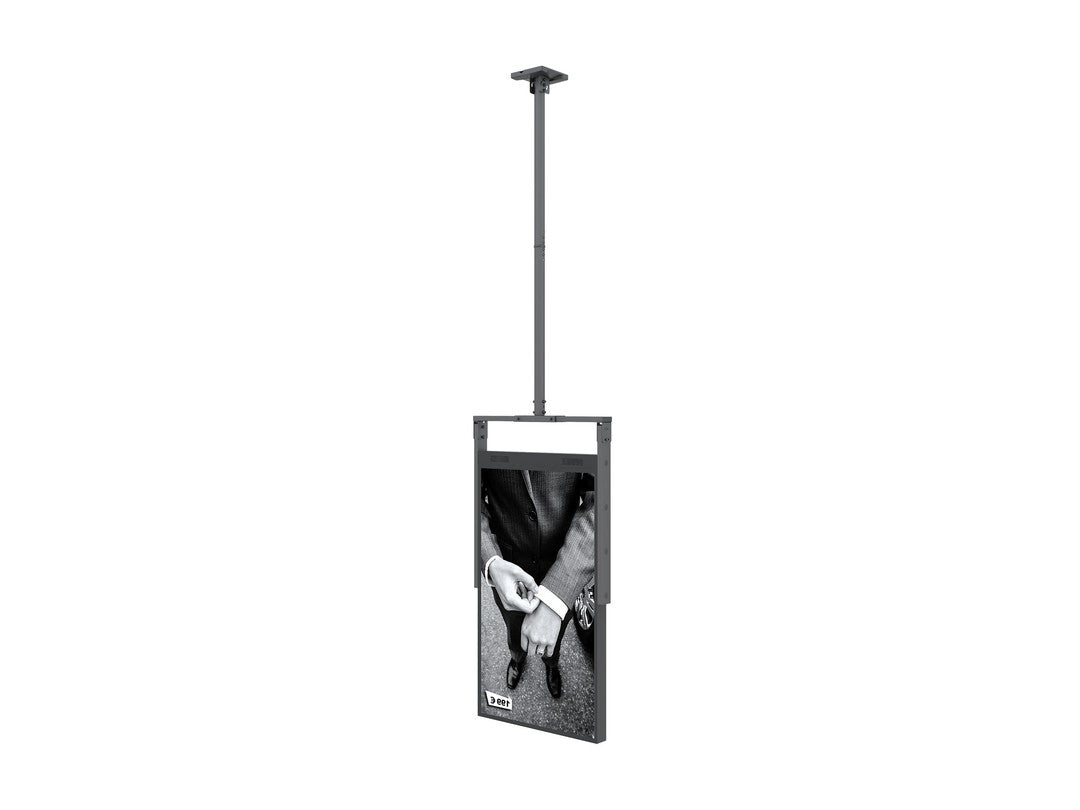

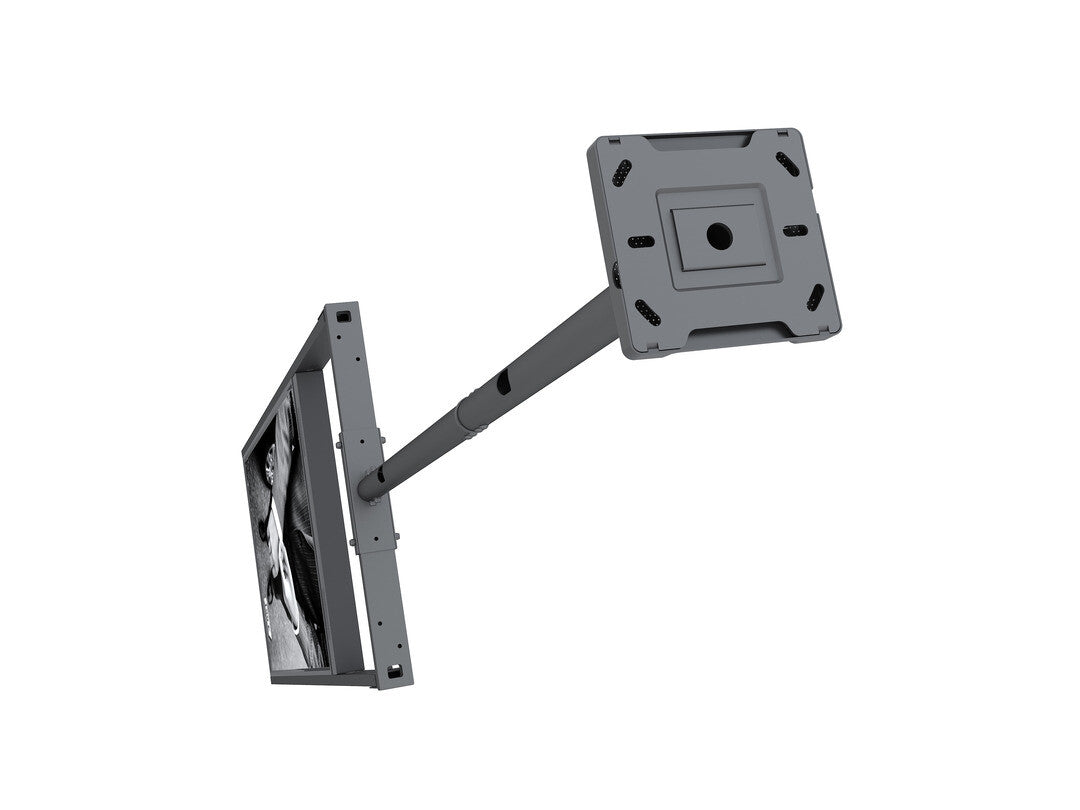

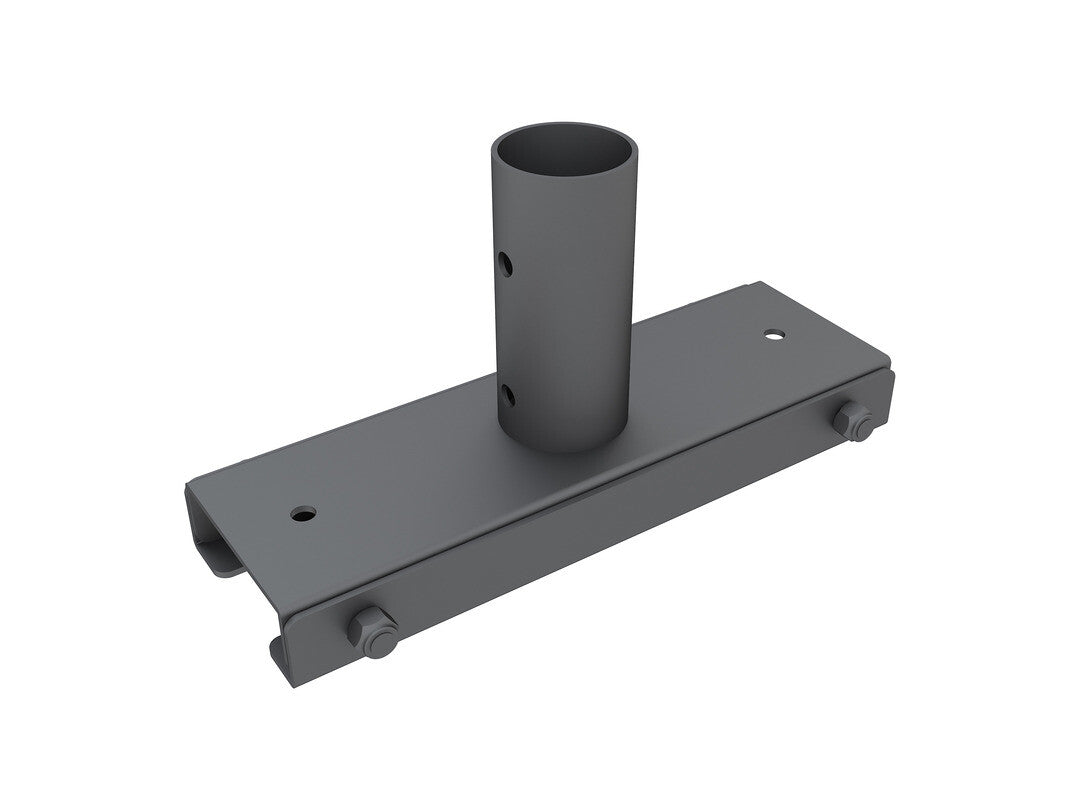

M Ceiling Extension Pro – OM55N-D/OM46N-D. This is an extension kit that works well with the M Ceiling Mount Pro OM55N-D M Ceiling Mount Pro OM46N-D. Multibrackets OM55N and OM46N Display Mounts are designed exclusively for Samsung OMN-D Series.
The M Ceiling Extension Pro part can be combined with other Pro Series parts and creates a possibility to mount the display in a ceiling that has even greater height.

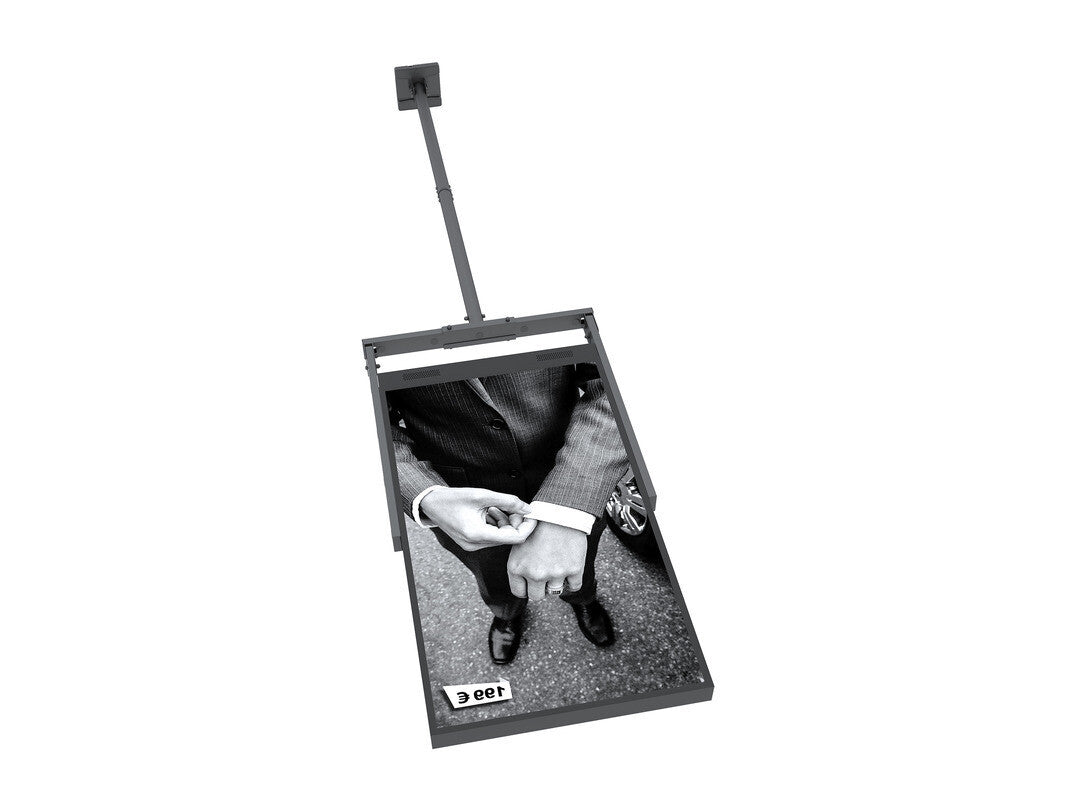

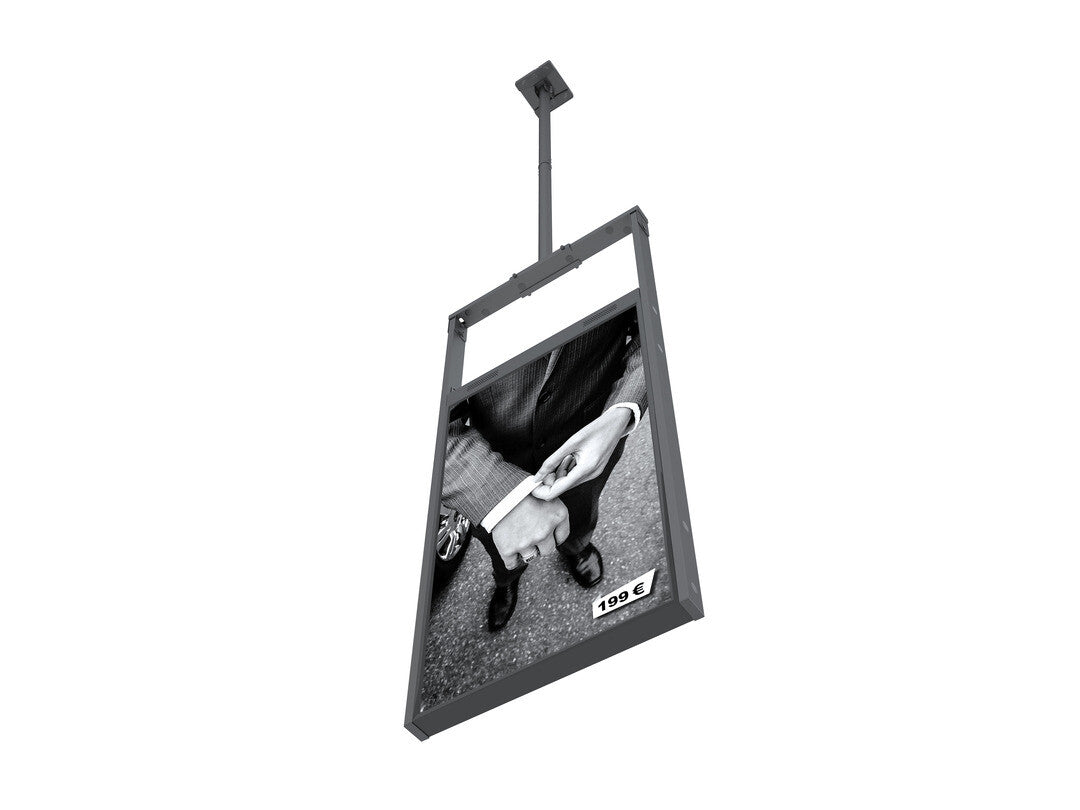

This sleek, powerful extension solution is the ideal solution to showcase eye-catching, digital signage content that can be seen from both inside and outside a store window with a high ceiling height. Combined this extension kit with the M Ceiling Mount Pro OM55N-D and OM46N-D and utilize a multitude of installer friendly features, including concealed cable management for a professional appearance. This versatile solution can be adapted to suit a wide range of retail and commercial applications
| Features | |
|---|---|
| Compatibility | Samsung OM55N-D/OM46N-D |
| Swivel angle | 360° |
| Angle of rotation | 8° |
| Tilt angle range | 0 - 15° |
| Cable management | Yes |
| Number of displays supported | 1 |
| Minimum screen size | 116.8 cm (46") |
| Maximum screen size | 139.7 cm (55") |
| Panel mounting interface | 100 x 100,200 x 200 mm |
| Mounting type | Ceiling |
| Maximum weight capacity | 30 kg |
| Housing material | Steel |
| Product colour | Black |
| Product type | Extension kit |
| Weight & dimensions | |
|---|---|
| Other metals content weight | 0 g |
| Steel content weight | 13.8 kg |
| Aluminium content weight | 0 g |
| Diameter | 150 cm |
| Width | 690 mm |
| Depth | 200 mm |
| Height | 1780 mm |
| Weight | 13.8 kg |
| Packaging data | |
|---|---|
| Package type | Box |
| Package height | 139 mm |
| Package width | 111 mm |
| Package depth | 262 mm |
| Package weight | 15 kg |
| Technical details | |
|---|---|
| Paper/cardboard packaging weight | 1.1 kg |
| Metal packaging weight | 0 g |
| Plastic packaging weight | 120 g |
| Logistics data | |
|---|---|
| Products per shipping (inner) case | 10 pc(s) |
| Shipping (inner) case gross weight | 17.4 kg |
| Shipping (inner) case height | 29.3 cm |
| Shipping (inner) case length | 58 cm |
| Shipping (inner) case width | 27.5 cm |
