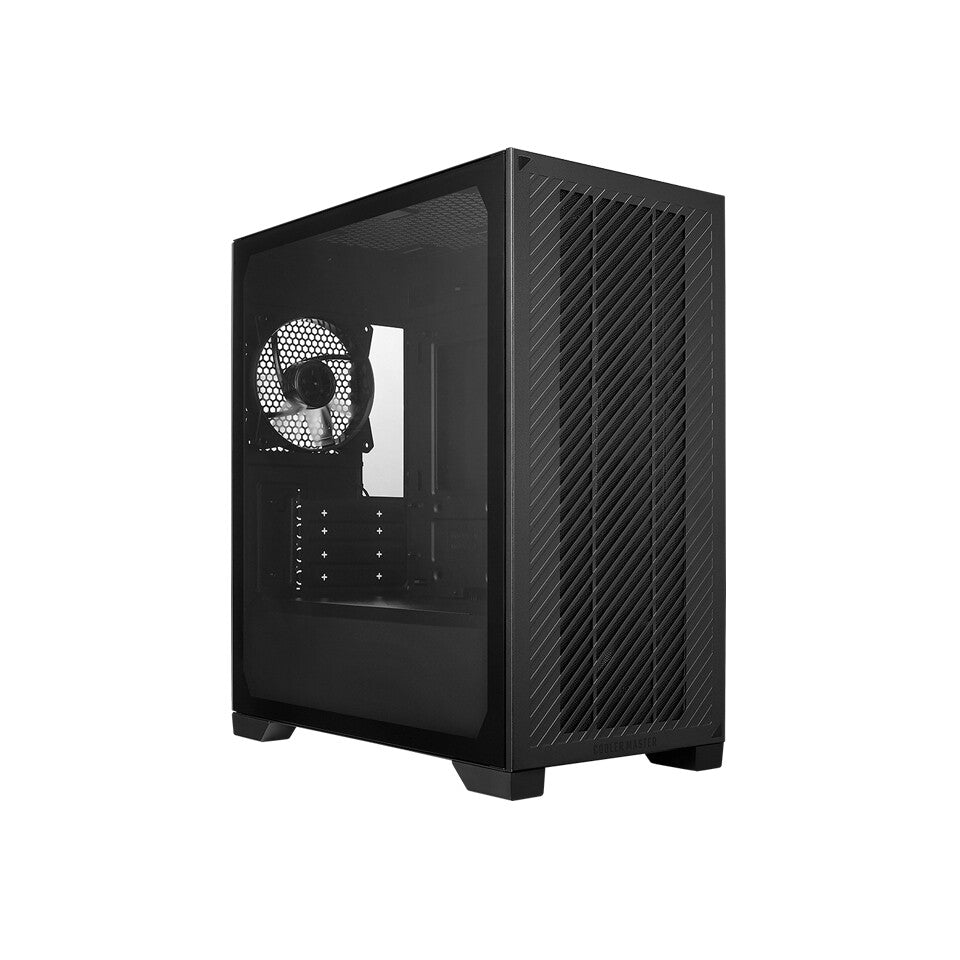

Cooler Master Elite 301 Lite Mini Tower Black
Couldn't load pickup availability
- Mini Tower PC
- ITX, micro ATX
- Supported HDD sizes: 2.5,3.5"
- Number of 2.5" bays: 1 Number of 3.5" bays: 1
- Side window Anti-dust filter
- Steel, Plastic, Tempered glass
- Black
High in value and attention to detail, Cooler Master’s Elite 301 lite offers users a cost effective, space conscious solution to gaming and computing needs.
Elite 301 features a large intake grill to ensure a smooth, and efficient running system. The fully black coating and included PSU cover allows for clean builds that are visually appealing as well as functional.

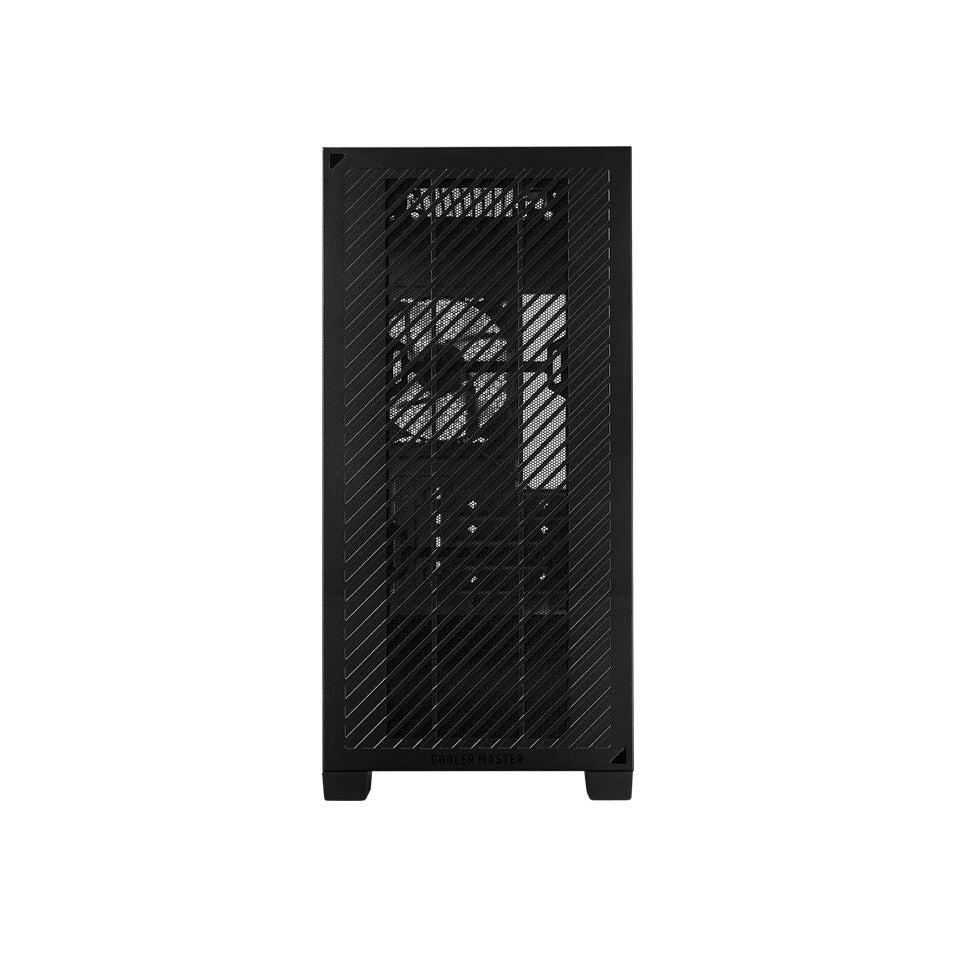

Tool-less Intake Panel
Constructed with a substantially large, unrestricted intake grill to ensure that the system runs cool and efficiently. The front panel could be easily removed by magnets, making it easier for daily maintenance.
Versatile Cooling Options
Supports up to six fans and 280mm radiator to ensure that performance is not compromised.
Large Support, Minimized Footprint
Despite its compact size, Elite 301 lite supports up to 365mm graphics cards, 163.5mm CPU Coolers, providing solid potential for future upgrades.
Breathable Power Supply Shroud
The PSU cover is ventilated on top of the power supply location, allowing actively cooled units to be installed in multiple orientations, while maintaining support for passively cooled power supplies.
USB Type-C Support
USB Type C port built into the I/O panel allows multi-purpose, streamlined data transmission.
| Design | |
|---|---|
| Form factor | Mini Tower |
| Type | PC |
| Material | Steel, Plastic, Tempered glass |
| Product colour | Black |
| Supported motherboard form factors | ITX, micro ATX |
| Number of 3.5" bays | 1 |
| Number of 2.5" bays | 1 |
| Number of expansion slots | 4 |
| Side window | Yes |
| Anti-dust filter | Yes |
| Cable management | Yes |
| Maximum CPU cooler height | 16.4 cm |
| Maximum graphics card length | 36.5 cm |
| Maximum PSU length | 16 cm |
| Power supply | |
|---|---|
| Power supply included | No |
| Supported power supply form factors | ATX |
| Ports & interfaces | |
|---|---|
| USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity | 1 |
| Audio input | Yes |
| Audio output | Yes |
| USB Type-C ports quantity | 1 |
| Cooling | |
|---|---|
| Number of front fans supported (max) | 3 |
| Front fans diameters supported | 120 mm |
| Rear fans installed | 1x 120 mm |
| Number of rear fans supported (max) | 1 |
| Rear fans diameters supported | 120 mm |
| Number of top fans supported (max) | 2 |
| Top fans diameters supported | 120,140 mm |
| Front radiator sizes supported | 120,140 mm |
| Rear radiator sizes supported | 120 mm |
| Top radiator sizes supported | 120,140,240,280 mm |
| General | |
|---|---|
| Product family | Elite |
| Storage | |
|---|---|
| Supported HDD sizes | 2.5,3.5" |
| Weight & dimensions | |
|---|---|
| Width | 203.5 mm |
| Depth | 390 mm |
| Height | 430 mm |
| Weight | 5.14 kg |
| Packaging data | |
|---|---|
| Package width | 266 mm |
| Package depth | 477 mm |
| Package height | 446 mm |
| Package weight | 6.05 kg |
| Other features | |
|---|---|
| Volume | 34.13 L |
