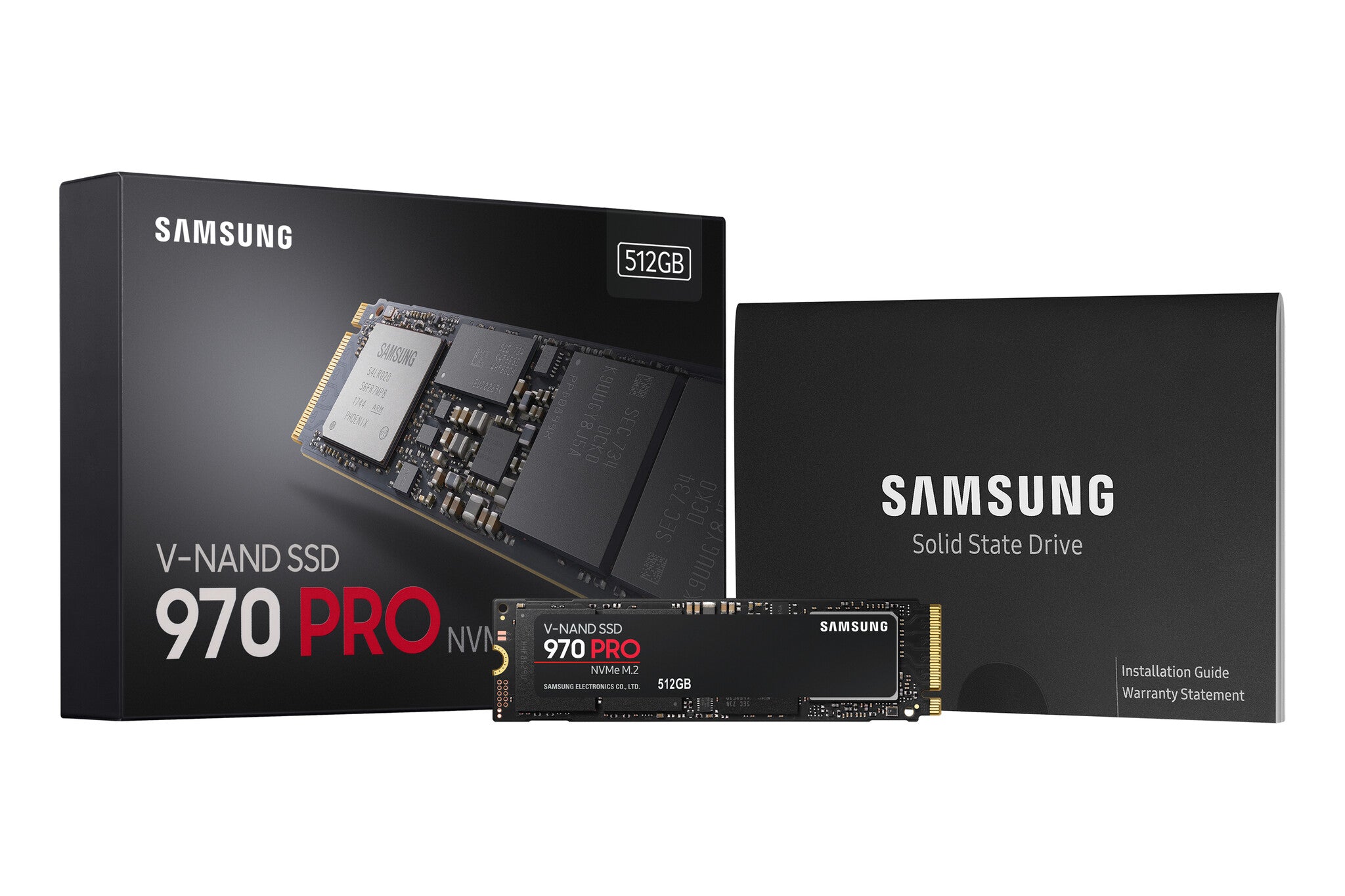

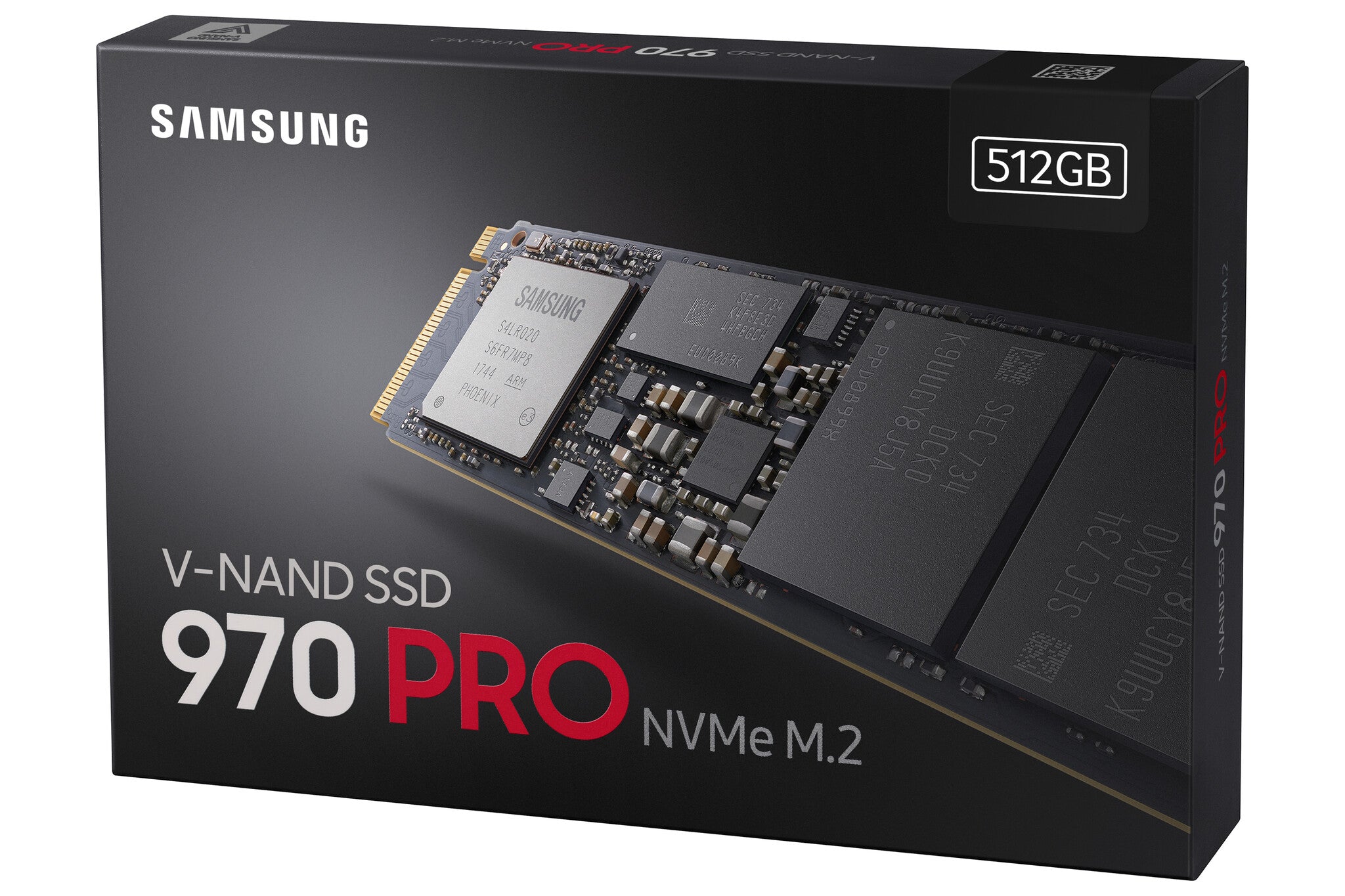

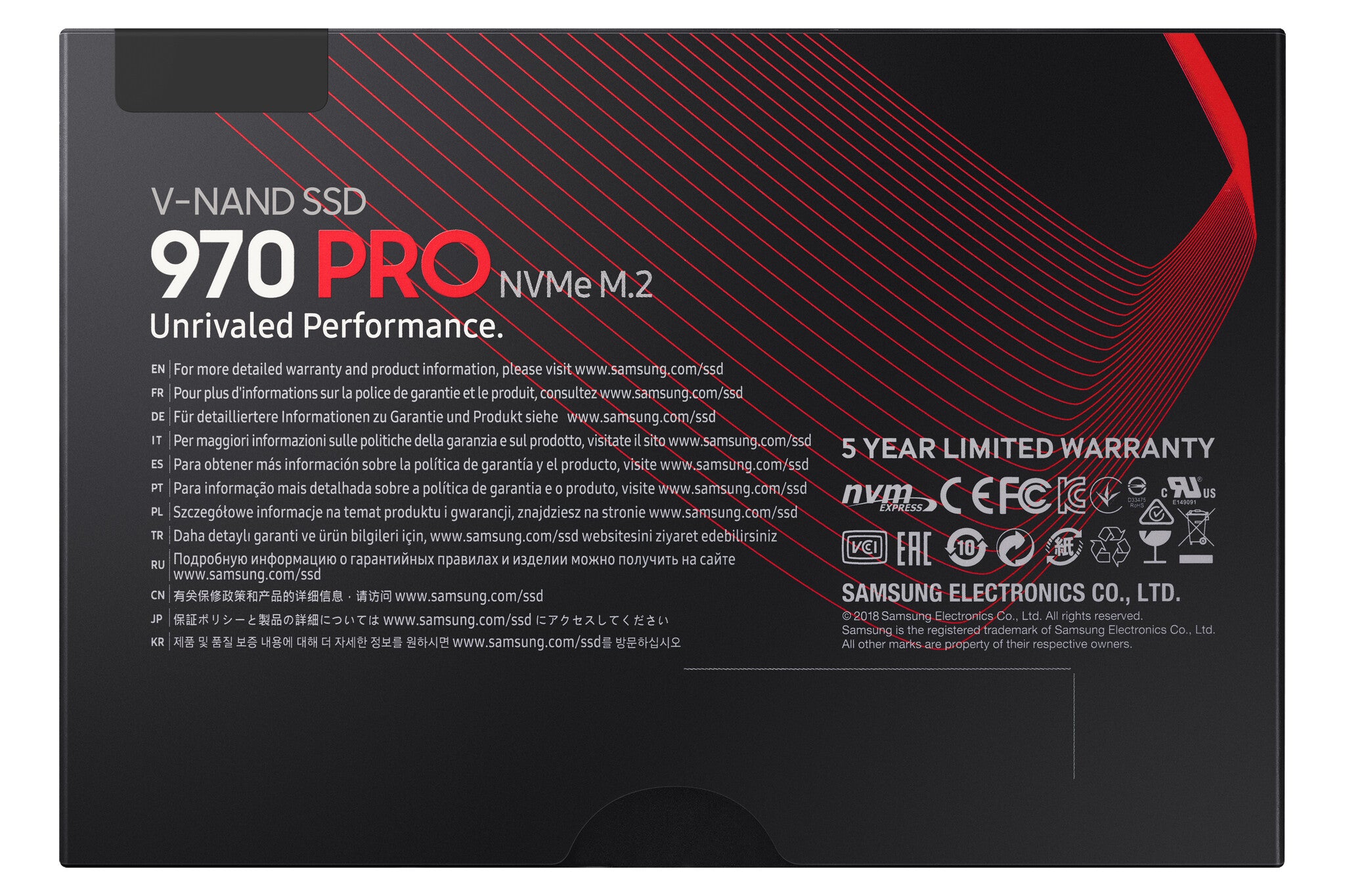

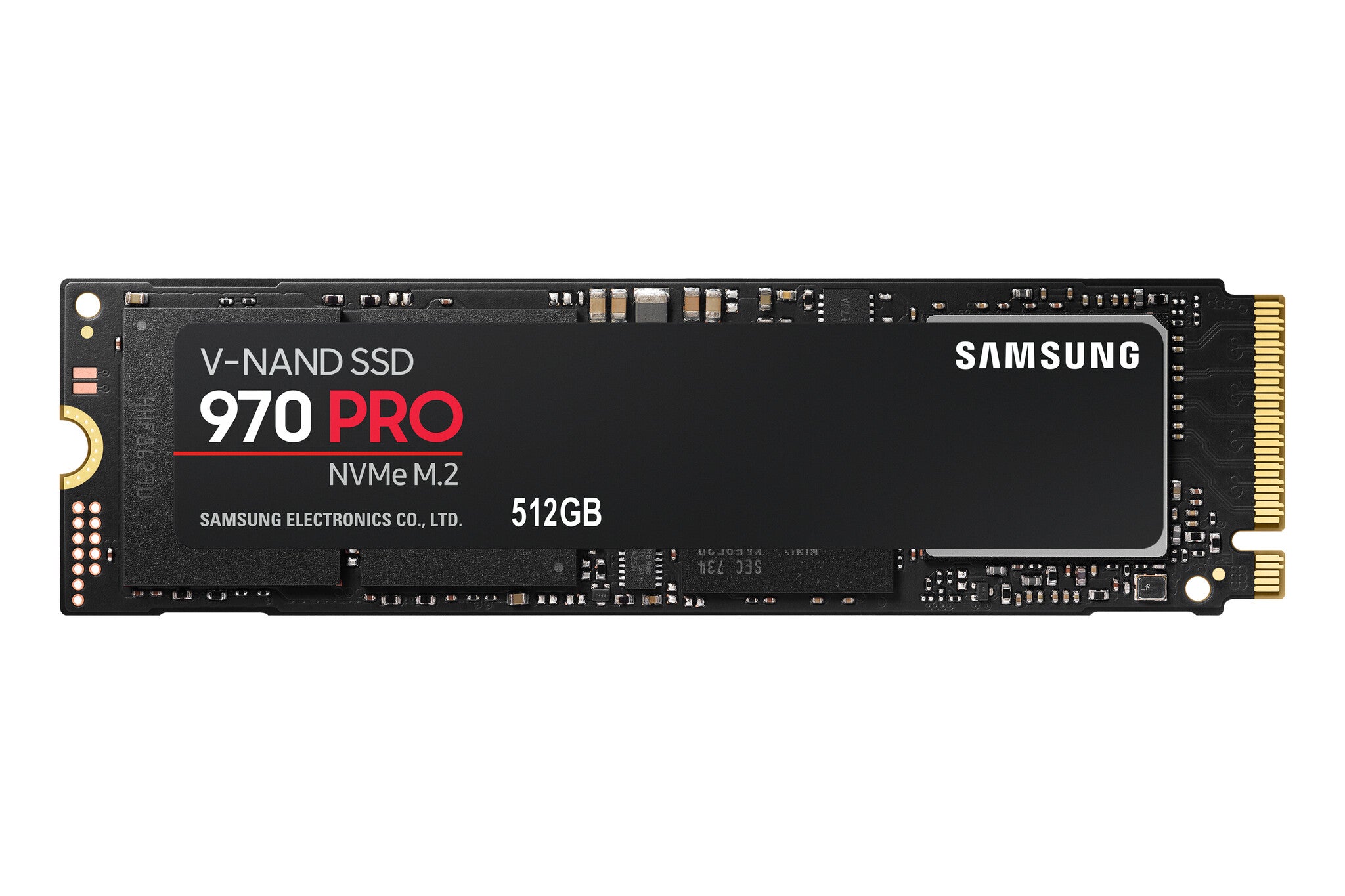

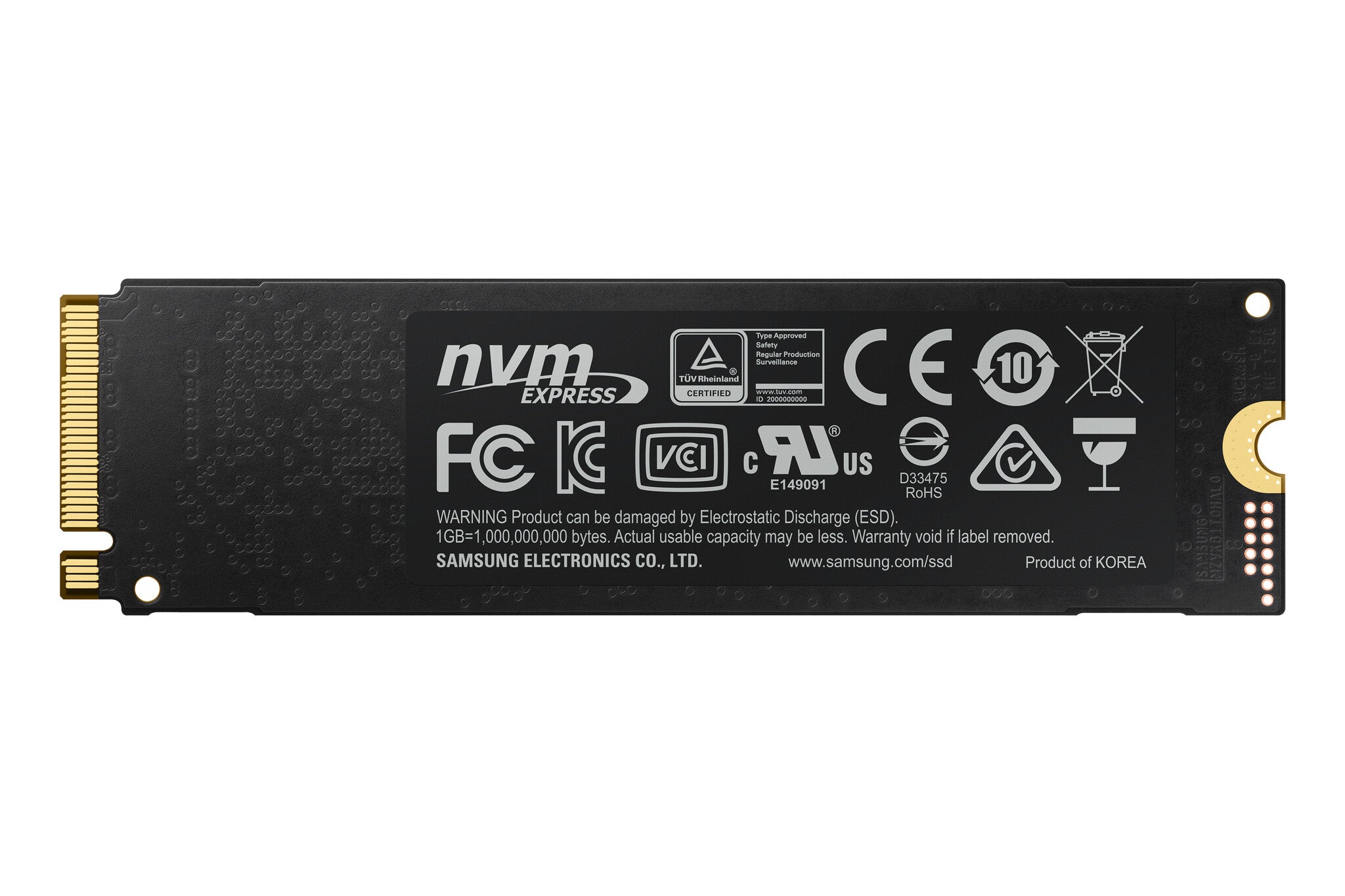

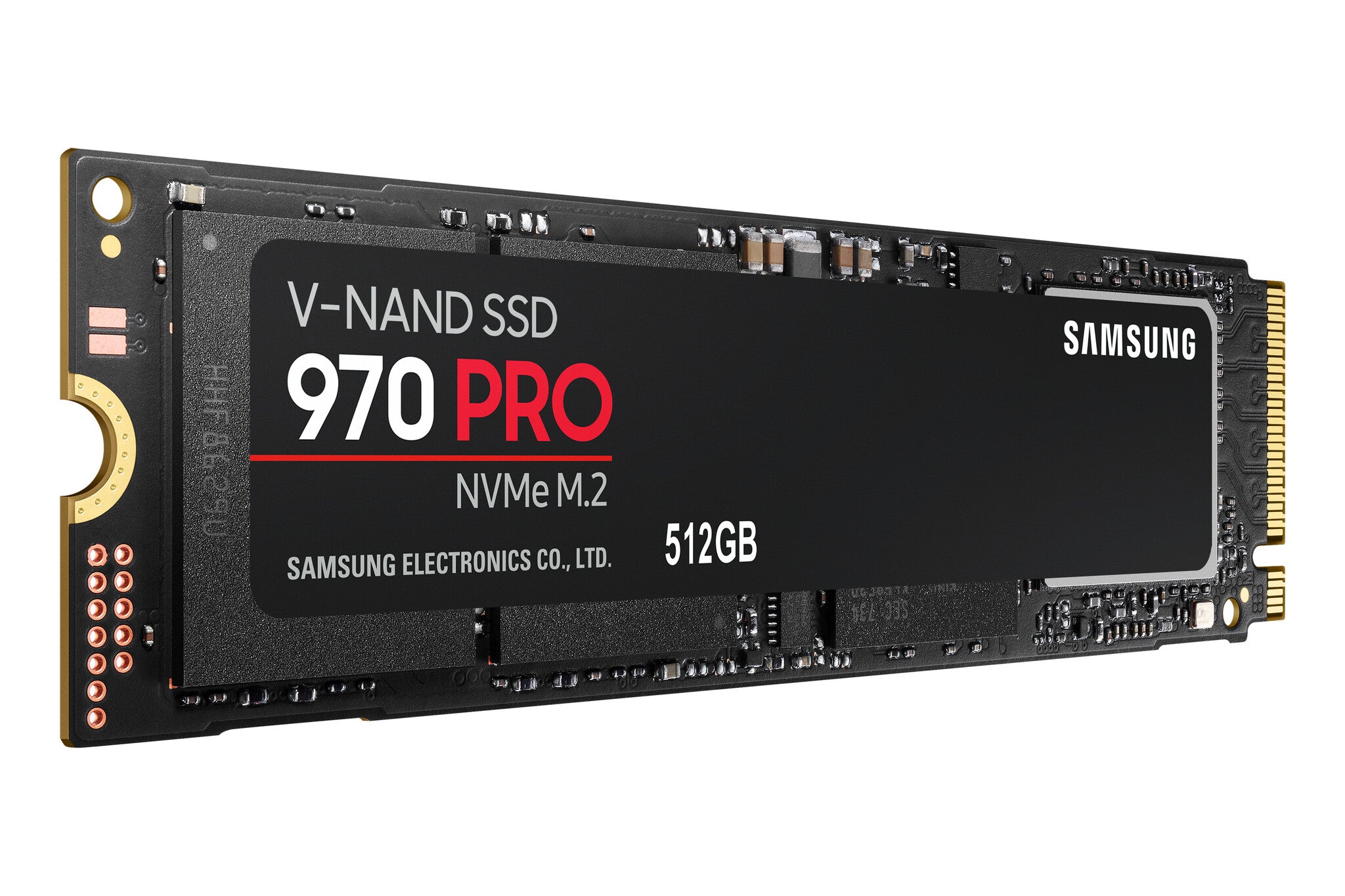

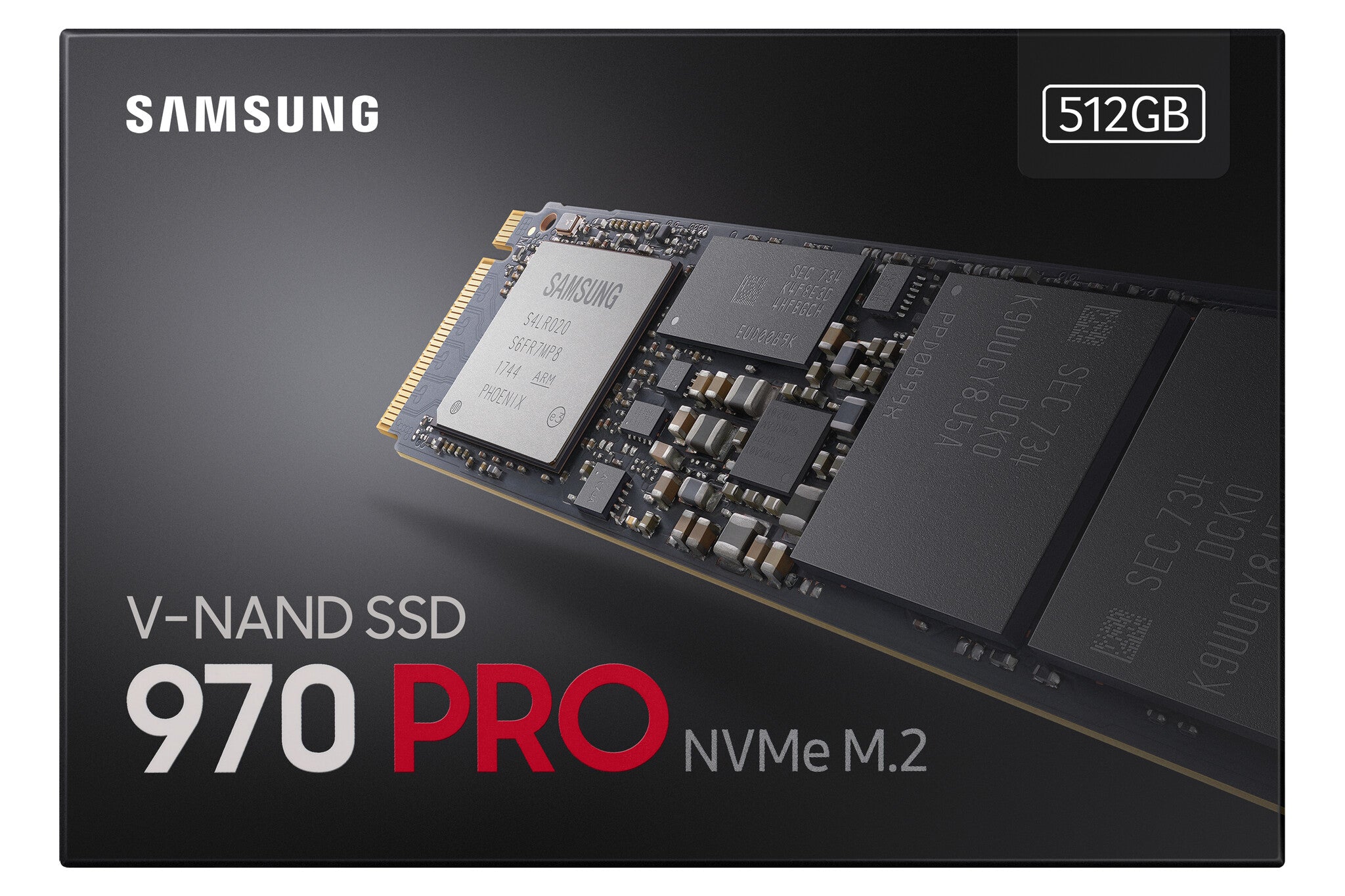

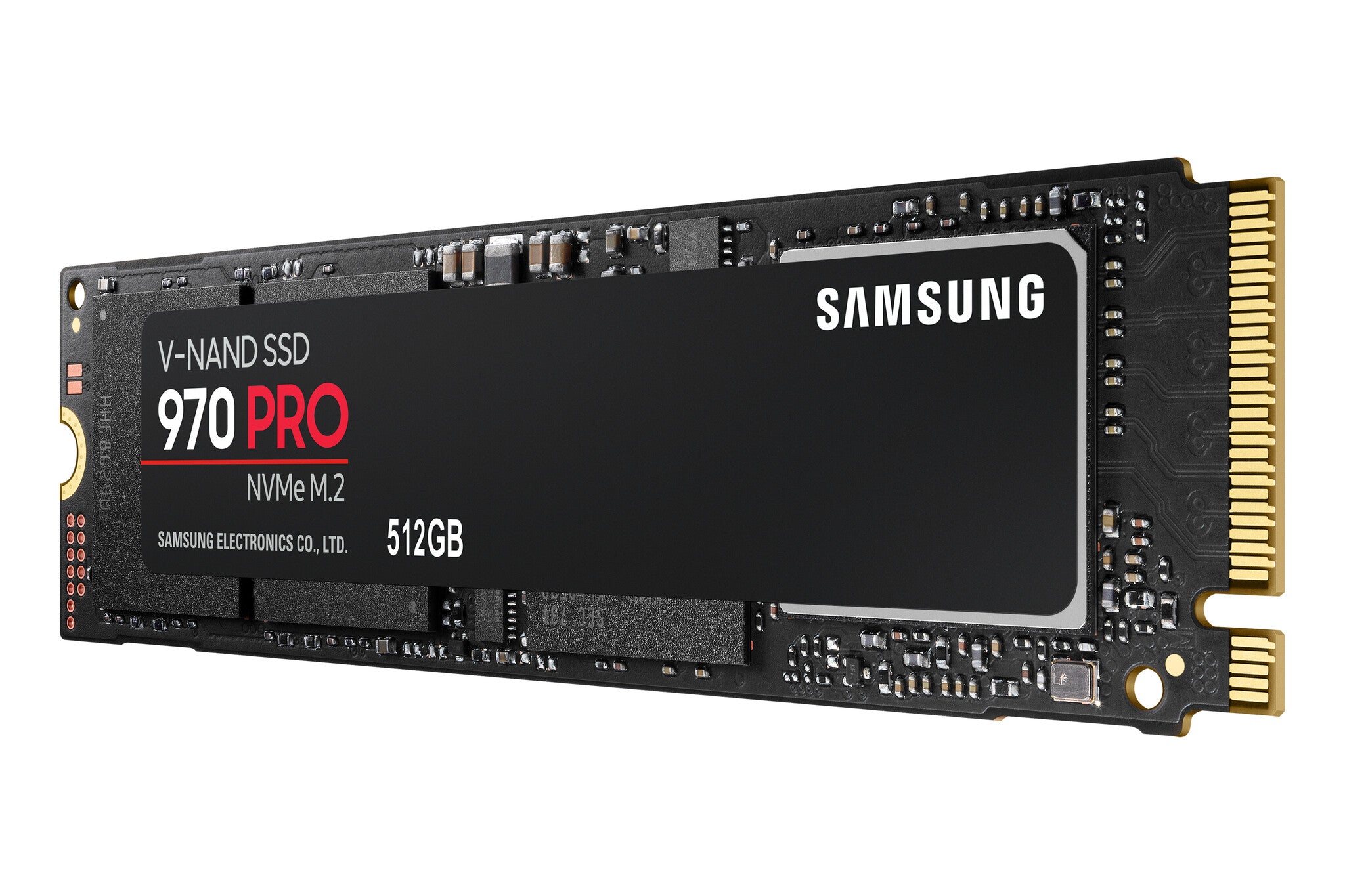

Samsung 970 PRO 512 GB M.2 PCI Express 3.0 NVMe V-NAND MLC
Couldn't load pickup availability
- Read/write speeds of 3500/2300 MB/S
- TBW-600 TB
- Dynamic Thermal Guard technolog
The SSD that goes beyond
Experience the best. For intensive workloads on PCs and workstations, the 970 PRO gives utmost performance enabled by Samsung†s NVMe™ SSD leadership. The latest V-NAND technology and new Phoenix controller in a compact M.2 (2280) form factor surpass the demands of tech enthusiasts and professionals.
Fearless Performance
Performance that puts you in command. The 970 PRO combines the next-gen PCIe Gen 3x4 NVMe interface with the latest V-NAND technology and a newly enhanced Phoenix controller to achieve fearless read/write speeds of up to 3,500/2,700 MB/s[1] , approximately 30 percent faster than the previous generation.
Exceptional Endurance
Get the ultimate sustainable performance. The 970 PRO delivers up to 1,200 TBW[2] with a 5-year limited warranty, achieving 50 percent greater endurance than the previous generation, all powered by the latest V-NAND technology.
Unparalleled Reliability
Achieve a new level of drive confidence. Samsungs advanced nickel-coated controller and heat spreader on the 970 PRO enable superior heat dissipation. The Dynamic Thermal Guard automatically monitors and maintains optimal operating temperatures to minimise performance drops.
Samsung Magician
Advanced drive management made simple. The Samsung Magician software will help you keep an eye on your drive. A suite of user-friendly tools helps keep your drive up to date, monitor drive health and speed, and even boost performance.
| Features | |
|---|---|
| TCG Opal 2.0 | Yes |
| Opal SSC 2.0 | Yes |
| Mean time between failures (MTBF) | 1500000 h |
| S.M.A.R.T. support | Yes |
| TRIM support | Yes |
| DevSlp (device sleep) support | Yes |
| PCI Express interface data lanes | x4 |
| Controller type | Samsung Phoenix |
| Random write (4KB) | 500000 IOPS |
| Random read (4KB) | 370000 IOPS |
| Write speed | 2300 MB/s |
| Read speed | 3500 MB/s |
| M.2 SSD size | 2280 (22 x 80 mm) |
| Security algorithms | 256-bit AES |
| Component for | PC |
| NAND flash type | MLC (Multi Level Cell) |
| Memory type | V-NAND MLC |
| NVMe version | 1.3 |
| NVMe | Yes |
| Interface | PCI Express 3.0 |
| SSD form factor | M.2 |
| SSD capacity | 512 GB |
| Power | |
|---|---|
| Power consumption DevSlp (device sleep) | 5 mW |
| Power consumption (idle) | 0.03 W |
| Power consumption (average) | 5.2 W |
| Power consumption (max) | 8.5 W |
| Power consumption (write) | 5.2 W |
| Power consumption (read) | 5.2 W |
| Operating voltage | 3.3 V |
| Weight & dimensions | |
|---|---|
| Weight | 8 g |
| Height | 22.1 mm |
| Depth | 2.38 mm |
| Width | 80.2 mm |
| Packaging data | |
|---|---|
| Package weight | 78 g |
| Package height | 21.7 mm |
| Package depth | 98.1 mm |
| Package width | 143.4 mm |
| Operational conditions | |
|---|---|
| Non-operating shock | 1500 G |
| Operating shock | 1500 G |
| Non-operating vibration | 20 G |
| Storage relative humidity (H-H) | 5 - 95% |
| Operating relative humidity (H-H) | 5 - 95% |
| Storage temperature (T-T) | -45 - 85 °C |
| Operating temperature (T-T) | 0 - 70 °C |
| Other features | |
|---|---|
| Launch date | 4/16/2018 |
| Compliance certificates | RoHS |
| Product colour | Black |
| Logistics data | |
|---|---|
| Harmonized System (HS) code | 84717070 |
